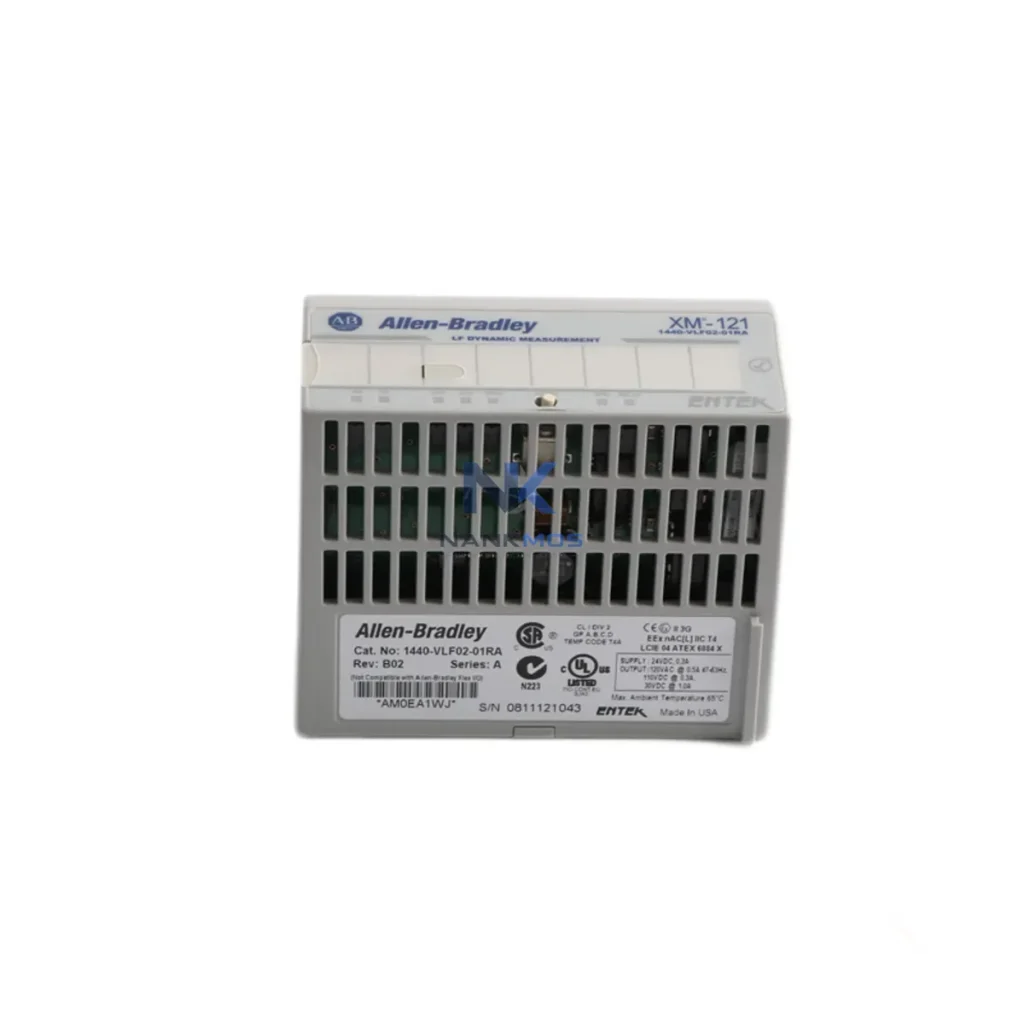

Allen-Bradley 1440-VLF02-01RA Vibration Monitoring Module

Product Details

1440-VLF02-01RA Product Description

The Allen-Bradley 1440-VLF02-01RA is engineered as a system-native vibration monitoring module within the Rockwell Automation XM Series architecture. Rather than functioning as a standalone instrument, it is designed to operate as a cohesive element of a layered industrial control platform — delivering real-time dynamic measurement data directly into the control and protection hierarchy.

At the control layer, the 1440-VLF02-01RA interfaces seamlessly with ControlLogix L71 / L73 / L83 CPUs via the 1440-ACNR15-04S ControlNet Adapter, enabling the PLC to receive vibration trip and alert status as structured process tags within Studio 5000 Logix Designer. This tight integration eliminates the need for separate relay wiring to the controller, reducing panel complexity and improving diagnostic transparency. The module's relay output (RA suffix) provides hardwired trip contacts for direct integration into safety relay circuits or motor protection relays, supporting both SIL-rated and conventional protection loops.

At the I/O and signal layer, the 1440-VLF02-01RA accepts inputs from industrial accelerometers (such as the 42GEF-9002-QD series) and velocity transducers mounted on rotating machinery — pumps, compressors, fans, gearboxes, and turbines. Signal conditioning is performed on-module, with configurable measurement parameters including overall RMS, peak, and waveform capture. When deployed alongside the 1440-TPS02-01RB Temperature Module and 1440-SPD02-01RA Speed Module on the same XM DIN-rail backplane, the system delivers a comprehensive machine health profile covering vibration, temperature, and speed — all within a single coordinated monitoring architecture.

At the communication layer, the XM Series expansion bus connects multiple 1440-series modules — including the 1440-VST02-01RA Tachometer Module and 1440-VLF02-01RB Low-Frequency Vibration Module — into a unified monitoring node. The 1440-ACNR15-04S ControlNet Adapter bridges this node to the ControlLogix backplane, while 1756-EN2T EtherNet/IP communication modules extend remote monitoring capability to FactoryTalk View SE SCADA and FactoryTalk AssetCentre for centralized asset management. This architecture supports both local panel-level alarming and plant-wide condition monitoring integration.

At the power layer, the XM Series relies on a dedicated 1440-PSDC24-01R DIN-rail power supply module to deliver stable 24 VDC to all connected monitoring modules. Redundant power input configurations are supported at the system level, ensuring continuous monitoring availability even during power source transitions — a critical requirement in rotating machinery protection applications where monitoring gaps can result in undetected bearing failures or shaft damage.

At the HMI and visualization layer, vibration data from the 1440-VLF02-01RA is surfaced through FactoryTalk View ME / SE displays and PanelView Plus 7 terminals, providing operators with real-time trend visualization, alarm acknowledgment, and historical waveform review. Integration with FactoryTalk AssetCentre enables automated audit trails, firmware version control, and configuration backup for all XM Series modules — supporting IEC 62443 cybersecurity compliance and long-term maintenance documentation requirements.

This system-level design philosophy — where the 1440-VLF02-01RA functions as a coordinated node within a broader Rockwell Automation control architecture — ensures consistent signal integrity, simplified commissioning, reduced wiring overhead, and a unified engineering environment from sensor to SCADA.

Power Generation & Energy: In gas turbine and steam turbine protection systems, the 1440-VLF02-01RA provides continuous shaft vibration monitoring with hardwired relay trip outputs, enabling automatic machine shutdown upon exceeding API 670 vibration limits. Paired with ControlLogix safety controllers and 1440-SPD02-01RA speed modules, it supports overspeed and vibration protection in combined-cycle power plants and cogeneration facilities.

Petrochemical & Refining: In compressor trains and centrifugal pump systems, the module monitors bearing housing vibration and provides early warning of rotor imbalance, misalignment, and bearing degradation. Integration with FactoryTalk AssetCentre enables predictive maintenance scheduling, reducing unplanned downtime in continuous process environments where machinery availability is critical to production throughput.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the 1440-VLF02-01RA on high-service pumps and blower units, where continuous vibration monitoring supports condition-based maintenance programs. The module's DIN-rail form factor and XM expansion bus architecture simplify installation in compact MCC panels and remote pump station control cabinets.

Mining & Minerals Processing: In conveyor drive systems, ball mills, and crusher applications, the module provides vibration protection for large rotating machinery operating in high-dust, high-vibration environments. Its wide operating temperature range and robust signal conditioning ensure reliable measurement in harsh industrial conditions typical of underground and surface mining operations.

Marine & Offshore: Shipboard machinery monitoring systems utilize the 1440-VLF02-01RA for propulsion motor and auxiliary machinery protection, where DNV-GL and ABS classification requirements mandate continuous vibration monitoring with hardwired trip capability. The module's compact DIN-rail design suits space-constrained engine room panel installations.

Packaging & Discrete Manufacturing: In high-speed packaging lines and automated assembly systems, the module monitors servo motor and gearbox vibration, enabling predictive maintenance alerts before mechanical failures cause production line stoppages. Integration with Studio 5000 and FactoryTalk View provides maintenance teams with actionable vibration trend data directly within the existing Rockwell Automation engineering environment.

Q1: Is the 1440-VLF02-01RA compatible with existing ControlLogix and CompactLogix architectures without additional hardware?The 1440-VLF02-01RA connects to ControlLogix systems via the 1440-ACNR15-04S ControlNet Adapter or equivalent DeviceNet gateway, which bridges the XM Series expansion bus to the standard Rockwell Automation backplane. CompactLogix integration is supported through EtherNet/IP-capable XM gateway modules. No additional signal conditioning hardware is required — the module performs all dynamic measurement processing on-board, delivering structured process tags directly to the controller's I/O tree within Studio 5000.

Q2: How does the XM Series architecture support redundant vibration monitoring for critical rotating machinery?The XM Series supports redundant monitoring configurations by deploying dual 1440-VLF02-01RA modules on independent DIN-rail backplane segments, each connected to separate ControlNet or EtherNet/IP network paths. Relay outputs from both modules can be wired in series or parallel to protection relay circuits, providing voted trip logic (1oo2 or 2oo2) consistent with IEC 61511 functional safety requirements. Redundant 1440-PSDC24-01R power supply modules ensure continuous monitoring availability during power source failures.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for the 1440-VLF02-01RA?The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance from the date of shipment. Each unit undergoes pre-shipment functional testing including channel calibration verification, relay output continuity, and communication bus integrity checks. Typical lead time for in-stock units is 3–7 business days for global destinations. For urgent requirements, expedited shipping options are available. Contact [email protected] or +86 18359268345 for real-time stock confirmation and delivery scheduling.
