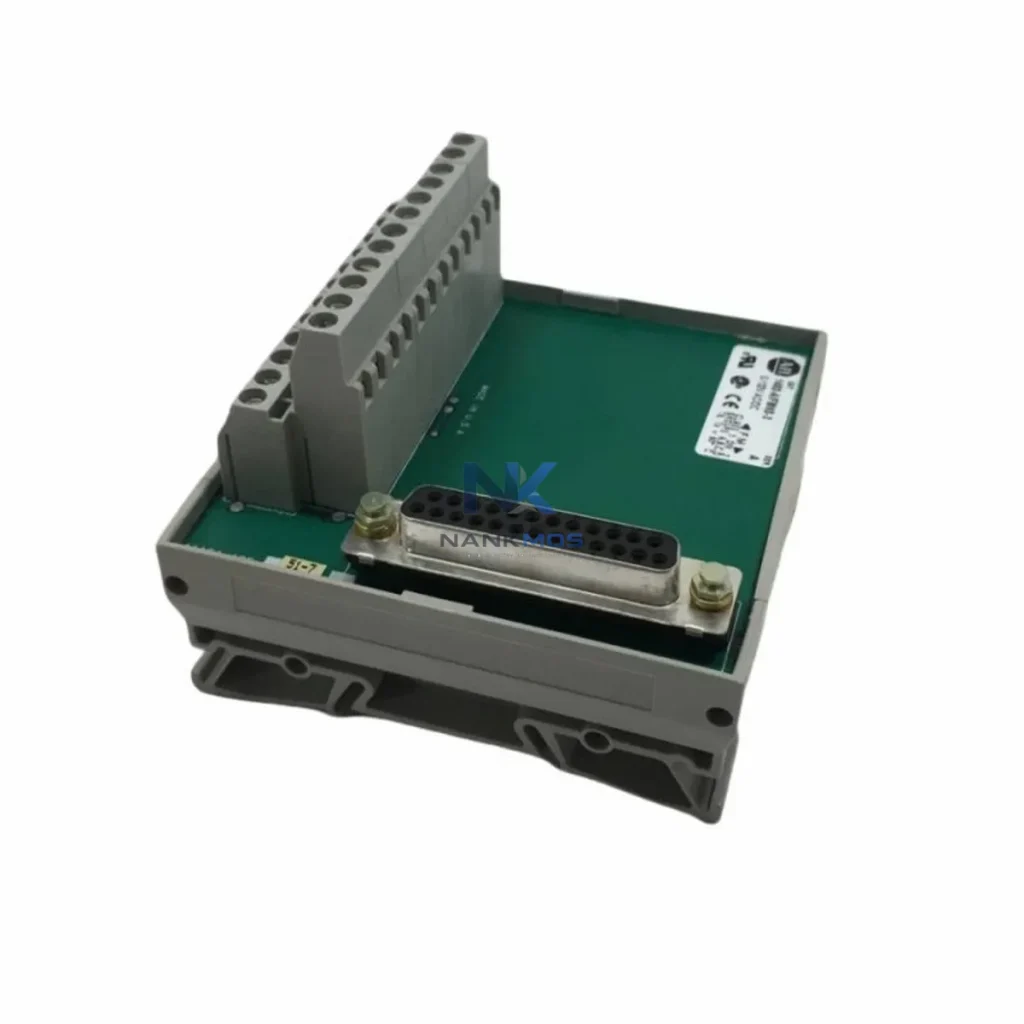

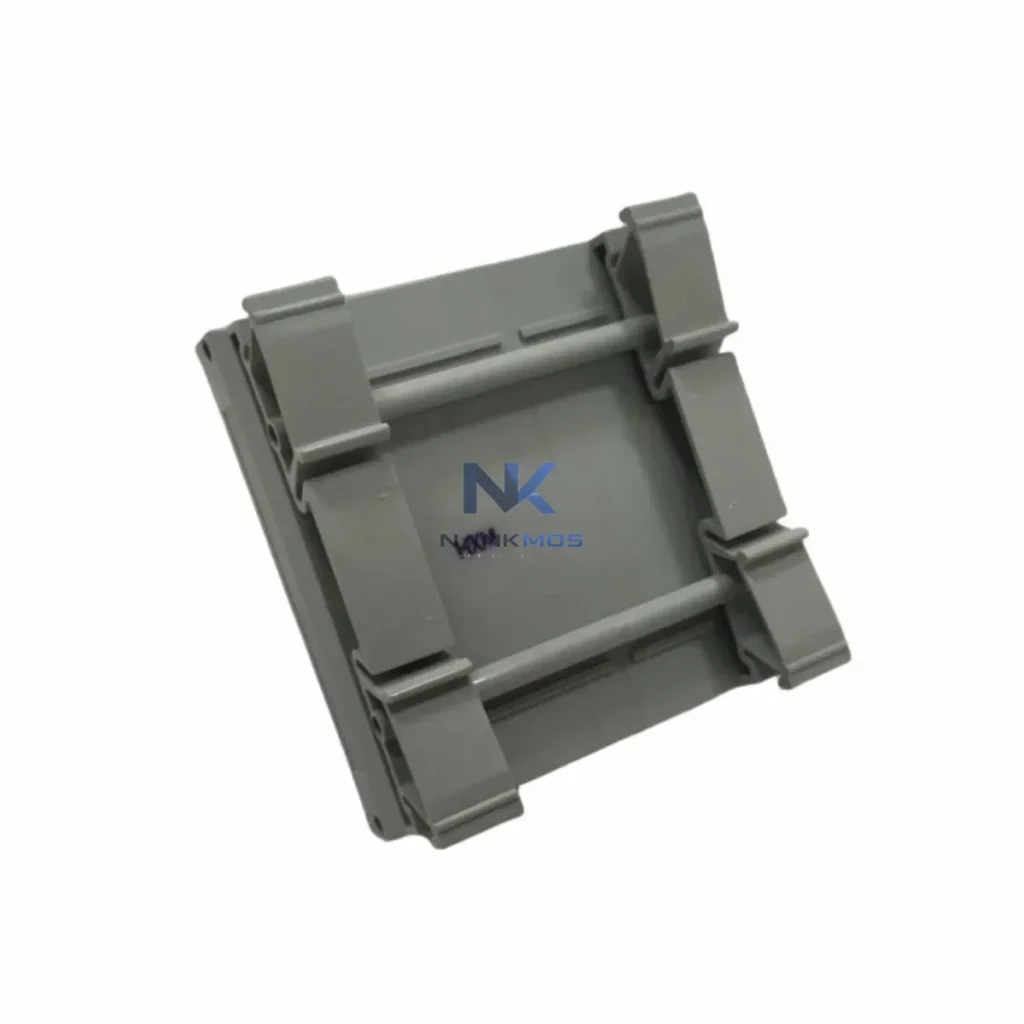

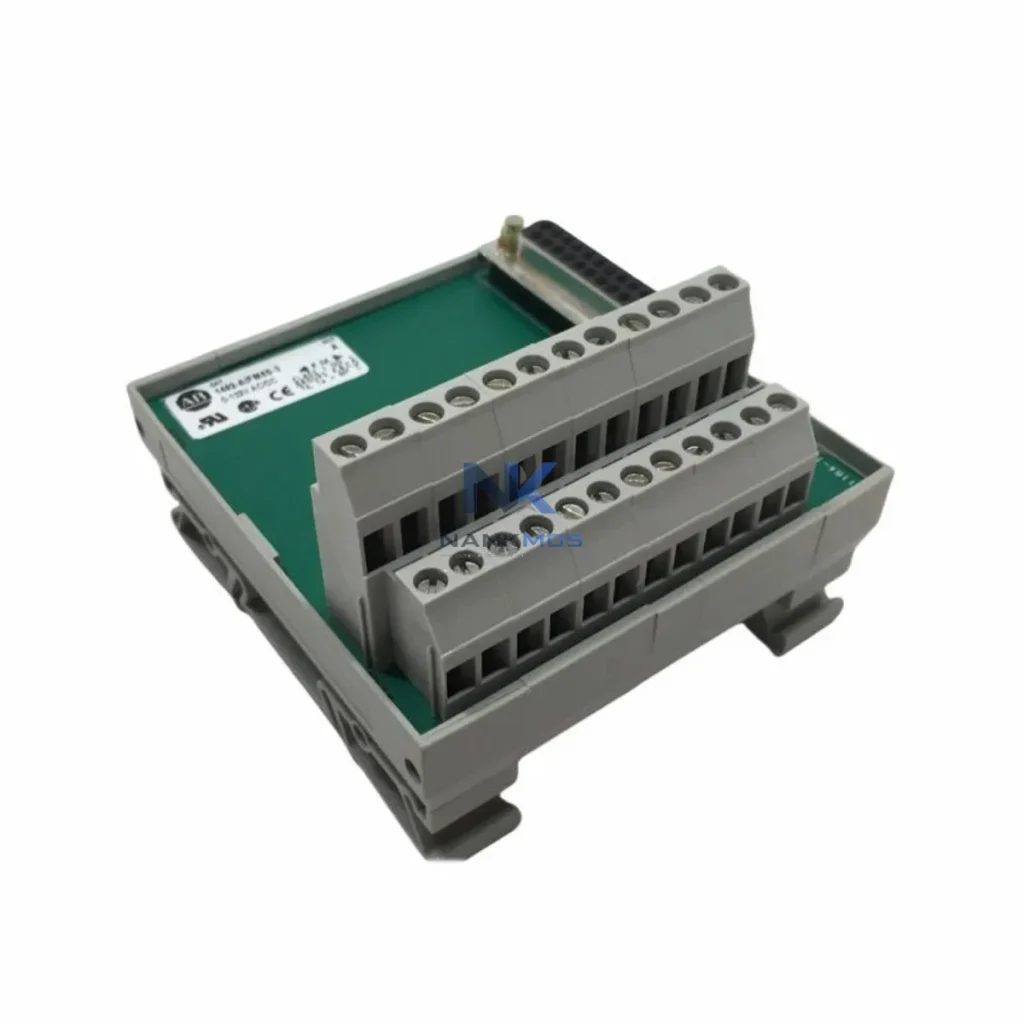

Allen-Bradley 1492-IFM40F-FS-2 Interface Module

Product Details

1492-IFM40F-FS-2 Product Description

The Allen-Bradley 1492-IFM40F-FS-2 is a 40-point fused interface module engineered for seamless integration within the 1492-IFM wiring system, purpose-built to support ControlLogix and CompactLogix I/O architectures. Designed for high-density field wiring environments, this module eliminates the need for individual terminal blocks by providing a structured, pre-wired interface between field devices and 1756 or 1769 I/O modules. Its fused design adds an essential layer of circuit protection at the field wiring level, reducing the risk of cascading faults across the control cabinet and improving overall system reliability.

In modern industrial automation platforms, the integrity of the I/O layer directly determines the responsiveness and diagnostic accuracy of the entire control system. The 1492-IFM40F-FS-2 addresses this requirement by providing a standardized, modular wiring interface that supports consistent signal routing from field instruments to the controller backplane. Whether deployed in a ControlLogix 5580 chassis or a CompactLogix 5380 panel, this module ensures that field-side wiring is organized, protected, and traceable — a critical requirement for both commissioning efficiency and long-term maintenance.

The module's 40-point fused configuration is particularly well-suited for applications where individual circuit protection is mandatory, such as in power generation switchgear panels, petrochemical process control cabinets, water treatment SCADA systems, and mining conveyor control architectures. Each fused circuit provides independent protection, allowing maintenance teams to isolate individual field loops without interrupting adjacent circuits — a significant advantage in continuous-process environments where unplanned downtime carries high operational cost.

From a system architecture perspective, the 1492-IFM40F-FS-2 operates at the intersection of the I/O layer and the field wiring layer, serving as the structured termination point that bridges physical field signals with the logical I/O map of the PLC program. When paired with a 1492-CABLE series pre-wired cable assembly, installation time is dramatically reduced, and the risk of wiring errors during commissioning is minimized. This cable-and-module approach is a recognized best practice in Rockwell Automation system design, enabling faster panel build cycles and more reliable factory acceptance testing (FAT).

Signal stability is a foundational requirement in any control architecture, and the 1492-IFM40F-FS-2 contributes directly to this objective. By providing a dedicated, fused termination point for each I/O channel, the module prevents cross-circuit interference and ensures that each field signal is cleanly routed to its corresponding I/O card. This is especially important in environments with high electromagnetic interference (EMI), such as variable frequency drive (VFD) panels, motor control centers (MCCs), and high-voltage switchgear rooms, where signal integrity must be actively managed at the wiring level.

The module's compatibility with the broader 1492-IFM product family — including the 1492-IFM40F (unfused variant), 1492-IFM20F (20-point fused), and 1492-IFM40D (diagnostic variant) — allows system architects to select the appropriate protection and diagnostic level for each zone of the control cabinet. This modular approach supports scalable panel design, where different I/O zones can be configured with different levels of circuit protection based on the criticality of the connected field devices.

In redundant control architectures, the 1492-IFM40F-FS-2 supports dual-path wiring configurations where field signals must be simultaneously available to both primary and standby controllers. This capability is essential in safety-instrumented systems (SIS) and high-availability process control applications, where the control system must maintain continuous operation even during a controller module failure. The structured wiring interface provided by the 1492-IFM40F-FS-2 simplifies the implementation of these redundant wiring schemes and reduces the complexity of the associated wiring documentation.

For engineering teams responsible for long-term system maintenance, the 1492-IFM40F-FS-2 offers significant advantages in fault diagnosis and corrective maintenance. The fused circuit design allows technicians to quickly identify and isolate field wiring faults without requiring access to the I/O module itself, reducing mean time to repair (MTTR) and minimizing the impact of field wiring faults on overall system availability. This diagnostic efficiency is further enhanced when the module is used in conjunction with Rockwell Automation's Studio 5000 Logix Designer software, which provides real-time I/O status monitoring and fault logging at the channel level.

All units supplied by NANKMOS are sourced from verified supply channels, pre-shipment tested against original Allen-Bradley specifications, and covered by a 12-Month Warranty. In-stock availability ensures rapid deployment for both new installations and emergency replacement scenarios. Each unit is inspected for physical integrity, connector condition, and fuse continuity before dispatch, providing engineering teams with confidence in the reliability of the supplied components.

The 1492-IFM40F-FS-2 is most effective when deployed as part of a fully integrated Rockwell Automation control platform. In a typical ControlLogix architecture, the module interfaces directly with 1756-IB16 or 1756-OB16E digital I/O modules mounted in a 1756 chassis, with the 1492-CABLE40 providing the pre-wired connection between the I/O module and the interface module's terminal block array. The 1756-L85E ControlLogix 5580 controller, mounted in the same or an adjacent chassis, manages the I/O map and executes the control logic that processes the field signals terminated at the 1492-IFM40F-FS-2.

Power distribution to the I/O chassis is typically provided by a 1756-PA75R redundant power supply, ensuring that the I/O layer remains operational even during a power supply module failure. Communication between the ControlLogix chassis and remote I/O panels is handled via a 1756-EN2TR EtherNet/IP communication module, which provides the high-speed, deterministic data exchange required for real-time process control. In applications requiring DeviceNet or ControlNet connectivity, the 1756-DNB or 1756-CNB modules provide the appropriate network interface.

At the HMI layer, a PanelView Plus 7 terminal connected via EtherNet/IP provides operators with real-time visibility into the I/O status of the field devices terminated at the 1492-IFM40F-FS-2. In larger installations, a FactoryTalk View SE SCADA system provides plant-wide monitoring and historical data logging, enabling engineering teams to track field device performance trends and identify potential maintenance requirements before they result in unplanned downtime.

For applications requiring signal isolation between field devices and the control system, a 1492-AIFM series analog interface module or a dedicated signal isolator can be installed in series with the 1492-IFM40F-FS-2, providing galvanic isolation and noise rejection for sensitive analog signals. In motor control applications, the PowerFlex 525 or PowerFlex 755 variable frequency drives interface with the control system via EtherNet/IP, with their digital I/O signals terminated at the 1492-IFM40F-FS-2 for structured wiring management.

Power Generation: In gas turbine and steam turbine control panels, the 1492-IFM40F-FS-2 provides structured termination for discrete field signals from limit switches, proximity sensors, and solenoid valves, with individual fuse protection preventing single-circuit faults from affecting adjacent control loops.

Petrochemical Process Control: In refinery and chemical plant DCS/PLC hybrid architectures, the module supports high-density field wiring termination for process interlocks, shutdown valves, and motor starters, with the fused circuit design meeting the circuit protection requirements of IEC 60079 hazardous area installations.

Water Treatment SCADA: Municipal water treatment facilities use the 1492-IFM40F-FS-2 to organize and protect field wiring from pump motor starters, level sensors, and flow transmitters, simplifying both initial commissioning and ongoing preventive maintenance activities.

Mining Conveyor Control: In underground and surface mining conveyor systems, the module provides a robust, fused termination point for belt speed sensors, pull-cord switches, and conveyor drive control signals, supporting the high-availability requirements of continuous mining operations.

Marine Propulsion and Automation: Shipboard automation systems use the 1492-IFM40F-FS-2 in engine room control panels to manage field wiring for propulsion control, auxiliary machinery monitoring, and alarm systems, with the fused design providing the circuit protection required by marine classification society standards.

Q1: Is the 1492-IFM40F-FS-2 compatible with both ControlLogix 1756 and CompactLogix 1769 I/O modules? Yes. The 1492-IFM40F-FS-2 is compatible with both 1756 and 1769 series I/O modules when used with the appropriate 1492-CABLE series pre-wired cable assembly. The cable assembly selection depends on the specific I/O module model and the number of I/O points. Consult the Allen-Bradley 1492 Wiring Systems Selection Guide for the correct cable assembly part number for your specific I/O module configuration.

Q2: What fuse type and rating is used in the 1492-IFM40F-FS-2, and are replacement fuses readily available? The 1492-IFM40F-FS-2 uses FS-2 series miniature fuses rated for the voltage and current levels typical of discrete I/O field wiring circuits. Replacement fuses are available through Allen-Bradley authorized distributors and industrial electrical supply channels. NANKMOS maintains in-stock inventory of compatible replacement fuses to support ongoing maintenance requirements. All supplied units are covered by a 12-Month Warranty covering manufacturing defects and component failures under normal operating conditions.

Q3: How does the 1492-IFM40F-FS-2 support long-term maintenance efficiency in large-scale control architectures? The module's individual fused circuit design allows maintenance technicians to isolate and repair individual field wiring faults without interrupting adjacent circuits or requiring I/O module removal. Combined with the structured terminal block layout and pre-wired cable interface, the module significantly reduces the time required for fault diagnosis and corrective maintenance. In large installations with hundreds of field I/O points, this modular approach to circuit protection and wiring organization can reduce mean time to repair (MTTR) by 40–60% compared to conventional terminal block wiring methods. NANKMOS provides pre-shipment tested units with documented baseline test results to support system commissioning and long-term maintenance planning.
