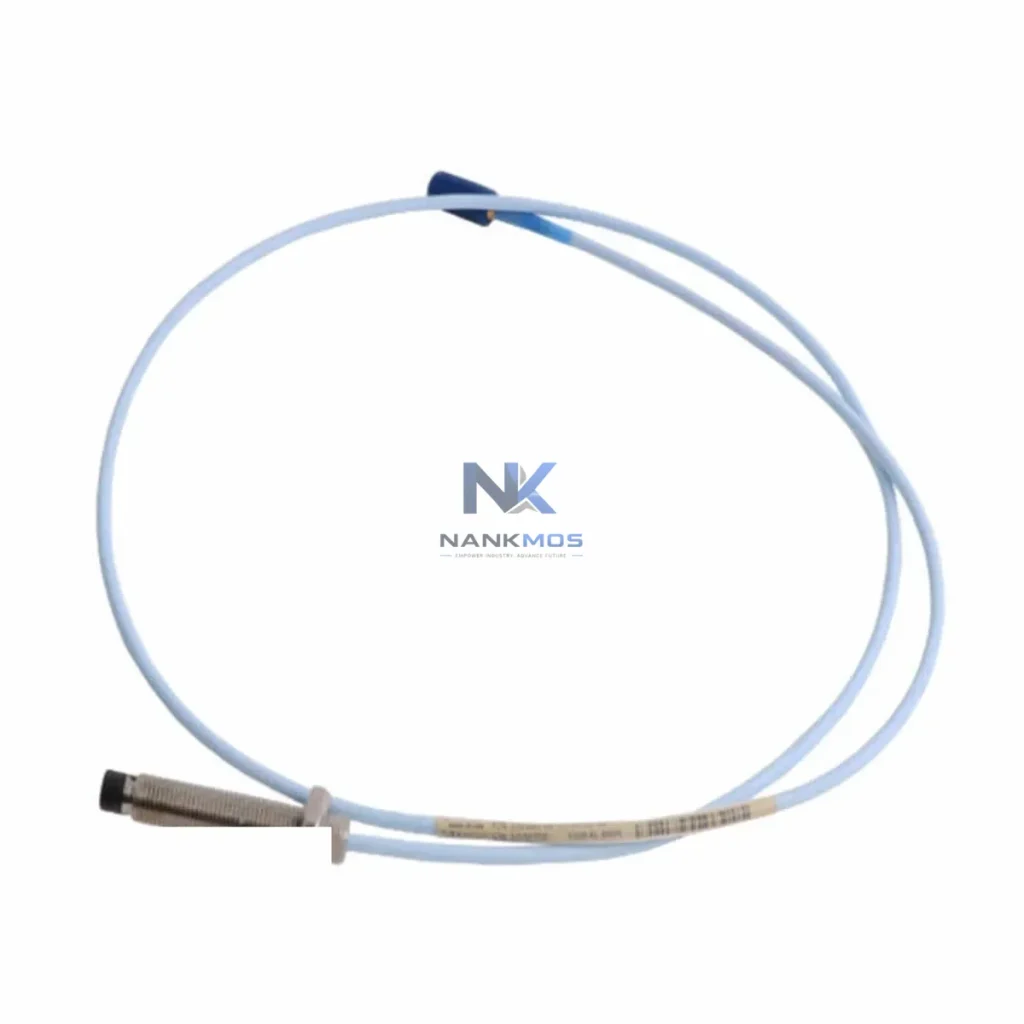

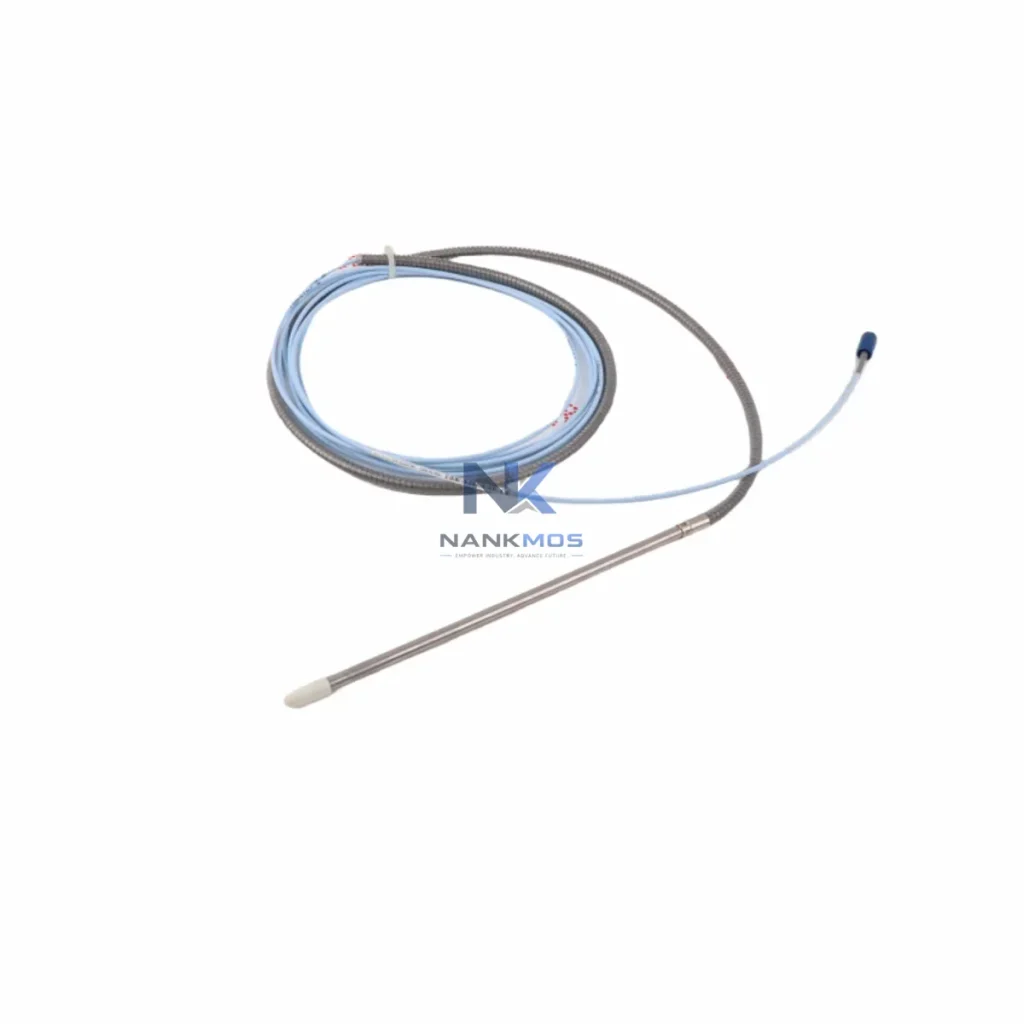

Bently Nevada 143493-00-080-040-50-00 Proximity Probe

Product Details

143493-00-080-040-50-00 Product Description

The Bently Nevada 143493-00-080-040-50-00 proximity probe is a foundational sensing element within the 3500 Machinery Protection System, a platform engineered for continuous, real-time vibration and position monitoring across critical rotating assets. Its role in the measurement layer directly feeds the signal chain that drives protection decisions at the monitor and rack level, making it a precision-critical component in any layered industrial control architecture.

Within a complete 3500 rack deployment, this probe operates in conjunction with the Bently Nevada 3500/20 Rack Interface Module, which manages system power distribution and communication to the host DCS or safety system. The analog output from the 143493-00-080-040-50-00 is conditioned by dedicated monitor modules such as the 3500/40M Proximitor Monitor or the 3500/42M Proximitor/Seismic Monitor, which apply alert and danger setpoints, perform gap voltage verification, and relay trip signals to the protection layer. For shaft absolute vibration measurement, the probe pairs with a 3500/44M Aeroderivative Thrust Monitor in gas turbine applications, extending the architecture's diagnostic resolution across multiple measurement planes.

The signal integrity of the 143493-00-080-040-50-00 depends on the matched use of the Bently Nevada 3300 XL 8mm Proximitor Sensor or the 330180 Series Extension Cable, which maintains the calibrated system sensitivity of 7.87 V/mm (200 mV/mil) across the full cable run. Any mismatch in probe-extension-driver combinations will introduce calibration error and compromise the rack's ability to accurately detect shaft displacement, eccentricity, or thrust position drift. This is why system-matched procurement — probe, extension cable, and driver as a verified set — is the recommended engineering practice for 3500 architecture deployments.

At the communication layer, the 3500 rack interfaces with plant-level SCADA and DCS platforms via the 3500/92 Communication Gateway Module, supporting Modbus RTU, Modbus TCP/IP, and Ethernet protocols. This enables the vibration data collected by the 143493-00-080-040-50-00 to be transmitted upstream to historian systems, operator HMI stations, and predictive maintenance platforms without signal degradation or latency. In facilities running System 1 Evolution software, the probe's continuous waveform data contributes to machine health trending, orbit plot generation, and alarm rationalization across the entire asset fleet.

For power supply redundancy within the rack, the 3500/15 Power Supply Module provides dual-input AC/DC capability, ensuring that probe excitation voltage remains stable even during utility switchovers or transient grid events. Stable excitation is essential for maintaining the –24 VDC bias voltage that the 143493-00-080-040-50-00 requires for linear operation within its calibrated gap range. In high-availability installations, a redundant power supply configuration eliminates the power layer as a single point of failure, directly supporting the continuous monitoring mandate of API 670-compliant machinery protection systems.

The 143493-00-080-040-50-00 is also commonly deployed alongside Bently Nevada 330103 Series Proximity Probes in multi-plane vibration measurement configurations, where radial and axial probes are mounted at 90° intervals around the shaft to provide full orbital motion characterization. This multi-probe architecture is standard practice in large centrifugal compressors, steam turbines, and boiler feed pumps operating in power generation and petrochemical facilities. The resulting vibration vectors feed directly into the 3500 rack's dynamic data acquisition engine, enabling real-time Bode plot, polar plot, and cascade spectrum analysis at the HMI layer.

The Bently Nevada 143493-00-080-040-50-00 proximity probe is deployed across a broad spectrum of critical industrial environments where rotating machinery protection is a regulatory and operational requirement.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — this probe monitors shaft vibration and rotor eccentricity on turbine-generator sets, where even minor imbalance or misalignment can escalate to catastrophic failure within seconds. The probe's DC-to-10,000 Hz frequency response captures both low-speed runout and high-frequency subsynchronous instability events, providing the 3500 rack with the full spectral data needed to discriminate between benign vibration and genuine machinery faults.

In petrochemical and refinery applications, the 143493-00-080-040-50-00 is installed on centrifugal compressors, reactor charge pumps, and crude oil transfer pumps operating in hazardous area classifications. Its non-contact sensing principle eliminates mechanical wear at the measurement point, ensuring long-term calibration stability in environments where access for routine sensor replacement is restricted by process continuity requirements. The probe's stainless steel housing and high-temperature rating make it suitable for installation in hot sections of process trains where ambient temperatures routinely exceed 100°C.

In water and wastewater treatment infrastructure, large vertical turbine pumps and blower trains rely on proximity probe arrays to detect bearing wear, shaft bow, and impeller imbalance before these conditions progress to unplanned outages. The 143493-00-080-040-50-00's compatibility with the 3500 rack's continuous online monitoring mode allows plant operators to trend vibration amplitude over weeks and months, enabling condition-based maintenance scheduling that reduces both maintenance cost and process interruption.

In mining and minerals processing, the probe is applied to SAG mill pinion drives, slurry pump trains, and large induction motor-driven conveyors, where the combination of high shaft loads, variable speed operation, and abrasive process environments creates demanding vibration monitoring requirements. The 3500 system's ability to integrate proximity probe data with process variables — speed, load, temperature — via the communication gateway enables correlation analysis that identifies machinery degradation patterns invisible to single-parameter monitoring approaches.

In marine and offshore applications, the 143493-00-080-040-50-00 is used on main propulsion shafting, diesel generator sets, and gas turbine-driven compressor trains aboard LNG carriers and FPSO vessels. The probe's robust construction and wide operating temperature range support reliable operation in the vibration-rich, salt-laden environments characteristic of offshore installations, where sensor reliability directly impacts vessel availability and cargo throughput.

Q1: Is the Bently Nevada 143493-00-080-040-50-00 compatible with existing 3500 rack configurations, and what companion components are required for a complete measurement channel? A: Yes. The 143493-00-080-040-50-00 is fully compatible with the Bently Nevada 3500 Machinery Protection System rack architecture. A complete measurement channel requires this probe, a matched extension cable (typically from the 330180 Series), a Proximitor driver (such as the 3300 XL 8mm), and a compatible monitor module (3500/40M, 3500/42M, or 3500/44M depending on measurement type). All components must be sourced as a calibrated system set to maintain the specified 7.87 V/mm sensitivity and ensure accurate gap voltage readings within the rack's protection logic.

Q2: What installation and commissioning considerations apply when integrating this probe into a running plant architecture? A: Probe installation requires precise gap setting — typically 1.0 to 1.5 mm from the shaft surface — verified with a calibrated DC voltmeter reading the Proximitor output voltage (nominally –10 to –18 VDC at operating gap). The probe tip must be mounted perpendicular to the shaft surface, and the cable routing must avoid high-voltage conductors and sources of electromagnetic interference. During commissioning, the 3500 rack's configuration software should be used to verify channel sensitivity, set alert and danger thresholds in accordance with API 670 or OEM specifications, and confirm communication to the DCS or SCADA layer via the 3500/92 gateway module.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for 3500 system components? A: The 143493-00-080-040-50-00 is supplied with a 12-Month Warranty covering manufacturing defects and functional performance under normal operating conditions. NANKMOS maintains dedicated inventory of Bently Nevada 3500 series components — including probes, extension cables, Proximitor drivers, monitor modules, and rack accessories — to support both planned maintenance programs and emergency replacement requirements. All units undergo pre-shipment functional testing and are shipped with documentation supporting traceability. For long-term maintenance planning, NANKMOS can provide multi-unit procurement packages aligned to your plant's scheduled outage calendar, reducing lead time risk for critical spare parts.
