Bently Nevada 144181-50 Proximity Transducer System

Product Details

144181-50 Product Description

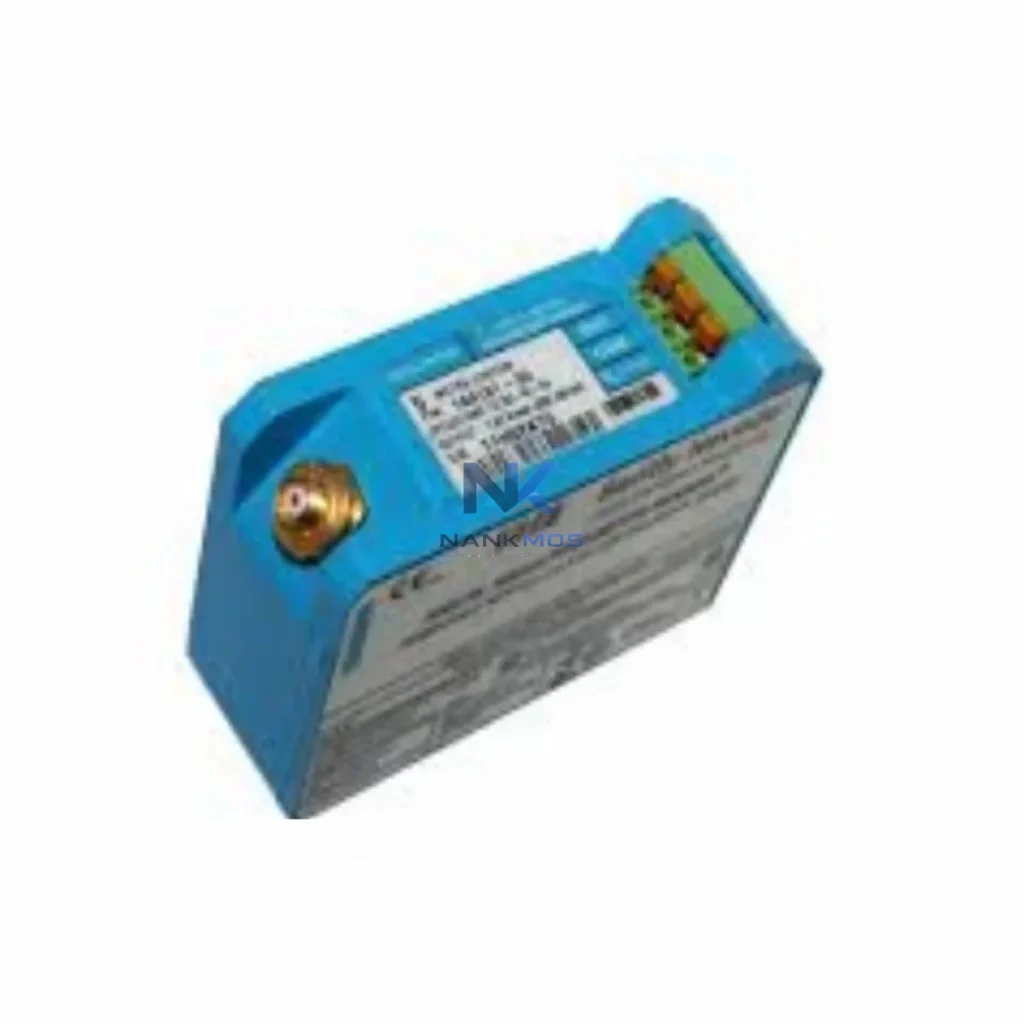

The Bently Nevada 144181-50 is a high-precision eddy-current proximity transducer engineered for the 3300 Series monitoring platform. Designed for continuous, non-contact measurement of shaft displacement and vibration in rotating machinery, the 144181-50 delivers real-time mechanical feedback that enables production lines to operate at peak energy efficiency. By capturing accurate rotor position and vibration amplitude data, this transducer allows control systems to respond dynamically to load changes — reducing unnecessary motor torque, minimizing reactive energy draw, and extending the operational lifespan of critical drive assets.

In modern industrial facilities where energy costs and equipment reliability are primary concerns, the 144181-50 serves as a foundational sensing element within a broader energy-control architecture. Its output integrates directly with the Bently Nevada 3300 XL 8mm Proximity Transducer System signal conditioning chain, feeding vibration data upstream to machinery protection systems, distributed control platforms, and SCADA environments. When paired with a Bently Nevada 3300/16 monitor or equivalent rack-mounted protection module, the transducer enables threshold-based alarming that prevents energy-wasting runaway vibration events before they escalate into unplanned downtime.

The 144181-50 proximity transducer does not operate in isolation — it is a precision data source within a tightly integrated energy-control ecosystem. In a typical smart production line deployment, the transducer's analog output feeds into a Bently Nevada 3300/55 proximitor/oscillator, which conditions the raw eddy-current signal into a calibrated voltage readable by downstream protection and control hardware. This conditioned signal is then routed to a Bently Nevada 3500/42M proximitor I/O module housed in a 3500 series rack, where it is processed alongside temperature and process data from Rosemount 3144P temperature transmitters and pressure sensors.

At the control layer, the vibration data is consumed by a Rockwell Automation ControlLogix PLC or equivalent programmable logic controller via a Bently Nevada 3500/92 communication gateway supporting Modbus TCP or Ethernet/IP protocols. The PLC uses this real-time shaft displacement feedback to modulate the output frequency of an ABB ACS880 variable frequency drive (VFD) connected to the motor shaft being monitored. When vibration amplitude trends upward — indicating imbalance, misalignment, or bearing degradation — the VFD reduces motor speed to lower mechanical stress and cut energy consumption, rather than allowing the machine to continue drawing full power under a deteriorating load condition.

For facilities running Siemens SIMATIC S7-1500 PLCs with PROFINET communication backbones, the 144181-50 integrates equally well through compatible I/O modules and OPC-UA data bridges, ensuring that vibration telemetry reaches the HMI layer — typically a Siemens TP1500 Comfort Panel or equivalent — where operators can visualize shaft centerline plots and trend data in real time. This closed-loop visibility between the proximity transducer, the drive system, and the HMI dramatically reduces the energy penalty associated with operating machinery in a degraded mechanical state.

In energy-intensive applications such as centrifugal compressor trains or boiler feed pump sets, the 144181-50 is often deployed alongside Bently Nevada 330180 velocity transducers and 330400 accelerometers to provide a multi-axis vibration signature. This combined sensor array feeds a System 1 Evolution asset performance management platform, enabling predictive maintenance scheduling that eliminates unnecessary full-load test runs — a significant source of avoidable energy expenditure in facilities without condition-based maintenance programs.

Undetected mechanical degradation is one of the most significant hidden energy costs in rotating-equipment-intensive production environments. A motor driving a pump or compressor with developing bearing wear or shaft misalignment can consume 8–15% more energy than the same machine in good mechanical health, because the drive system compensates for increased mechanical resistance by drawing additional current. The Bently Nevada 144181-50 addresses this directly by providing continuous, high-resolution shaft position data that exposes these inefficiencies before they become critical failures.

When integrated with a plant's energy management system (EMS) or SCADA platform — such as GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation — the vibration trends captured by the 144181-50 can be correlated with power meter readings from Schneider Electric PowerLogic PM8000 power quality analyzers. This correlation allows energy engineers to quantify the exact kilowatt-hour cost of mechanical degradation and build a data-driven case for maintenance intervention, rather than relying on fixed time-based schedules that either over-maintain (wasting labor and parts) or under-maintain (wasting energy and risking failure).

At the production line level, the 144181-50 contributes to takt time stability by ensuring that critical rotating assets — motors, gearboxes, turbines, and compressors — maintain consistent mechanical performance across shifts. Vibration-induced speed fluctuations in a drive train can propagate as process variability downstream, forcing operators to add buffer time or reduce line speed to compensate. By catching these fluctuations early and enabling corrective action through the VFD or maintenance team, the transducer helps maintain the mechanical consistency that underpins reliable production throughput.

Thermal load management is another key benefit. Machines operating with elevated vibration generate excess heat at bearing surfaces and in motor windings, increasing the cooling load on HVAC and compressed-air systems. Reducing vibration through early detection and correction directly lowers the thermal burden on the facility, contributing to measurable reductions in auxiliary energy consumption. Every unit of the 144181-50 shipped from NANKMOS inventory is pre-tested against Bently Nevada factory calibration standards and covered by a 12-month warranty, ensuring that the energy-control performance described above is delivered from day one of installation.

Q1: How does the 144181-50 contribute to measurable energy savings on a production line? By providing continuous shaft displacement data, the 144181-50 enables VFDs and PLCs to detect mechanical inefficiency — such as imbalance or misalignment — and respond by adjusting motor speed or triggering maintenance alerts. This prevents machines from drawing excess current to overcome degraded mechanical conditions, directly reducing energy consumption. Facilities with condition-based maintenance programs report 5–15% reductions in rotating-equipment energy draw compared to time-based maintenance schedules.

Q2: Is the 144181-50 compatible with both Bently Nevada 3300 and 3500 series monitoring systems? Yes. The 144181-50 is a standard 3300 Series 8mm eddy-current proximity transducer and is compatible with 3300 Series proximitor/oscillators as well as 3500 series rack-mounted I/O modules such as the 3500/42M. It can also interface with legacy 7200 Series systems via appropriate signal conditioning. Always verify cable length and connector compatibility with your specific rack configuration before installation.

Q3: What is the recommended replacement or upgrade path if the 144181-50 is being substituted for an older transducer? The 144181-50 is a direct drop-in replacement for other Bently Nevada 3300 Series 8mm proximity transducers with matching cable lengths. Verify the gap voltage calibration (typically –10.4 VDC at 2.0 mm gap for 8mm probes) matches your existing system configuration. If upgrading from a 7200 Series probe, a new proximitor/oscillator compatible with the 3300 platform will also be required. NANKMOS technical support can assist with cross-reference verification prior to order.

Q4: What testing and warranty coverage is provided with each unit? Every Bently Nevada 144181-50 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify output linearity, gap sensitivity, and cable integrity. Each unit is covered by a 12-month warranty from the date of shipment. In-stock units are available for same-week dispatch, minimizing production line downtime during replacement or commissioning. Contact [email protected] or +86 18359268345 for stock confirmation and lead time.
