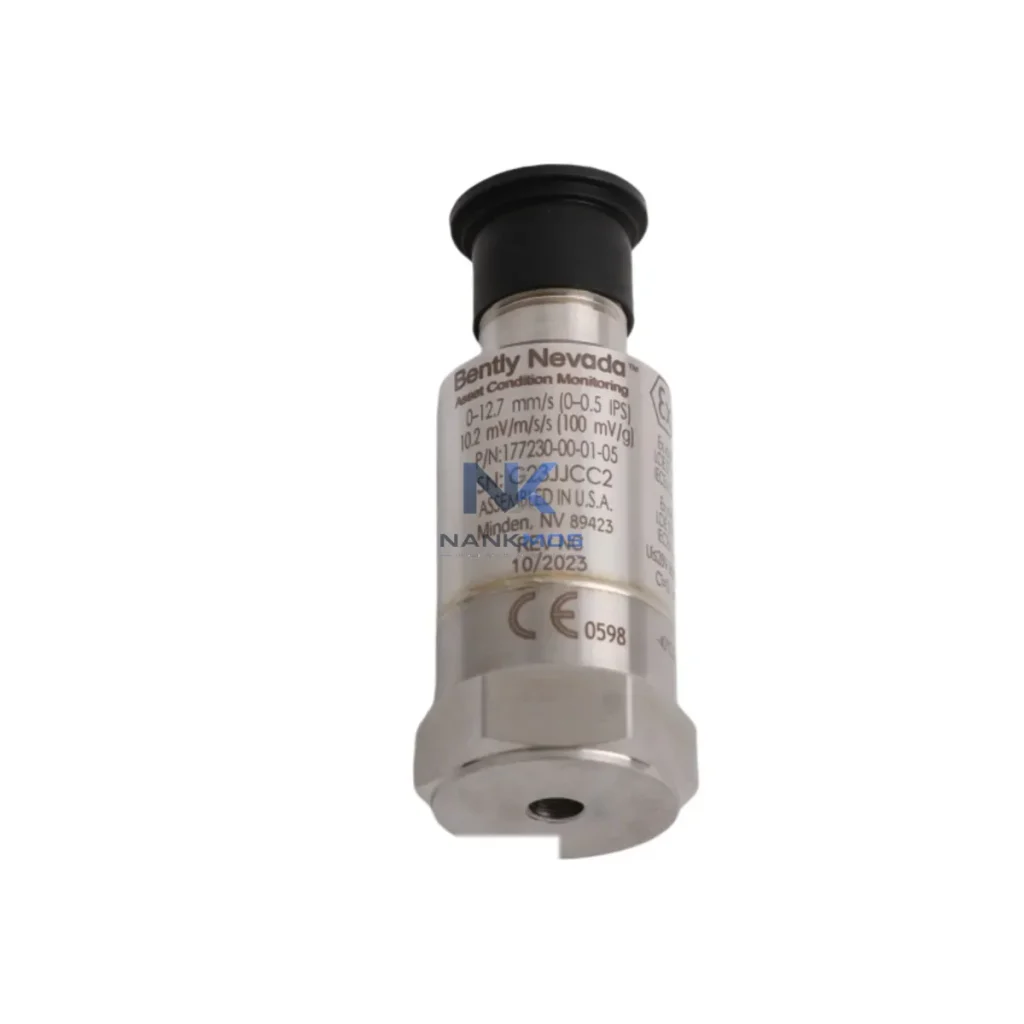

Bently Nevada 177230-00-01-CN 16710-10 Seismic Transmitter

Product Details

177230-00-01-CN 16710-10 Product Description

The Bently Nevada 177230-00-01-CN is a system-matched seismic transmitter engineered for direct integration within the Bently Nevada 16710 machinery protection architecture. Designed to deliver high-fidelity absolute vibration measurements from rotating and reciprocating equipment, this transmitter functions as a critical sensing node within a layered industrial control hierarchy — bridging the physical measurement layer with the signal conditioning, monitoring, and supervisory control layers of a complete automation platform.

Unlike standalone vibration sensors, the 177230-00-01-CN is purpose-built for contextual integration within the 16710 system framework. Its signal output is calibrated to interface directly with Bently Nevada 16710-10 monitor modules, ensuring measurement consistency, alarm threshold accuracy, and system-level diagnostic coherence across the full protection rack. This contextual integration eliminates signal chain ambiguity and reduces commissioning time in multi-channel monitoring deployments.

In modern industrial control environments — spanning power generation, petrochemical processing, oil and gas compression, water treatment, mining, and marine propulsion — machinery protection is not an isolated function. It is a coordinated layer within a broader automation architecture that includes PLC/DCS control platforms, SCADA supervisory systems, HMI operator interfaces, fieldbus communication networks, and redundant power distribution. The 177230-00-01-CN is designed to operate reliably within this multi-layer context, providing stable, low-noise seismic signals that feed directly into the protection and diagnostic decision chain.

The 177230-00-01-CN operates as the sensing front-end within a structured automation platform. In a typical 16710-series deployment, the transmitter feeds absolute vibration data into the Bently Nevada 16710-10 monitor module, which processes the signal against configurable alarm and danger setpoints. The monitor module resides within a Bently Nevada 16710 rack assembly, which may also house companion modules such as the 16710-05 power supply module providing regulated DC power to the monitoring rack, and the 16710-15 communication gateway enabling Modbus RTU or Modbus TCP/IP data export to upstream SCADA or DCS platforms.

At the control layer, the seismic data processed by the 16710 rack integrates with Rockwell Automation ControlLogix or CompactLogix PLCs via Ethernet/IP or serial Modbus, enabling coordinated machinery protection logic within the plant-wide control strategy. For facilities running Emerson DeltaV DCS or Honeywell Experion PKS, the 16710 communication gateway provides the protocol bridge required for seamless data aggregation at the supervisory layer.

At the HMI and operator interface layer, vibration trend data from the 177230-00-01-CN — processed through the 16710 monitor — can be visualized on Siemens SIMATIC HMI panels or Wonderware InTouch SCADA workstations, giving operators real-time casing vibration trends alongside process variables. This multi-layer data visibility supports condition-based maintenance decisions and reduces unplanned downtime.

For installations requiring signal isolation or long-cable signal conditioning, Bently Nevada signal conditioners or third-party DIN-rail signal isolators (4–20 mA loop-powered) can be inserted between the transmitter and the monitor input to eliminate ground loops and maintain signal integrity over extended cable runs. In redundant protection architectures, dual 177230-00-01-CN transmitters can be deployed on a single measurement point, with the 16710 monitor configured for voted or redundant input processing — a common requirement in API 670-compliant machinery protection systems.

Terminal block assemblies, Bently Nevada field wiring termination panels, and industrial DIN-rail power supplies (24 VDC) complete the installation layer, ensuring clean, organized wiring within the control cabinet and simplifying future maintenance access. All components in this architecture are selected for long-term availability and engineering consistency, supporting the 12-Month Warranty coverage provided with every 177230-00-01-CN unit shipped from NANKMOS inventory.

Power Generation: In gas turbine and steam turbine protection systems, the 177230-00-01-CN measures casing absolute vibration on bearing housings, feeding the 16710 monitor rack integrated with the plant DCS. Alarm and trip signals are coordinated with turbine control systems to enable safe, automated shutdown on vibration exceedance — a critical function in baseload and peaking power plants.

Petrochemical and Refinery Processing: Compressor trains, pumps, and agitators in petrochemical facilities require continuous vibration monitoring to comply with API 670 and ISO 10816 standards. The 177230-00-01-CN provides the seismic measurement channel required for casing vibration monitoring on non-contact bearing machines, complementing proximity probe channels within the same 16710 rack for comprehensive rotor and casing protection.

Oil and Gas Compression: Reciprocating and centrifugal compressors in upstream and midstream oil and gas applications generate complex vibration signatures. The 177230-00-01-CN captures broadband seismic data that, when trended over time within the 16710 system, enables early detection of mechanical looseness, imbalance, and bearing degradation — supporting predictive maintenance programs and reducing unplanned compressor outages.

Water Treatment and Pumping Stations: Large centrifugal pumps and blowers in municipal water treatment facilities benefit from continuous casing vibration monitoring. The 177230-00-01-CN integrates with the 16710 monitor to provide automated alarm outputs wired to the plant PLC, enabling remote monitoring and alarm annunciation without requiring dedicated vibration analysis personnel on-site.

Mining and Mineral Processing: Ball mills, SAG mills, crushers, and conveyor drive systems in mining operations are subject to high mechanical loads and harsh environmental conditions. The 177230-00-01-CN's rugged industrial housing and wide operating temperature range make it suitable for these demanding environments, providing reliable seismic data to the 16710 protection system integrated with the mine's SCADA platform.

Marine Propulsion and Offshore Platforms: Shipboard propulsion machinery and offshore platform rotating equipment require compact, reliable vibration monitoring solutions. The 177230-00-01-CN's system-matched design with the 16710 monitor supports classification society-compliant machinery protection installations, with the monitor rack providing the alarm and trip relay outputs required by marine automation standards.

Q1: Is the 177230-00-01-CN directly compatible with the Bently Nevada 16710-10 monitor module without additional signal conditioning? Yes. The 177230-00-01-CN is system-matched to the 16710-10 monitor module. Its 4–20 mA output is calibrated to the monitor's input range, enabling direct wiring without intermediate signal conditioners in standard cable-length installations. For cable runs exceeding manufacturer recommendations or installations with significant ground potential differences, a loop-powered 4–20 mA signal isolator is recommended to maintain signal integrity and protect the monitor input circuit.

Q2: Can the 177230-00-01-CN be used in a redundant seismic monitoring architecture, and how does the 16710 system handle dual-input voting? Yes. Redundant seismic monitoring is supported by deploying two 177230-00-01-CN transmitters on a single measurement point, wired to separate input channels on the 16710-10 monitor or to two independent monitor modules within the same rack. The 16710 system supports configurable voting logic (1oo2, 2oo2) for alarm and trip decisions, enabling high-availability protection architectures compliant with API 670 and SIL-rated safety instrumented system requirements. This configuration is common in critical compressor and turbine protection applications.

Q3: What warranty and supply assurance does NANKMOS provide for the 177230-00-01-CN, and how quickly can units be shipped for urgent maintenance requirements? Every 177230-00-01-CN unit supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects and functional performance. All units are pre-shipment tested to verify output signal accuracy and mechanical integrity before dispatch. NANKMOS maintains in-stock inventory of the 177230-00-01-CN and compatible 16710-series components to support urgent maintenance and unplanned replacement requirements. For time-critical applications, expedited shipping is available. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
