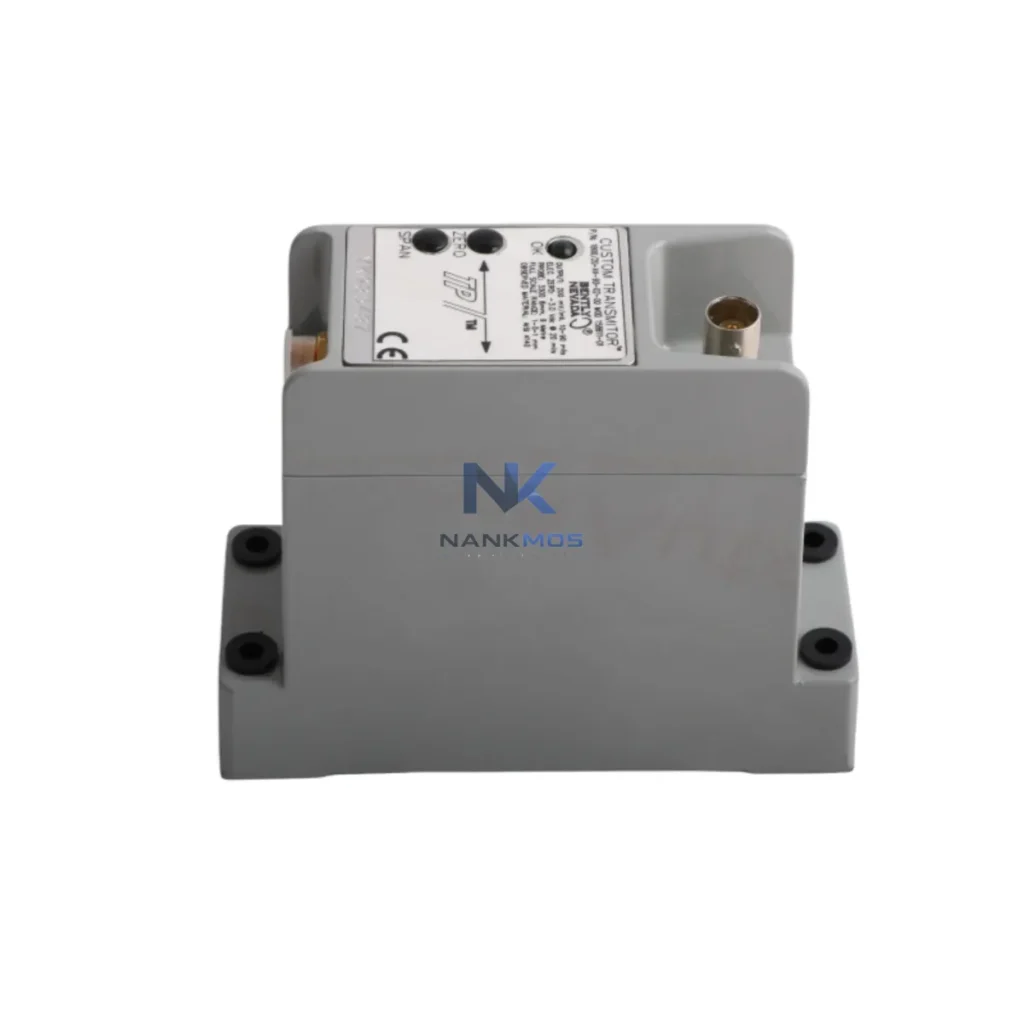

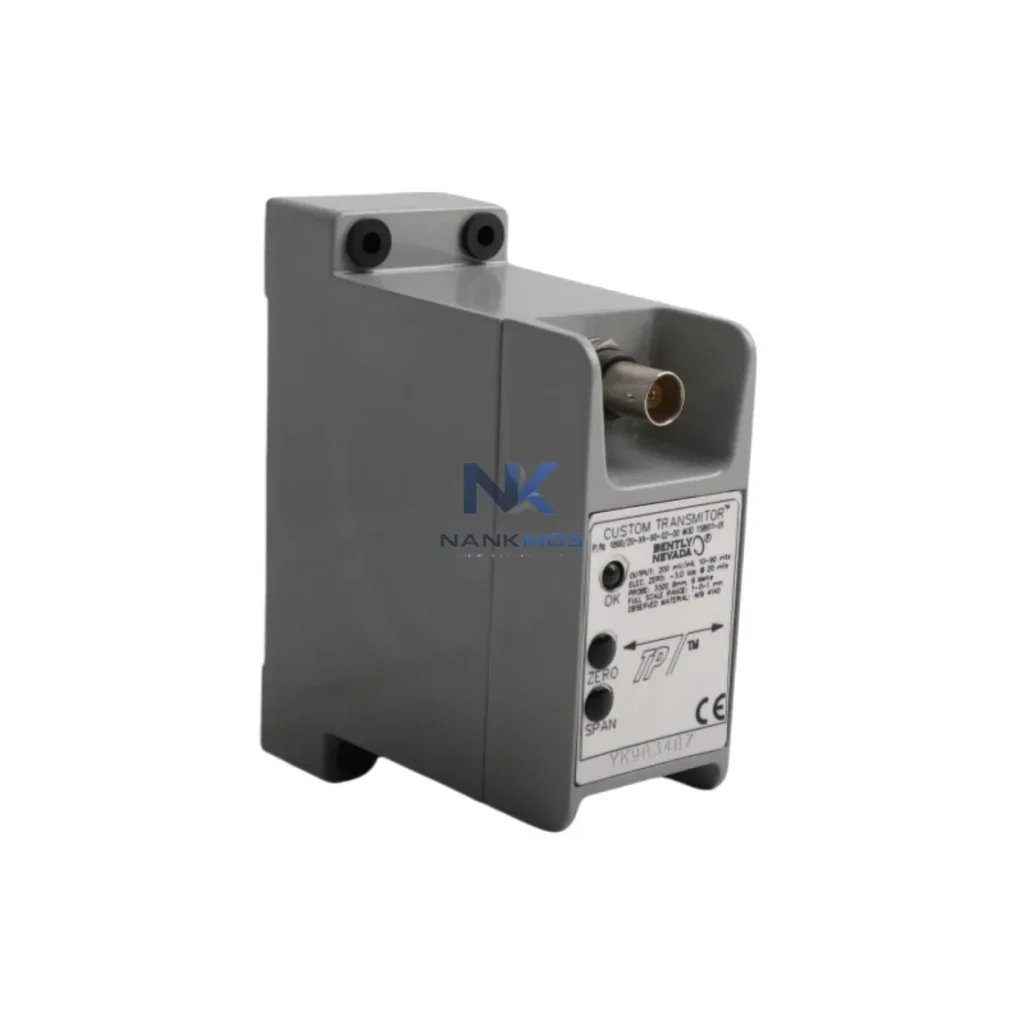

Bently Nevada 1800/20-XX-90-02-00

Product Details

1800/20-XX-90-02-00 Product Description

The Bently Nevada 1800/20-XX-90-02-00 is a precision-engineered proximity transducer designed for seamless integration within the Bently Nevada 1800 Series machinery protection and condition monitoring architecture. As a core sensing element in rotating machinery surveillance systems, this transducer delivers reliable non-contact displacement measurement across the full control hierarchy — from field-level signal acquisition through to control-layer decision logic and HMI visualization. Its system-matched design ensures electrical and mechanical compatibility with the broader 1800 Series platform, reducing commissioning time, eliminating signal conditioning mismatches, and supporting long-term diagnostic integrity across turbines, compressors, pumps, and other critical rotating assets.

In modern industrial automation environments, no sensing component operates in isolation. The 1800/20-XX-90-02-00 is engineered to function as part of a layered control architecture where signal fidelity, channel consistency, and system-wide interoperability are non-negotiable. Whether deployed in a greenfield machinery protection system or integrated into an existing distributed control environment, this transducer provides the measurement foundation upon which higher-level protection logic, alarm management, and predictive maintenance strategies are built.

The 1800/20-XX-90-02-00 proximity transducer achieves its full operational value when deployed within a coherent, multi-layer automation architecture. At the monitoring layer, the transducer pairs directly with the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which conditions the raw voltage signal, applies alarm setpoints, and communicates machine health status to the control system. The 3500 Series rack — including the 3500/15 Power Supply and 3500/20 Rack Interface Module — provides the electrical backbone that powers the transducer driver circuitry and maintains channel isolation across all installed probes.

For radial vibration measurement on large rotating machinery, the 1800/20-XX-90-02-00 is typically deployed in X-Y probe pairs, working in conjunction with a Bently Nevada 3300 XL 8mm Proximity Transducer System or complementary 1800 Series probes to provide full orbital analysis capability. The Bently Nevada 3500/40M Proximitor Monitor can serve as an alternative or supplementary channel monitor where additional measurement points are required within the same rack architecture.

At the communication layer, the 3500 Series rack interfaces with plant-level DCS and SCADA platforms via the 3500/92 Communication Gateway Module, supporting Modbus TCP, OPC-DA, and proprietary System 1 protocols. This enables the vibration data captured by the 1800/20-XX-90-02-00 to be transmitted in real time to historian servers, condition monitoring workstations, and operator HMI displays — such as those running Bently Nevada System 1 Evolution software — without signal degradation or latency-induced alarm delays.

For installations requiring redundant measurement paths, the architecture supports dual-probe configurations where a secondary 1800 Series Proximitor Driver maintains a hot-standby signal path. Combined with the 3500/22M Transient Data Interface, the system captures high-resolution transient waveforms during machine startups and coastdowns, providing the engineering team with the data needed for rotor dynamic analysis and bearing condition trending. Power integrity across the entire sensing chain is maintained by the 3500/15 Dual Power Supply, which provides redundant 24 VDC rails to eliminate single-point power failures in critical protection applications.

At the field wiring level, the 1800/20-XX-90-02-00 integrates with standard industrial terminal blocks and shielded instrumentation cable, maintaining signal integrity across cable runs typical of large turbine halls and compressor stations. The 90° connector orientation (02 designation) simplifies installation in space-constrained bearing housings and facilitates clean cable routing within control cabinets and junction boxes.

Power Generation & Turbomachinery: In gas turbine and steam turbine protection systems, the 1800/20-XX-90-02-00 provides continuous shaft radial vibration monitoring at journal bearings. The transducer's high-temperature probe rating supports installation in hot-section bearing pedestals where ambient temperatures exceed standard sensor limits. Alarm and trip setpoints configured in the 3500 Series monitor provide automatic machine shutdown protection in compliance with API 670 machinery protection standards.

Oil & Gas / Petrochemical: Centrifugal compressors and process pumps in refinery and upstream production environments rely on proximity transducer systems for continuous shaft position and vibration surveillance. The 1800/20-XX-90-02-00 supports both radial vibration and axial position measurement (when paired with a thrust probe configuration), enabling comprehensive rotor dynamic monitoring across the full operating envelope of the machine train.

Water & Wastewater Treatment: Large vertical turbine pumps and horizontal split-case pumps in municipal water infrastructure benefit from non-contact vibration monitoring to detect bearing wear, rotor imbalance, and hydraulic instability before they escalate to unplanned outages. The 1800/20-XX-90-02-00 provides the measurement sensitivity required to detect early-stage mechanical degradation in these long-lifecycle assets.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mineral processing plants operate in harsh environments with high dust loading, vibration, and temperature cycling. The robust construction of the 1800 Series proximity transducer system supports reliable long-term operation in these demanding conditions, reducing maintenance intervention frequency and supporting condition-based maintenance programs.

Marine & Offshore: Shipboard propulsion turbines, main engine reduction gearboxes, and auxiliary machinery on offshore platforms require continuous vibration monitoring to meet classification society requirements and ensure operational safety. The 1800/20-XX-90-02-00 provides the measurement accuracy and environmental robustness required for marine-grade machinery protection applications.

Q1: Is the 1800/20-XX-90-02-00 directly compatible with the Bently Nevada 3500 Series monitoring rack without additional signal conditioning? Yes. The 1800 Series proximity transducer system is designed for direct compatibility with the Bently Nevada 3500 Series machinery protection rack. The transducer probe, extension cable, and Proximitor driver form a matched system that delivers a calibrated voltage output directly to the 3500 Series monitor input channels. No additional signal conditioning modules are required, provided the correct Proximitor driver (matched to probe tip diameter and cable length) is selected. Always verify the complete system part number — probe, extension cable, and driver — to ensure calibration traceability and API 670 compliance.

Q2: Can this transducer be integrated into an existing DCS or SCADA architecture for centralized condition monitoring? Yes, through the 3500 Series rack communication infrastructure. The 3500/92 Communication Gateway Module supports Modbus TCP and OPC-DA protocols, enabling vibration and position data from the 1800/20-XX-90-02-00 to be transmitted to plant DCS historians, SCADA servers, and condition monitoring platforms such as Bently Nevada System 1 Evolution. For Contextual Integration with broader plant automation systems, ensure the gateway module firmware version is compatible with your DCS communication driver. Network segmentation and cybersecurity considerations should be addressed during system architecture design.

Q3: What does the 12-Month Warranty cover, and what is the recommended spare parts strategy for long-term maintenance? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. For long-term maintenance planning, we recommend maintaining a minimum of one spare probe-extension-driver set per critical machine train, particularly for assets where unplanned downtime carries significant production or safety consequences. Spare inventory should be stored in a controlled environment (temperature and humidity per manufacturer specifications) and subjected to periodic functional verification. For high-criticality applications, consider maintaining a complete spare 3500 Series monitor card to minimize mean time to repair in the event of monitor failure. Contact [email protected] for spare parts availability, lead time confirmation, and volume pricing.
