Bently Nevada 190501-01-99-01 Velocity Transducer

Product Details

190501-01-99-01 Product Description

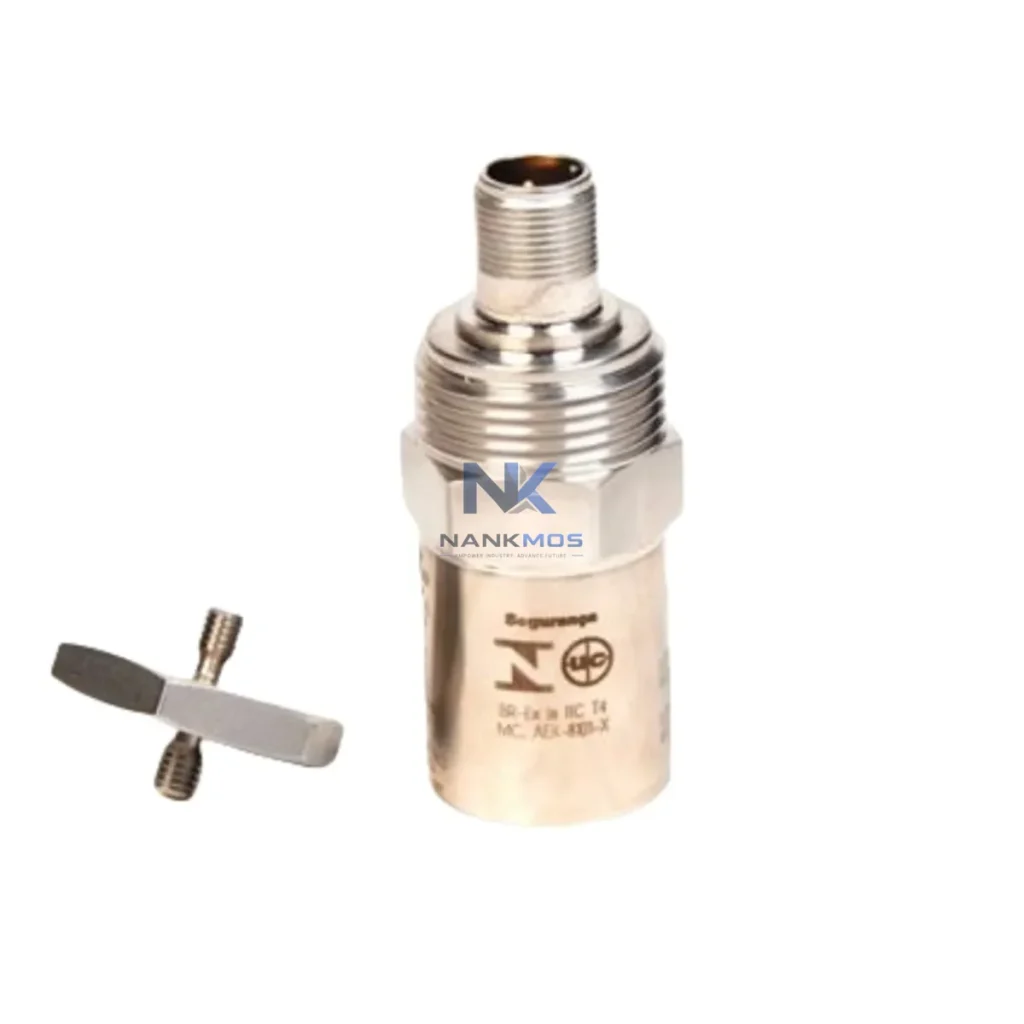

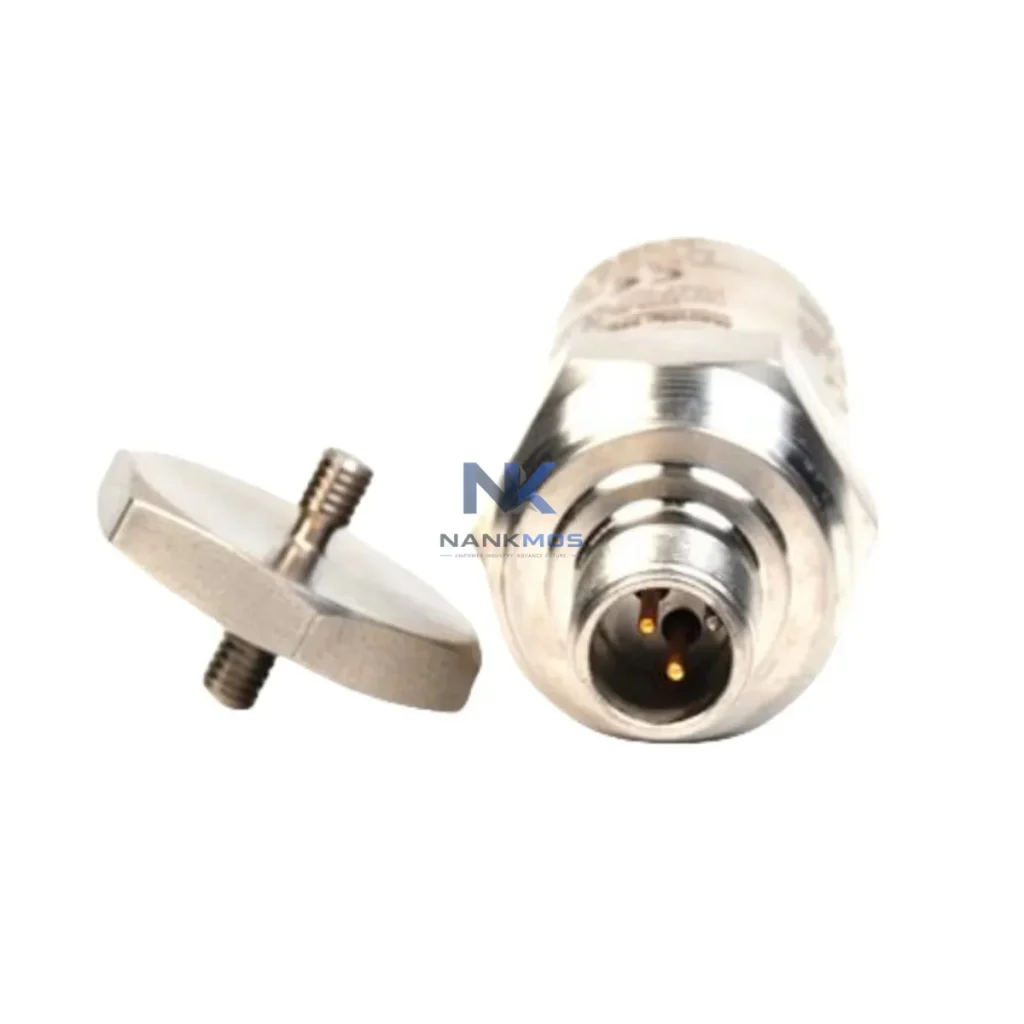

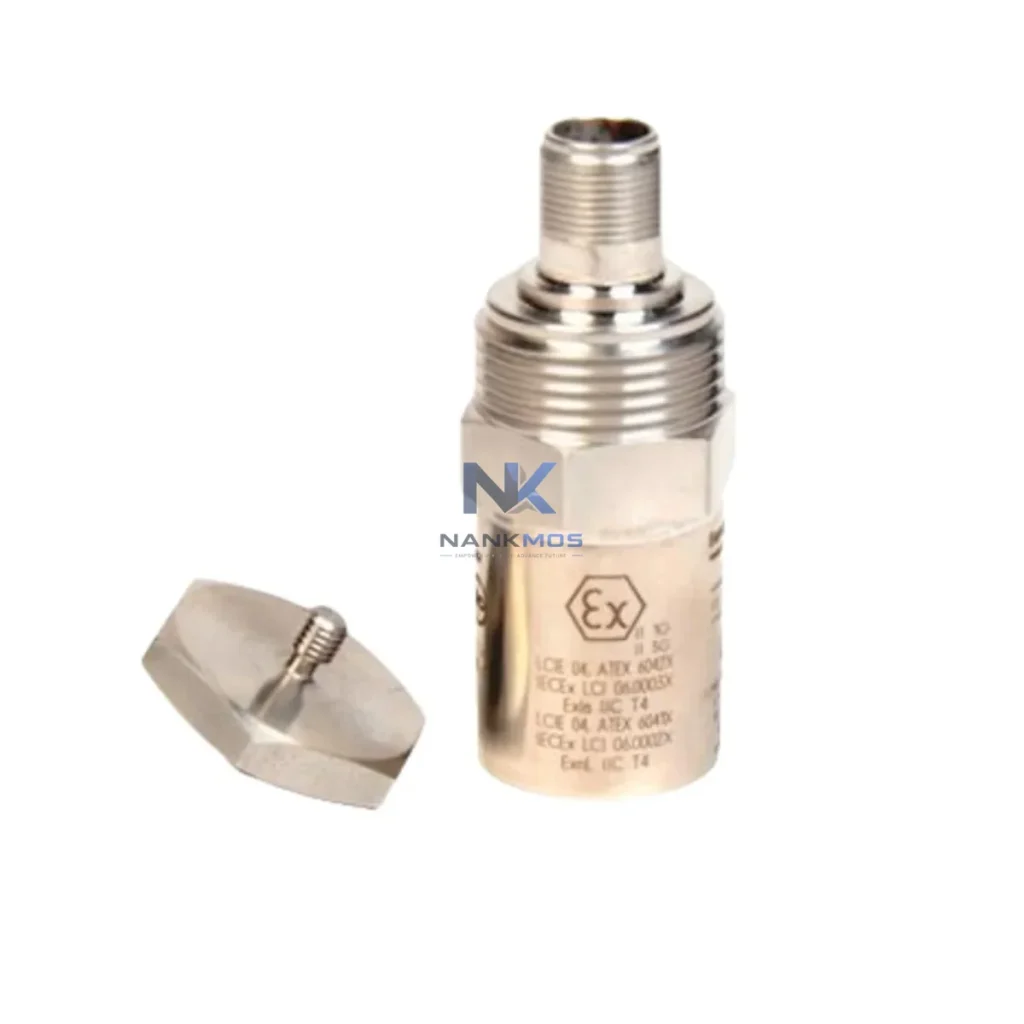

The Bently Nevada 190501-01-99-01 Velomitor CT Piezoelectric Velocity Sensor is a precision seismic velocity transducer engineered for seamless integration into the Bently Nevada 3500 Series Machinery Protection System. Designed to deliver high-fidelity vibration velocity signals across a broad frequency range, this sensor serves as a critical front-end measurement node within multi-layer industrial control architectures. Its robust construction, wide operating temperature range, and low-impedance output make it a preferred choice for continuous monitoring of rotating equipment in demanding process environments including power generation, petrochemical refining, oil and gas compression, water treatment, mining, and marine propulsion systems.

Unlike standalone vibration instruments, the 190501-01-99-01 is purpose-built to function as an integrated component within a coordinated automation platform. Its signal output is optimized for direct interface with the Bently Nevada 3500/42M Velocity Monitor module, ensuring accurate amplitude and phase measurement without additional signal conditioning. When deployed alongside complementary system components, this sensor contributes to a unified machinery health monitoring strategy that spans from field-level sensing through to enterprise-level asset management platforms such as System 1 Condition Monitoring Software.

The 190501-01-99-01 achieves its full operational value when deployed as part of a coherent, layered automation architecture. At the rack level, the sensor interfaces directly with the Bently Nevada 3500/42M Velocity Monitor, which processes the raw velocity signal and generates alarm and danger relay outputs. The 3500/42M resides within the Bently Nevada 3500 Rack — a modular, 19-inch chassis that accommodates up to sixteen monitor modules alongside a dedicated 3500/15 Power Supply Module providing redundant 24 VDC rail distribution to all installed cards.

System communication is managed through the 3500/22M Transient Data Interface (TDI), which aggregates time-waveform and spectral data from multiple monitor channels and transmits structured datasets to the System 1 Condition Monitoring and Optimization Software via Ethernet TCP/IP. This architecture enables plant-wide asset health dashboards, trend analysis, and predictive maintenance scheduling without requiring manual data extraction from individual monitor modules.

For installations requiring proximity-based shaft displacement monitoring alongside velocity measurements, the 190501-01-99-01 is commonly deployed in parallel with Bently Nevada 3300 XL 8mm Proximity Transducer Systems — including the 330130-080-00-00 Proximitor Sensor and its matched 330180-X0-05 extension cable — feeding the 3500/40M Proximitor Monitor. This dual-measurement approach provides both absolute casing vibration (velocity) and relative shaft vibration (displacement) data, satisfying API 670 machinery protection requirements for critical rotating equipment.

At the control integration layer, relay outputs from the 3500/42M can be wired to a Rockwell Automation ControlLogix L7x Series PLC or a Siemens S7-400 CPU via hardwired discrete I/O, enabling the DCS or safety system to initiate controlled shutdowns or load-shedding sequences upon alarm activation. For facilities operating Emerson DeltaV DCS platforms, the 3500 rack's Modbus TCP gateway capability allows direct register-mapped integration, eliminating the need for intermediate protocol converters. Power distribution to the sensor field loop is typically sourced from a Phoenix Contact QUINT 24 VDC Power Supply with redundant feed and buffer module, ensuring uninterrupted sensor excitation during grid transients.

HMI visualization of velocity trend data is typically rendered on Siemens SIMATIC TP1500 Comfort Panel or equivalent industrial touchscreen terminals connected to the control network, providing operators with real-time casing vibration amplitude, alarm status, and historical trend overlays at the machine skid level. This multi-layer architecture — spanning field sensing, rack-level monitoring, PLC/DCS integration, network communication, and HMI visualization — ensures that the 190501-01-99-01 contributes to a fully observable, maintainable, and scalable machinery protection strategy.

Power Generation: In gas turbine and steam turbine installations, the 190501-01-99-01 monitors bearing housing vibration velocity on high-speed rotating machinery where casing-mounted seismic sensors are mandated by OEM specifications. Paired with the 3500/42M and System 1 software, it enables continuous baseline trending and early-warning detection of imbalance, misalignment, and bearing defect frequencies, reducing unplanned outage risk at baseload and peaking generation assets.

Petrochemical and Refining: On centrifugal compressor trains and reactor agitator drives operating in classified hazardous areas, the hermetically sealed stainless steel housing and wide temperature tolerance of the 190501-01-99-01 ensure reliable signal integrity under high-temperature, high-vibration, and chemically aggressive ambient conditions. Integration with the plant DCS via the 3500 rack's Modbus TCP interface supports automated process response to machinery health events.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water infrastructure benefit from continuous velocity monitoring to detect cavitation, impeller wear, and structural resonance. The 190501-01-99-01's low-frequency response extends coverage to slow-speed machinery where displacement sensors may lack sufficient sensitivity, providing actionable vibration data to maintenance teams via SCADA-connected System 1 dashboards.

Mining and Minerals Processing: Ball mills, SAG mills, and conveyor drive gearboxes operating in high-dust, high-shock environments require robust seismic sensors capable of surviving mechanical abuse while maintaining calibration accuracy. The 190501-01-99-01's armored cable construction and stud-mount design provide secure installation on mill bearing housings, with alarm relay outputs wired to the site PLC for automated mill trip protection.

Marine Propulsion and Offshore: Diesel generator sets and propulsion motor bearings aboard vessels and offshore platforms require compact, corrosion-resistant velocity sensors that meet DNV or ABS classification society requirements. The 190501-01-99-01's stainless steel construction and sealed connector system support marine-grade installations, with 3500 rack integration providing the redundant monitoring architecture required for unattended machinery spaces.

Q1: Is the 190501-01-99-01 directly compatible with the Bently Nevada 3500/42M Velocity Monitor without additional signal conditioning? Yes. The 190501-01-99-01 Velomitor CT produces a low-impedance, AC-coupled voltage output that is natively compatible with the 3500/42M input channel specifications. No external signal conditioner, barrier, or amplifier is required for standard installations. For installations in Zone 1 or Zone 2 hazardous areas, a certified Zener barrier or galvanic isolator should be inserted in the field wiring loop in accordance with the area classification and applicable IEC 60079 standards. The 3500 rack's internal power supply provides the necessary sensor excitation, and channel configuration is performed via Bently Nevada's rack configuration software.

Q2: Can the 190501-01-99-01 be integrated into a DCS or PLC architecture alongside proximity transducer systems monitoring the same machine? Absolutely. The 3500 rack architecture is designed for multi-channel, multi-transducer deployment within a single chassis. The 190501-01-99-01 feeding the 3500/42M Velocity Monitor can coexist in the same rack with 3300 XL or 3300 NSv Proximity Transducer Systems feeding 3500/40M Proximitor Monitors, providing simultaneous absolute casing vibration and relative shaft displacement data. All monitor channels share the rack's common Modbus TCP or Ethernet gateway, enabling unified register-mapped integration into Emerson DeltaV, Honeywell Experion, ABB 800xA, or Siemens PCS 7 DCS platforms. Relay outputs from each monitor module can be independently wired to PLC discrete input cards for machine trip logic.

Q3: What warranty and supply assurance does NANKMOS provide for the 190501-01-99-01, and how is pre-shipment testing conducted? NANKMOS provides a 12-Month Warranty on the 190501-01-99-01 covering manufacturing defects and functional performance. Prior to dispatch, each unit undergoes pre-shipment functional verification including sensitivity check, frequency response validation, and connector integrity inspection to confirm compliance with Bently Nevada OEM specifications. Units are held in climate-controlled inventory and shipped with documentation supporting traceability. Expedited global shipping is available for urgent maintenance and shutdown requirements. For volume procurement, blanket order arrangements and consignment stock programs are available — contact [email protected] or +86 18359268345 for project-specific supply planning.
