Bently Nevada 190501-02-00-CN Velocity Transducer

Product Details

190501-02-00-CN Product Description

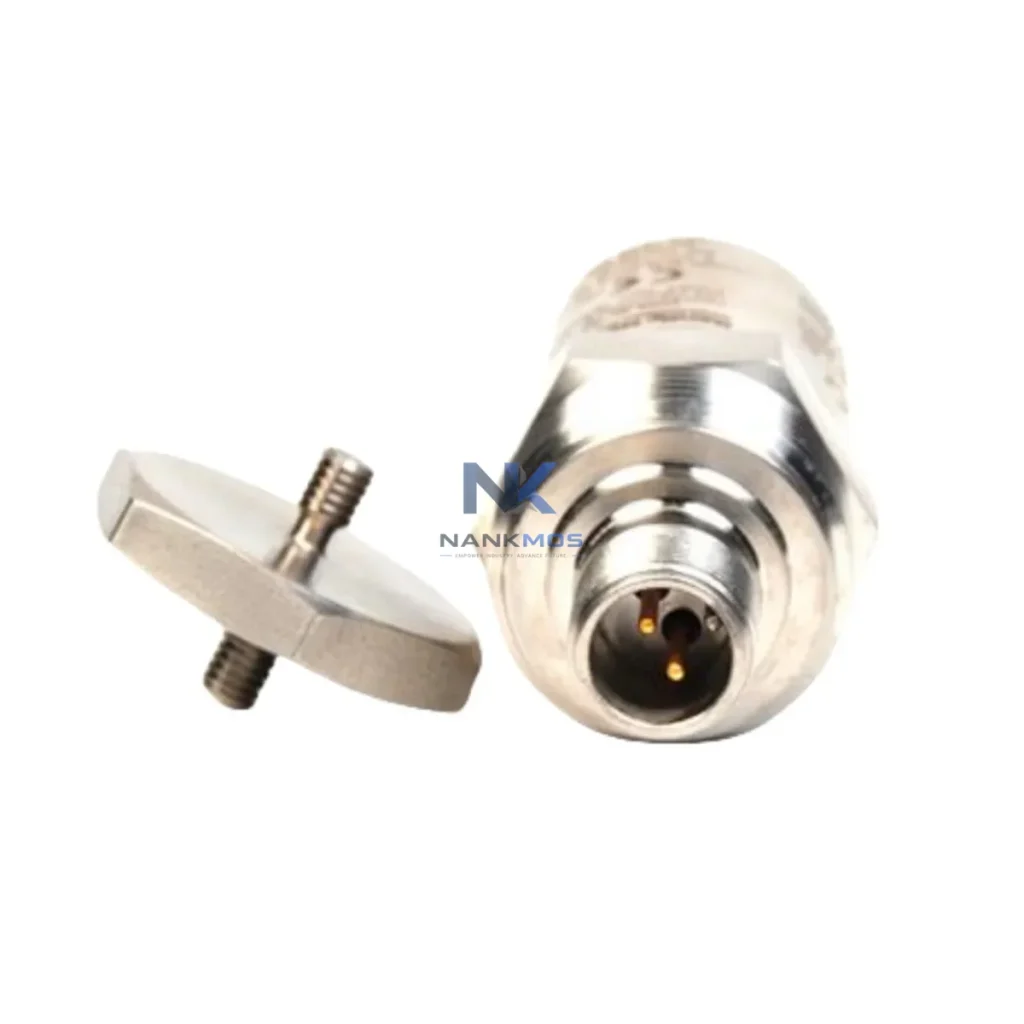

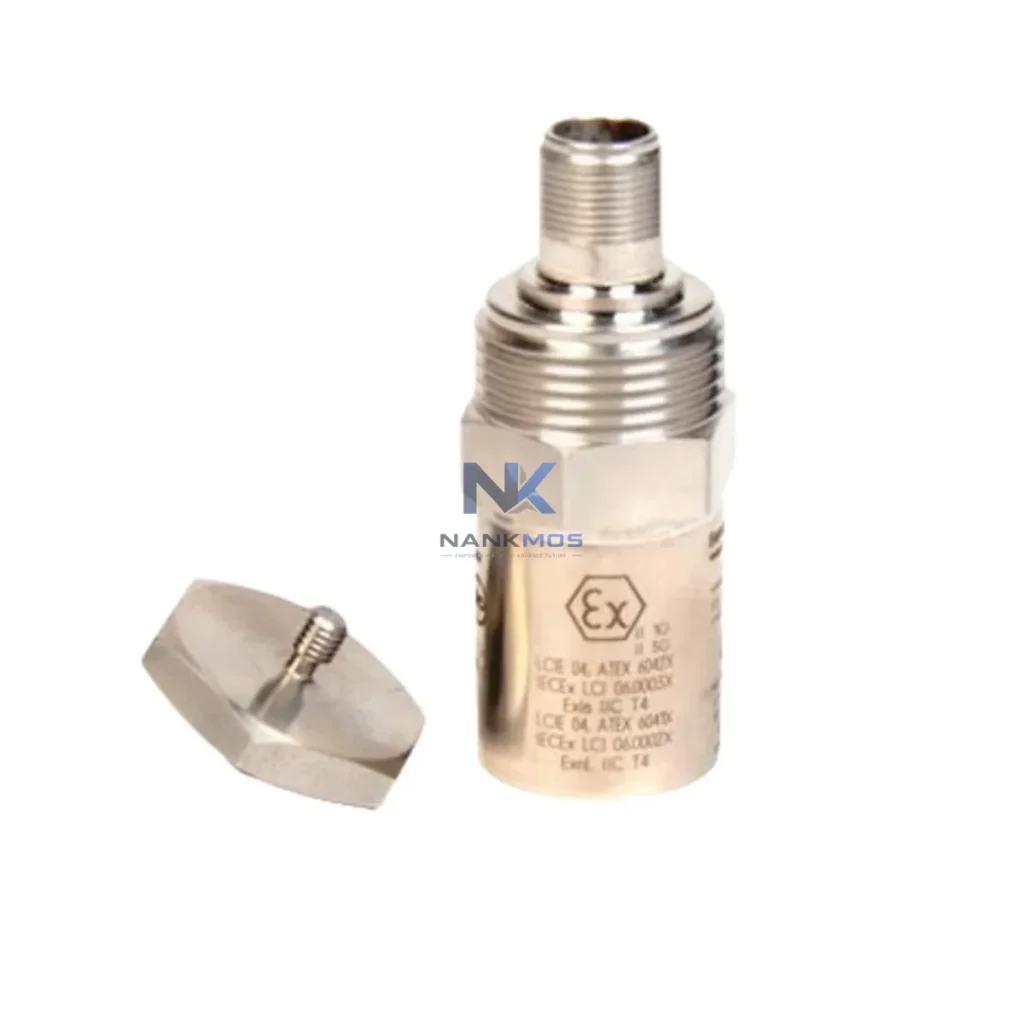

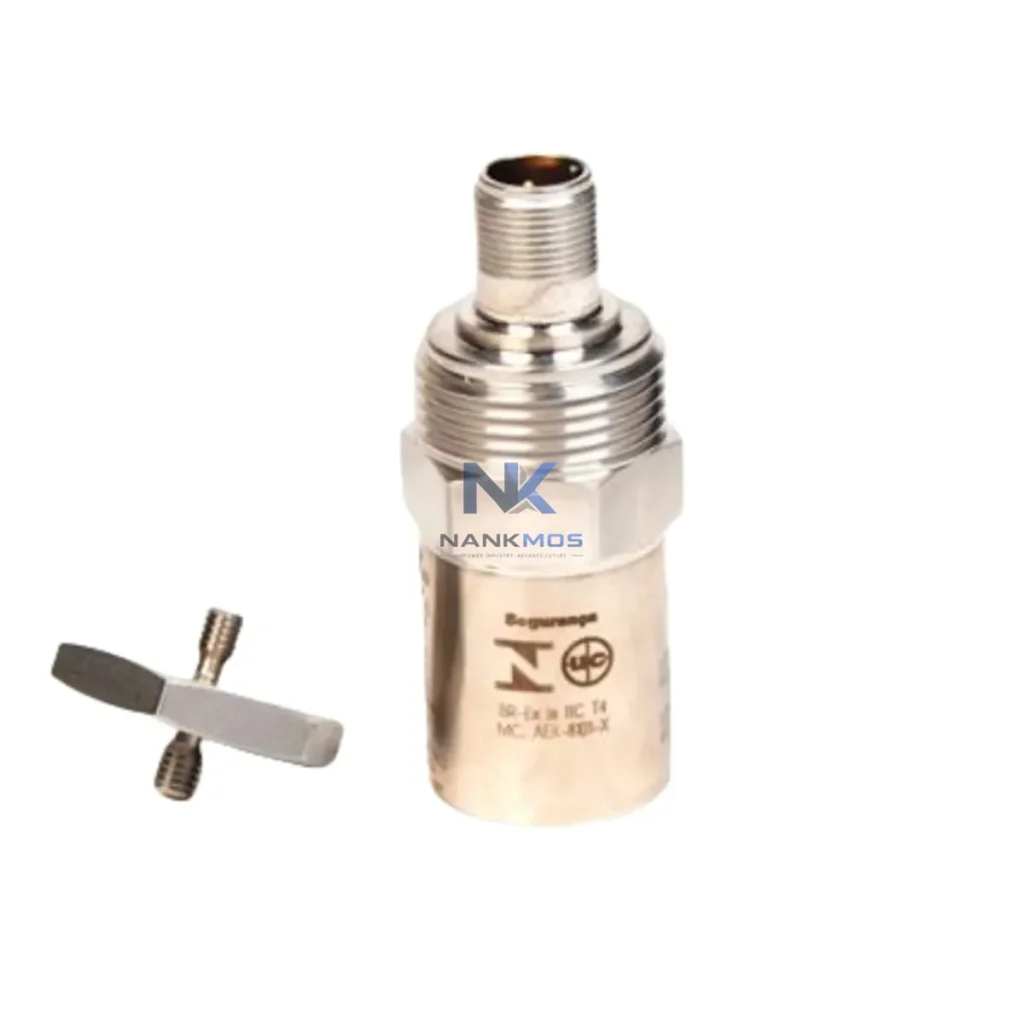

The Bently Nevada 190501-02-00-CN Velomitor CT Velocity Transducer is engineered to function as a precision sensing node within a fully integrated machinery protection and condition monitoring architecture. Rather than operating as a standalone instrument, this transducer is designed for seamless contextual integration across multiple system layers — from the physical sensing layer through to the supervisory control and data acquisition (SCADA) level.

At the control layer, the 190501-02-00-CN interfaces directly with the Bently Nevada 3500 Rack System, which serves as the central machinery protection platform. The 3500 rack accepts velocity and vibration signals from this transducer through dedicated monitor modules such as the 3500/42M Proximitor/Seismic Monitor and the 3500/45 Position Monitor. These modules process the raw velocity signal, apply alarm setpoints, and relay trip outputs to the plant's safety instrumented system (SIS) or distributed control system (DCS).

At the I/O and signal layer, the transducer's 4–20 mA output is fully compatible with standard analog input modules used in platforms such as the Allen-Bradley ControlLogix 1756-IF16 or Siemens S7-300 SM331 analog input module, enabling cross-platform integration where the 3500 rack is not the primary controller. Signal conditioning is maintained through the Bently Nevada 3500/20 Rack Interface Module, which manages power distribution and communication between the rack and the host DCS.

At the communication layer, the 3500 system supports Modbus RTU, Modbus TCP/IP, and Profibus DP protocols, allowing the velocity data captured by the 190501-02-00-CN to be transmitted to higher-level systems including GE System 1 Evolution condition monitoring software, OSIsoft PI historians, and third-party CMMS platforms. This ensures that vibration trend data is continuously logged and available for predictive maintenance analysis without manual intervention.

At the power layer, the transducer operates on 18–30 VDC, compatible with the Bently Nevada 3500/15 Power Supply Module, which provides regulated, isolated DC power to all rack-mounted monitors. Redundant power configurations using dual 3500/15 modules ensure uninterrupted transducer excitation even during single power supply failures — a critical requirement in continuous-process industries such as petrochemical refining and power generation.

At the HMI and supervisory layer, velocity data from the 190501-02-00-CN is visualized through Bently Nevada System 1 Software dashboards, which provide real-time waveform display, spectrum analysis, and alarm management. Operators can configure alert and danger setpoints directly within System 1, with changes propagated automatically to the 3500 rack monitors. Integration with Wonderware InTouch or Ignition SCADA platforms is achievable via OPC-DA or OPC-UA gateways connected to the 3500 rack's communication module.

At the protection and redundancy layer, the 190501-02-00-CN supports dual-transducer redundant configurations on critical machinery trains. When paired with a Bently Nevada 330180 Proximity Transducer System for shaft displacement monitoring, the combined velocity and displacement data provides a comprehensive vibration signature that satisfies API 670 machinery protection standards. The 3500 rack's voting logic can be configured to require agreement between redundant sensors before issuing a trip command, minimizing spurious shutdowns.

At the maintenance and diagnostics layer, the transducer's self-contained piezoelectric design eliminates the need for external signal conditioners, reducing wiring complexity and potential failure points. Diagnostic checks are performed automatically by the 3500/42M monitor, which continuously verifies transducer loop integrity and flags open-circuit or short-circuit faults to the System 1 alarm console. This capability significantly reduces mean time to repair (MTTR) and supports condition-based maintenance strategies across large rotating machinery fleets.

The 190501-02-00-CN Velomitor CT is deployed across a broad spectrum of heavy industrial environments where continuous vibration monitoring is essential for operational safety and equipment longevity.

In power generation facilities — including gas turbine plants, steam turbine generators, and combined-cycle power stations — this transducer monitors bearing housing vibration on turbine-generator sets, providing early warning of imbalance, misalignment, and bearing degradation. Its wide operating temperature range (-40°C to +121°C) makes it suitable for installation on high-temperature turbine casings without signal degradation.

In petrochemical and refining applications, the 190501-02-00-CN is installed on centrifugal compressors, boiler feed pumps, and cooling tower fans. Its IP67 ingress protection rating ensures reliable operation in environments exposed to process fluids, steam, and corrosive atmospheres. Integration with the plant's safety instrumented system (SIS) via the 3500 rack's relay output modules enables automatic machine shutdown upon detection of dangerous vibration levels.

In water and wastewater treatment plants, the transducer monitors large vertical turbine pumps and horizontal centrifugal pumps, where early detection of cavitation-induced vibration prevents catastrophic impeller damage. The 4–20 mA output integrates directly with plant-wide SCADA systems, enabling centralized monitoring of multiple pump stations from a single control room.

In mining and mineral processing operations, the 190501-02-00-CN is applied to ball mills, SAG mills, conveyor drive motors, and crusher drives. The rugged MIL-C-5015 connector (CN variant) provides secure, vibration-resistant electrical connections in high-shock environments, maintaining signal integrity even under severe mechanical loading conditions.

In marine and offshore applications, the transducer monitors propulsion system components including main engines, gearboxes, and shaft line bearings. Its compatibility with the Bently Nevada 3500 rack system — which is certified for marine use — ensures compliance with classification society requirements for machinery monitoring on vessels and offshore platforms.

Q1: Is the 190501-02-00-CN directly compatible with the Bently Nevada 3500/42M Proximitor/Seismic Monitor without additional signal conditioning? Yes. The 190501-02-00-CN Velomitor CT is designed for direct connection to the 3500/42M monitor's seismic input channel. The monitor provides the required 24 VDC transducer excitation and accepts the velocity signal output without any intermediate signal conditioner. Configuration of measurement range, alarm setpoints, and output scaling is performed within the 3500 rack's configuration software, ensuring full contextual integration with the existing machinery protection architecture.

Q2: Can this transducer be used in a redundant monitoring configuration, and how does the 3500 rack manage voting logic between redundant sensors? Yes. The 190501-02-00-CN supports redundant installation where two transducers are mounted at 90° intervals on the same bearing housing. The 3500/42M monitor can be configured with a 1-of-2 or 2-of-2 voting scheme: in 1-of-2 mode, a trip is issued if either transducer exceeds the danger setpoint; in 2-of-2 mode, both must exceed the setpoint before a trip is issued. This flexibility allows engineers to balance protection sensitivity against spurious trip risk based on the criticality of the monitored machine and the consequences of an unplanned shutdown.

Q3: What warranty and supply chain support is available for the 190501-02-00-CN, and how quickly can replacement units be sourced? All 190501-02-00-CN units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional testing to verify output signal accuracy, frequency response, and connector integrity before dispatch. NANKMOS maintains inventory of the 190501-02-00-CN and compatible 3500 series components to support rapid replacement requirements, minimizing machinery downtime during unplanned maintenance events. For urgent requirements, expedited shipping arrangements are available upon request.
