Bently Nevada 190501-03-00-CN Velocity Transducer

Product Details

190501-03-00-CN Product Description

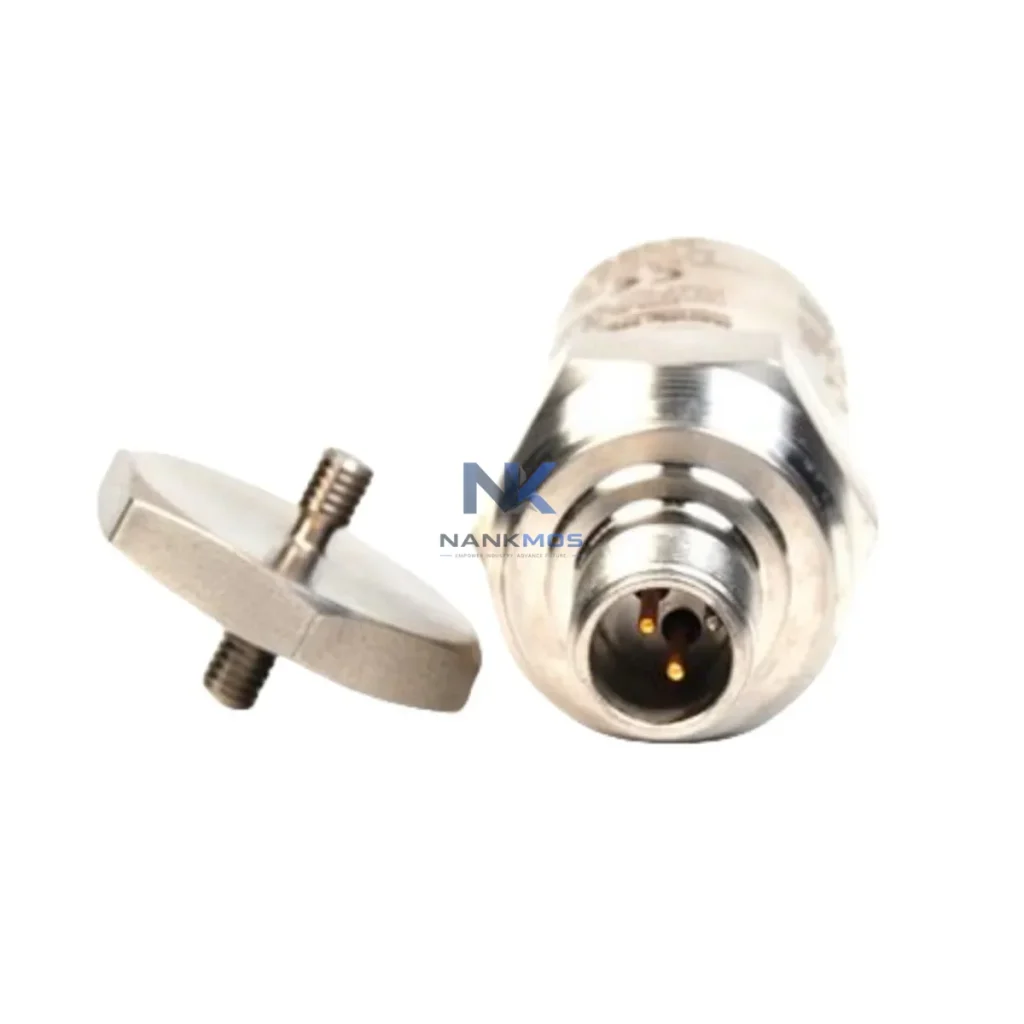

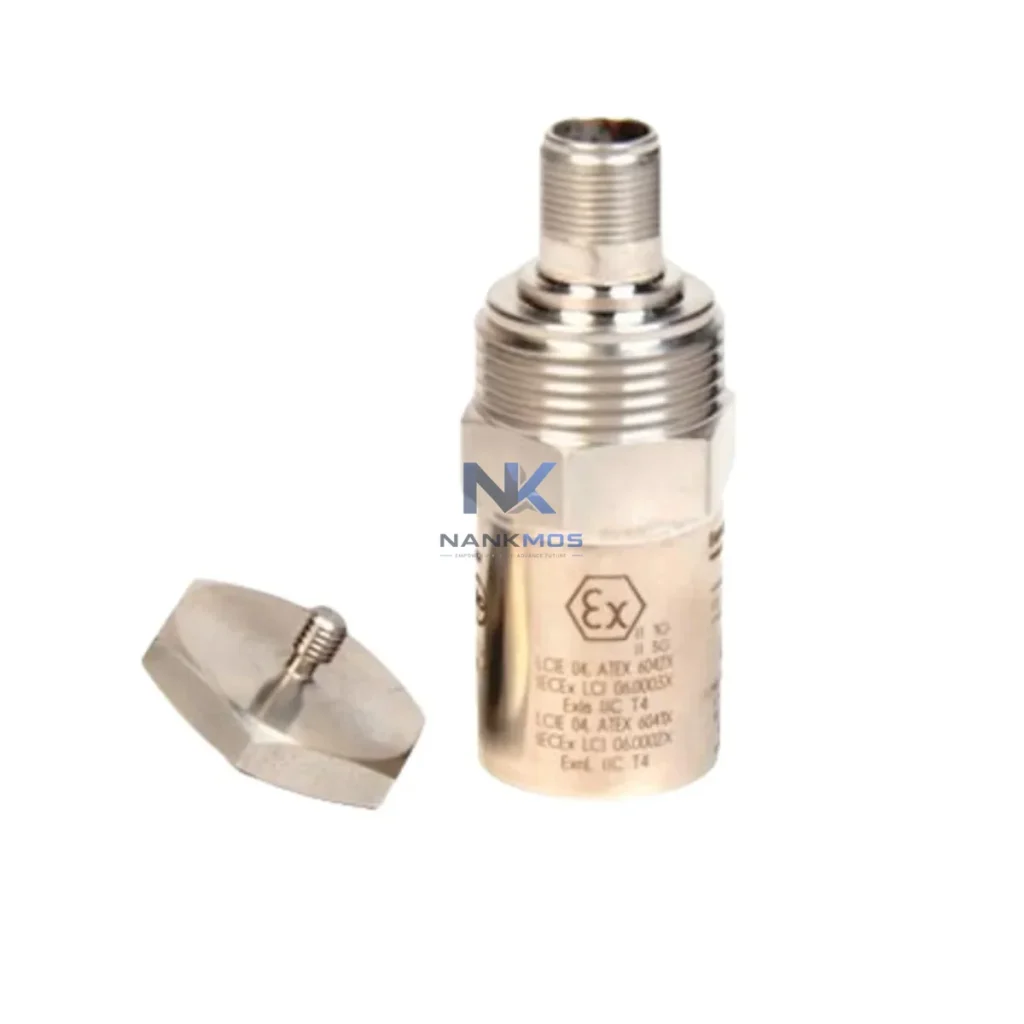

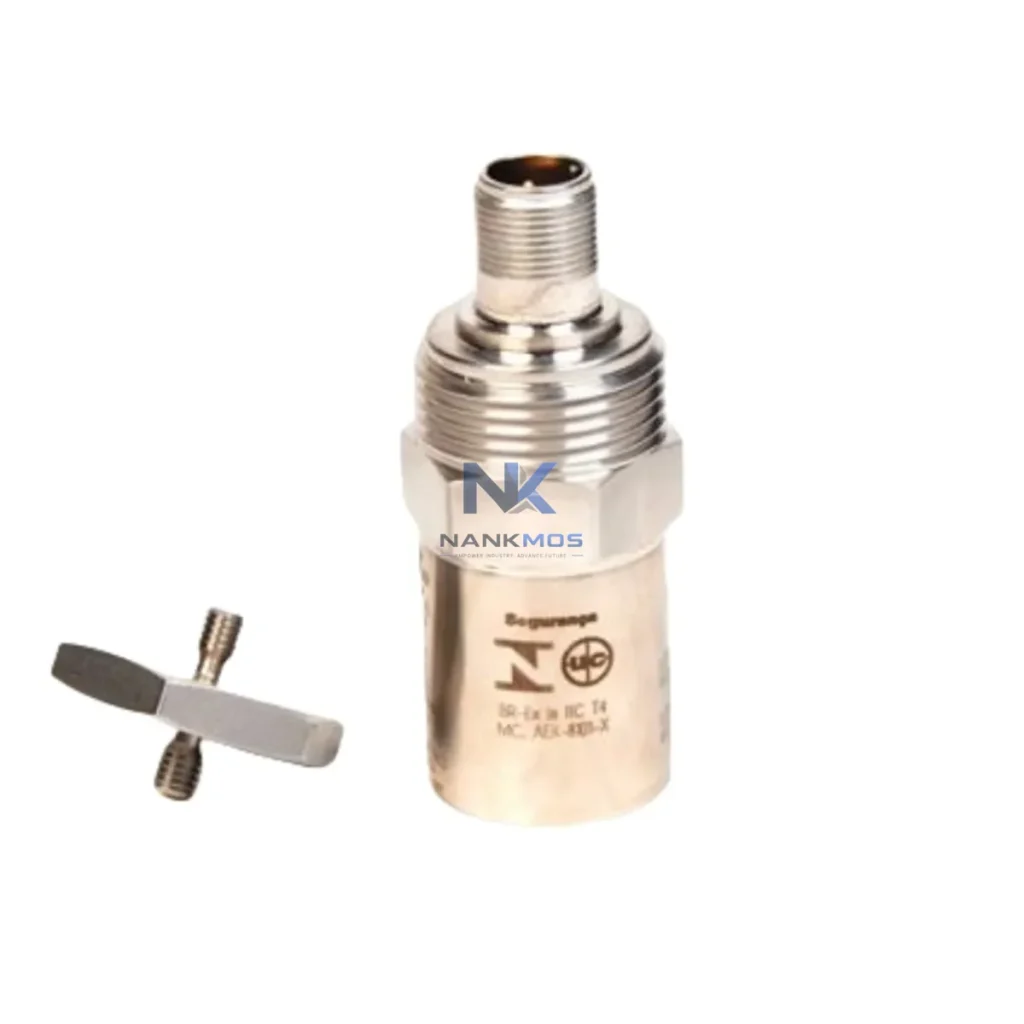

The Bently Nevada 190501-03-00-CN Velomitor CT Velocity Transducer is a precision industrial sensor engineered for continuous vibration signal acquisition in rotating machinery environments. Designed to operate within the broader Bently Nevada 3500 Series machinery protection ecosystem, this transducer serves as a critical front-end node in the smart factory data chain — converting mechanical vibration into reliable analog signals that feed directly into PLC controllers, remote I/O modules, SCADA platforms, and edge computing gateways.

In modern industrial automation sites, the integrity of the data link between field-level sensors and upper-level control systems determines the effectiveness of predictive maintenance, real-time monitoring, and remote diagnostics. The 190501-03-00-CN is built to anchor that link with high-sensitivity velocity measurement, low-noise signal output, and robust mechanical construction suited for harsh industrial environments including turbines, compressors, pumps, and motors.

The 190501-03-00-CN Velomitor CT transducer sits at the very beginning of the industrial data chain. Mounted directly on rotating equipment, it captures real-time velocity signals that are transmitted to the Bently Nevada 3500/42M Proximitor/Seismic Monitor — a rack-mounted signal conditioning module that processes raw vibration data and converts it into standardized outputs readable by downstream automation systems.

From the 3500 Series rack, conditioned signals are routed to Allen-Bradley ControlLogix PLCs or Siemens S7-400 controllers via analog input modules, where logic-based alarm thresholds are configured for automatic shutdown or alert escalation. Simultaneously, the data stream is forwarded through Moxa NPort 5650 serial-to-Ethernet device servers or Advantech EKI-1521 serial device servers, enabling Modbus TCP communication across the plant Ethernet backbone.

At the network layer, Hirschmann RS20 industrial managed switches provide redundant ring topology to ensure zero packet loss during critical monitoring windows. The vibration data then reaches Kepware KEPServerEX OPC-UA servers, which aggregate signals from multiple Bently Nevada nodes — including 3500/40M proximitor monitors and 3500/15 power supply modules — and publish them to the plant SCADA platform.

Within the SCADA environment — whether running on GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation — operators gain real-time dashboards displaying velocity trends, alarm states, and historical waveform data. HMI panels on the plant floor, such as Siemens TP1200 Comfort or Rockwell PanelView Plus 7, display localized equipment status, enabling operators to respond immediately to abnormal vibration events without accessing the central control room.

For remote diagnostics, the data path extends further through Bently Nevada System 1 software, which provides cloud-accessible machinery health analytics, enabling maintenance engineers to perform remote waveform analysis, trend comparison, and fault diagnosis from any location. Edge gateways such as the Moxa UC-8112 industrial computer can pre-process vibration data locally, applying FFT analysis before forwarding compressed diagnostic packets to the enterprise MES or ERP layer — reducing bandwidth consumption while maintaining data fidelity.

This complete data chain — from the 190501-03-00-CN sensor through signal conditioning, protocol conversion, network transmission, SCADA visualization, and remote diagnostics — represents the backbone of a connected, transparent smart factory.

Many industrial facilities face persistent challenges in achieving full data transparency across their machinery protection and automation infrastructure. The Bently Nevada 190501-03-00-CN addresses several of these critical pain points:

Protocol Fragmentation: Legacy vibration monitoring systems often output proprietary analog signals that cannot be directly consumed by modern Modbus or OPC-UA based SCADA platforms. By pairing the 190501-03-00-CN with appropriate protocol gateways and Bently Nevada 3500 Series monitors, facilities can bridge this gap without replacing existing infrastructure.

Data Silos: Vibration data trapped within standalone machinery protection racks cannot contribute to plant-wide predictive maintenance programs. The 190501-03-00-CN, integrated into a networked 3500 rack with System 1 connectivity, breaks down these silos by making velocity data available to enterprise analytics platforms.

Remote Monitoring Gaps: Without reliable remote access to vibration trends, maintenance teams must conduct manual rounds — increasing labor costs and response times. The 190501-03-00-CN's integration with System 1 and OPC-UA gateways enables 24/7 remote monitoring with configurable alarm notifications delivered via email, SMS, or SCADA pop-up alerts.

Production Line Transparency: Plant managers require real-time visibility into equipment health to make informed production scheduling decisions. Velocity data from the 190501-03-00-CN, visualized on SCADA dashboards and HMI screens, provides the operational transparency needed to prevent unplanned downtime and optimize maintenance windows.

Alarm Traceability: In post-incident investigations, the ability to replay historical vibration waveforms is essential. The 190501-03-00-CN's compatibility with System 1's historian function ensures that all alarm events are time-stamped and retrievable for root cause analysis.

System Scalability: As production capacity grows, additional Velomitor CT transducers can be added to the existing 3500 rack infrastructure without architectural changes, providing a scalable path to comprehensive machinery protection across the entire facility.

Q1: Does the Bently Nevada 190501-03-00-CN support direct Modbus TCP communication?The 190501-03-00-CN outputs an analog voltage signal and does not natively support Modbus TCP. However, when connected to a Bently Nevada 3500 Series monitor rack equipped with a communication gateway module, the processed vibration data can be made available over Modbus TCP or OPC-UA for integration with SCADA and DCS platforms.

Q2: What is the typical signal transmission latency for vibration data from the 190501-03-00-CN to the SCADA system?End-to-end latency depends on the network architecture. Within a properly configured plant Ethernet network using industrial managed switches and OPC-UA communication, typical latency from sensor signal to SCADA display update is under 500 milliseconds — well within the requirements for real-time machinery protection monitoring.

Q3: Can the 190501-03-00-CN be integrated with third-party SCADA platforms such as Ignition or Wonderware?Yes. Through the Bently Nevada 3500 rack's communication interface and an OPC-UA or Modbus TCP gateway, the 190501-03-00-CN's vibration data can be consumed by any SCADA platform that supports these standard industrial protocols, including Ignition, Wonderware InTouch, GE iFIX, and Siemens WinCC.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 190501-03-00-CN?Every Bently Nevada 190501-03-00-CN unit supplied by NANKMOS undergoes pre-shipment functional testing to verify signal output integrity and connector condition. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch, and our technical team provides full application support for system integration and commissioning.
