Bently Nevada 190501-05-00-CN Velocity Transducer

Product Details

190501-05-00-CN Product Description

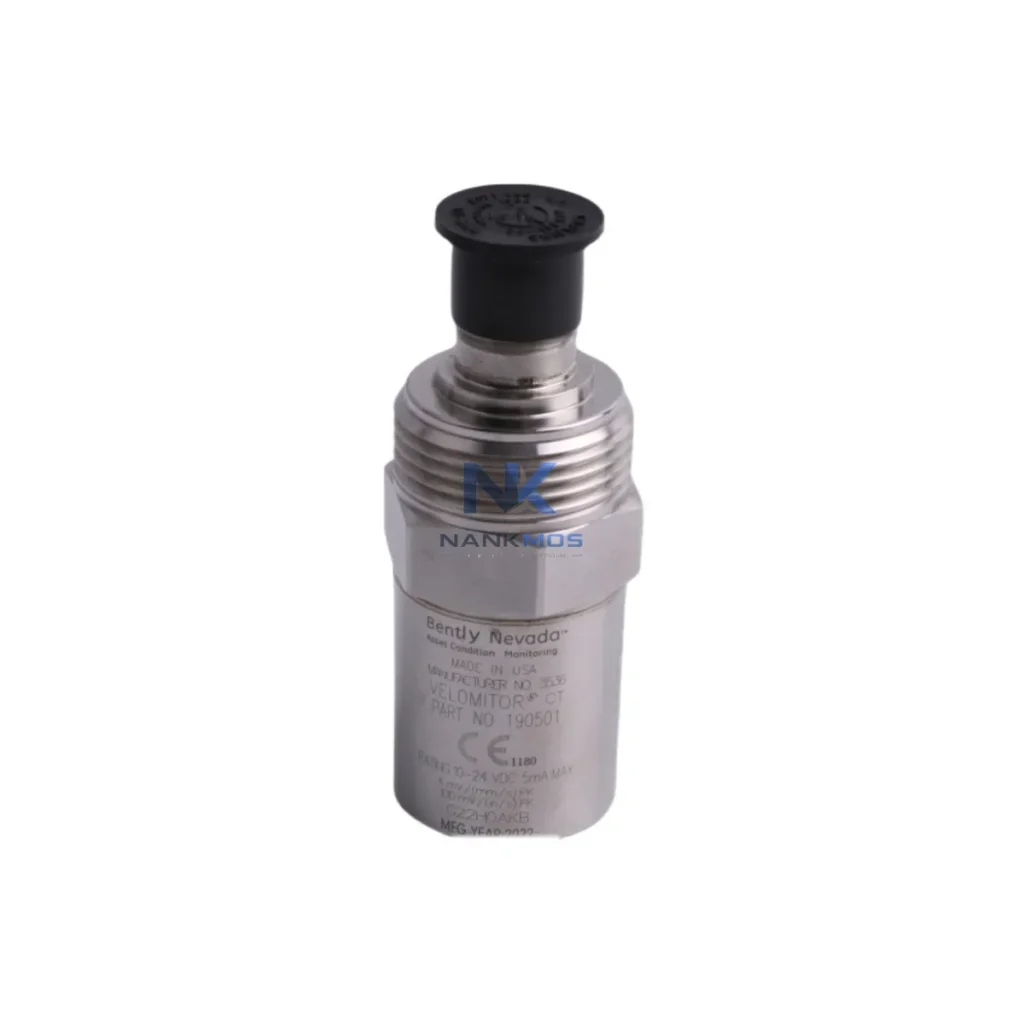

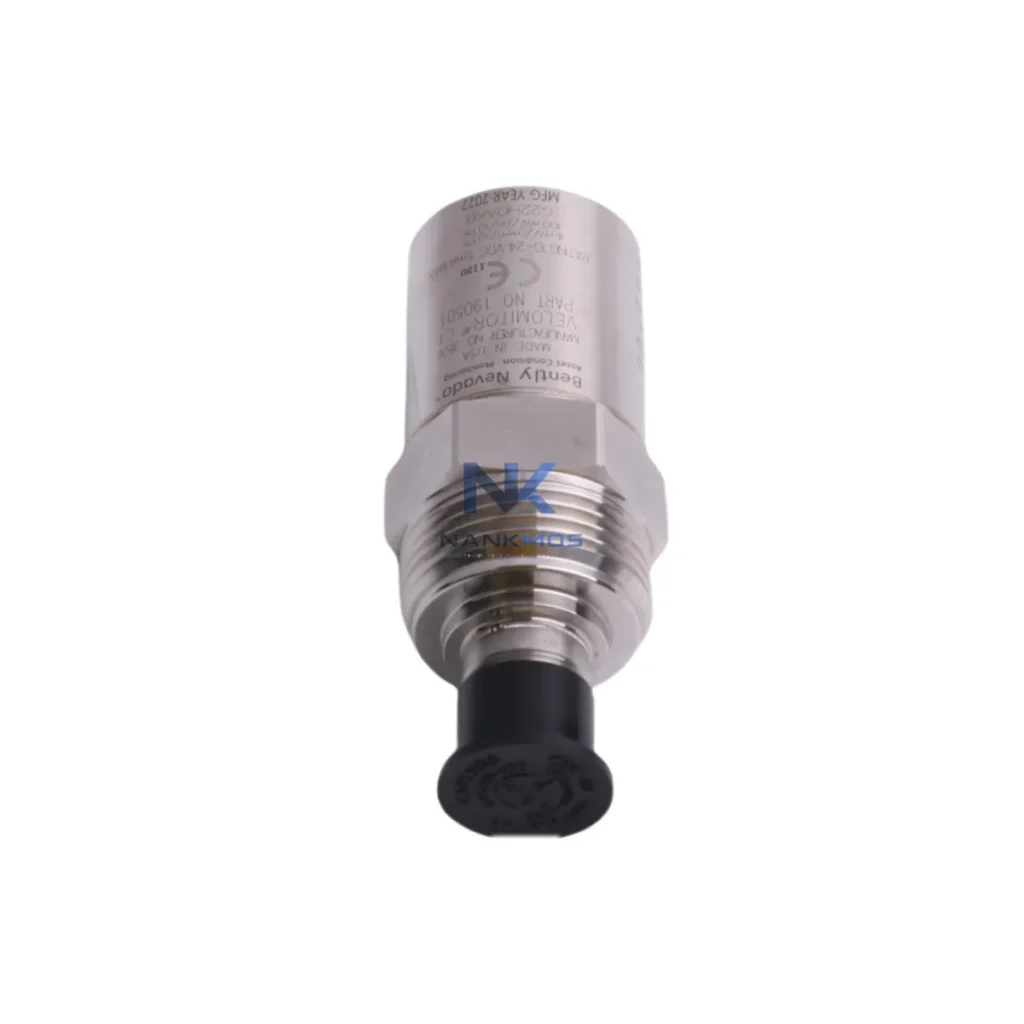

The Bently Nevada 190501-05-00-CN Velomitor CT is a high-performance piezoelectric velocity transducer engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. Designed to deliver accurate, low-noise velocity signals across a wide frequency range, this sensor serves as a critical node in the vibration monitoring layer of industrial rotating equipment protection systems. Whether deployed in turbomachinery, compressors, pumps, fans, or gearboxes, the 190501-05-00-CN provides the signal fidelity and mechanical robustness required for continuous, mission-critical operation in demanding process environments.

Unlike conventional velocity sensors, the Velomitor CT integrates an internal signal conditioning circuit that converts raw piezoelectric output into a low-impedance velocity signal, eliminating the need for external integrators and reducing system wiring complexity. This design philosophy aligns directly with the modular, scalable architecture of the Bently Nevada 3500 platform, where signal integrity, channel density, and diagnostic transparency are paramount engineering priorities.

The Bently Nevada 190501-05-00-CN does not operate in isolation — it functions as a precision input node within a fully coordinated machinery protection architecture. Understanding its role requires examining the complete signal chain and system hierarchy in which it participates.

At the monitoring layer, the 190501-05-00-CN connects directly to the Bently Nevada 3500/42M Velocity Monitor or the 3500/45 Position Monitor, which processes the incoming velocity signal, applies alarm setpoints, and communicates machine health status to the system controller. The 3500/05 Power Supply Module provides regulated DC power to the entire rack, ensuring stable transducer excitation and eliminating ground loop interference that could corrupt velocity measurements.

For phase reference and speed measurement, the 3500/15 Key Phasor Module works in conjunction with velocity transducers to enable vector-based vibration analysis, supporting advanced diagnostics such as 1X and 2X amplitude trending. This combination is essential in turbomachinery applications where phase angle data is required for balancing and alignment verification.

At the communication layer, the 3500 rack interfaces with plant-level DCS or SCADA systems via the 3500/92 Communication Gateway, supporting Modbus TCP, FOUNDATION Fieldbus, or Profibus DP protocols depending on the installed communication module. This enables real-time vibration data to be streamed to historian platforms such as OSIsoft PI or Emerson DeltaV for trend analysis and predictive maintenance workflows.

In applications requiring proximity-based displacement monitoring alongside velocity measurement, the Bently Nevada 3300 XL 8mm Proximity Transducer System (including the 3300/05 extension cable and 3300/20 proximitor) is commonly deployed in the same control cabinet, sharing the rack backplane and communication infrastructure. This multi-transducer approach provides a comprehensive view of shaft dynamics — combining displacement, velocity, and acceleration data within a single monitoring platform.

For signal conditioning and isolation in installations where intrinsic safety barriers are required, the Bently Nevada 3500/33 16-Channel Relay Module provides configurable relay outputs for alarm and trip functions, while external Zener barriers or galvanic isolators protect field wiring in Zone 1 or Zone 2 hazardous areas. The 190501-05-00-CN's CN-style connector variant is specifically designed for these environments, offering a robust, moisture-resistant termination point.

At the HMI and visualization layer, the Bently Nevada System 1 software platform aggregates data from all 3500 rack modules, providing operators with real-time waveform displays, spectrum analysis, and alarm management dashboards. Integration with the Emerson AMS Device Manager further extends diagnostic capability, enabling predictive maintenance scheduling based on vibration trend data collected by the 190501-05-00-CN and its companion transducers.

In redundant architecture designs, dual-channel velocity monitoring configurations utilize two 190501-05-00-CN sensors mounted at 90° intervals on the same bearing housing, feeding independent channels of the 3500/42M module. This redundancy ensures that a single sensor failure does not result in a monitoring gap, maintaining continuous protection for critical rotating assets in power generation, petrochemical, and LNG compression applications.

Power Generation: In gas turbine and steam turbine protection systems, the 190501-05-00-CN monitors casing vibration on bearing housings, providing early warning of imbalance, misalignment, and bearing degradation. Integrated with the 3500 rack and System 1 software, it supports both continuous online monitoring and periodic diagnostic campaigns, reducing unplanned outage risk in baseload and peaking generation assets.

Petrochemical and Refining: Centrifugal compressors, process pumps, and agitators in refinery and chemical plant environments demand continuous vibration surveillance. The 190501-05-00-CN's hermetically sealed stainless steel housing and wide operating temperature range make it suitable for installation in high-temperature, corrosive, or washdown environments. Its compatibility with the 3500 platform ensures seamless integration into existing Bently Nevada infrastructure without requiring additional signal conditioning hardware.

Water and Wastewater Treatment: Large-frame pumps and blowers in water treatment facilities benefit from velocity-based vibration monitoring to detect cavitation, impeller wear, and bearing failure before they result in process interruption. The 190501-05-00-CN's low-frequency response extends monitoring capability to slow-speed machinery, where displacement-based sensors may lack sensitivity.

Mining and Minerals Processing: Ball mills, SAG mills, conveyor drives, and crusher motors represent high-value assets in mining operations. Velocity transducers mounted on gearbox housings and motor bearing caps provide the vibration data necessary for condition-based maintenance programs, reducing the frequency of costly scheduled shutdowns and extending equipment service life.

Marine and Offshore: Shipboard propulsion systems, auxiliary generators, and HVAC compressors require vibration monitoring solutions that meet marine classification society requirements. The 190501-05-00-CN's robust construction and compatibility with the 3500 platform support compliance with ABS, DNV, and Lloyd's Register machinery monitoring standards.

Q1: Is the Bently Nevada 190501-05-00-CN directly compatible with the 3500/42M Velocity Monitor without additional signal conditioning? Yes. The 190501-05-00-CN Velomitor CT outputs a low-impedance, internally integrated velocity signal that is directly compatible with the 3500/42M Velocity Monitor input specifications. No external integrator or signal conditioner is required. The sensor is powered by the monitor module via the standard two-wire connection, simplifying installation and reducing potential failure points in the signal chain. Verify cable length and impedance against the 3500/42M datasheet for installations exceeding standard cable runs.

Q2: Can the 190501-05-00-CN be used in a dual-channel redundant monitoring configuration within the same 3500 rack? Yes. The 3500 platform supports dual-channel velocity monitoring configurations using two independent 190501-05-00-CN sensors connected to separate input channels of the 3500/42M module. This architecture provides voting logic capability (1oo2 or 2oo2) for trip functions, ensuring that a single sensor fault does not cause a spurious shutdown or leave the machine unprotected. Redundant configurations are strongly recommended for API 670-compliant installations on critical rotating equipment.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? All 190501-05-00-CN units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects, electrical performance deviations from published specifications, and mechanical integrity of the housing and connector assembly. Each unit undergoes pre-shipment functional testing to verify sensitivity, frequency response, and output signal quality. In-stock units are typically dispatched within 2–5 business days. For urgent requirements or large-quantity orders, contact [email protected] or call +86 18359268345 for expedited fulfillment options.
