Bently Nevada 190501-06-00-04 Velocity Transducer

Product Details

190501-06-00-04 Product Description

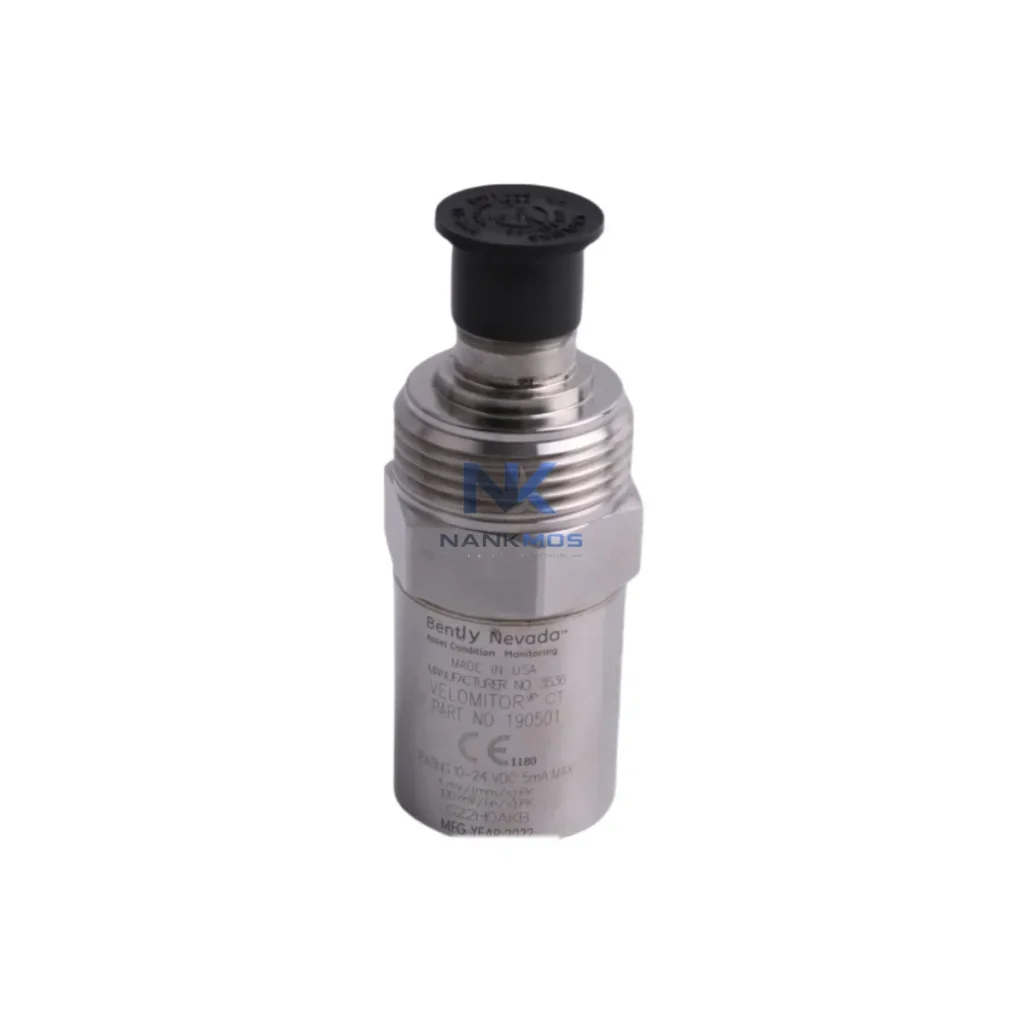

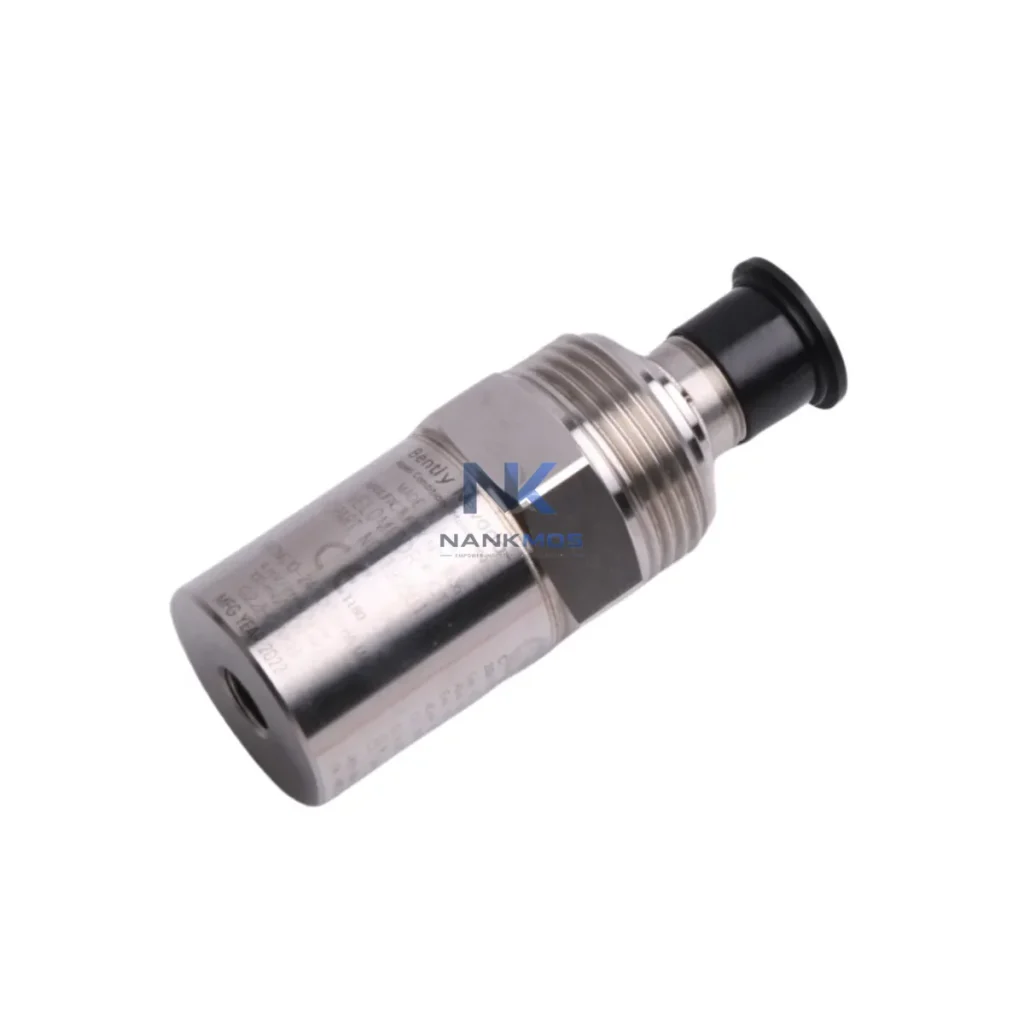

The Bently Nevada 190501-06-00-04 Velomitor CT Piezo-Velocity Transducer is a precision vibration sensing component engineered for seamless deployment within the Bently Nevada 3500 Series machinery protection architecture. Unlike standalone vibration sensors, this transducer is designed from the ground up to function as an integral node within a layered industrial control system — delivering consistent, high-fidelity velocity signals that feed directly into the 3500 Monitoring System's signal conditioning and alarm management framework. Its role spans the I/O layer and the protection layer simultaneously, making it a critical element in any rotating machinery monitoring strategy where system coherence, signal stability, and long-term diagnostic reliability are non-negotiable.

In a complete automation architecture, the 190501-06-00-04 operates in close coordination with the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which processes the transducer's velocity output and converts it into actionable alarm and danger setpoints. The monitor module interfaces directly with the 3500/20 Rack Interface Module (RIM), which manages communication between the monitoring rack and the plant's distributed control system (DCS) or safety instrumented system (SIS) via Modbus, Profibus, or Ethernet/IP protocols. This layered communication architecture ensures that vibration data captured at the machine level is transmitted with minimal latency to the control layer, enabling real-time process decisions and automated protective shutdown sequences.

At the power layer, the 190501-06-00-04 is supported by the Bently Nevada 3500/15 Power Supply Module, which provides stable, conditioned DC power to the transducer and associated signal conditioning circuitry. Redundant power supply configurations are supported within the 3500 rack architecture, ensuring that a single power failure does not compromise the integrity of the vibration monitoring loop. This redundancy design is particularly critical in high-availability applications such as turbine protection, compressor monitoring, and pump protection systems where unplanned downtime carries significant operational and safety consequences.

From a signal flow perspective, the 190501-06-00-04 generates a velocity output signal (mV/mm/s or mV/in/s depending on configuration) that is routed through armored, shielded cabling to the 3500/42M or compatible monitor card. The signal path is engineered to minimize electromagnetic interference (EMI) and ground loop noise — a common challenge in industrial environments where variable frequency drives (VFDs), high-current motor starters, and power distribution equipment generate significant electrical noise. The transducer's internal piezoelectric sensing element and integrated signal conditioning circuitry provide a low-impedance output that maintains signal integrity across cable runs typical of large rotating machinery installations.

For HMI and operator interface integration, the 3500 system's alarm and status data — derived in part from the 190501-06-00-04's velocity measurements — can be displayed on Bently Nevada System 1 software platforms or third-party SCADA systems via OPC-DA or OPC-UA data bridges. Operators gain real-time trend visualization, historical waveform analysis, and predictive maintenance insights without requiring physical access to the monitoring rack. This integration capability is essential for modern condition-based maintenance (CBM) programs and aligns with IIoT-driven digital transformation initiatives in process industries.

In modular expansion scenarios, the 190501-06-00-04 can be deployed alongside Bently Nevada 3300 XL 8mm Proximity Transducer Systems for combined radial vibration and axial position monitoring on the same machine train. This multi-transducer architecture provides a comprehensive view of rotor dynamics, enabling engineers to distinguish between unbalance, misalignment, oil whirl, and rub conditions with greater diagnostic confidence. The combination of velocity (absolute casing vibration) and proximity (relative shaft vibration) measurements is a best-practice configuration recommended for API 670-compliant machinery protection systems.

Installation and commissioning of the 190501-06-00-04 follows standard Bently Nevada mounting practices, with the transducer secured to a machined flat surface on the machine casing using a threaded stud mount. Proper torque specifications and surface finish requirements must be observed to ensure accurate frequency response across the transducer's operating range (typically 2 Hz to 1,000 Hz for Velomitor CT variants). During commissioning, the Bently Nevada TK-3 Transducer Calibration Kit or equivalent calibration reference is used to verify sensitivity and frequency response before the system is placed in service. All calibration records are maintained as part of the plant's instrumentation management system, supporting audit readiness and regulatory compliance.

Long-term maintenance efficiency is a core design consideration for the 190501-06-00-04. The transducer's hermetically sealed housing and stainless steel construction provide robust protection against moisture ingress, process fluid contamination, and mechanical shock — extending service life in harsh industrial environments including offshore platforms, petrochemical plants, and steel mills. When replacement is required, the 190501-06-00-04's standardized connector interface and mounting footprint allow hot-swap replacement without requiring rack reconfiguration or system recalibration, minimizing maintenance downtime and reducing the skill level required for field replacement tasks.

NANKMOS maintains verified inventory of the Bently Nevada 190501-06-00-04 with pre-shipment functional testing performed on every unit. Each transducer undergoes sensitivity verification, insulation resistance testing, and connector integrity inspection before dispatch. All units are supplied with a 12-Month Warranty covering manufacturing defects and functional performance, with technical support available throughout the warranty period. Expedited shipping options are available for urgent maintenance and unplanned outage scenarios, with same-day dispatch available for in-stock units.

The 190501-06-00-04 achieves its full diagnostic and protective value when deployed as part of a cohesive Bently Nevada 3500 Series rack system. A typical machinery protection architecture for a centrifugal compressor train would include the 3500/15 Power Supply Module for conditioned rack power, the 3500/20 Rack Interface Module for DCS/SIS communication, the 3500/42M Proximitor/Seismic Monitor for velocity and proximity signal processing, and the 3300 XL 8mm Proximity Transducer System for complementary shaft displacement measurement. Keyphasor signals from the 3500/25 Enhanced Keyphasor Module provide rotational reference data that enables phase-referenced vibration analysis, dramatically improving the diagnostic resolution of the overall system.

At the communication layer, the 3500/92 Communication Gateway Module bridges the 3500 rack to plant-wide Ethernet networks, enabling integration with Bently Nevada System 1 Condition Monitoring Software for enterprise-level asset health management. For installations requiring functional safety compliance, the 3500 architecture supports integration with Triconex Safety Instrumented System (SIS) controllers via hardwired relay outputs from the monitor modules, providing a deterministic protective shutdown path independent of the DCS communication network. Terminal blocks, marshalling panels, and MTL Zener Barrier or galvanic isolator assemblies complete the signal conditioning chain in hazardous area installations, ensuring ATEX/IECEx compliance throughout the I/O loop.

The Bently Nevada 190501-06-00-04 is deployed across a broad spectrum of rotating machinery applications in process-critical industries. In oil and gas processing, it monitors casing vibration on gas compressors, centrifugal pumps, and expanders at LNG terminals and upstream production facilities, where API 670 compliance is mandatory and unplanned shutdowns carry multi-million dollar consequences. In power generation, the transducer is installed on steam turbine bearing housings and boiler feed pump casings at thermal and combined-cycle power plants, providing early warning of bearing degradation, rotor unbalance, and structural resonance conditions before they escalate to forced outages.

In petrochemical and refining applications, the 190501-06-00-04 is used on reactor charge pumps, overhead condensers, and compressor trains in continuous process units where machinery availability directly impacts plant throughput and product yield. Water and wastewater treatment facilities deploy the transducer on large vertical turbine pumps and blower trains, where the combination of high humidity, variable load cycles, and limited maintenance access makes remote condition monitoring via the 3500 system particularly valuable. In mining and minerals processing, the transducer monitors SAG mill drive motors, slurry pumps, and conveyor drive gearboxes in environments characterized by extreme dust, vibration, and temperature cycling — conditions that validate the 190501-06-00-04's robust hermetic construction and wide operating temperature range.

Q1: Is the 190501-06-00-04 directly compatible with the Bently Nevada 3500/42M monitor module, and does it require any additional signal conditioning hardware? The 190501-06-00-04 Velomitor CT is designed for direct connection to the Bently Nevada 3500/42M Proximitor/Seismic Monitor without additional signal conditioning hardware in standard installations. The transducer's integrated electronics provide a conditioned, low-impedance velocity output that is within the input specifications of the 3500/42M. In hazardous area installations requiring intrinsic safety barriers (e.g., MTL or P+F Zener barriers), the barrier parameters must be verified against the transducer's entity parameters to ensure compatibility. NANKMOS technical support can assist with barrier selection and loop calculation verification as part of our pre-sales engineering service.

Q2: Can the 190501-06-00-04 be used as a drop-in replacement for older Bently Nevada velocity transducers in existing 3500 rack installations, and will it require reconfiguration of the monitor module? The 190501-06-00-04 is designed to maintain backward compatibility with the Bently Nevada 3500 rack architecture and uses the same connector interface and sensitivity range as predecessor Velomitor models. In most cases, replacement can be performed without monitor module reconfiguration, provided the existing channel is configured for velocity input. However, sensitivity values should be verified in the System 1 or rack configuration software after replacement to confirm that alarm and danger setpoints remain correctly scaled. NANKMOS recommends a post-replacement functional verification test using a calibration shaker or reference signal source before returning the machine to service.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on the 190501-06-00-04? The NANKMOS 12-Month Warranty on the 190501-06-00-04 covers manufacturing defects, component failures, and functional performance deviations from published specifications under normal operating conditions. The warranty period begins from the date of shipment. To initiate a warranty claim, customers contact NANKMOS at [email protected] with the order reference, unit serial number, and a description of the observed fault. NANKMOS will arrange return shipping, perform failure analysis, and provide either a repaired or replacement unit within an agreed lead time. Warranty claims resulting from installation errors, overvoltage events, or mechanical damage are evaluated on a case-by-case basis with full transparency.
