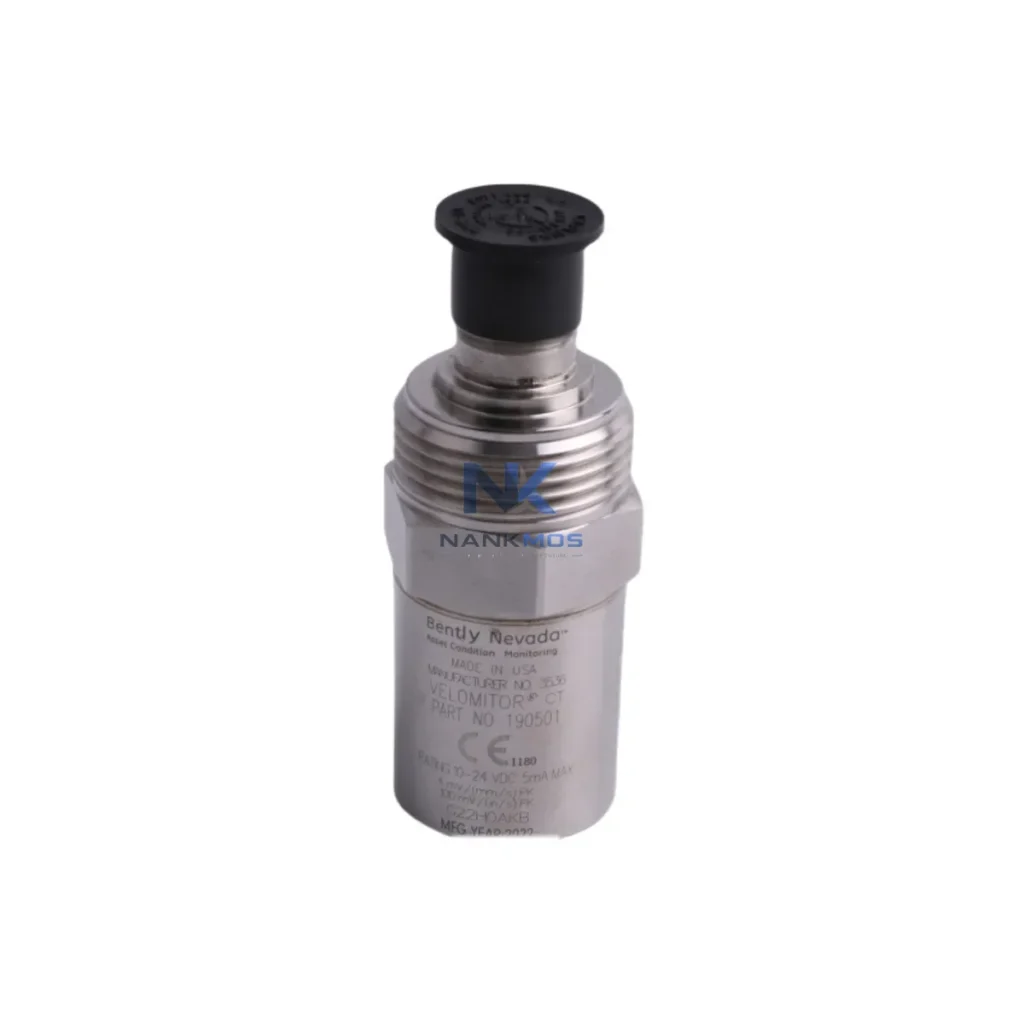

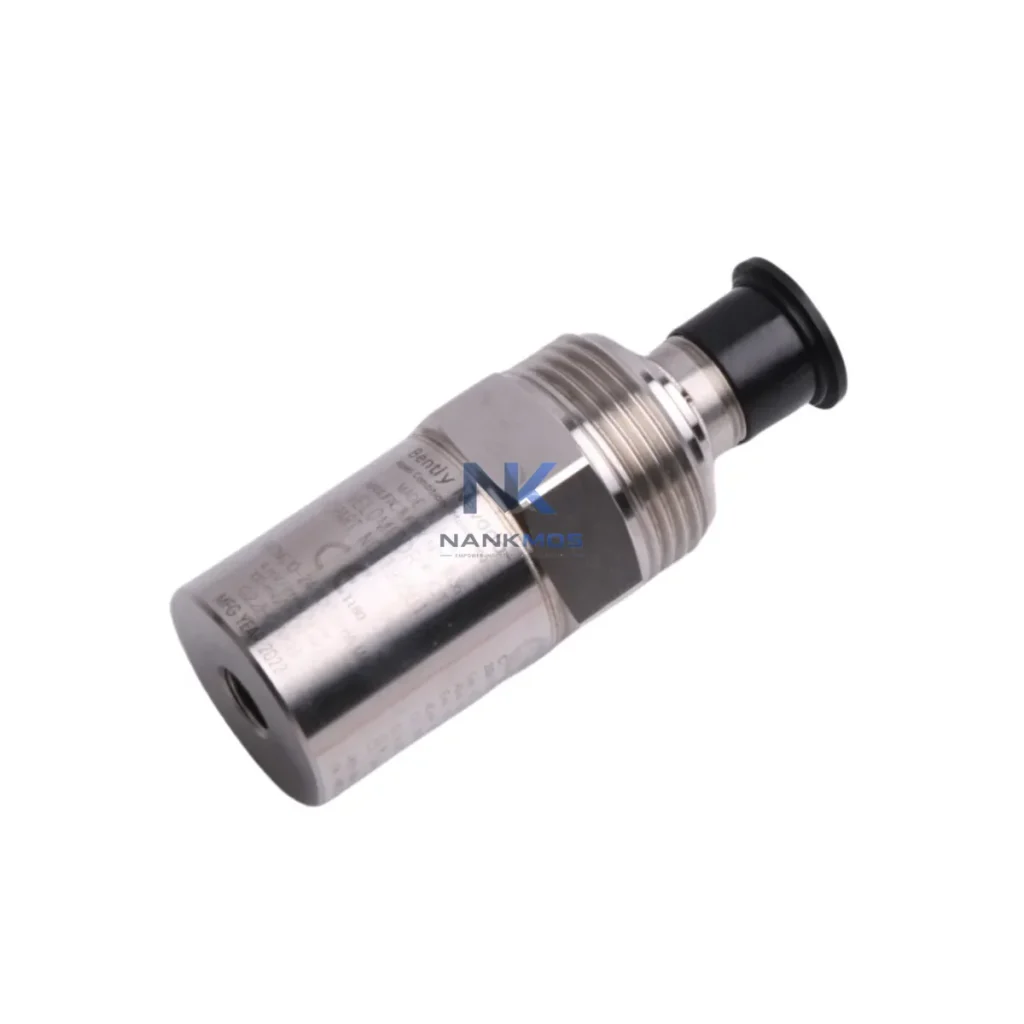

Bently Nevada 190501-08-00-CN Velocity Transducer

Product Details

190501-08-00-CN Product Description

The Bently Nevada 190501-08-00-CN is a high-performance Velomitor CT velocity transducer engineered for seamless integration into modern industrial data architectures. Designed to deliver precise vibration velocity measurements across rotating machinery, this IEPE-interface sensor serves as a critical node in the smart factory data chain — bridging field-level signal acquisition with upper-layer SCADA, HMI, and condition monitoring platforms. With its robust construction and wide frequency response, the 190501-08-00-CN is purpose-built for continuous operation in demanding industrial environments including power generation, oil & gas, petrochemical, and heavy manufacturing.

In today's connected factory, every measurement point must contribute to a unified data flow. The 190501-08-00-CN achieves this by delivering clean, low-noise velocity signals that feed directly into Bently Nevada 3500 Series rack-based monitoring systems, where analog-to-digital conversion and protocol encapsulation occur before data is transmitted upstream via Modbus TCP, OPC-UA, or proprietary System 1 communication channels. This architecture ensures that vibration data from rotating assets — compressors, turbines, pumps, and motors — is continuously available to plant-wide SCADA systems and remote diagnostic platforms without signal degradation or latency-induced blind spots.

The 190501-08-00-CN sits at the very beginning of the industrial data chain. Mounted directly on rotating machinery housings, it captures broadband velocity signals and transmits them via its IEPE interface to a Bently Nevada 3500/42M Proximitor/Seismic Monitor module installed in the 3500 Series rack. Within the rack, the 3500/20 Rack Interface Module (RIM) aggregates data from multiple transducer channels — including companion Bently Nevada 330180-51-05 proximity probes and 190501-00-00-CN standard Velomitor units — and makes this data available over Modbus TCP or OPC-UA to the plant network.

From the 3500 rack, data flows through an industrial-grade managed Ethernet switch — such as those in the Hirschmann MICE or Phoenix Contact FL SWITCH series — ensuring deterministic, low-latency transmission across the plant LAN. The vibration data then reaches the Bently Nevada System 1 condition monitoring software platform, where it is processed, trended, and visualized in real time. Simultaneously, OPC-UA data streams are consumed by plant-level SCADA systems (such as GE iFIX, Wonderware AVEVA, or Ignition by Inductive Automation) and HMI panels, enabling operators to monitor machinery health from control rooms or remote workstations.

For facilities deploying edge computing architectures, the 3500 rack data can be routed through an industrial edge gateway — such as the Moxa MGate MB3480 or a Siemens SINEMA Remote Connect gateway — enabling secure remote access and diagnostics over WAN or cellular networks. This is particularly valuable for unmanned substations, offshore platforms, and geographically distributed compressor stations where on-site intervention is costly. Remote engineers can access real-time vibration trends, alarm histories, and diagnostic reports without physical presence, dramatically reducing mean time to repair (MTTR).

The data pipeline extends further when integrated with DCS platforms such as the Emerson DeltaV or Honeywell Experion PKS, where vibration data from the 190501-08-00-CN is correlated with process variables — flow, pressure, temperature — to build comprehensive asset health models. Variable frequency drives (VFDs) controlling the monitored motors can also feed operational data into the same SCADA layer, enabling cross-correlation between electrical load profiles and mechanical vibration signatures for predictive maintenance decisions.

Many industrial facilities still operate with fragmented monitoring architectures — islands of data that cannot communicate with one another. The 190501-08-00-CN, when deployed within the Bently Nevada 3500 ecosystem, directly addresses these challenges:

Protocol Fragmentation: Legacy vibration monitoring systems often rely on proprietary analog outputs that cannot be natively consumed by modern SCADA or DCS platforms. The 3500 rack's Modbus TCP and OPC-UA gateway capabilities translate the 190501-08-00-CN's IEPE signal into standard industrial protocols, eliminating the need for third-party protocol converters and reducing integration complexity.

Data Silos: Vibration data isolated in standalone condition monitoring systems cannot contribute to plant-wide optimization. By routing 190501-08-00-CN data through OPC-UA into SCADA and historian platforms (such as OSIsoft PI or Ignition's built-in historian), maintenance teams gain a unified view of asset health alongside process data, breaking down the barriers between reliability engineering and process operations.

Remote Monitoring Gaps: For assets in hazardous or remote locations, continuous remote monitoring is essential. The 190501-08-00-CN's integration with edge gateways and System 1 remote diagnostics enables 24/7 surveillance without requiring personnel to enter hazardous zones, supporting both safety compliance and operational continuity.

Production Line Transparency: Real-time vibration trending and alarm management — delivered through HMI dashboards and SCADA alarm servers — give production managers instant visibility into machinery health, enabling proactive intervention before unplanned downtime occurs.

System Scalability: The modular architecture of the Bently Nevada 3500 rack allows facilities to expand monitoring coverage incrementally. Additional 190501-08-00-CN transducers and companion modules can be added to the existing rack infrastructure without redesigning the network or SCADA integration, protecting the initial investment while supporting plant growth.

Q1: What communication protocols does the Bently Nevada 190501-08-00-CN support for SCADA integration? The 190501-08-00-CN is an IEPE analog transducer. When connected to a Bently Nevada 3500 Series monitoring rack, the system supports Modbus TCP and OPC-UA communication, enabling direct integration with SCADA platforms such as Wonderware AVEVA, GE iFIX, and Ignition. The 3500/20 Rack Interface Module handles protocol conversion, so no additional gateway hardware is required for standard industrial Ethernet environments.

Q2: How does the 190501-08-00-CN perform in terms of network latency and real-time data delivery? The 190501-08-00-CN delivers continuous analog velocity signals to the 3500 rack at the sensor level, with no digital latency at the transducer itself. Within the 3500 rack, data is digitized and made available over Modbus TCP or OPC-UA with scan rates configurable to meet SCADA polling requirements. For most condition monitoring applications, this architecture provides sub-second data refresh rates, sufficient for real-time alarm management and trend analysis.

Q3: Can the 190501-08-00-CN be used for remote diagnostics and predictive maintenance? Yes. When integrated with Bently Nevada System 1 software and an industrial edge gateway, the 190501-08-00-CN enables full remote diagnostic capability. Vibration trends, alarm events, and spectral data can be accessed securely over WAN or cellular networks, supporting predictive maintenance programs without requiring on-site personnel. This is particularly valuable for remote or hazardous installations.

Q4: What warranty and quality assurance does NANKMOS provide for the 190501-08-00-CN? NANKMOS provides a 12-month warranty on the Bently Nevada 190501-08-00-CN. Every unit undergoes pre-shipment functional testing to verify IEPE output integrity and connector condition before dispatch. In-stock units are available for fast global shipping, and our technical team can provide documentation, test reports, and integration support upon request. For pricing and availability, contact us at [email protected] or +86 18359268345.
