Bently Nevada 190501-09-00-01 Velocity Transducer

Product Details

190501-09-00-01 Product Description

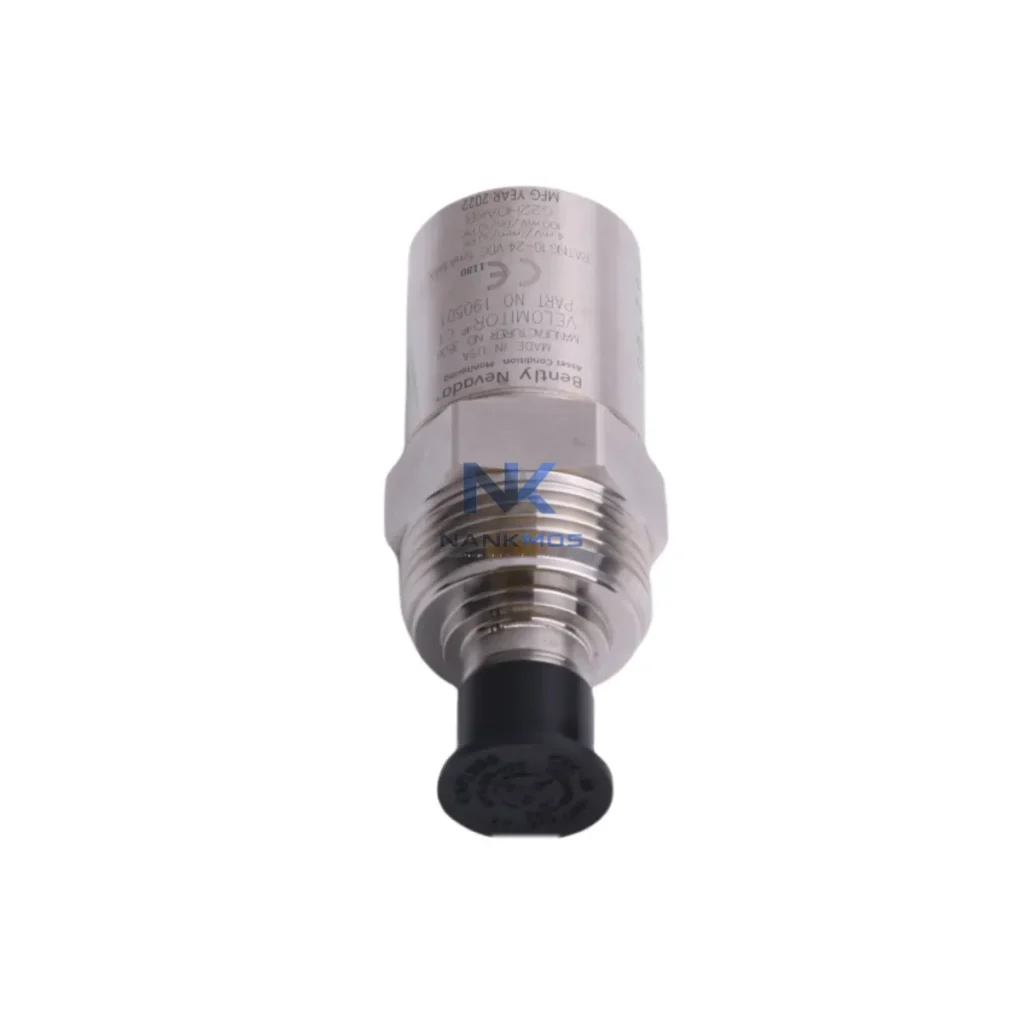

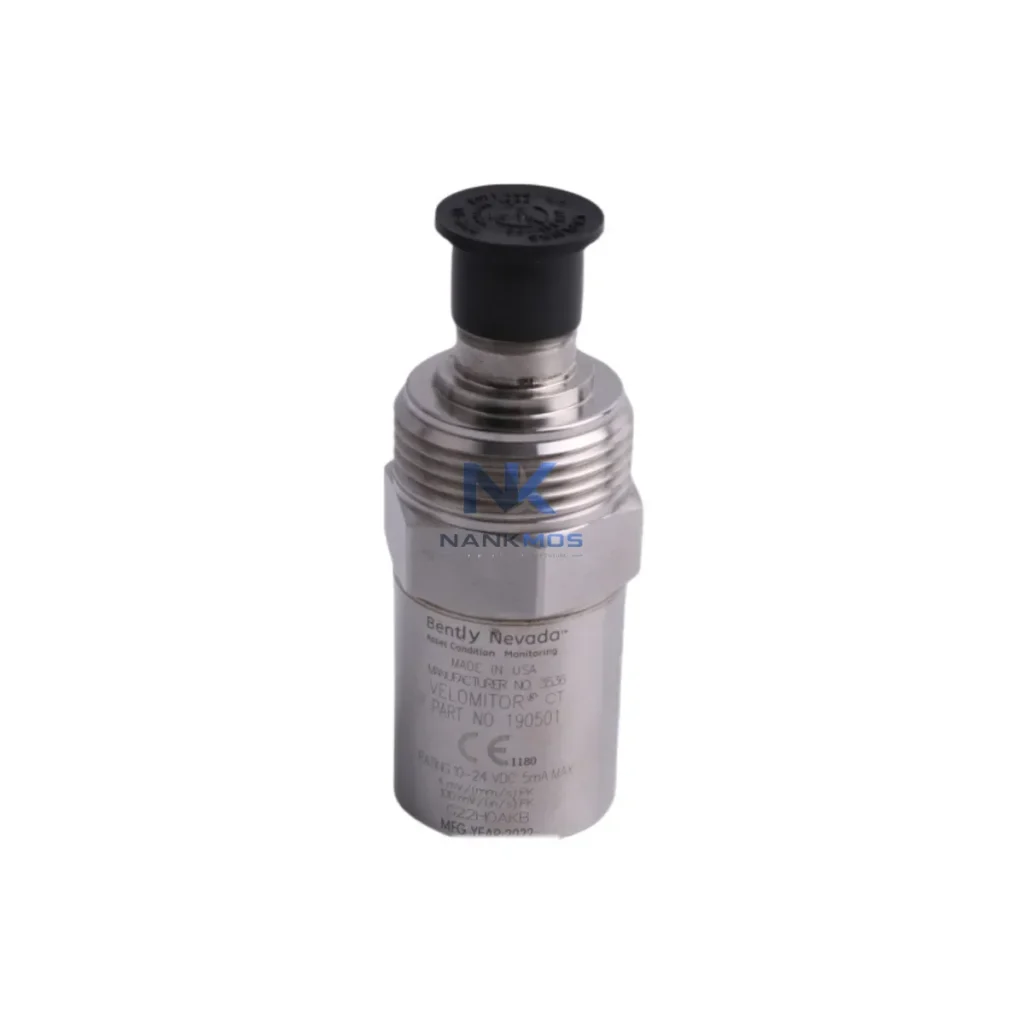

The Bently Nevada 190501-09-00-01 Velomitor CT is not a standalone sensor — it is a precision signal-generation node engineered to operate within the full-stack Bently Nevada 3500 Machinery Protection System architecture. Understanding its role requires examining how it interacts with every layer of the control hierarchy.

At the sensing and I/O layer, the 190501-09-00-01 delivers a calibrated analog velocity signal directly to the 3500/42M Velocity Input Module, which conditions, scales, and digitizes the signal for real-time processing. This module resides in the 3500/05 Rack — a 19-inch DIN-compatible backplane that supports up to 14 I/O modules, enabling dense multi-channel vibration monitoring without additional infrastructure. The rack's modular architecture allows engineers to mix velocity, proximity, and acceleration channels within a single chassis, reducing panel footprint and wiring complexity.

At the power layer, the 190501-09-00-01 is loop-powered through the 3500/20 Power Supply Module, which provides regulated 24 VDC to all transducer circuits. Dual-redundant power supply configurations are supported, ensuring that a single power module failure does not interrupt vibration monitoring — a critical requirement in continuous-process industries such as petrochemical refining and power generation.

At the communication and control layer, the 3500 rack interfaces with plant-level DCS and SCADA systems via the 3500/92 Communication Gateway Module, supporting Modbus RTU, Modbus TCP/IP, and OPC-DA/UA protocols. This enables the velocity data captured by the 190501-09-00-01 to be transmitted in real time to control room HMI stations and historian servers, where operators can trend vibration signatures, set alarm thresholds, and initiate protective shutdown sequences.

At the HMI and software layer, Bently Nevada System 1 Condition Monitoring Software aggregates data from all 3500 rack channels — including the 190501-09-00-01 — into a unified asset health dashboard. System 1 supports waveform analysis, spectrum trending, and alarm event logging, providing maintenance engineers with the diagnostic depth needed to distinguish between imbalance, misalignment, looseness, and bearing defects without removing equipment from service.

At the protection and redundancy layer, the 3500 system supports TMR (Triple Modular Redundancy) configurations using the 3500/33 16-Channel Relay Output Module, which can be programmed to trigger automatic machine trips when velocity thresholds are exceeded. The 190501-09-00-01's wide frequency response (4.5 Hz to 5,000 Hz) ensures that both low-speed machinery events and high-frequency bearing defects are captured with equal fidelity, supporting reliable trip logic across diverse rotating equipment types.

For installations requiring signal isolation and conditioning, the 190501-09-00-01 integrates seamlessly with Bently Nevada 3500/40M Proximitor/Seismic Input Modules in mixed-channel rack configurations, and can be paired with 3500/15 Power Supply and Termination Module assemblies for field-side terminal segregation. In applications where intrinsic safety is required — such as Zone 1 hazardous areas in oil and gas facilities — the transducer circuit can be routed through approved Zener barrier or galvanic isolator assemblies before entering the rack.

At the maintenance and lifecycle layer, the 190501-09-00-01's solid-state piezoelectric design eliminates moving parts, reducing mean time between failures (MTBF) and simplifying periodic calibration. Replacement units can be hot-swapped in most installations without requiring rack power-down, minimizing planned maintenance windows. All units supplied by NANKMOS are pre-tested against factory acceptance criteria and shipped with a 12-Month Warranty, ensuring that engineering teams can deploy with confidence and maintain system uptime commitments.

Power Generation: In gas turbine and steam turbine installations, the 190501-09-00-01 monitors casing vibration at bearing pedestals, providing early warning of rotor imbalance and blade-pass frequency anomalies. Integrated with the 3500 rack and System 1 software, it supports continuous online monitoring without interrupting generation output.

Petrochemical and Refining: Centrifugal compressors and process pumps in refinery service operate under variable load conditions that generate complex vibration signatures. The Velomitor CT's flat frequency response across the 4.5–5,000 Hz band captures both fundamental running speed harmonics and high-frequency bearing defect frequencies, enabling condition-based maintenance scheduling that reduces unplanned shutdowns.

Water and Wastewater Treatment: Large vertical turbine pumps and blower assemblies in water treatment facilities benefit from seismic velocity monitoring to detect structural resonance and impeller wear. The 190501-09-00-01's IP67 rating ensures reliable operation in high-humidity, wash-down environments typical of pump stations and aeration basins.

Mining and Mineral Processing: Ball mills, SAG mills, and conveyor drive systems in mining operations subject transducers to high ambient vibration and temperature extremes. The 190501-09-00-01's robust stainless-steel housing and wide operating temperature range (-40°C to +121°C) make it suitable for both surface and underground mining applications.

Marine and Offshore: Shipboard propulsion systems and offshore platform compressor trains require vibration monitoring equipment certified for marine environments. The 190501-09-00-01's sealed construction and corrosion-resistant materials support deployment in salt-air and high-humidity offshore conditions, where system reliability directly impacts operational safety.

Packaging and Discrete Manufacturing: High-speed packaging lines and CNC machining centers use velocity transducers to monitor spindle and drive motor health. The 190501-09-00-01's compact form factor and stud-mount installation allow integration into tight machine enclosures without modifying existing structural members.

Q1: Is the 190501-09-00-01 directly compatible with the Bently Nevada 3500/42M Velocity Input Module without additional signal conditioning? Yes. The 190501-09-00-01 Velomitor CT is designed as a native input device for the 3500/42M module. The module's internal signal conditioning circuitry is factory-calibrated to accept the Velomitor CT's output impedance and voltage range, eliminating the need for external amplifiers or isolators in standard (non-hazardous area) installations. Engineers should verify channel configuration in the 3500 Rack Configuration Software (RCS) to ensure the input type is set to "Seismic Velocity" before commissioning.

Q2: Can this transducer be used in a redundant monitoring architecture, and how does it integrate with TMR protection logic? Yes. Redundant velocity monitoring configurations are supported by installing two 190501-09-00-01 units at the same measurement point (radial and axial, or dual-radial) and routing each to an independent channel on separate 3500/42M modules within the same rack. The 3500/33 Relay Output Module can then be configured with voting logic (e.g., 2-of-3 or 1-of-2) to trigger protective shutdown only when multiple channels confirm an alarm condition, reducing spurious trips while maintaining protection integrity. This architecture is commonly specified in API 670-compliant machinery protection systems.

Q3: What warranty coverage and supply assurance does NANKMOS provide for the 190501-09-00-01, and how quickly can replacement units be shipped? All 190501-09-00-01 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance from the date of shipment. Each unit undergoes pre-shipment functional testing including frequency response verification and output signal calibration check. NANKMOS maintains buffer stock of high-demand Bently Nevada 3500 series components to support expedited delivery for planned maintenance outages and emergency replacement scenarios. For lead time confirmation and volume pricing, contact [email protected] or call +86 18359268345.
