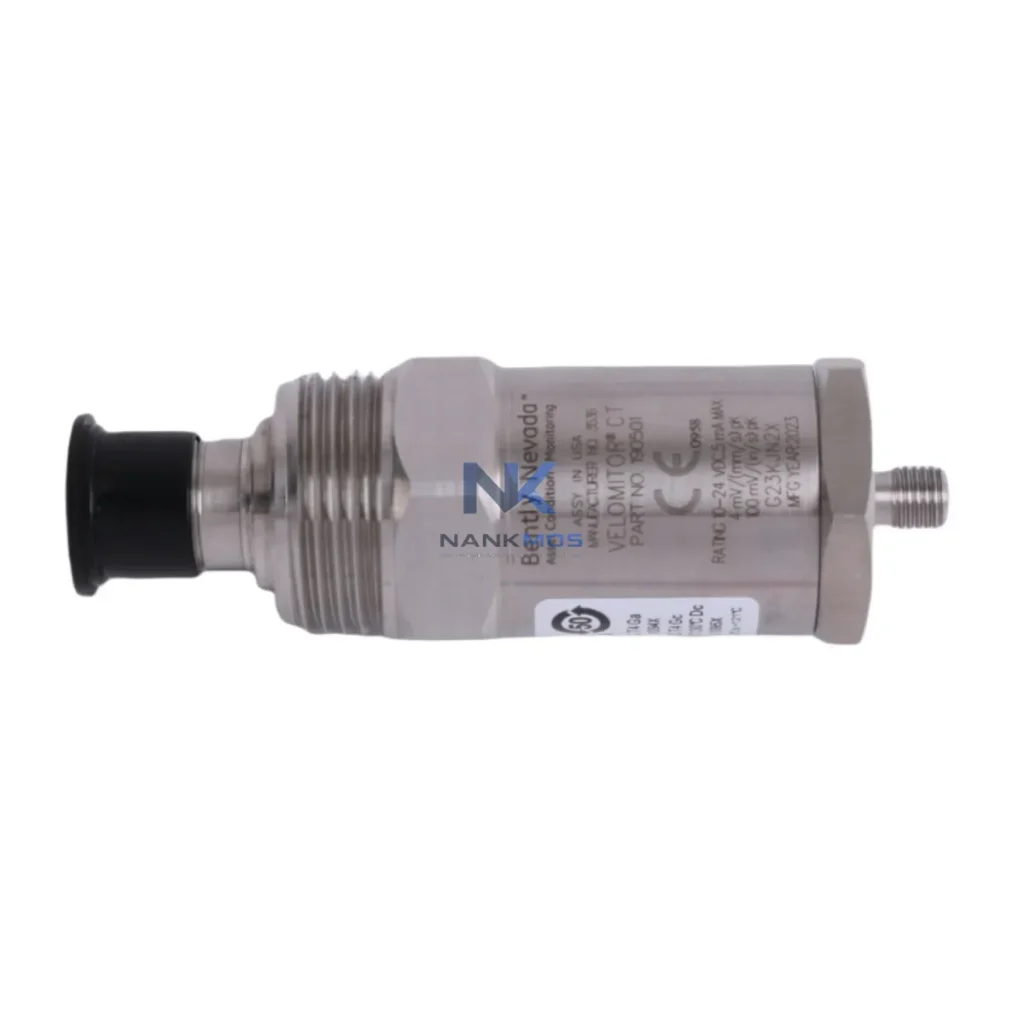

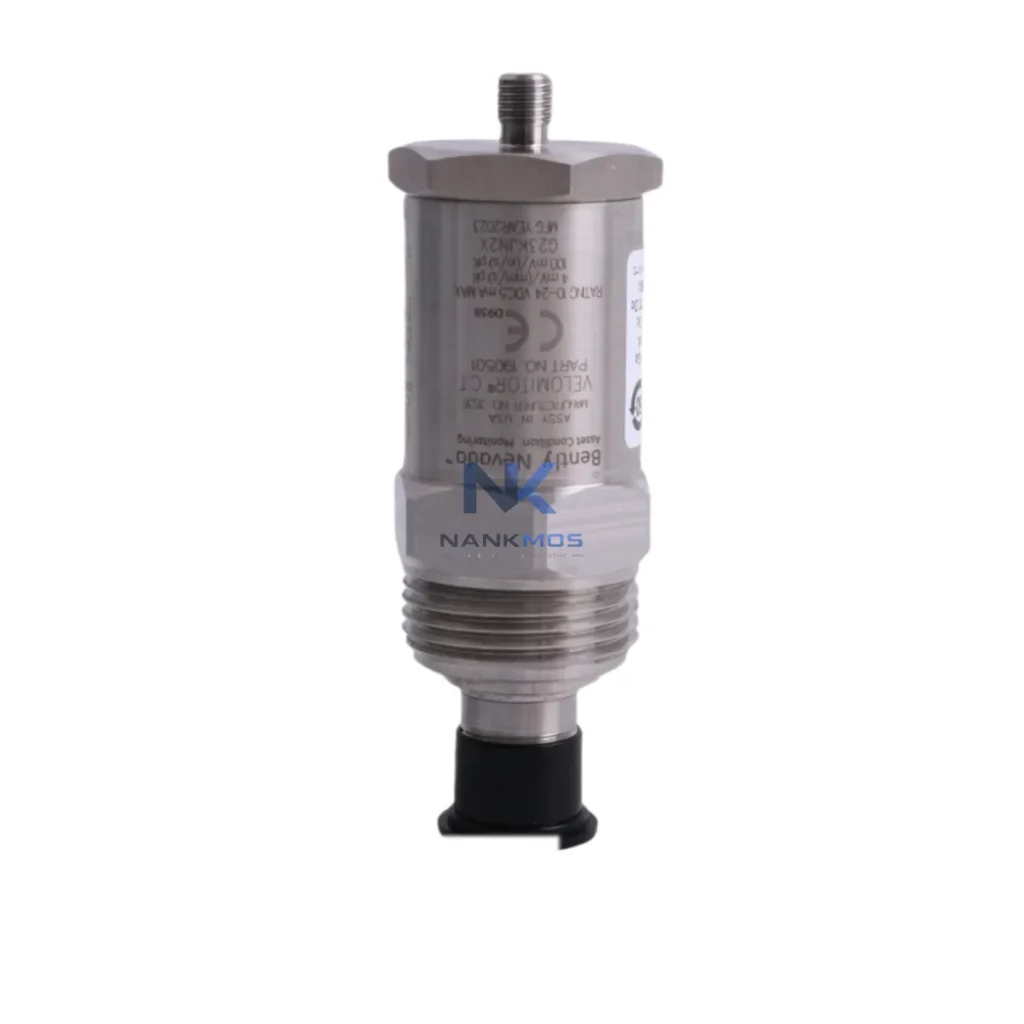

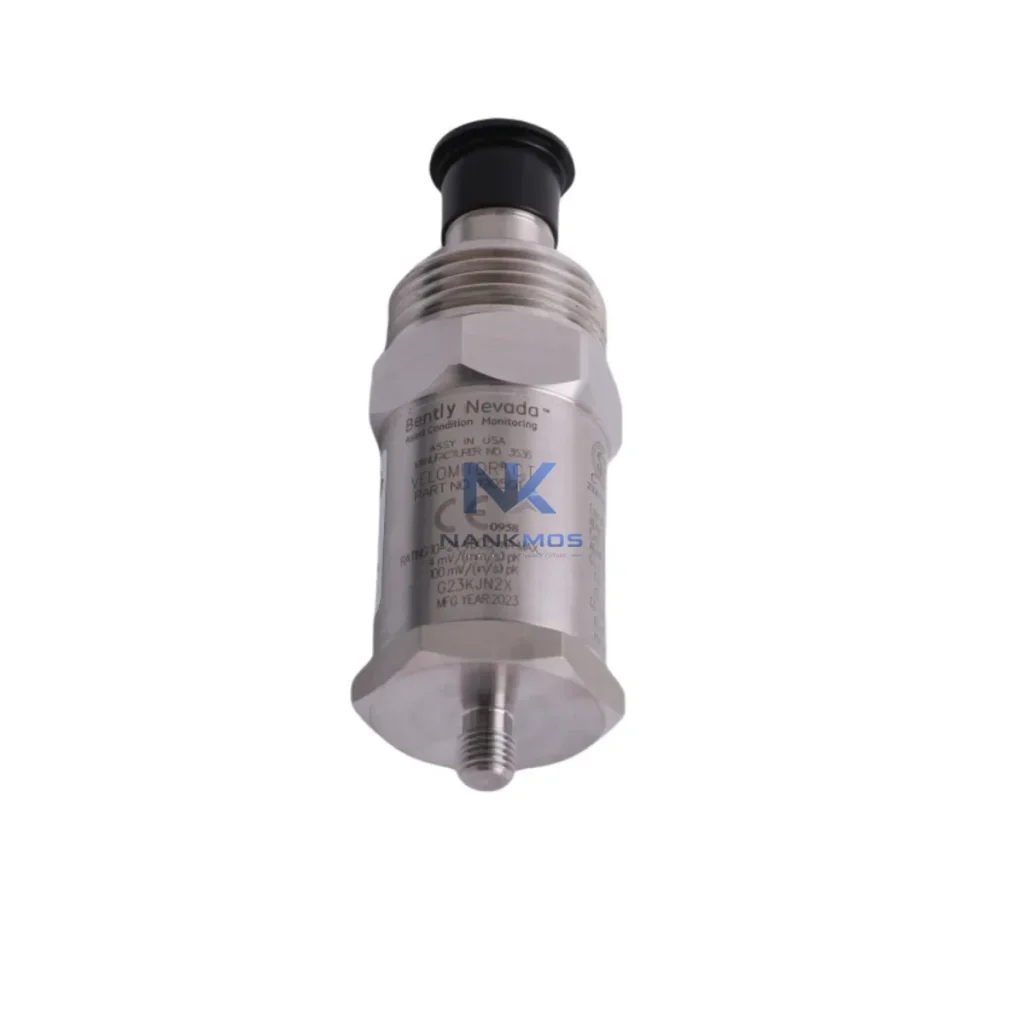

Bently Nevada 190501-10-99-04 Velocity Transducer

Product Details

190501-10-99-04 Product Description

The Bently Nevada 190501-10-99-04 is a precision velocity transducer engineered for the 3300 Series machinery protection and monitoring platform. Designed for continuous operation in rotating equipment environments — including turbines, compressors, pumps, and motors — this transducer delivers reliable 4-20mA analog output that integrates directly into modern industrial data architectures. From signal acquisition at the machine shaft to real-time visualization on SCADA dashboards, the 190501-10-99-04 forms a critical node in the smart factory data chain, enabling condition-based maintenance, remote diagnostics, and plant-wide connectivity.

In today's connected industrial environment, velocity measurement is no longer a standalone function. The 190501-10-99-04 feeds live vibration velocity data into the 3300 Series monitoring rack, where it is processed alongside proximity and acceleration signals from companion sensors such as the 330180 proximity transducer and the 330500 accelerometer. The conditioned 4-20mA signal is then routed to distributed control systems (DCS), programmable logic controllers (PLC), or remote I/O modules — bridging the gap between field-level sensing and plant-level intelligence.

Pre-shipment tested and backed by a 12-month warranty, the 190501-10-99-04 is available from in-stock inventory for rapid global deployment. Whether you are commissioning a new monitoring rack or replacing a failed transducer in a live production environment, this unit delivers measurement-grade performance with the reliability your critical assets demand.

The 190501-10-99-04 velocity transducer sits at the origin of a multi-layer industrial data flow. At the field level, it captures shaft vibration velocity from rotating machinery and transmits a calibrated 4-20mA signal to the 3300 Series monitoring rack. Within the rack, the signal is processed by the 3300/16 I/O module alongside inputs from 330180-91-00 proximity transducers and 330500-02-CN accelerometers, creating a comprehensive vibration profile for each monitored machine train.

The conditioned data exits the 3300 rack via the 3500/92 communication gateway module, which supports Modbus RTU and TCP/IP protocols. This enables direct integration with plant-level SCADA systems — such as GE iFIX, Wonderware AVEVA, or Ignition — where velocity trend data is logged to historians and displayed on HMI operator screens. Simultaneously, the Modbus TCP output can feed into OPC-UA edge gateways, allowing the vibration data to be published to cloud-based analytics platforms or IIoT dashboards for remote condition monitoring.

At the control layer, the 4-20mA signal from the 190501-10-99-04 can be wired directly into Siemens S7-300/400 PLC analog input cards or Allen-Bradley ControlLogix remote I/O modules, enabling automated alarm responses and interlock logic. When vibration velocity exceeds a configured threshold, the PLC can trigger variable frequency drives (VFDs) to reduce motor speed, activate shutdown sequences, or send alarm notifications to maintenance teams via the plant's SCADA alarm management system.

For facilities implementing edge computing architectures, the 4-20mA output can be digitized by an industrial edge gateway — such as a Moxa MGate or Advantech ADAM-6000 series I/O module — converting the analog signal to Modbus TCP or MQTT for transmission to cloud analytics engines. This architecture supports predictive maintenance workflows, where machine learning models analyze velocity trend data from multiple 190501-10-99-04 transducers across a production line to forecast bearing failures, misalignment events, or rotor imbalance conditions before they cause unplanned downtime.

Industrial Ethernet switches — such as the Hirschmann MICE or Phoenix Contact FL SWITCH series — provide the network backbone that connects the 3500/92 gateway, edge nodes, PLC racks, and SCADA servers within a ring or star topology. Redundant power supplies from the 3300 Series power module ensure continuous signal integrity even during grid disturbances, maintaining uninterrupted data flow from the 190501-10-99-04 through the entire monitoring chain.

Many industrial facilities operate with fragmented monitoring architectures — legacy analog sensors that cannot communicate with modern digital control systems, creating data silos that obscure machine health and delay maintenance decisions. The 190501-10-99-04, when integrated with the 3300 Series platform and appropriate protocol conversion hardware, directly addresses these challenges.

Protocol Unification: The 4-20mA output of the 190501-10-99-04 is universally compatible with analog input cards across all major PLC and DCS platforms. When paired with a Modbus RTU/TCP signal conditioner or the 3500/92 communication module, the velocity data becomes accessible to any SCADA or historian system without proprietary middleware.

Eliminating Data Islands: By routing velocity data through the 3300 rack's communication gateway into the plant's Ethernet backbone, operators gain a unified view of machine health alongside process variables from flow meters, pressure transmitters, and temperature sensors — all displayed on a single HMI or SCADA screen.

Remote Monitoring and Diagnostics: With OPC-UA or MQTT connectivity at the edge layer, maintenance engineers can access real-time velocity trend data from any location, enabling remote diagnostics without requiring physical presence at the machine. Alarm thresholds configured in the 3300 rack trigger immediate notifications to mobile devices or SCADA alarm queues.

Production Line Transparency: Velocity data from multiple 190501-10-99-04 transducers across a production line — covering compressors, pumps, fans, and gearboxes — can be aggregated into a single SCADA dashboard, providing plant managers with a real-time overview of rotating equipment health across the entire facility.

Scalable System Expansion: The 3300 Series modular architecture allows additional I/O modules and transducers to be added without disrupting existing monitoring channels, supporting phased expansion as production capacity grows or new equipment is commissioned.

Q1: Can the 190501-10-99-04 integrate directly with a Modbus TCP SCADA system?A: The 190501-10-99-04 outputs a standard 4-20mA analog signal. Direct Modbus TCP integration requires an analog-to-Modbus signal conditioner or the 3500/92 communication gateway module installed in the 3300 Series rack. Once converted, the velocity data is fully accessible to any Modbus TCP-compatible SCADA or historian platform.

Q2: What is the communication latency for velocity data reaching the SCADA historian?A: End-to-end latency depends on the network architecture. Within the 3300 rack, signal processing occurs in real time (sub-millisecond). Modbus TCP polling cycles are typically configured at 100–500ms intervals. OPC-UA publication rates can be set as low as 50ms for high-frequency trend logging, ensuring timely alarm response and accurate historical data.

Q3: Is the 190501-10-99-04 compatible with PROFINET or EtherNet/IP networks?A: The transducer itself outputs a standard 4-20mA signal. Integration with PROFINET or EtherNet/IP networks is achieved via compatible analog input modules on Siemens or Allen-Bradley PLC platforms, or through dedicated protocol gateways. The 3500/92 module supports Modbus TCP natively, and third-party gateways can bridge to PROFINET or EtherNet/IP as required.

Q4: What warranty and pre-shipment testing does the 190501-10-99-04 carry?A: Every 190501-10-99-04 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify output signal accuracy and connector integrity. In-stock units are available for immediate dispatch with full documentation. For volume procurement or expedited delivery, contact [email protected] or +86 18359268345.
