Bently Nevada 190501-12-00-02 Velocity Transducer

Product Details

190501-12-00-02 Product Description

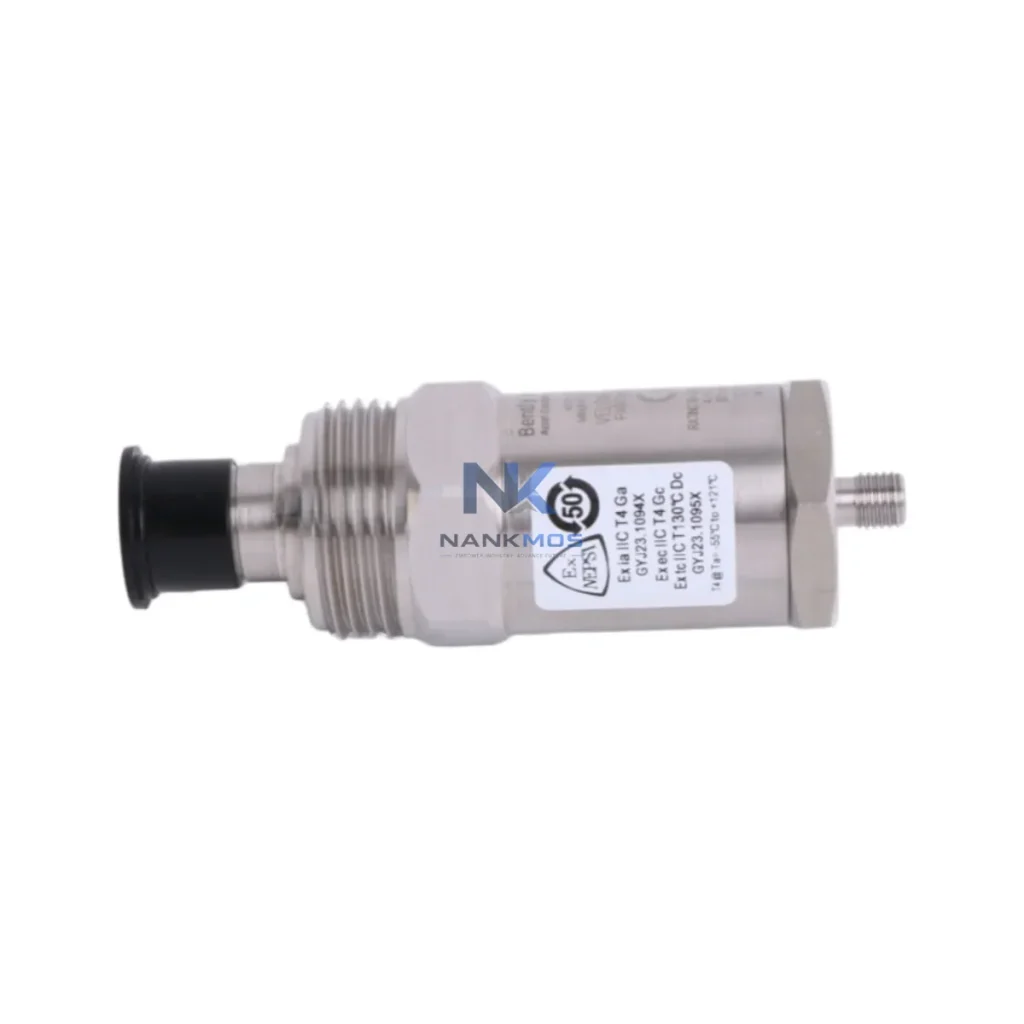

The Bently Nevada 190501-12-00-02 is a Velomitor CT piezoelectric velocity transducer engineered for seamless integration within the Bently Nevada 1900/65A machinery protection system. Designed to deliver high-fidelity vibration velocity signals across a broad frequency range, this transducer serves as a critical sensing node in multi-layer industrial control architectures — from the field sensing layer through to the control and HMI layers. Its robust construction and system-matched signal conditioning make it an essential component for continuous machinery health monitoring in demanding industrial environments.

In modern automated facilities, no sensor operates in isolation. The 190501-12-00-02 is purpose-built to function as part of a cohesive automation platform, where signal integrity at the sensing layer directly influences the reliability of decisions made at the control layer. When paired with the 1900/65A rack-mounted monitor, the transducer's output is processed through dedicated velocity input channels, enabling real-time threshold alarming, trend logging, and integration with plant-wide DCS or SCADA systems via standard communication protocols.

The 190501-12-00-02 Velomitor CT transducer achieves its full potential when deployed within a structured, multi-layer automation architecture. At the monitoring layer, the Bently Nevada 1900/65A rack-mounted machinery protection monitor receives and processes the transducer's velocity signal, applying configurable alarm and danger setpoints. The 1900/65A system supports multiple input channels, allowing simultaneous monitoring of several 190501-series transducers across a single machine train — for example, monitoring both the drive-end and non-drive-end bearing housings of a large compressor or turbine.

At the power layer, the Bently Nevada 1900/10 power supply module provides stable, regulated DC power to the 1900/65A rack, ensuring that transducer excitation remains consistent even during plant power fluctuations. Stable power delivery is foundational to signal accuracy: any ripple or dropout at the power layer propagates directly to measurement uncertainty at the sensing layer.

For communication and data integration, the 1900/65A monitor interfaces with plant DCS or SCADA platforms via analog 4–20 mA outputs or digital communication modules. In Modbus-enabled architectures, the Bently Nevada 3500/92 communication gateway can be used in parallel deployments to aggregate vibration data from multiple 3500-series monitors alongside 1900-series units, providing a unified data stream to the control room. This cross-platform data aggregation supports holistic asset health dashboards without requiring separate engineering workstations for each monitor type.

At the I/O and signal conditioning layer, installations involving mixed sensor types — such as combining the 190501-12-00-02 velocity transducer with Bently Nevada 330103 or 330130 proximity probes for shaft displacement monitoring — benefit from the complementary nature of absolute and relative vibration measurements. Velocity transducers capture casing motion, while proximity probes capture shaft orbital motion relative to the bearing; together, they provide a complete picture of rotor-dynamic behavior. Signal isolators or barriers, such as the Bently Nevada 3500/20 rack interface module, ensure signal integrity when routing transducer outputs over long cable runs in electrically noisy environments.

At the HMI and visualization layer, operator workstations running System 1 (Bently Nevada's condition monitoring software) consume the processed vibration data from the 1900/65A monitor, enabling trend analysis, spectrum plots, and predictive maintenance scheduling. System 1 integration transforms raw velocity measurements from the 190501-12-00-02 into actionable maintenance intelligence, reducing unplanned downtime and extending mean time between failures (MTBF) for critical rotating assets.

For installations requiring redundancy, dual-transducer configurations using two 190501-12-00-02 units mounted at 90° to each other on the same bearing housing provide orthogonal velocity measurement, supporting 2-out-of-2 (2oo2) voting logic within the 1900/65A monitor. This redundant sensing architecture is particularly valuable in safety-instrumented system (SIS) applications where false trips must be minimized without compromising protection integrity.

Power Generation & Turbomachinery: In gas turbine and steam turbine installations, the 190501-12-00-02 is mounted on bearing housings to monitor casing vibration during startup, steady-state operation, and shutdown transients. The 1900/65A monitor's alarm relay outputs can be wired directly into the turbine's emergency shutdown (ESD) system, providing automatic trip capability when vibration exceeds danger setpoints. This integration is critical in combined-cycle power plants where turbine availability directly impacts grid stability.

Petrochemical & Refinery Process Trains: Centrifugal compressors, pumps, and fans in refinery process trains operate continuously under varying load conditions. The 190501-12-00-02 provides continuous velocity monitoring at each bearing location, with the 1900/65A system logging trend data for predictive maintenance analysis. Integration with the plant DCS via 4–20 mA outputs allows process engineers to correlate vibration trends with process variables such as flow rate, pressure, and temperature — enabling root-cause analysis of vibration anomalies without interrupting production.

Water & Wastewater Treatment: Large pumping stations and blower installations in water treatment facilities benefit from continuous vibration monitoring to detect bearing wear, impeller imbalance, and cavitation. The IP67-rated housing of the 190501-12-00-02 ensures reliable operation in the humid, chemically aggressive environments typical of water treatment plants. The 1900/65A monitor's compact rack format minimizes panel space requirements in utility control rooms.

Mining & Minerals Processing: Crushers, mills, conveyors, and fans in mining operations are subject to high shock loads and variable operating conditions. The 190501-12-00-02's robust stainless steel construction and wide operating temperature range make it suitable for the harsh environments encountered in open-pit and underground mining applications. Continuous vibration monitoring reduces the risk of catastrophic bearing failures that can cause extended production outages in remote mining locations.

Marine & Offshore: Propulsion systems, auxiliary generators, and HVAC fans on vessels and offshore platforms require continuous machinery health monitoring to comply with classification society requirements. The 190501-12-00-02, integrated with the 1900/65A monitor, provides the vibration data required for condition-based maintenance programs, reducing dry-dock intervals and improving vessel availability.

Q1: Is the 190501-12-00-02 directly compatible with the Bently Nevada 1900/65A monitor without additional signal conditioning? Yes. The 190501-12-00-02 Velomitor CT is designed as a system-matched transducer for the 1900/65A machinery protection monitor. The monitor provides the required transducer excitation voltage internally, and the velocity output signal is directly compatible with the 1900/65A velocity input channels. No external signal conditioner or barrier is required for standard installations. For installations in hazardous areas (Zone 1/Division 1), appropriate intrinsic safety barriers must be installed in the field wiring circuit in accordance with the applicable area classification and local electrical codes.

Q2: Can the 190501-12-00-02 be used in a redundant monitoring architecture, and how does this affect the 1900/65A configuration? Yes. Redundant transducer configurations are supported by mounting two 190501-12-00-02 units at orthogonal positions (90° apart) on the same bearing housing. Each transducer connects to a separate velocity input channel on the 1900/65A monitor. The monitor can be configured for 2oo2 voting logic, where both channels must exceed the alarm setpoint before an alarm or trip output is activated. This configuration reduces nuisance trips caused by single-transducer faults while maintaining protection integrity. Consult the 1900/65A configuration manual for channel pairing and voting logic setup procedures.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed on the 190501-12-00-02? Every 190501-12-00-02 unit supplied by NANKMOS undergoes a pre-shipment functional test that verifies electrical continuity, insulation resistance, and output signal response prior to dispatch. The 12-Month Warranty covers defects in materials and workmanship under normal operating conditions. Units that exhibit performance deviations attributable to manufacturing defects within the warranty period will be repaired or replaced at no charge. The warranty does not cover damage resulting from improper installation, mechanical impact, chemical exposure beyond the rated specification, or operation outside the specified environmental limits. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
