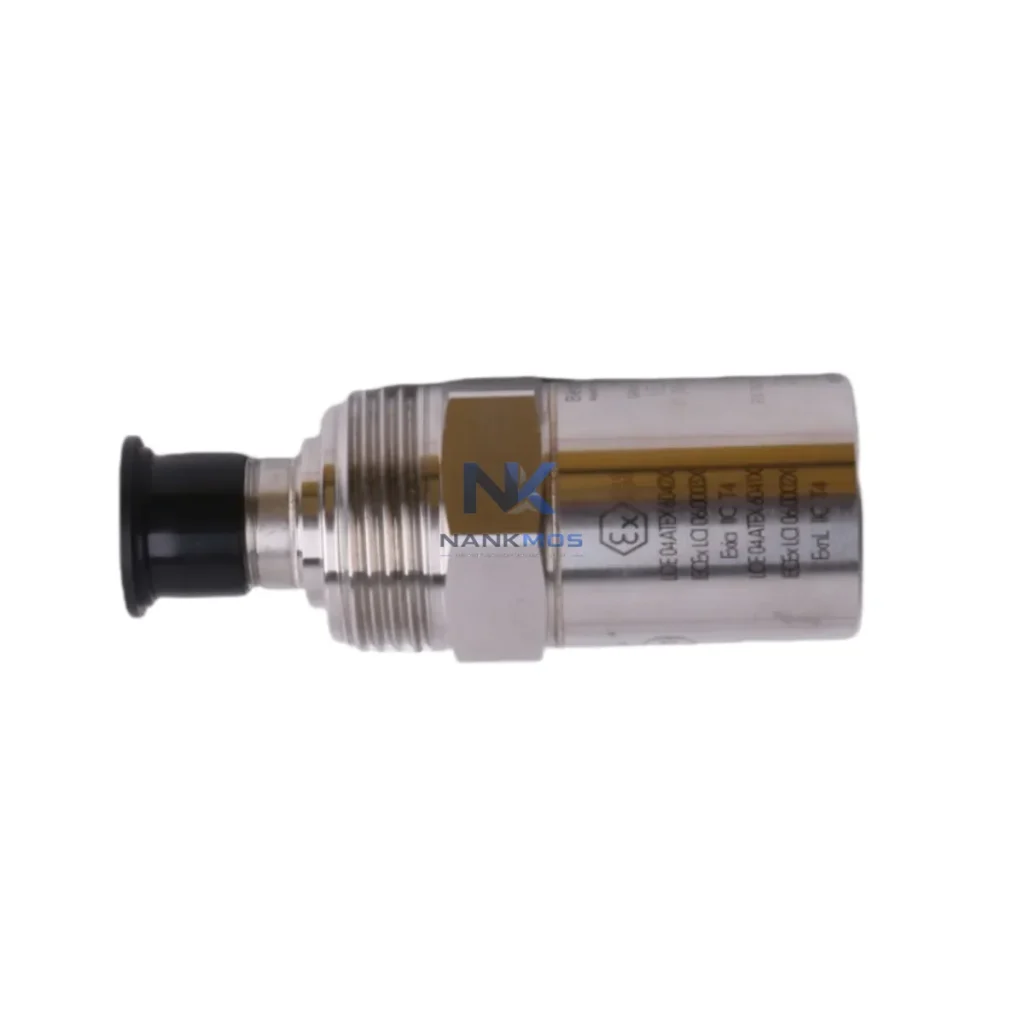

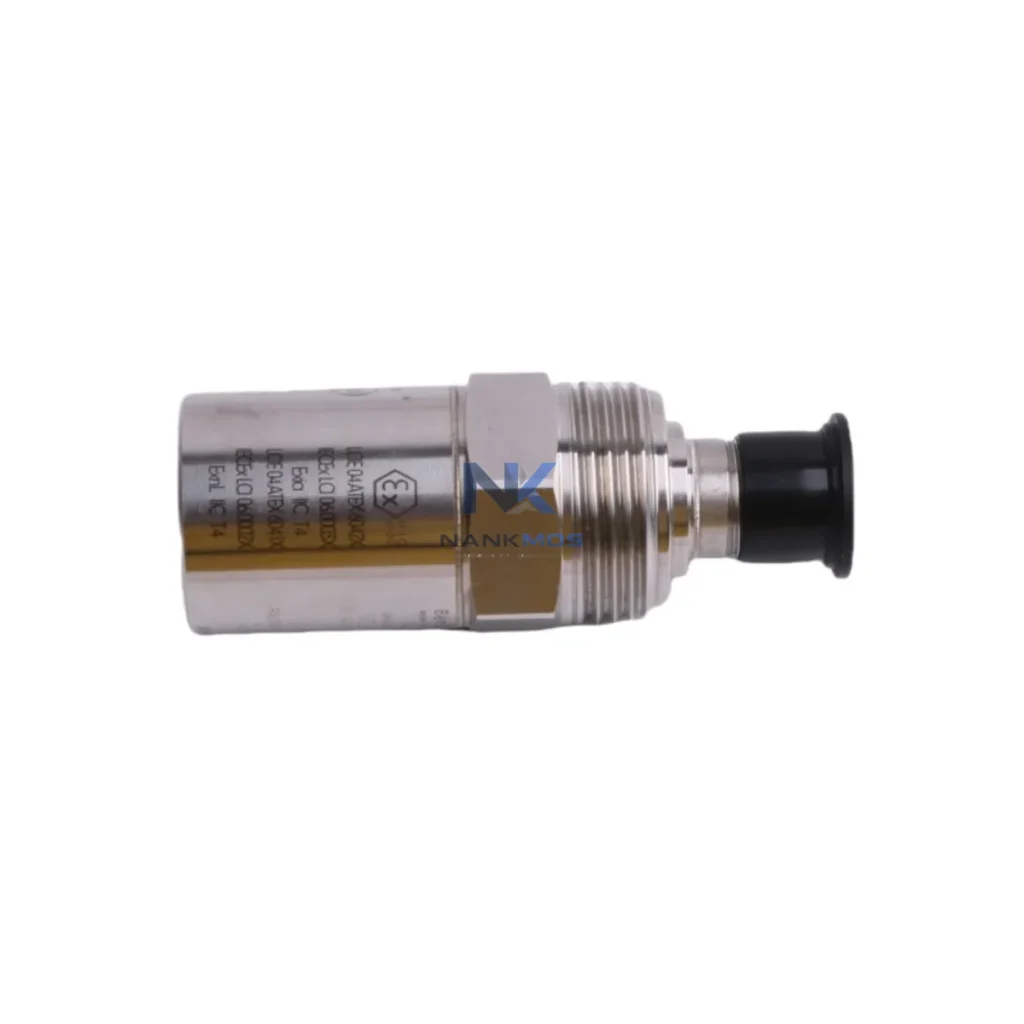

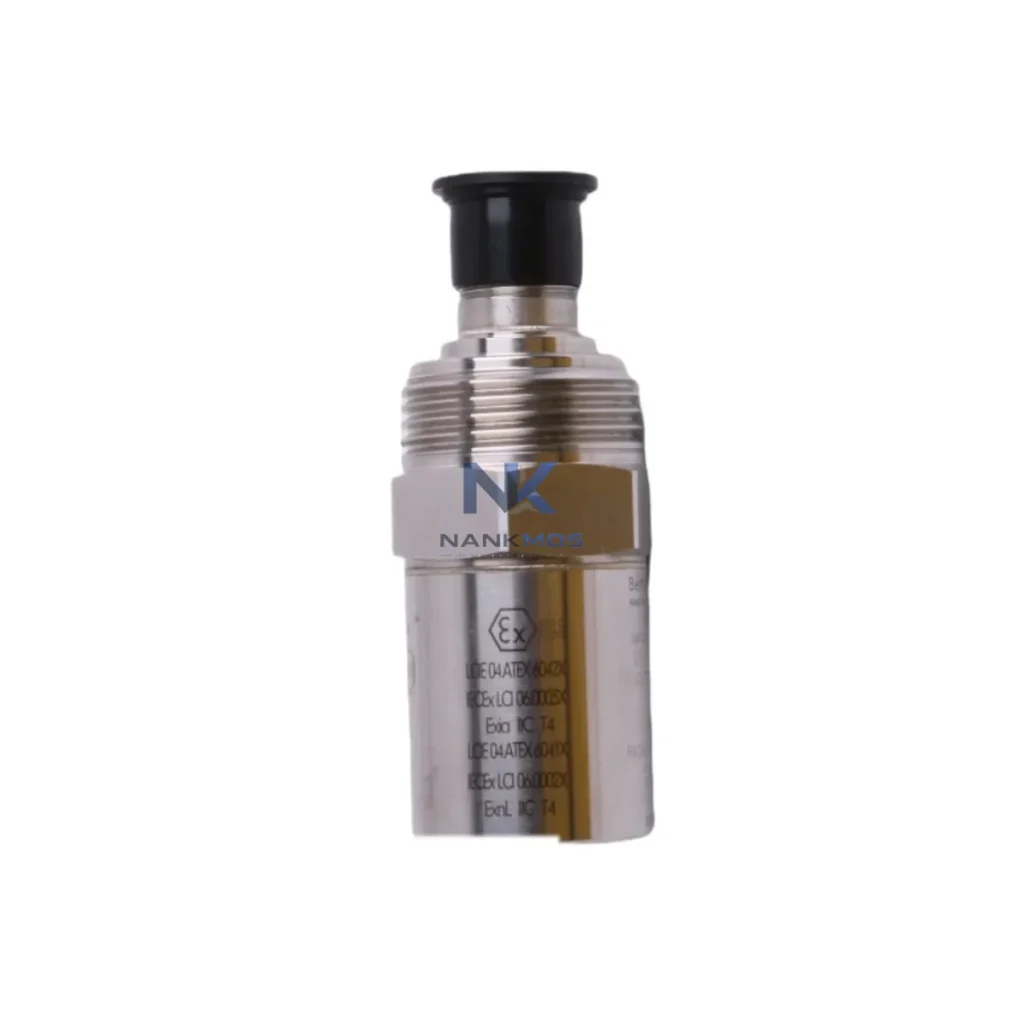

Bently Nevada 190501-13-00-00 Velocity Transducer

Product Details

190501-13-00-00 Product Description

The Bently Nevada 190501-13-00-00 Velomitor CT velocity transducer is engineered not as a standalone sensor, but as a precision signal-acquisition node within a fully integrated condition monitoring and machinery protection architecture. Its true value emerges when deployed alongside the broader Bently Nevada ecosystem, where each layer of the control hierarchy contributes to system-wide reliability, diagnostic depth, and long-term operational continuity.

At the monitoring layer, the 190501-13-00-00 feeds velocity signals directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor or the 3500/46M Hydro Monitor, both of which are designed to accept Velomitor CT inputs and process them against configurable alarm setpoints. These monitors reside in the 3500 Series Rack — a modular, backplane-based chassis that supports hot-swap I/O modules, redundant power supplies, and centralized communication gateways. The rack architecture ensures that adding or replacing the 190501-13-00-00 in the field does not require system downtime, preserving production continuity in critical rotating machinery applications.

Signal integrity from the transducer is maintained through Bently Nevada's dedicated 330130 Extension Cable and 330180 Armored Cable assemblies, which are impedance-matched to the Velomitor CT output and shielded against electromagnetic interference common in motor control centers, variable frequency drive (VFD) enclosures, and high-voltage switchgear environments. Proper cable selection is a critical engineering decision that directly affects the accuracy of velocity readings delivered to the monitor rack.

At the communication and data layer, the 3500 rack interfaces with Bently Nevada System 1 Evolution software via Ethernet TCP/IP or Modbus RTU, enabling real-time trending, waveform capture, and alarm event logging. The 190501-13-00-00's velocity data becomes part of a unified asset health dataset that operators and reliability engineers can access remotely, supporting predictive maintenance workflows without requiring physical access to the control cabinet. Integration with GE Digital APM (Asset Performance Management) platforms further extends the diagnostic value of the transducer's output across enterprise-level maintenance systems.

For applications requiring redundant vibration monitoring — such as steam turbines, compressors, or critical pump trains — the 190501-13-00-00 can be paired with a Bently Nevada 330500 Proximitor Sensor (eddy-current proximity probe) on the same shaft, providing complementary displacement and velocity measurements. This dual-sensor strategy satisfies API 670 machinery protection standards and ensures that no single sensor failure results in a loss of protective monitoring capability. The 3500/15 Power Supply Module within the rack provides isolated, regulated DC excitation to both sensor types simultaneously, with built-in diagnostics that flag power anomalies before they affect measurement quality.

In HMI and operator interface layers, velocity trend data from the 190501-13-00-00 is typically visualized on Bently Nevada 3300 XL NSv or third-party SCADA panels via OPC-DA/UA server outputs from System 1. This contextual integration allows plant operators to correlate velocity spikes with process variables — flow rates, bearing temperatures, load changes — enabling root-cause analysis that goes beyond simple threshold alarming. The result is a monitoring architecture that supports both protective shutdown logic and continuous reliability improvement programs.

The 190501-13-00-00 is deployed across a wide range of heavy industrial environments where rotating machinery health is directly linked to process safety and production efficiency. In power generation facilities — including gas turbines, steam turbines, and hydro generators — the transducer provides the velocity signal baseline required for both API 670-compliant protection systems and long-term condition trending programs. Utility operators rely on its broadband frequency response to detect early-stage bearing defects, rotor imbalance, and structural resonance before these conditions escalate to forced outages.

In petrochemical and refinery applications, the Velomitor CT series is commonly installed on centrifugal compressors, boiler feed pumps, and cooling tower fan drives — equipment categories where unplanned downtime carries significant safety and financial consequences. The IP67-rated housing of the 190501-13-00-00 ensures reliable operation in environments exposed to process fluids, steam, and aggressive cleaning agents. Its stud-mount design allows installation in confined machinery spaces where traditional velocity sensors with larger form factors cannot be accommodated.

In mining and mineral processing operations, the transducer is integrated into conveyor drive monitoring systems, crusher bearing housings, and mill pinion gear assemblies. The ability to mount the 190501-13-00-00 in both radial and axial orientations provides flexibility for multi-plane vibration measurement on large, slow-speed rotating equipment. Combined with the 3500 Series rack's configurable alarm logic, this enables customized protection schemes tailored to the specific failure modes of each machine type.

Marine and offshore applications benefit from the transducer's wide operating temperature range and robust mechanical construction, which meet the demands of engine room environments aboard vessels and offshore platforms. In water and wastewater treatment plants, the 190501-13-00-00 supports continuous monitoring of pump stations and blower systems, where early detection of cavitation or bearing wear prevents costly emergency repairs and service interruptions.

Q1: Is the 190501-13-00-00 directly compatible with the Bently Nevada 3500 Series monitor rack without additional signal conditioning? Yes. The 190501-13-00-00 Velomitor CT is designed for direct connection to the 3500/42M Proximitor/Seismic Monitor input channels. The monitor provides the required constant-current excitation (IEPE-compatible) and accepts the transducer's velocity output signal natively. No external signal conditioner or transmitter is required for standard rack integration. Verify the specific monitor module's input configuration (velocity vs. acceleration mode) during commissioning to ensure correct engineering unit scaling in System 1.

Q2: Can the 190501-13-00-00 be used in a redundant monitoring architecture, and what companion components are recommended? Yes. For redundant vibration monitoring per API 670, the 190501-13-00-00 can be installed alongside a Bently Nevada 330500 eddy-current proximity probe on the same measurement plane, with both sensors wired to separate monitor channels within the 3500 rack. The 3500/15 Power Supply Module supports dual-channel excitation with independent fault detection. For full system redundancy, a second 3500 rack with a dedicated 3500/92 Communication Gateway can be configured in a hot-standby arrangement, ensuring continuous protection even during rack maintenance or module replacement.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? All 190501-13-00-00 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output sensitivity, frequency response, and connector integrity before dispatch. In-stock units are typically available for same-week shipment. For project-quantity orders or urgent replacement requirements, contact NANKMOS directly at [email protected] or +86 18359268345 to confirm availability and arrange expedited logistics.
