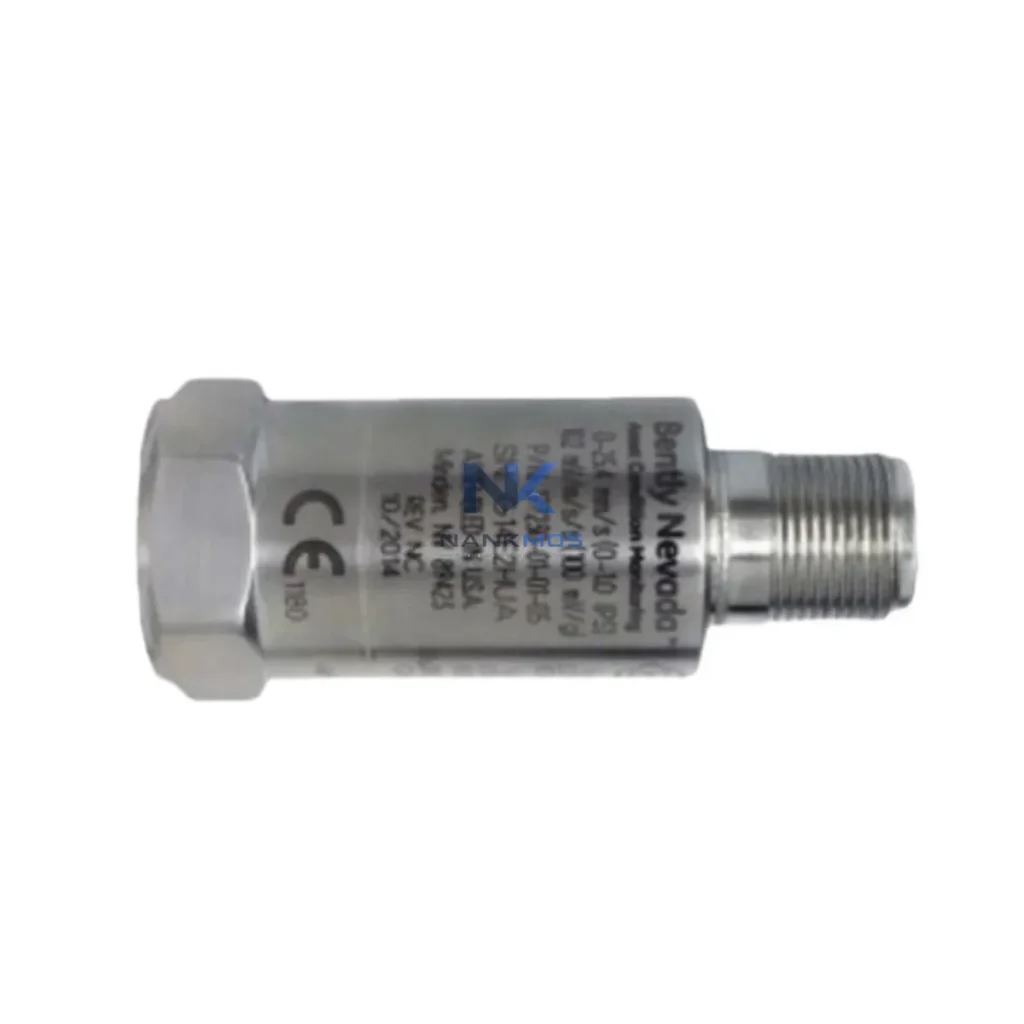

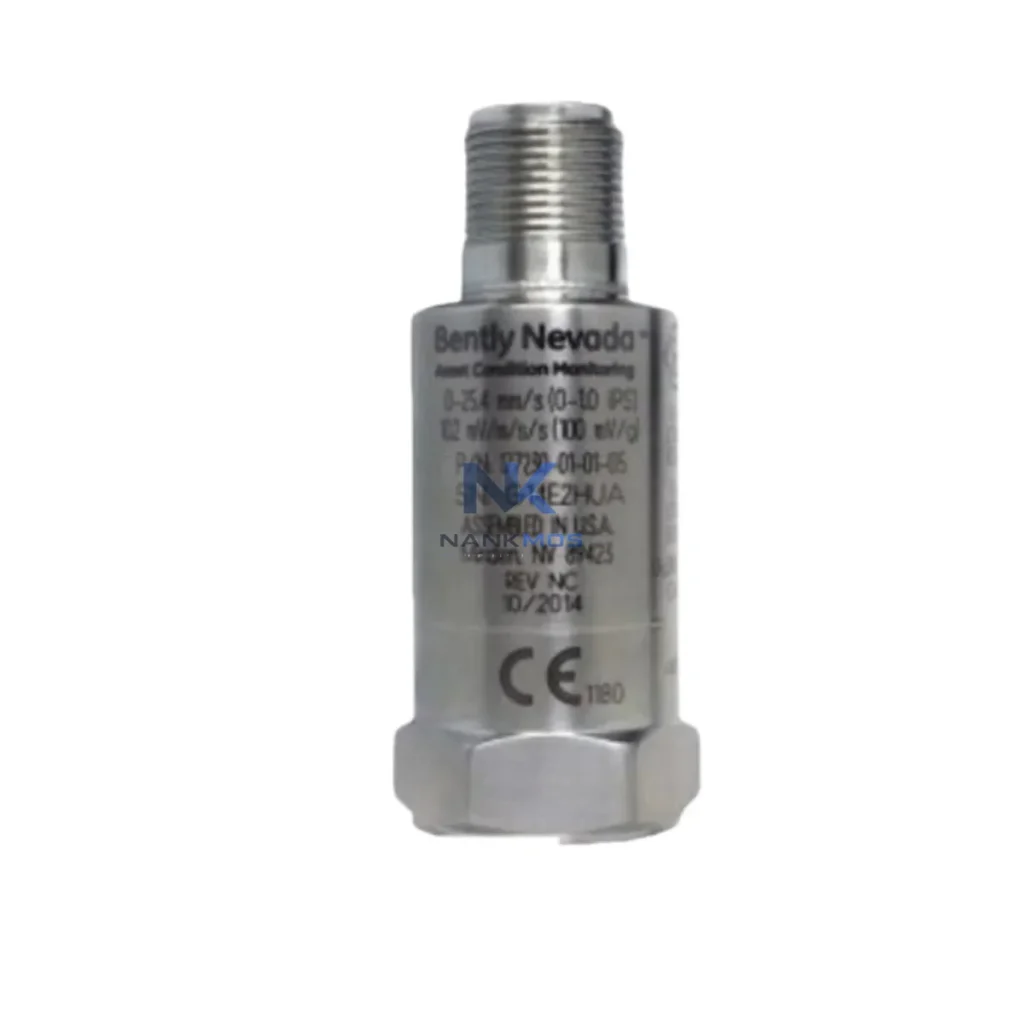

Bently Nevada 190501-13-00-04 Velocity Transducer

Product Details

190501-13-00-04 Product Description

The Bently Nevada 190501-13-00-04 is a Velomitor CT piezo-velocity transducer engineered for direct integration into the Bently Nevada 3500 Series machinery protection architecture. Designed to deliver broadband velocity measurements across rotating equipment in power generation, petrochemical, oil & gas, water treatment, mining, and marine propulsion environments, this transducer functions as a precision sensing node within a layered industrial control system. Its role extends beyond simple signal acquisition — it serves as the foundational measurement input that drives alarm logic, protection relay outputs, and condition-based maintenance decisions across the full automation stack.

Unlike conventional velocity sensors, the 190501-13-00-04 is factory-matched to the signal conditioning requirements of the 3500/25 Keyphasor Module and 3500/42M Proximitor/Seismic Monitor, ensuring seamless contextual integration without additional signal scaling or external amplification. Every unit shipped by NANKMOS is pre-shipment tested against OEM baseline specifications and covered by a 12-Month Warranty, supporting long-term deployment confidence in critical asset protection roles.

The 190501-13-00-04 Velomitor CT transducer is most effectively deployed as part of a complete Bently Nevada 3500 Series rack-based protection system. In a typical turbine or compressor protection architecture, the transducer mounts directly to the machine casing and feeds its velocity signal into the 3500/42M Proximitor/Seismic Monitor, which processes the raw signal into RMS velocity values, applies alarm setpoints, and drives relay outputs to the plant DCS or safety instrumented system (SIS).

The rack itself is powered by the 3500/05 Power Supply Module, which provides regulated DC power to all installed monitor cards and ensures system-level power redundancy when a dual-supply configuration is used. Alongside the seismic monitor, the rack typically houses the 3500/25 Keyphasor Module, which provides the phase reference signal essential for synchronous vibration analysis and balancing operations. For machines equipped with fluid-film bearings, the 3500/40M Proximitor Monitor and associated 3300 XL 8mm Proximity Transducer complement the Velomitor CT by capturing shaft relative displacement — together forming a complete vibration measurement suite covering both absolute casing motion and relative shaft motion.

At the communication layer, the 3500 rack interfaces with Bently Nevada System 1 Evolution software via the 3500/92 Communication Gateway Module, which supports Modbus TCP, OPC-DA, and OPC-UA protocols. This enables the velocity data captured by the 190501-13-00-04 to be streamed in real time to plant SCADA systems, historian platforms, and condition monitoring dashboards — achieving full contextual integration across the control hierarchy. For facilities running GE Mark VIe or Emerson DeltaV distributed control systems, the gateway module provides the protocol bridge that eliminates the need for third-party signal converters.

In the I/O and field wiring layer, the transducer cable terminates at a 3500 I/O Module terminal block, where signal integrity is maintained through shielded twisted-pair cabling and proper grounding discipline. For installations requiring signal isolation between the field device and the monitor card — particularly in high-EMI environments such as variable frequency drive (VFD) motor rooms or high-voltage switchgear areas — an inline signal isolator or Zener barrier may be inserted in the loop without affecting measurement accuracy, provided the loop impedance remains within the 3500/42M input specification.

At the HMI and operator interface layer, velocity trend data from the 190501-13-00-04 is visualized through System 1 Evolution's dynamic machine train diagrams, providing operators with real-time overall velocity levels, spectral plots, and alarm state indicators. This data can also be routed to Wonderware InTouch or Ignition SCADA via OPC-UA for integration into plant-wide operational dashboards. The result is a fully coherent, multi-layer automation architecture in which the Velomitor CT transducer serves as the primary sensing node, the 3500 rack serves as the protection and conditioning layer, and System 1 serves as the analytics and decision-support layer.

Power Generation (Steam & Gas Turbines): The 190501-13-00-04 is widely deployed on steam turbine bearing pedestals and gas turbine compressor casings, where broadband velocity monitoring is required to detect blade-pass frequencies, mechanical looseness, and structural resonance. In combined-cycle power plants, the transducer feeds the 3500/42M monitor, which in turn drives trip relays connected to the turbine emergency trip system (ETS), ensuring sub-100ms protection response on high-velocity events.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressor trains in ethylene, ammonia, and LNG facilities rely on the Velomitor CT for casing vibration monitoring at each compressor stage. The transducer's stainless steel housing and IP67 rating make it suitable for installation in classified hazardous areas (Zone 1/Zone 2) when used with appropriate cable glands and conduit sealing. The 3500 rack's relay outputs interface directly with the compressor anti-surge control system, enabling coordinated protection and process control response.

Water Treatment & Pump Stations: Large vertical turbine pumps and horizontal split-case pumps in municipal water treatment facilities use the 190501-13-00-04 to monitor bearing housing vibration. The transducer's low-frequency response (2 Hz) captures sub-synchronous vibration components associated with hydraulic instability and cavitation — failure modes that are difficult to detect with standard accelerometers. Integration with the plant SCADA via Modbus TCP through the 3500/92 gateway enables automated pump health dashboards and predictive maintenance scheduling.

Mining & Mineral Processing: Ball mills, SAG mills, and large conveyor drive gearboxes in mining operations present extreme vibration environments. The 190501-13-00-04's robust construction and wide temperature range (-40°C to +121°C) support reliable operation in open-pit and underground mining environments. The 3500 rack's modular architecture allows the velocity monitoring channel to be expanded with additional 3500/64 Dynamic Pressure Monitor cards for pulsation monitoring on slurry pumps, creating a unified protection platform for the entire mineral processing circuit.

Marine Propulsion & Offshore: Diesel generator sets, main propulsion gearboxes, and auxiliary turbines on offshore platforms and LNG carriers use the Velomitor CT for continuous casing vibration monitoring. The transducer's compatibility with the 3500 rack's redundant power supply configuration ensures uninterrupted monitoring even during generator switchover events — a critical requirement for marine classification society compliance (DNV, ABS, Lloyd's Register).

Q1: Is the 190501-13-00-04 directly compatible with the 3500/42M Proximitor/Seismic Monitor without additional signal conditioning? Yes. The 190501-13-00-04 Velomitor CT is designed to interface directly with the 3500/42M monitor's seismic input channel. The monitor's internal signal conditioning accepts the transducer's AC voltage output and performs RMS conversion, integration (if velocity-to-displacement conversion is required), and alarm processing natively. No external amplifier, signal conditioner, or impedance matching network is required, provided the cable run length remains within the OEM-specified limits (typically up to 300 meters with appropriate shielded cable). For longer cable runs, consult the 3500/42M installation manual for loop resistance and capacitance limits.

Q2: Can this transducer be used in a redundant monitoring architecture, and how does it integrate with the 3500 rack's redundant configuration? Yes. In critical machinery protection applications, dual-transducer redundant configurations are supported by the 3500/42M monitor, which can accept two independent velocity inputs per channel pair and apply voting logic (1oo2 or 2oo2) for trip decisions. Each 190501-13-00-04 unit is independently wired to a separate monitor input, and the 3500 rack's redundant power supply (dual 3500/05 modules) ensures that a single power supply failure does not interrupt monitoring continuity. This architecture meets the requirements of IEC 61511 SIL 2 safety instrumented systems when combined with appropriate SIS logic solvers and validated proof-test procedures.

Q3: What is the long-term supply and warranty support for the 190501-13-00-04, and how does NANKMOS ensure unit quality before shipment? NANKMOS maintains in-stock inventory of the 190501-13-00-04 to support both planned maintenance outages and emergency replacement requirements. Every unit undergoes pre-shipment functional testing against OEM baseline specifications, including sensitivity verification, frequency response check, and connector integrity inspection. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and performance deviations from published specifications. For bulk procurement or long-term supply agreements supporting multi-unit plant installations, contact NANKMOS directly to discuss stocking arrangements and lead-time commitments.
