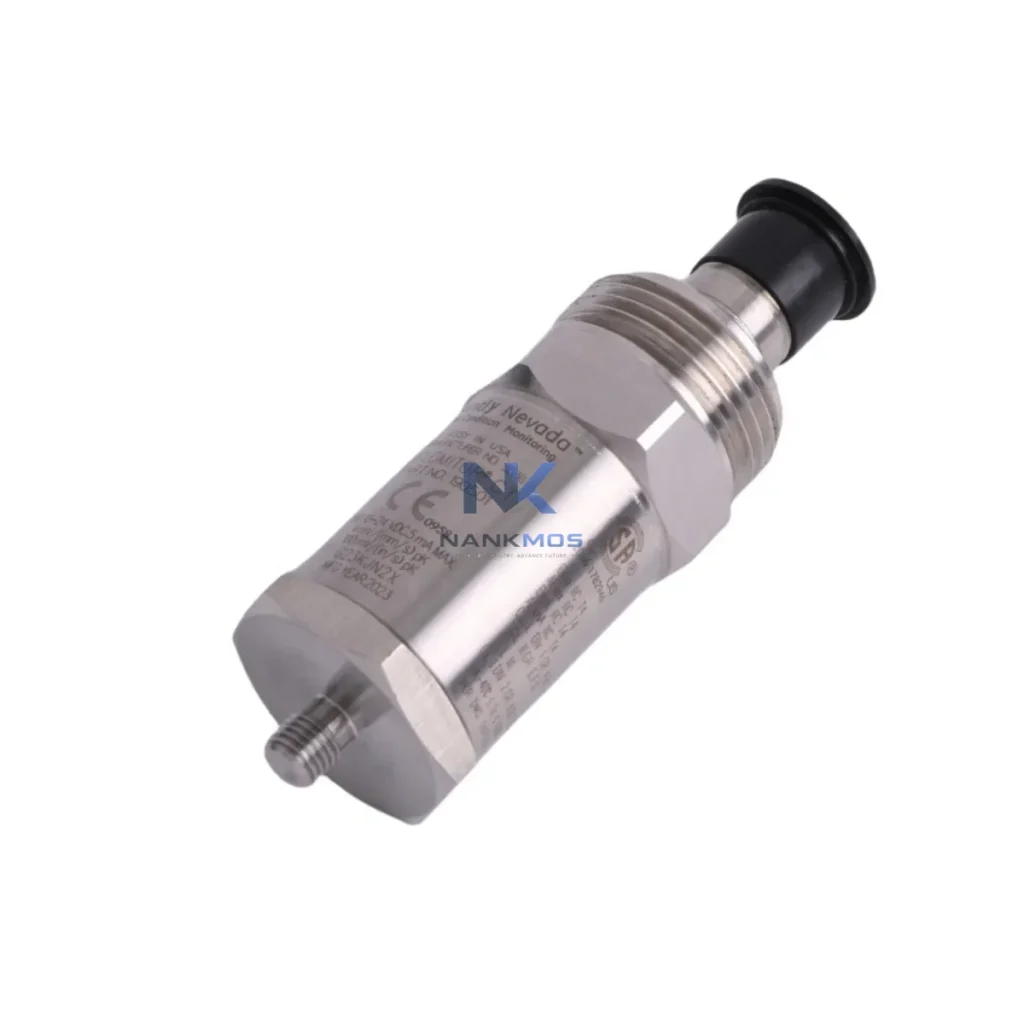

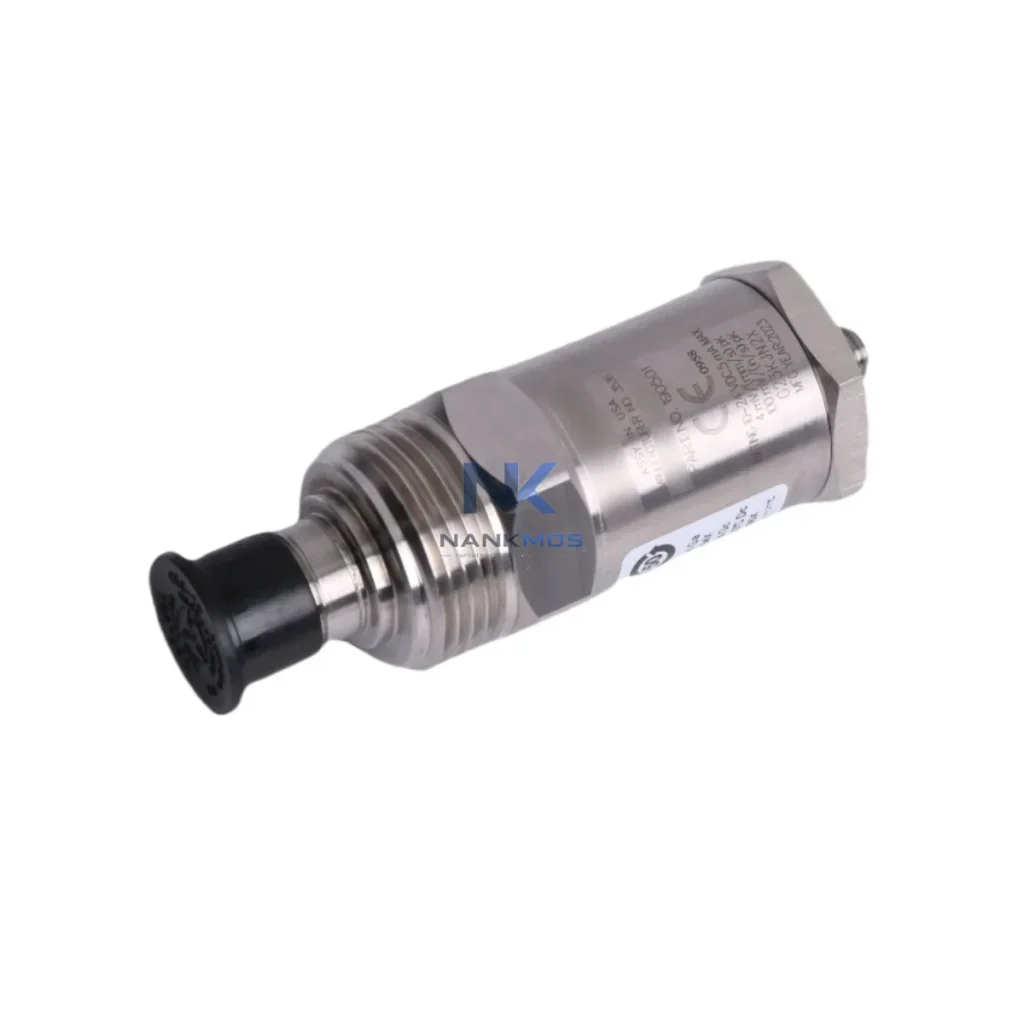

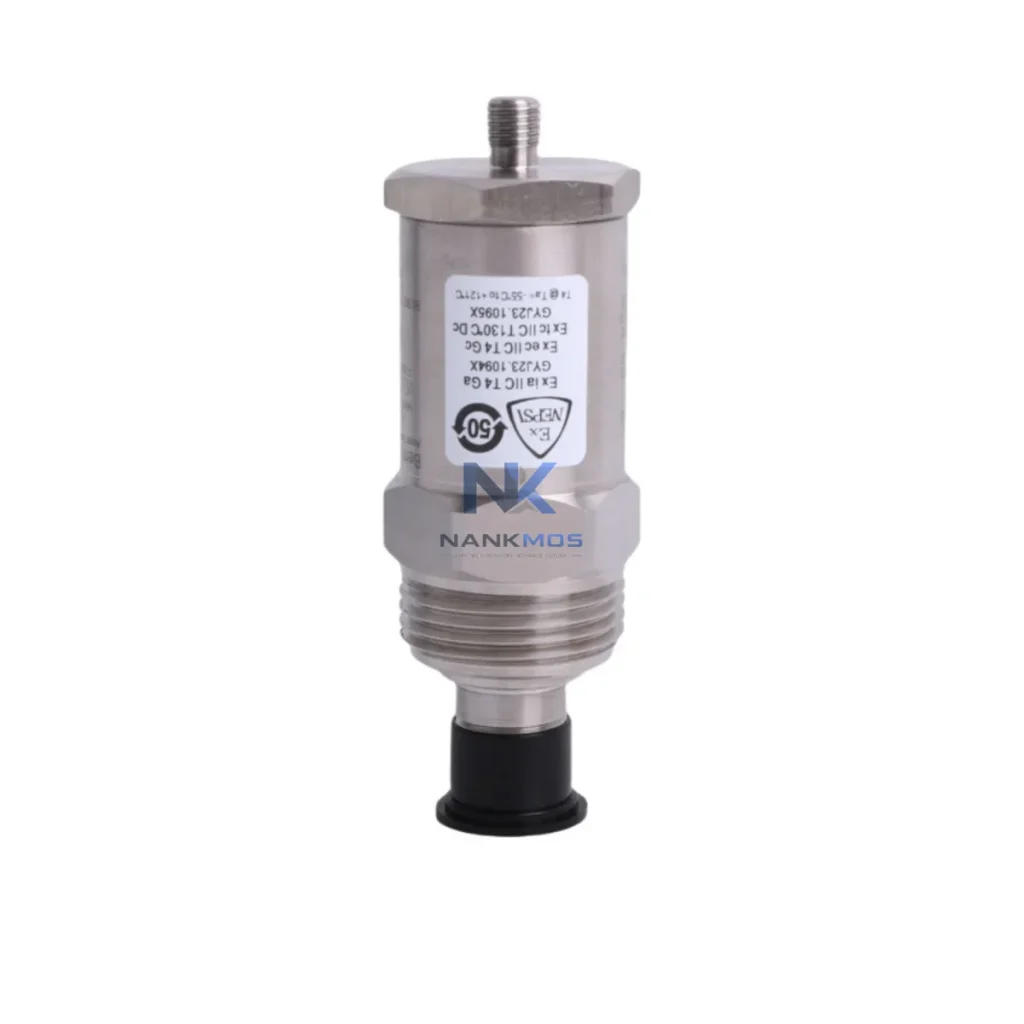

Bently Nevada 190501-15-00-01 Velocity Transducer

Product Details

190501-15-00-01 Product Description

The Bently Nevada 190501-15-00-01 is a high-performance Velomitor CT velocity transducer engineered for continuous vibration monitoring in demanding industrial environments. Designed to serve as a critical sensing node within smart factory data architectures, this transducer delivers real-time velocity signals that feed directly into plant-wide condition monitoring networks, enabling predictive maintenance, remote diagnostics, and seamless SCADA/HMI integration across rotating machinery assets.

In modern smart manufacturing facilities, the integrity of the data chain from field sensor to control room is paramount. The 190501-15-00-01 occupies the foundational layer of this chain — capturing broadband velocity signals from pumps, compressors, turbines, fans, and motors, then transmitting clean analog outputs to upstream signal conditioning and data acquisition systems. Its rugged stainless-steel housing and hermetically sealed design ensure reliable signal fidelity even in high-temperature, high-vibration, and chemically aggressive plant environments.

The 190501-15-00-01 Velomitor CT transducer is purpose-built to anchor the signal acquisition layer of a connected factory vibration monitoring architecture. In a typical smart plant deployment, the transducer is mounted directly on rotating machinery — such as a centrifugal pump, gas compressor, or steam turbine — and its analog velocity output is routed via shielded cable to a Bently Nevada 3500/42M Proximitor/Seismic Monitor module housed within a 3500 Series rack. This rack-based monitor performs real-time signal conditioning, alarm threshold evaluation, and digital conversion before passing structured data upstream.

From the 3500 rack, processed vibration data travels over a plant Ethernet backbone — typically managed through an industrial managed Ethernet switch such as a Hirschmann MACH series or Moxa EDS-400 series — to the facility's central Bently Nevada System 1 Evolution software platform. System 1 serves as the SCADA-layer asset performance management engine, aggregating vibration trends, alarm histories, and spectrum data from dozens of monitoring points across the plant. Operators at HMI workstations can visualize real-time velocity waveforms, configure alert setpoints, and drill into historical trend data without leaving the control room.

For facilities running a broader DCS or PLC-based control architecture — such as a Rockwell Automation ControlLogix or Siemens S7-400 platform — the 3500 rack's Modbus TCP or OPC-UA gateway interface enables seamless data handoff. Vibration alarm states and velocity amplitude values are mapped as process variables within the PLC logic, allowing the control system to trigger automated protective actions — such as initiating a controlled shutdown sequence or activating a standby pump — when vibration thresholds are exceeded.

In remote or distributed plant areas where direct Ethernet cabling is impractical, an edge gateway module — such as a Moxa MGate or HMS Anybus X-gateway — can bridge the 3500 rack's serial Modbus RTU output to the plant's industrial Ethernet ring, ensuring that vibration data from geographically isolated assets remains continuously visible within the central SCADA dashboard. This architecture eliminates data blind spots and supports the plant's overall move toward full asset transparency.

The data chain extends further to remote I/O modules and distributed control nodes, where vibration alarm signals from the 190501-15-00-01 can be correlated with process variables from temperature transmitters, pressure sensors, and flow meters — enabling multi-parameter condition assessment. When combined with a variable frequency drive (VFD) on the monitored motor, the system can dynamically adjust operating speed in response to vibration trends, reducing mechanical stress and extending equipment life.

For facilities implementing cloud-connected predictive maintenance programs, the System 1 platform's data export capabilities allow vibration datasets to be forwarded to cloud analytics engines via secure MQTT or REST API interfaces, where machine learning models can identify early-stage fault signatures — such as bearing wear, imbalance, or misalignment — weeks before a failure event would be detectable by conventional alarm thresholds.

Many industrial facilities still operate with fragmented vibration monitoring approaches — standalone portable data collectors, isolated monitoring panels with no network connectivity, or legacy analog systems that cannot communicate with modern SCADA or DCS platforms. The result is a series of critical data gaps: vibration events go unrecorded between manual rounds, alarm conditions are not propagated to the control room in real time, and maintenance teams lack the historical trend data needed to distinguish normal operational variation from developing faults.

The Bently Nevada 190501-15-00-01, when integrated into a 3500 Series continuous monitoring rack, directly addresses these gaps. Continuous online monitoring replaces periodic manual data collection, ensuring that every vibration excursion — however brief — is captured, time-stamped, and logged. Network connectivity via Modbus TCP or OPC-UA eliminates the protocol isolation that prevents vibration data from reaching plant historians and SCADA dashboards. Alarm propagation to PLC and DCS platforms closes the loop between condition monitoring and automated protective response.

For multi-site operations, the networked architecture enables centralized remote diagnostics: a single reliability engineer can monitor vibration trends across multiple plant locations from a unified System 1 dashboard, receiving automated alarm notifications and accessing full waveform data without traveling to site. This capability is particularly valuable for unmanned or minimally staffed remote facilities — compressor stations, pumping stations, and power substations — where rapid on-site response is not always feasible.

System scalability is a further advantage of the 3500 platform architecture. Additional 190501-15-00-01 transducers and complementary sensors — such as Bently Nevada 330180 proximity probes for shaft displacement monitoring or 3300 XL 8mm proximity transducer systems for radial position measurement — can be added to the monitoring rack without disrupting existing network configurations. The modular rack design supports incremental expansion as plant asset coverage requirements grow.

Every 190501-15-00-01 unit supplied by NANKMOS undergoes pre-shipment functional verification, including output signal level checks and connector integrity inspection, and is backed by a 12-month warranty. In-stock inventory ensures rapid order fulfillment for both planned maintenance replacements and emergency procurement scenarios.

Q1: What communication protocols does the Bently Nevada 190501-15-00-01 support for SCADA and DCS integration?The 190501-15-00-01 is an analog velocity transducer that outputs a voltage signal. Protocol-level communication — including Modbus RTU, Modbus TCP, and OPC-UA — is handled by the upstream Bently Nevada 3500 Series monitor rack into which the transducer feeds. This rack provides the network gateway functionality that enables integration with SCADA, DCS, and PLC platforms.

Q2: Can the 190501-15-00-01 be used in systems with high network latency or intermittent connectivity?Yes. Because the transducer outputs a continuous analog signal to the local 3500 monitor rack, vibration data acquisition and local alarm evaluation are not dependent on network availability. The rack buffers data locally and synchronizes with the central SCADA or System 1 platform when connectivity is restored, ensuring no measurement gaps occur during network interruptions.

Q3: Is the 190501-15-00-01 compatible with third-party SCADA and HMI systems, or only with Bently Nevada platforms?The transducer is fully compatible with third-party SCADA and HMI systems when used with the 3500 Series monitor rack's Modbus TCP or OPC-UA gateway interface. Standard industrial protocols allow vibration data to be integrated into platforms such as Wonderware, iFIX, Ignition, and Siemens WinCC without requiring proprietary software.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 190501-15-00-01?All 190501-15-00-01 units supplied by NANKMOS are covered by a 12-month warranty and undergo pre-shipment functional verification including output signal level testing and connector integrity inspection. In-stock availability supports rapid fulfillment for both scheduled maintenance and emergency replacement requirements.
