Bently Nevada 190501-18-99-00 Velocity Transducer

Product Details

190501-18-99-00 Product Description

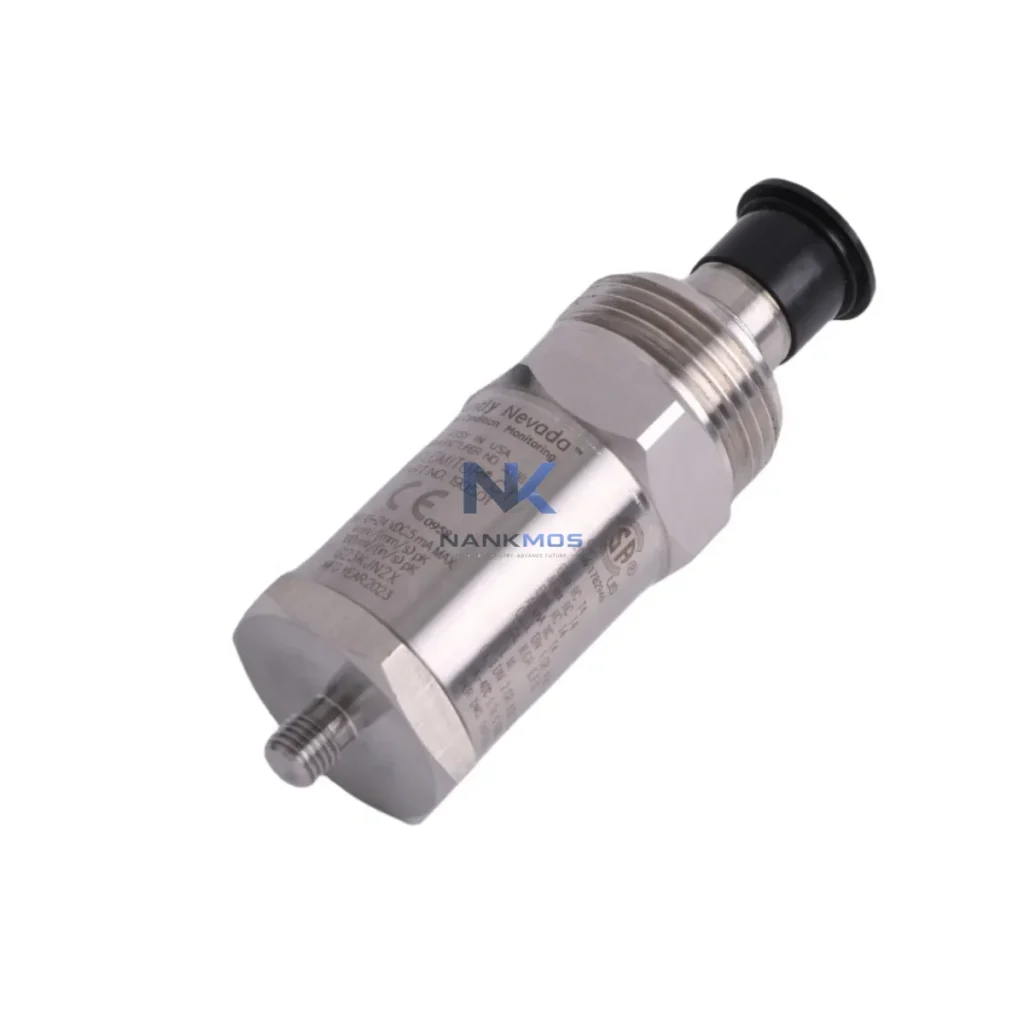

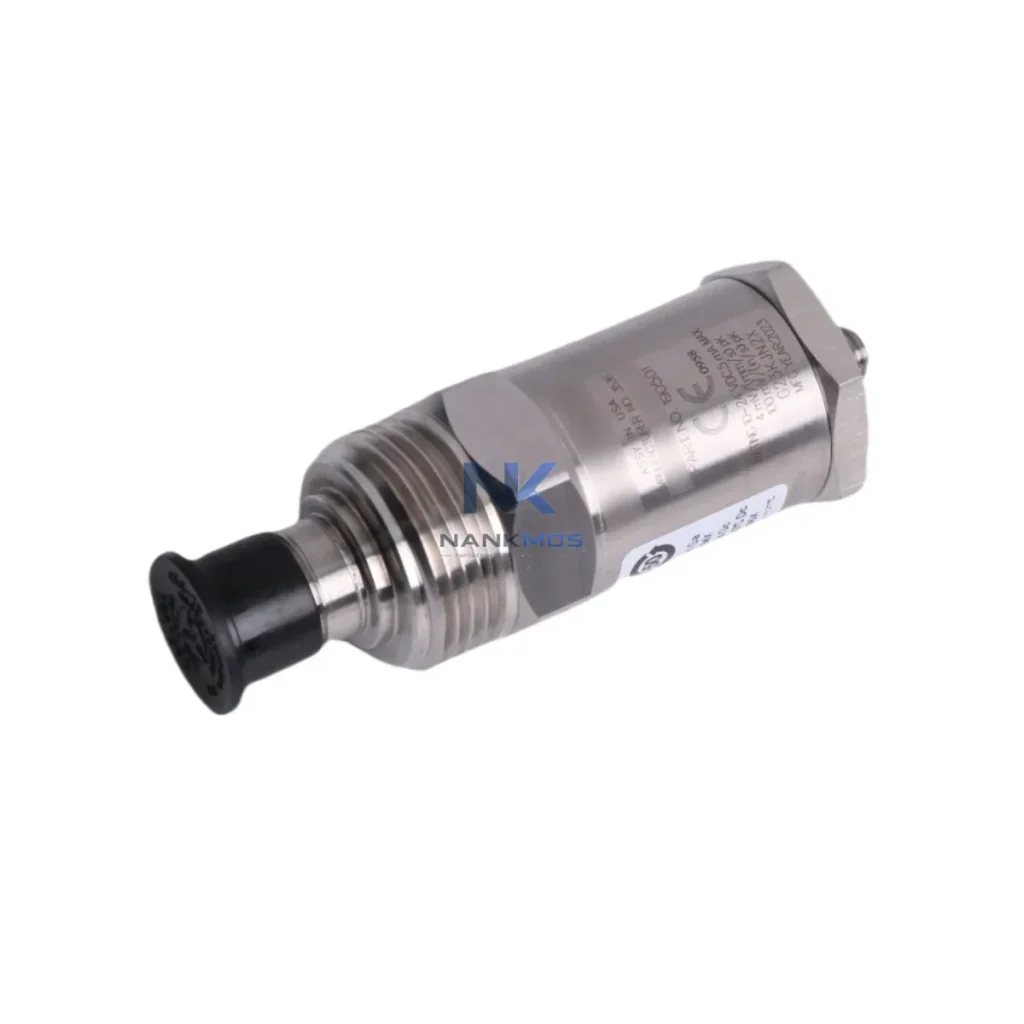

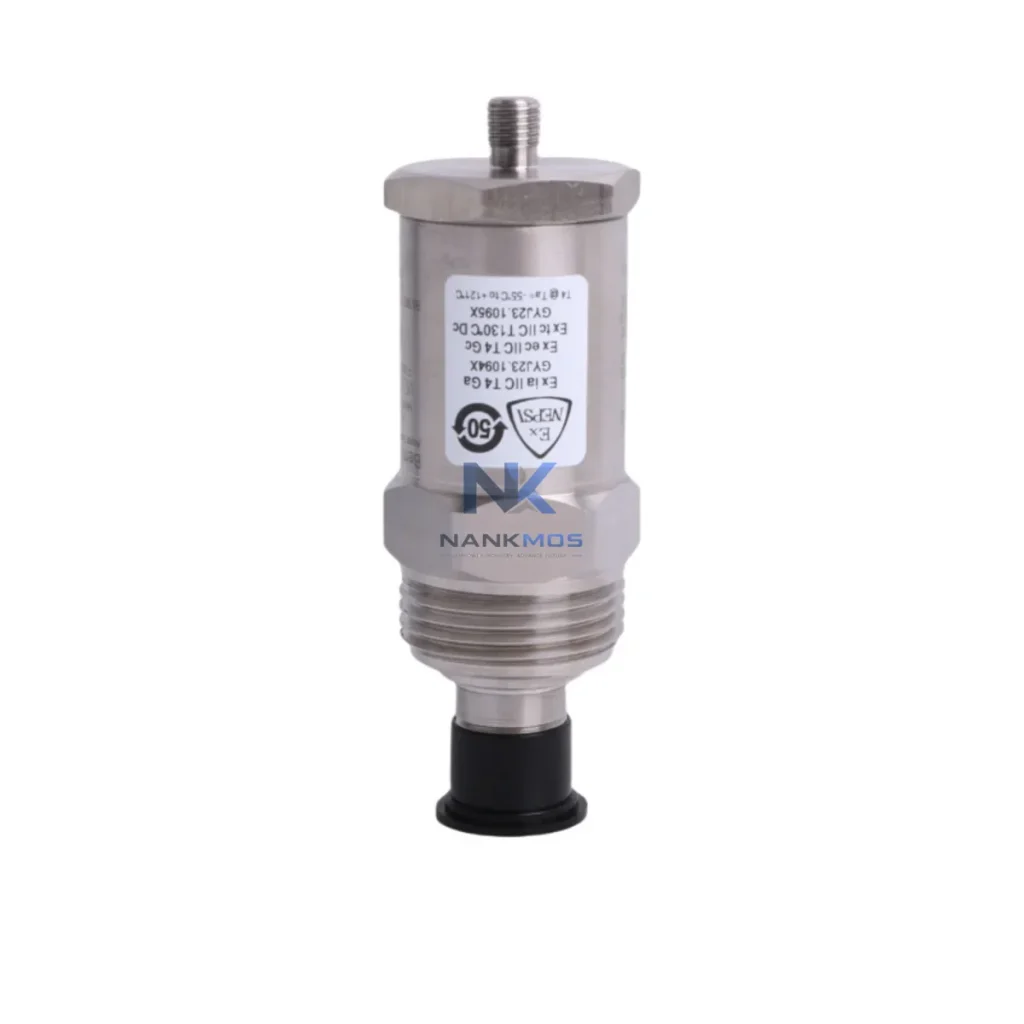

The Bently Nevada 190501-18-99-00 is a Velomitor CT piezoelectric velocity transducer engineered for seamless integration within the Bently Nevada 3500 Series Machinery Protection System. Designed to deliver high-fidelity seismic velocity signals across demanding industrial environments, this transducer serves as a critical sensing node within multi-layer control architectures — bridging the physical machinery layer with the monitoring, protection, and data acquisition layers of a complete automation platform.

Unlike standalone vibration sensors, the 190501-18-99-00 is purpose-matched to the 3500 rack ecosystem, ensuring signal integrity, channel compatibility, and alarm threshold consistency across the entire protection chain. Its integrated cable design, wide frequency response, and robust stainless-steel housing make it the preferred choice for engineers specifying velocity measurement in rotating equipment protection systems across power generation, oil & gas, petrochemical, water treatment, mining, and marine propulsion applications.

The 190501-18-99-00 Velomitor CT is not a standalone component — it is a system-matched sensing element that derives its full value when deployed within a coherent Bently Nevada 3500 Series control architecture. Understanding its role across each automation layer is essential for engineers designing reliable, scalable, and maintainable machinery protection systems.

Monitoring & Protection Layer: The transducer feeds analog velocity signals directly into the Bently Nevada 3500/42M Velocity Monitor or 3500/42E Proximitor/Seismic Monitor — dual-channel monitor modules housed within the 3500 rack. These modules process raw velocity data, apply configurable alert and danger thresholds, and trigger relay outputs for machine trip or alarm actions. The 3500/20 Rack Interface Module (RIM) manages rack-level communication, enabling the entire 3500 chassis to interface with plant-level DCS or SCADA systems via Modbus TCP or Ethernet/IP.

Power Layer: The 3500 rack is powered by the Bently Nevada 3500/15 Power Supply Module, which provides regulated, isolated DC power to all installed monitor modules and connected transducers including the 190501-18-99-00. Redundant power supply configurations using dual 3500/15 modules ensure continuous operation even during single power supply failure — a critical requirement in uninterruptible process environments such as compressor trains and steam turbines.

Proximity & Displacement Layer: In multi-parameter monitoring architectures, the 190501-18-99-00 velocity transducer is commonly deployed alongside Bently Nevada 3300 XL 8mm Proximity Transducer Systems (e.g., 330130-080-00-00 or 330180-X1-05 Proximitor drivers) to provide complementary radial vibration and axial position data. This combination — seismic velocity plus eddy-current proximity — gives protection engineers a complete picture of rotor dynamic behavior and bearing condition.

Communication & Integration Layer: The 3500 rack's communication capabilities extend beyond simple relay outputs. Via the 3500/92 Communication Gateway Module, the system can transmit real-time vibration, velocity, and position data to System 1 Evolution asset performance management software, enabling trend analysis, alarm rationalization, and predictive maintenance workflows. For facilities running Emerson DeltaV DCS or third-party SCADA platforms, the gateway supports OPC-UA and Modbus TCP protocols, ensuring the 190501-18-99-00's velocity data is fully accessible at the supervisory control layer.

HMI & Visualization Layer: Operators monitoring rotating equipment health can view live velocity trends, alarm states, and historical waveform data through System 1 Evolution dashboards or integrated DCS faceplates. This contextual integration — from raw transducer signal to operator display — is what distinguishes a properly architected Bently Nevada system from a collection of isolated instruments.

Terminal & Wiring Layer: Field wiring from the 190501-18-99-00 is typically terminated at Bently Nevada 3500 I/O Module terminal blocks or marshalling panels, with shielded cable runs maintained throughout to preserve signal integrity in electrically noisy industrial environments. Proper grounding and cable segregation practices, as specified in Bently Nevada installation guidelines, are essential to achieving the transducer's rated sensitivity and frequency response.

Power Generation: Steam turbines, gas turbines, and large synchronous generators require continuous seismic velocity monitoring to detect bearing deterioration, misalignment, and structural resonance. The 190501-18-99-00, integrated with the 3500/42M monitor and 3500/20 RIM, provides the real-time velocity data needed to protect multi-hundred-megawatt generating assets from catastrophic failure.

Oil & Gas / Petrochemical: Centrifugal compressors, reciprocating compressors, and process pumps in upstream and downstream facilities operate under API 670 machinery protection requirements. The 190501-18-99-00 meets these requirements as a seismic velocity transducer, providing the casing vibration measurement channel mandated by API 670 for compressor protection systems.

Water Treatment & Utilities: Large-bore centrifugal pumps and blowers in municipal water treatment plants benefit from continuous velocity monitoring to detect impeller imbalance, cavitation onset, and bearing wear — enabling condition-based maintenance scheduling and reducing unplanned downtime.

Mining & Minerals Processing: Ball mills, SAG mills, conveyor drives, and crusher motors represent high-value rotating assets where unplanned failure carries significant production and safety consequences. The 190501-18-99-00's wide temperature range and robust stainless-steel housing make it suitable for the harsh, high-dust environments typical of mineral processing facilities.

Marine Propulsion & Offshore: Main propulsion shafting, auxiliary diesel generators, and thruster drives on offshore platforms and vessels require vibration monitoring systems that can withstand marine environmental conditions. The 190501-18-99-00's IP67 rating and stainless-steel construction support deployment in marine machinery spaces.

Packaging & Process Lines: High-speed rotating equipment in food, beverage, and pharmaceutical packaging lines requires non-intrusive velocity monitoring to maintain OEE targets. The transducer's compact form factor and integral cable simplify installation on space-constrained machinery frames.

Q1: Is the 190501-18-99-00 directly compatible with the Bently Nevada 3500/42M and 3500/42E monitor modules without additional signal conditioning? Yes. The 190501-18-99-00 Velomitor CT is designed as a system-matched transducer for the Bently Nevada 3500 Series. Its output signal (100 mV/in/s, AC voltage) is directly compatible with the 3500/42M Velocity Monitor and 3500/42E Proximitor/Seismic Monitor input channels. No external signal conditioner or barrier is required for standard installations. For hazardous area installations requiring intrinsic safety, consult the applicable Bently Nevada IS barrier documentation for the 3500 system.

Q2: Can this transducer be integrated into a redundant 3500 rack architecture, and how does it support long-term maintainability? The 190501-18-99-00 is fully compatible with redundant 3500 rack configurations. In a dual-rack redundant architecture, each rack independently receives the transducer's analog signal via a signal splitter or dual-input wiring arrangement, ensuring continuous protection monitoring even during single rack maintenance or failure. For long-term maintainability, the transducer's integral armored cable and MIL-spec connector minimize field wiring complexity, and its wide operating temperature range reduces the need for environmental conditioning. All units supplied by NANKMOS are covered by a 12-Month Warranty and are pre-shipment tested to confirm sensitivity and frequency response before dispatch.

Q3: What is the lead time and supply assurance for the 190501-18-99-00, and how does NANKMOS support global engineering projects? NANKMOS maintains in-stock inventory of the 190501-18-99-00 to support urgent project requirements and MRO procurement. All units are pre-shipment tested and supplied with a 12-Month Warranty. We support global engineering projects with flexible shipping arrangements, documentation packages (calibration records, test reports), and technical pre-sales consultation for system architecture compatibility. Contact [email protected] or +86 18359268345 for availability confirmation and project-specific quotations.
