Bently Nevada 190501-19-99-04 Velocity Transducer

Product Details

190501-19-99-04 Product Description

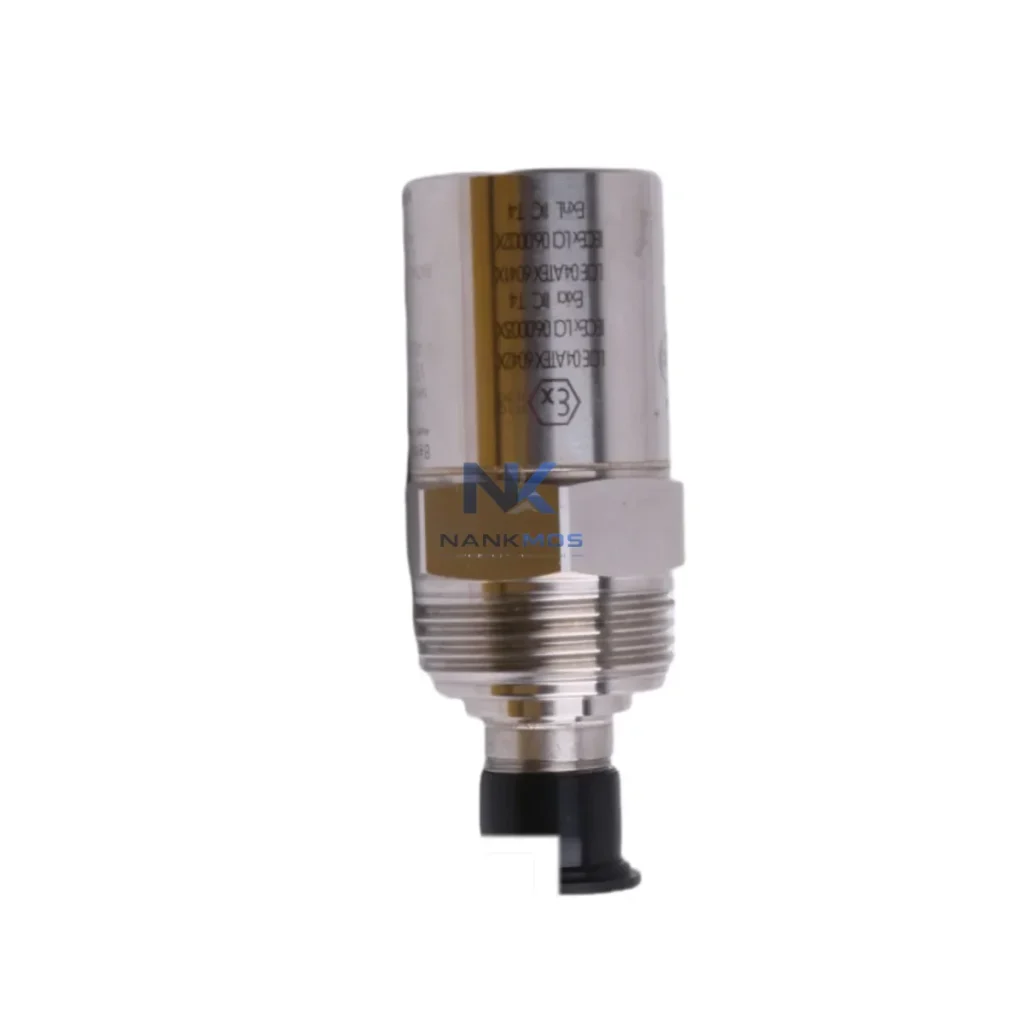

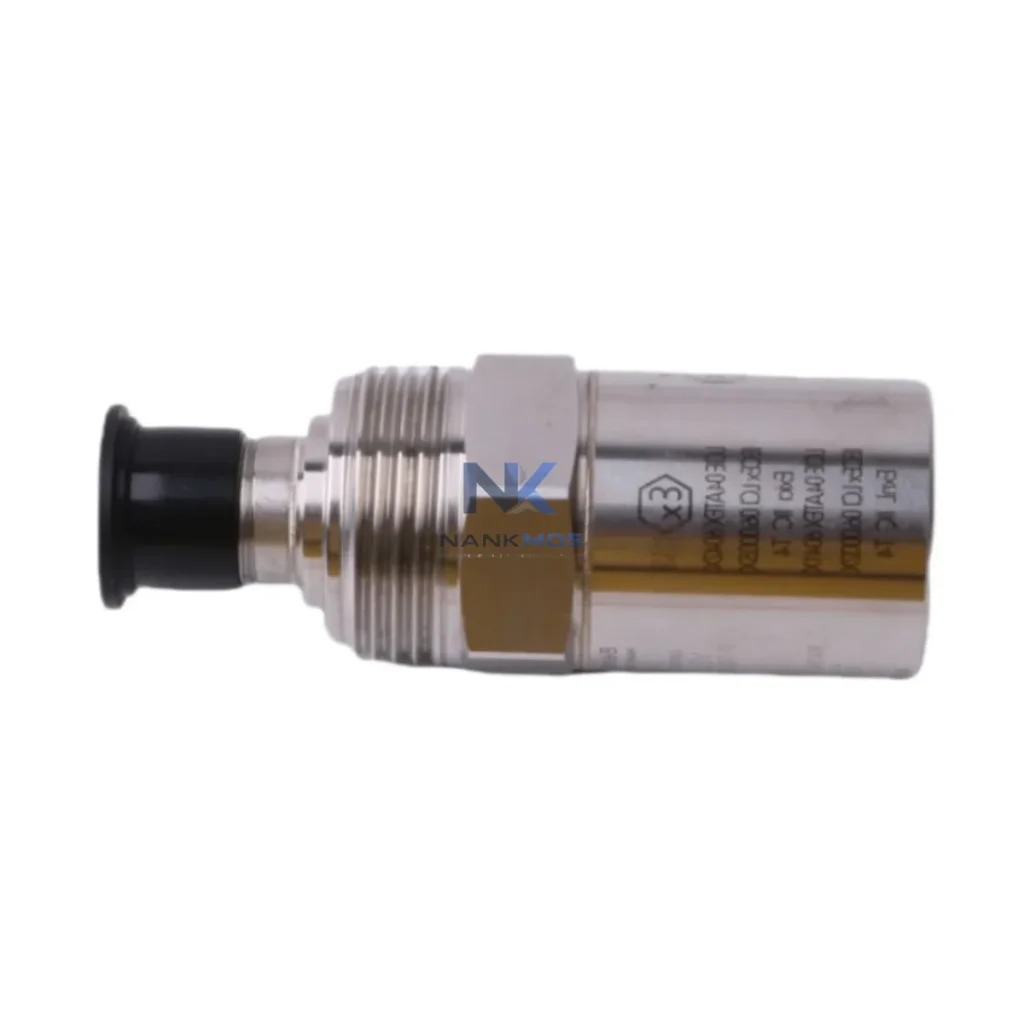

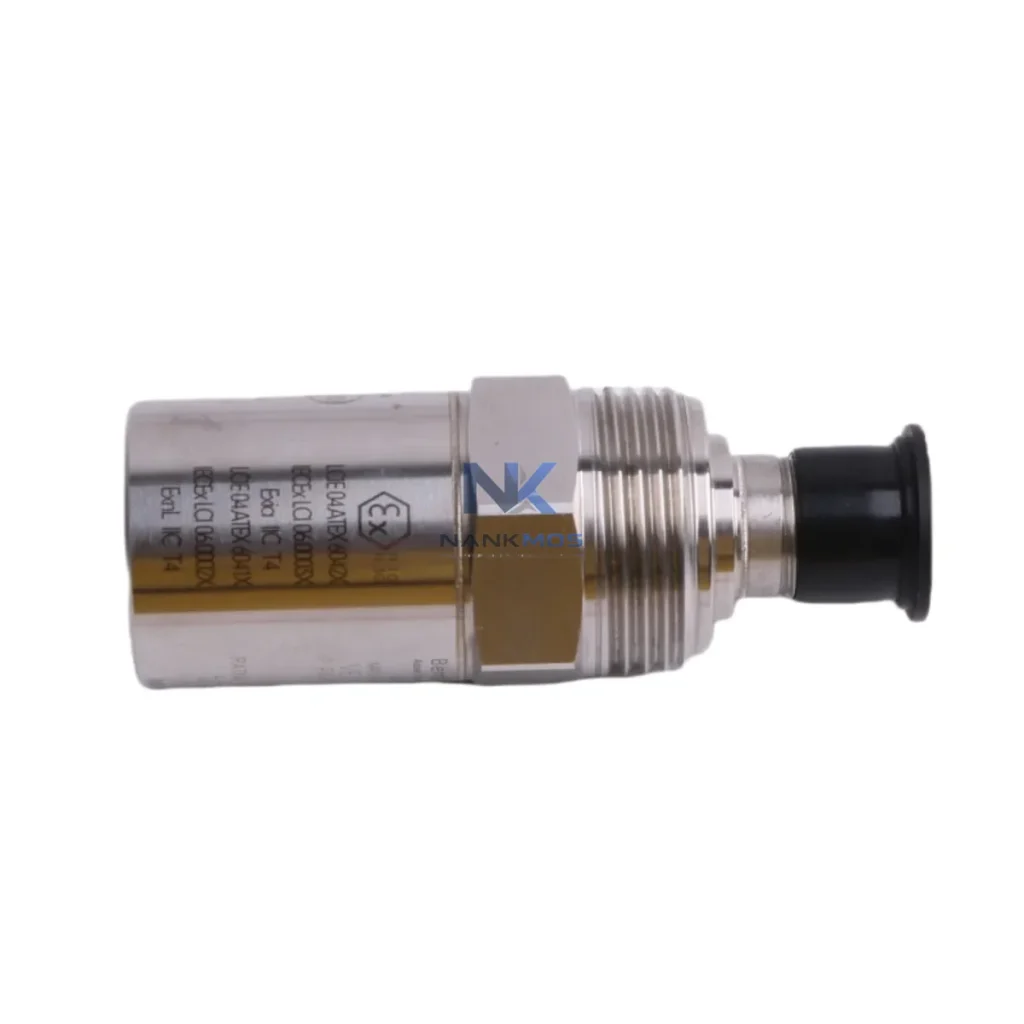

The Bently Nevada 190501-19-99-04 is a precision seismic velocity transducer engineered for seamless integration within the 1900/65A machinery protection and vibration monitoring architecture. Designed to deliver reliable, low-noise velocity signals from rotating and reciprocating equipment, this transducer serves as a critical sensing node within multi-layer industrial control systems deployed across power generation, petrochemical processing, oil and gas compression, water treatment, mining, and marine propulsion environments.

In modern industrial automation, no sensor operates in isolation. The 190501-19-99-04 is purpose-matched to the Bently Nevada 1900/65A two-channel vibration monitor, forming a tightly coupled measurement pair that ensures signal fidelity from the machine casing to the control room. Its output is conditioned for direct input to the 1900/65A monitor's velocity input channels, eliminating the need for external signal conditioning modules and reducing wiring complexity within the control cabinet. This native compatibility shortens commissioning time, reduces calibration overhead, and supports long-term maintenance efficiency across the asset lifecycle.

Within a layered control architecture, the 190501-19-99-04 occupies the sensing layer — the foundation upon which all higher-level protection, diagnostics, and process decisions depend. Accurate velocity measurement at the machine casing feeds directly into the protection layer, where the 1900/65A monitor evaluates overall vibration severity against API 670 alarm and danger thresholds. Trip relay outputs from the monitor interface with the plant's safety instrumented system (SIS) or distributed control system (DCS), enabling automated shutdown sequences when vibration exceeds safe operating limits. This signal chain — from transducer to monitor to relay to DCS — represents the core of machinery protection architecture and must be engineered for consistency, redundancy, and long-term reliability.

At the I/O and communication layer, the 1900/65A monitor's 4–20 mA analog outputs carry processed velocity data to the plant DCS or SCADA system, where operators monitor trends, configure alarm setpoints, and initiate maintenance workflows. In facilities running Bently Nevada System 1 software, the 190501-19-99-04's measurements are archived for spectral analysis, trend correlation, and predictive maintenance scheduling. Integration with Modbus RTU or Modbus/TCP gateways allows velocity data to be shared across OPC-UA-enabled historian platforms, supporting Industry 4.0 data aggregation strategies without requiring proprietary hardware upgrades.

For installations requiring redundant protection, the 190501-19-99-04 can be deployed in dual-sensor configurations alongside complementary proximity transducers — such as the Bently Nevada 3300 XL 8mm or 3300 XL 11mm eddy current probe systems — to provide both relative shaft displacement and absolute casing velocity measurements simultaneously. This dual-parameter approach satisfies API 670 requirements for critical machinery trains including steam turbines, gas compressors, and large centrifugal pumps, where both shaft and casing motion must be independently monitored. The 3500 Series monitoring rack, with its modular I/O architecture, can accommodate both proximity and velocity inputs within a single chassis, centralizing protection logic and simplifying rack-level diagnostics.

Power supply integrity is equally critical to sensor performance. The 190501-19-99-04 operates passively — it is a self-generating electromagnetic device requiring no external excitation — which eliminates power supply dependency at the sensor level and reduces the risk of measurement dropout during power transients. However, the 1900/65A monitor itself requires a stable 24 VDC supply, typically sourced from a redundant DIN-rail power supply module within the control cabinet. Pairing the monitor with a Bently Nevada or equivalent redundant power supply ensures continuous protection even during single-supply failures, a requirement for SIL-rated protection loops.

Installation engineering for the 190501-19-99-04 follows standard seismic transducer practices: the sensor is mounted on the machine casing using a threaded stud or magnetic base, oriented to capture the dominant vibration axis (typically radial or axial depending on machine type). Cable routing should minimize exposure to high-frequency electrical interference from variable frequency drives (VFDs) or high-current motor leads. Shielded, twisted-pair instrumentation cable is recommended for all runs exceeding 10 meters, with shield grounding at the monitor end only to prevent ground loop interference. Terminal block modules within the marshalling cabinet provide the physical interface between field cables and monitor inputs, and should be clearly labeled with tag numbers consistent with the plant's instrument index.

Each 190501-19-99-04 unit supplied by NANKMOS is pre-shipment tested against Bently Nevada factory specifications, verifying sensitivity (typically expressed in mV/mm/s or mV/in/s), frequency response flatness across the operating bandwidth (typically 10–1000 Hz), and mechanical integrity of the connector and cable assembly. A 12-Month Warranty covers all units against manufacturing defects and performance deviation from published specifications, providing procurement teams with the assurance required for critical spares inventory planning.

For facilities managing large rotating equipment fleets, maintaining an in-stock supply of matched transducer-monitor pairs — including the 190501-19-99-04 and its compatible 1900/65A monitor — reduces mean time to repair (MTTR) during unplanned outages. NANKMOS maintains ready inventory of Bently Nevada 1900 Series components, 3500 Series rack modules, and associated cabling accessories to support emergency procurement requirements with short lead times.

The 190501-19-99-04 velocity transducer achieves its full protective value when deployed within a coherent, multi-layer automation platform. A representative architecture for a critical rotating machine train would include the following integrated components:

At the protection and monitoring layer, the Bently Nevada 1900/65A two-channel vibration monitor receives the velocity signal and applies configurable alarm and danger setpoints. For more complex machinery trains requiring multi-parameter protection, the Bently Nevada 3500/42M Proximitor/Seismic Monitor within a 3500 Series rack provides simultaneous proximity and velocity/acceleration inputs within a single modular chassis, supporting up to 16 I/O modules per rack with a common backplane and power supply architecture. The 3500/15 power supply module provides redundant 24 VDC to all rack-mounted modules, ensuring protection continuity during supply transients.

At the field sensing layer, the Bently Nevada 3300 XL 8mm and 3300 XL 11mm eddy current probe systems complement the 190501-19-99-04 by providing relative shaft displacement measurements, enabling dual-parameter protection per API 670. Bently Nevada 330180 series proximitor drivers condition the eddy current probe signals before transmission to the monitor rack, maintaining signal integrity over long cable runs in electrically noisy environments.

At the communication and integration layer, a Modbus/TCP gateway bridges the 1900/65A monitor's serial output to the plant Ethernet network, enabling real-time velocity data ingestion by Bently Nevada System 1 condition monitoring software or third-party OPC-UA historians. At the HMI layer, operator workstations running System 1 provide trend visualization, spectral analysis, and alarm management for the complete machinery protection network. At the power distribution layer, DIN-rail mounted redundant 24 VDC power supply modules and signal isolator modules ensure clean, stable power and signal separation between field instruments and control room equipment, preventing ground loops and common-mode interference from corrupting velocity measurements.

Power Generation: Steam turbine and gas turbine trains in combined-cycle power plants require continuous casing velocity monitoring to detect bearing deterioration, blade resonance, and foundation looseness. The 190501-19-99-04, paired with the 1900/65A monitor, provides the real-time velocity data required for both online protection and offline trend analysis, supporting planned maintenance intervals and reducing unplanned outage risk.

Petrochemical and Oil and Gas: Centrifugal compressors, reciprocating compressors, and large process pumps in refinery and upstream production environments operate under variable load conditions that generate complex vibration signatures. The 190501-19-99-04's broad frequency response captures both low-frequency unbalance and higher-frequency mechanical looseness events, providing operators with actionable data for condition-based maintenance decisions.

Water Treatment and Mining: Large vertical pumps, slurry pumps, and mill drives in water treatment and mineral processing facilities benefit from seismic velocity monitoring to detect cavitation, impeller wear, and structural resonance. The 190501-19-99-04's passive, self-generating design eliminates the need for local power supplies at remote pump stations, simplifying installation in distributed field environments.

Marine Propulsion: Shipboard propulsion systems and auxiliary machinery — including main engines, reduction gearboxes, and shaft generators — require vibration monitoring that meets classification society requirements. The 190501-19-99-04's robust mechanical construction and wide operating temperature range support reliable performance in the high-vibration, high-humidity marine environment.

Q1: Is the 190501-19-99-04 directly compatible with the Bently Nevada 1900/65A monitor without additional signal conditioning?Yes. The 190501-19-99-04 is factory-matched to the 1900/65A velocity input channel. Its passive electromagnetic output connects directly to the monitor's velocity input terminals without requiring external amplifiers, conditioners, or power supplies. This native compatibility ensures calibration traceability and eliminates potential signal chain errors introduced by third-party conditioning hardware.

Q2: Can this transducer be integrated into a 3500 Series rack architecture alongside proximity probes for dual-parameter protection?Yes. In a 3500 Series rack configuration, the 3500/42M Proximitor/Seismic Monitor accepts both proximity probe inputs (via Bently Nevada 330180 proximitor drivers) and seismic velocity/acceleration inputs simultaneously. The 190501-19-99-04 can be wired to the seismic input channel of the 3500/42M, enabling simultaneous relative shaft displacement and absolute casing velocity monitoring within a single rack module — satisfying API 670 dual-parameter protection requirements for critical machinery.

Q3: What warranty and supply assurance does NANKMOS provide for the 190501-19-99-04?All 190501-19-99-04 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and performance deviation from published Bently Nevada specifications. Each unit undergoes pre-shipment testing — including sensitivity verification, frequency response validation, and mechanical inspection — before dispatch. NANKMOS maintains in-stock inventory of 1900 Series transducers and compatible 1900/65A monitors to support both planned procurement and emergency replacement requirements with short lead times.
