Bently Nevada 190501-22-99-01 Velocity Transducer

Product Details

190501-22-99-01 Product Description

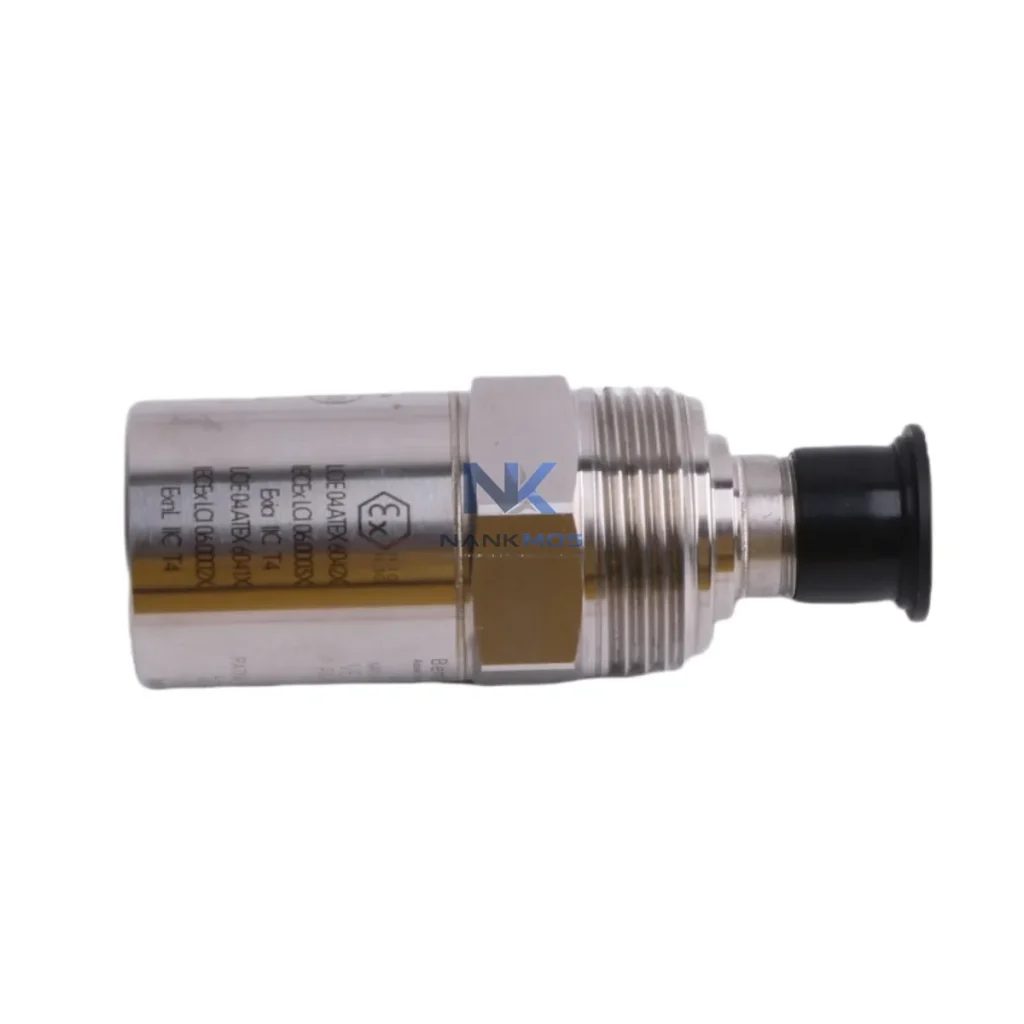

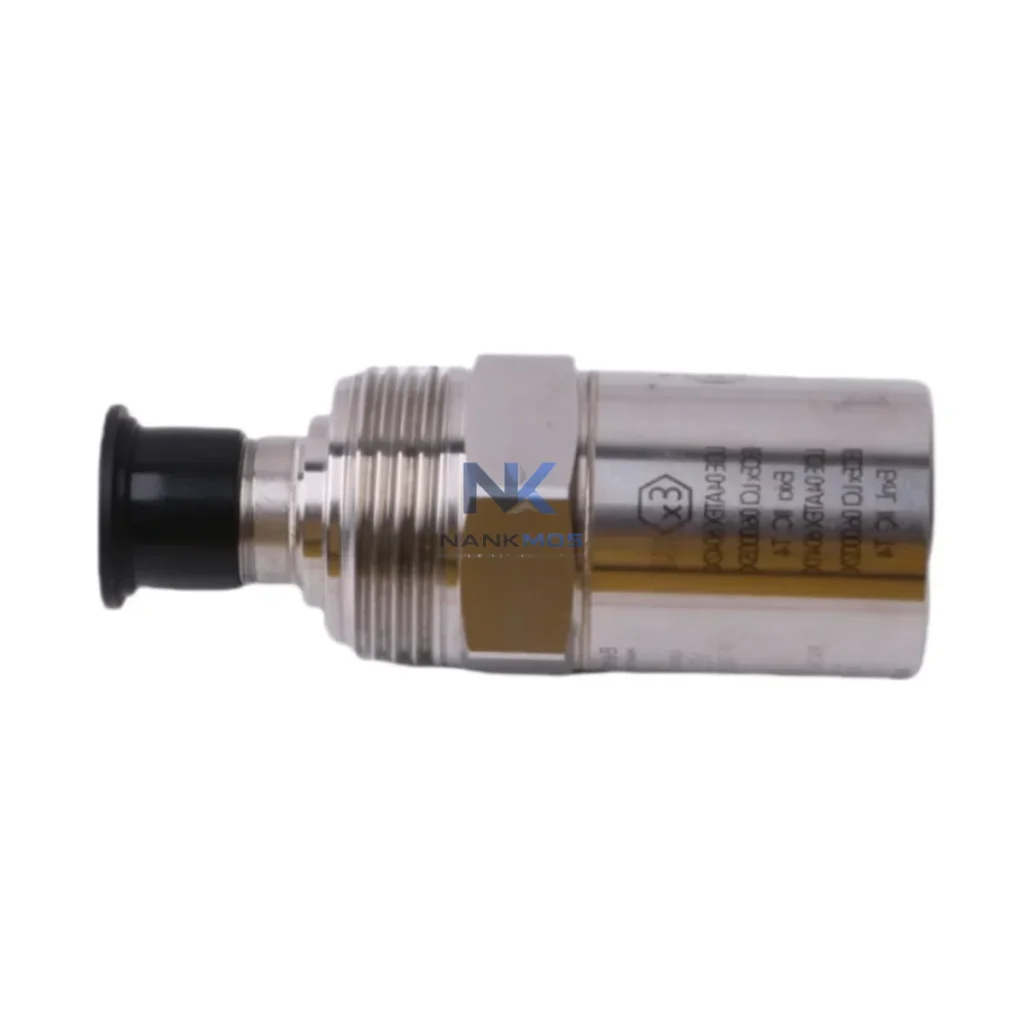

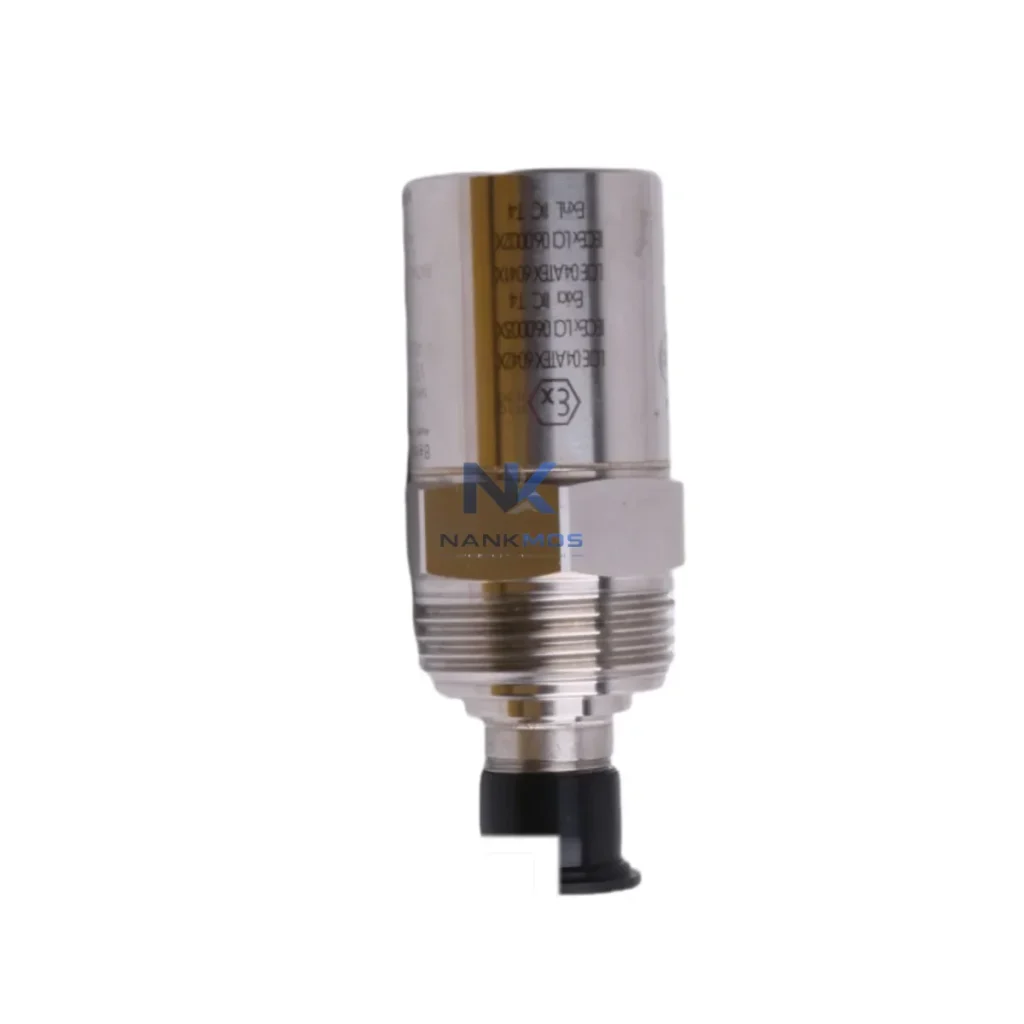

The Bently Nevada 190501-22-99-01 Velomitor CT is a high-sensitivity velocity transducer engineered for continuous vibration monitoring of rotating machinery in smart factory environments. Designed to integrate seamlessly into modern industrial data architectures, this sensor delivers real-time velocity signals that feed directly into SCADA platforms, DCS controllers, and edge computing gateways — forming the foundation of a transparent, connected condition monitoring network.

In today's Industry 4.0 landscape, machinery health data must travel reliably from the sensor layer through protocol conversion nodes, across industrial Ethernet backbones, and into upper-level visualization and analytics systems. The 190501-22-99-01 is purpose-built for this role. Its 4–20 mA analog output integrates natively with Bently Nevada 3500 Series monitoring racks, where raw velocity data is digitized, conditioned, and made available for upstream transmission via Modbus/TCP, PROFIBUS, or OPC-UA — depending on the gateway configuration deployed at the edge.

The 190501-22-99-01 Velomitor CT sits at the signal acquisition layer of a multi-tier industrial data architecture. Mounted directly on bearing housings, gearboxes, or motor frames, it captures broadband vibration velocity in real time. The analog signal is routed to a Bently Nevada 3500/42M Proximitor/Seismic Monitor card installed within a 3500 Series rack — a modular, rack-based platform that supports up to 16 monitoring channels per chassis and provides relay output for alarm and trip logic.

From the 3500 rack, conditioned data is passed to a Bently Nevada 3500/92 Communication Gateway module, which translates the proprietary rack data into Modbus/TCP or OPC-UA frames suitable for transmission over an industrial Ethernet network. A managed industrial Ethernet switch — such as those from the Hirschmann or Moxa EDS series — routes this data across the plant LAN to a SCADA server running Bently Nevada System 1 software, where vibration trends, alarm states, and historical waveforms are visualized and archived.

For facilities integrating legacy PLCs, a Modbus/TCP-to-PROFIBUS gateway (e.g., ProSoft Technology MVI56E or similar) bridges the Ethernet segment to a Siemens S7-300 or Allen-Bradley ControlLogix PLC backplane, enabling the PLC to act on vibration alarm states — triggering variable frequency drives (VFDs) to reduce motor speed or initiating controlled shutdowns via the safety relay network. HMI panels such as the Siemens TP1200 Comfort or Rockwell PanelView Plus 7 display live velocity readings and alarm banners at the operator station.

At the edge layer, an industrial IoT gateway — such as the Advantech WISE-5000 series or Moxa ThingsPro — aggregates data from multiple 3500 racks and transmits compressed, timestamped datasets to cloud-based analytics platforms or on-premise MES/ERP systems. This enables predictive maintenance workflows, where velocity trend deviations trigger automated work orders in the CMMS before a failure event occurs. Remote diagnostic access is secured via VPN tunnel, allowing engineers to review waveform data, adjust alarm setpoints in System 1, and validate sensor health without on-site presence.

The complete data chain — from the 190501-22-99-01 sensor through the 3500 rack, Ethernet gateway, industrial switch, SCADA server, and edge IoT platform — delivers end-to-end machinery transparency with sub-second latency, supporting both real-time protection and long-term reliability analytics.

Many industrial facilities operate with fragmented monitoring architectures: legacy 4–20 mA sensors that cannot communicate with modern SCADA systems, proprietary monitoring racks that lack open protocol support, and data silos that prevent cross-system alarm correlation. The 190501-22-99-01, when deployed within a Bently Nevada 3500 rack equipped with the 3500/92 gateway module, directly addresses these challenges.

Protocol unification is achieved by converting the Velomitor CT's analog output into Modbus/TCP or OPC-UA at the rack level — eliminating the need for field-level protocol converters and reducing wiring complexity. Data island elimination is accomplished by feeding velocity data into System 1 software, which correlates vibration, temperature, and process data from multiple asset types into a unified dashboard. Remote monitoring is enabled through the Ethernet gateway, allowing off-site engineers to access live and historical data without VPN-dependent proprietary clients. Production line transparency is achieved by mapping alarm states to PLC logic, ensuring that vibration exceedances automatically appear on HMI screens and trigger event logs in the historian. Alarm traceability is maintained through System 1's event journal, which timestamps every alarm, acknowledgment, and setpoint change with operator credentials. System scalability is inherent in the 3500 rack architecture — additional Velomitor CT sensors and monitor cards can be added to the chassis without disrupting existing channels or reconfiguring the network topology.

Q1: What communication protocols does the 190501-22-99-01 support for SCADA integration? The Velomitor CT outputs a standard 4–20 mA analog signal, which is digitized by the Bently Nevada 3500 rack. The 3500/92 Communication Gateway module then exposes this data via Modbus/TCP or OPC-UA, making it directly readable by SCADA platforms such as Wonderware, iFIX, Ignition, or Siemens WinCC without additional middleware.

Q2: How is network stability maintained in high-vibration or electrically noisy environments? The 190501-22-99-01 uses a shielded, low-impedance signal path and is designed to operate in environments with high electromagnetic interference (EMI). The 3500 rack's signal conditioning circuitry further filters noise before digitization. Industrial managed switches with PROFINET or EtherNet/IP QoS settings prioritize monitoring traffic, ensuring consistent data delivery even under heavy network load.

Q3: Can the system be expanded to monitor additional machines without redesigning the network? Yes. The 3500 Series rack supports up to 16 monitor cards per chassis, and multiple racks can be daisy-chained on the same Modbus/TCP or OPC-UA network segment. Each rack appears as a separate node on the industrial Ethernet switch, and System 1 software can manage hundreds of assets from a single server instance — making the architecture fully scalable from a single machine to a plant-wide monitoring network.

Q4: What pre-shipment testing and warranty coverage is provided? Every 190501-22-99-01 unit is pre-shipment tested for output linearity, frequency response, and connector integrity before dispatch. A 12-month warranty covers manufacturing defects under normal operating conditions. In-stock units are available for immediate dispatch. For RFQ, lead time confirmation, or technical support, contact: [email protected] | +86 18359268345.
