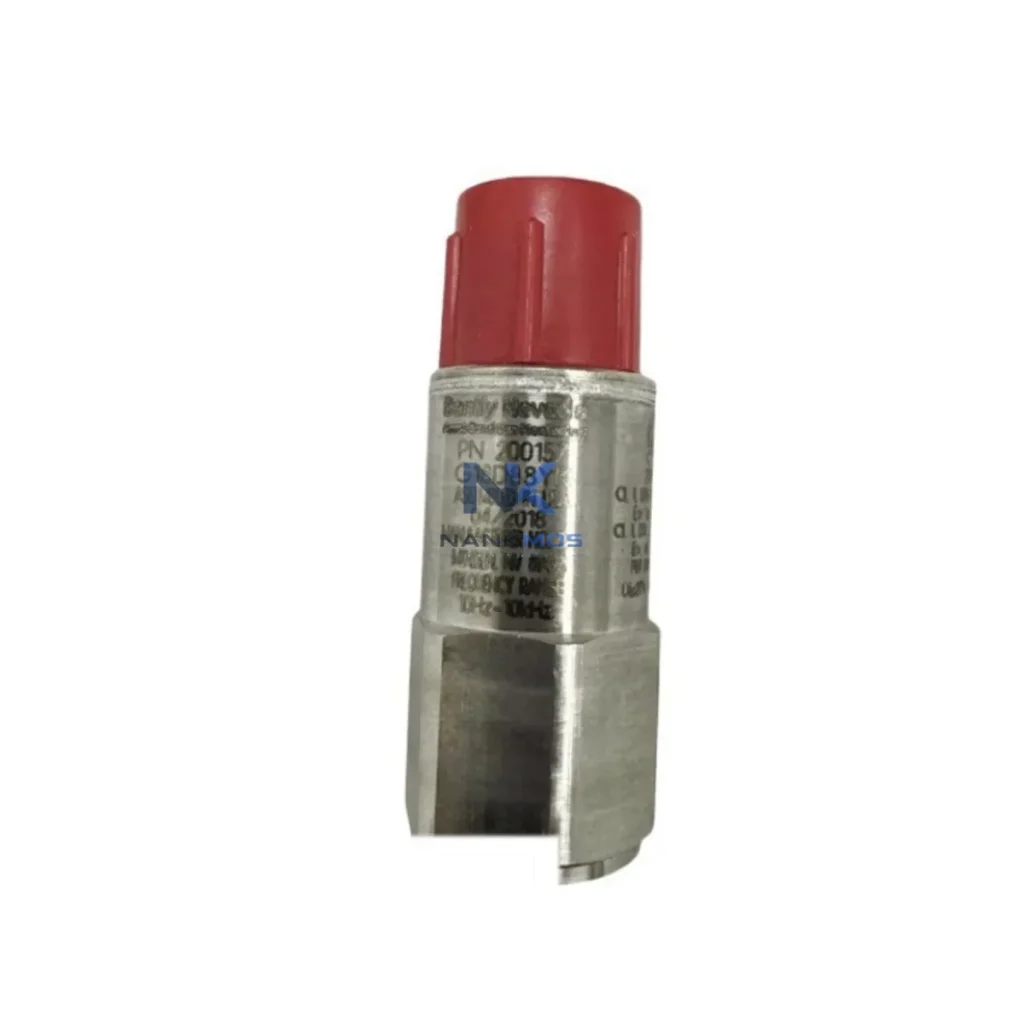

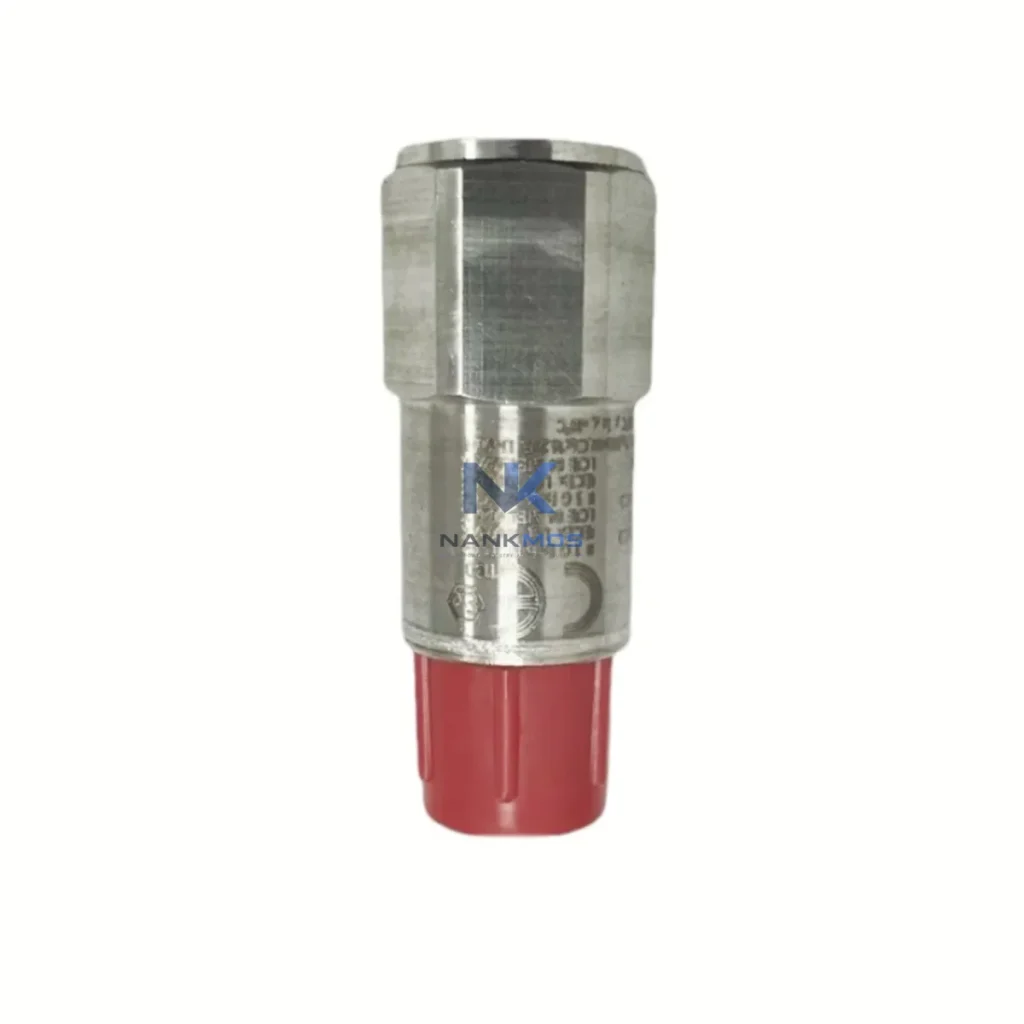

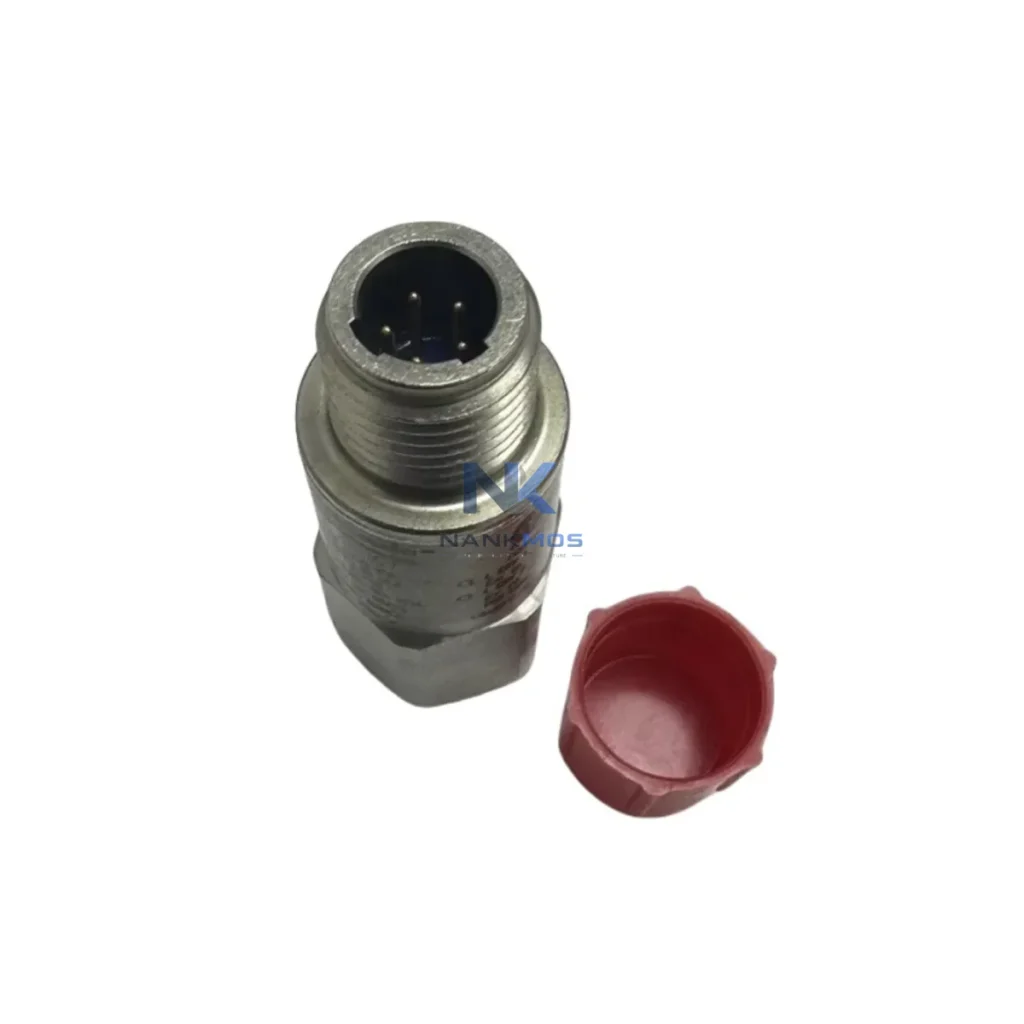

Bently Nevada 200157-02-CN Enveloping Accelerometer

Product Details

200157-02-CN Product Description

The Bently Nevada 200157-02-CN is a precision enveloping accelerometer engineered for seamless integration within the TrendMaster Pro condition monitoring architecture. Designed to detect early-stage bearing defects and gear mesh anomalies in rotating equipment, this sensor delivers high-frequency vibration data that feeds directly into the TrendMaster Pro data acquisition system, enabling real-time diagnostics, predictive maintenance scheduling, and long-term asset protection across power generation, petrochemical, oil & gas, water treatment, mining, and marine propulsion environments.

Unlike general-purpose accelerometers, the 200157-02-CN is factory-calibrated and system-matched to the TrendMaster Pro platform, ensuring signal integrity from the sensor tip through the I/O module, communication gateway, and up to the SCADA or DCS operator interface. Its enveloping signal processing capability isolates impulsive fault signatures from broadband vibration noise, providing actionable diagnostic data without requiring additional signal conditioning hardware in the control cabinet.

Every unit shipped by NANKMOS undergoes pre-shipment functional testing and is backed by a 12-Month Warranty, ensuring operational confidence from day one of installation. In-stock availability supports urgent maintenance cycles and planned turnaround projects without extended lead times.

The 200157-02-CN operates as a field-level sensing node within a layered industrial automation architecture. In a typical TrendMaster Pro deployment, the sensor connects to a TrendMaster Pro 2300/40M I/O Module, which aggregates enveloped vibration data from multiple measurement points across a rotating machine train. The I/O module communicates upstream via the TrendMaster Pro Communication Gateway, bridging field data to plant-level networks using Modbus TCP/IP or OPC-UA protocols compatible with leading SCADA and DCS platforms.

For facilities operating a hybrid monitoring architecture, the 200157-02-CN can be deployed alongside Bently Nevada 3500/42M Proximitor I/O Modules for radial shaft vibration measurement, and 3500/45 Position Monitor modules for axial thrust monitoring, creating a comprehensive machine protection and condition monitoring layer within a single 3500 Series rack. The 3500/15 Power Supply Module provides stable, redundant DC power distribution across the rack, ensuring uninterrupted sensor excitation even during grid transients.

At the communication layer, the 3500/92 Communication Gateway Module enables seamless data export to plant historians and SCADA systems, while the System 1 Evolution Software platform aggregates TrendMaster Pro enveloping data with proximity probe and process variable inputs for unified asset health dashboards. For cabinet-level signal conditioning, Bently Nevada 990 Vibration Transmitters can supplement the enveloping accelerometer network where legacy 4–20 mA loop infrastructure is already in place.

In control cabinet design, the 200157-02-CN field wiring terminates at Bently Nevada I/O Terminal Blocks compatible with the TrendMaster Pro marshalling architecture, reducing installation time and eliminating field wiring errors. Where redundant monitoring is required for API 670-compliant machinery protection, the sensor can be paired with a secondary Bently Nevada 330500 Proximity Transducer System on the same machine, providing both high-frequency enveloping data and low-frequency shaft displacement in a complementary dual-channel configuration.

For facilities integrating condition monitoring data into broader Industry 4.0 frameworks, the TrendMaster Pro gateway supports connectivity to industrial Ethernet switches with PROFINET or EtherNet/IP capability, enabling the 200157-02-CN's enveloping data to flow into MES and ERP asset management layers without additional protocol converters.

Power Generation: In gas turbine and steam turbine trains, the 200157-02-CN monitors high-speed bearing condition on compressor stages and generator bearings, providing early warning of rolling element fatigue before catastrophic failure. Enveloping data integrates with the plant DCS for automated alarm management and maintenance work order generation.

Petrochemical & Oil and Gas: On centrifugal compressors, pumps, and agitators in hazardous area installations, the IP67-rated 200157-02-CN delivers reliable enveloping measurements in high-temperature, high-humidity environments. Its loop-powered 4–20 mA output simplifies intrinsic safety barrier integration in Zone 1 and Zone 2 classified areas.

Water Treatment & Municipal Infrastructure: Pump stations and blower trains benefit from continuous enveloping monitoring to detect bearing wear before unplanned outages disrupt water supply. The sensor's wide operating temperature range supports both indoor pump rooms and outdoor installations.

Mining & Minerals Processing: Conveyor drive motors, ball mill pinion bearings, and crusher main bearings represent high-consequence failure points. The 200157-02-CN's enveloping capability detects early-stage spalling and pitting on these slow-to-medium speed machines, enabling condition-based maintenance scheduling that reduces unplanned downtime.

Marine Propulsion & Offshore: Shipboard propulsion systems and auxiliary machinery require vibration monitoring solutions that withstand salt air, vibration shock, and wide temperature swings. The 200157-02-CN's robust construction and TrendMaster Pro integration support continuous monitoring on main engines, gearboxes, and shaft line bearings.

Packaging & Discrete Manufacturing: High-speed filling lines, rotary indexing tables, and servo-driven conveyor systems generate impulsive bearing loads that enveloping analysis detects earlier than broadband RMS monitoring. Integration with the TrendMaster Pro platform allows production supervisors to correlate vibration trends with OEE data for proactive maintenance planning.

Q1: Is the 200157-02-CN directly compatible with the TrendMaster Pro 2300/40M I/O Module without additional signal conditioning? Yes. The 200157-02-CN is factory-matched to the TrendMaster Pro platform. Its 4–20 mA loop-powered output connects directly to the 2300/40M I/O Module input channels without requiring external signal conditioners or transmitters. The TrendMaster Pro system handles enveloping band configuration and alarm setpoint management through the System 1 software interface, simplifying commissioning and reducing cabinet wiring complexity.

Q2: Can the 200157-02-CN be used in a hybrid architecture alongside Bently Nevada 3500 Series proximity probe systems? Yes. Many rotating machinery protection architectures combine TrendMaster Pro enveloping accelerometers with 3500 Series proximity probe systems to achieve comprehensive machine health coverage — enveloping for rolling element bearing and gear fault detection, and proximity probes for shaft centerline, radial vibration, and axial position per API 670 requirements. The two systems operate independently at the I/O level but can be unified at the data layer through System 1 Evolution Software, providing a single operator view of all machine health parameters.

Q3: What warranty and supply assurance does NANKMOS provide for the 200157-02-CN? NANKMOS provides a 12-Month Warranty on the 200157-02-CN covering manufacturing defects and functional performance. All units are pre-shipment tested to verify enveloping output accuracy and electrical integrity before dispatch. In-stock inventory is maintained to support urgent maintenance requirements and planned turnaround projects, with typical lead times significantly shorter than OEM direct channels. For volume procurement or project-specific supply scheduling, contact NANKMOS directly to confirm availability and delivery timelines.
