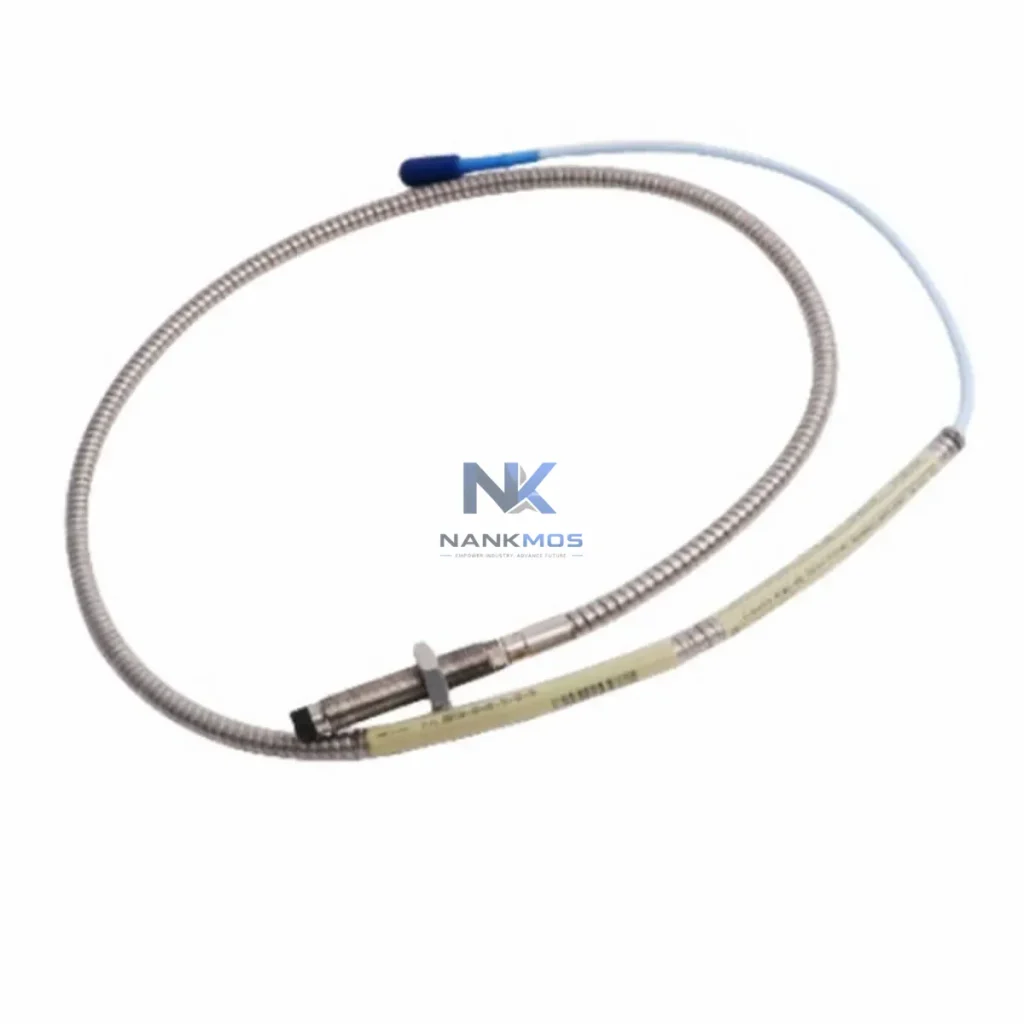

Bently Nevada 21000-16-10-15-057-03-02 Proximity Probe

Product Details

21000-16-10-15-057-03-02 Product Description

The Bently Nevada 21000-16-10-15-057-03-02 is a precision eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring platform. Designed to deliver continuous, high-resolution radial vibration and position measurements on rotating machinery, this probe serves as a foundational sensing element across the full control architecture — from the field-level measurement layer through to the supervisory control and data acquisition (SCADA) layer. Its system-matched design ensures electrical compatibility with the 3500 Series monitor rack, eliminating calibration drift and signal conditioning mismatches that can compromise machinery protection integrity.

In modern industrial automation environments, machinery protection is not an isolated function — it is a deeply integrated layer within a multi-tier control architecture. The 21000-16-10-15-057-03-02 probe is engineered to operate within this layered framework, providing stable, low-noise vibration signals that feed directly into the 3500/42M Proximitor I/O Module, which in turn communicates alarm and trip states to the 3500/22M Transient Data Interface and the plant-level DCS or PLC via hardwired relay outputs or digital communication protocols. This signal chain integrity is critical for protecting high-value rotating assets such as steam turbines, gas compressors, centrifugal pumps, and large induction motors.

The 21000-16-10-15-057-03-02 proximity probe achieves its full performance potential when deployed as part of a coherent, system-matched automation architecture. Within the Bently Nevada 3500 platform, the probe pairs directly with the 3500/42M Proximitor I/O Module, which provides the -24 VDC excitation voltage and conditions the raw gap-proportional DC output into calibrated vibration and position signals. These signals are then processed by the 3500/40M Proximitor I/O Module for redundant channel configurations, ensuring that no single-point failure in the sensing layer can compromise machinery protection integrity.

At the monitor rack level, the 3500/20 Rack Interface Module (RIM) aggregates data from all installed I/O modules and provides the communication backbone between the 3500 rack and plant-level control systems. For facilities running Modbus TCP or OPC-DA/UA integration, the 3500/22M Transient Data Interface captures high-speed waveform data during transient events such as machine startup and coastdown, enabling detailed rotor dynamic analysis without interrupting normal protection functions.

Power architecture for the 3500 rack is supplied by the 3500/15 Power Supply Module, which provides redundant 24 VDC rails to all installed I/O and communication modules. In critical applications, dual power supply configurations using two 3500/15 units eliminate power-layer single-point failures, a requirement in API 670-compliant installations. The rack backplane — the 3500/05 Rack — accommodates up to 14 I/O modules, supporting large-scale machinery protection deployments across multi-train compressor stations or turbine halls.

For facilities integrating Bently Nevada machinery protection data into a broader DCS environment, the 3500/92 Communication Gateway Module provides native Modbus RTU/TCP and Ethernet/IP connectivity, enabling seamless data exchange with Emerson DeltaV, Honeywell Experion, ABB 800xA, or Siemens PCS 7 platforms. At the HMI layer, System 1 Evolution software serves as the condition monitoring and machinery management platform, aggregating vibration trends, alarm histories, and waveform data from all 3500 racks across the plant network.

In applications requiring shaft absolute motion measurement, the 21000-16-10-15-057-03-02 probe is commonly deployed alongside the Bently Nevada 330180 Velomitor Seismic Transducer for combined relative and absolute shaft vibration measurement — a configuration mandated by API 670 for large steam turbines and gas turbines. Signal isolation between the probe output and the DCS analog input card is achieved using the Bently Nevada 3300 XL 8mm Proximitor Sensor driver, which provides the necessary impedance matching and signal buffering to maintain measurement accuracy across long cable runs in electrically noisy industrial environments.

Oil & Gas — Upstream and Midstream Compression: In gas compression stations, the 21000-16-10-15-057-03-02 probe monitors radial shaft vibration on reciprocating and centrifugal compressors. Continuous vibration trending enables predictive maintenance scheduling, reducing unplanned shutdowns that can cost operators tens of thousands of dollars per hour in lost throughput. The probe's API 670 compliance ensures it meets the machinery protection requirements specified in most upstream and midstream EPC contracts.

Power Generation — Steam and Gas Turbines: Large utility and industrial turbines require continuous shaft vibration and eccentricity monitoring throughout the full operating cycle — from cold startup through full-load operation and planned shutdown. The 21000-16-10-15-057-03-02 probe, integrated with the 3500/42M I/O module and 3500/22M Transient Data Interface, provides the high-resolution waveform capture needed to detect rotor bow, bearing wear, and blade-pass frequency anomalies before they escalate to forced outages.

Petrochemical — Reactor and Pump Trains: In ethylene crackers, ammonia synthesis loops, and refinery hydrotreating units, rotating machinery reliability is directly linked to plant production rates. The 21000-16-10-15-057-03-02 probe provides the continuous radial vibration data needed to support condition-based maintenance programs, replacing time-based overhaul schedules with data-driven maintenance decisions that extend mean time between repairs (MTBR) and reduce lifecycle maintenance costs.

Water and Wastewater — Large Pump Stations: Municipal water authorities and industrial wastewater treatment facilities deploy proximity probes on large vertical turbine pumps and horizontal split-case pumps to monitor bearing condition and shaft alignment. Early detection of vibration anomalies prevents catastrophic bearing failures that can result in extended service outages and costly emergency repairs.

Mining and Minerals Processing — Mill Drive Systems: SAG mills, ball mills, and large conveyor drive systems in mining operations are subject to high dynamic loads and harsh environmental conditions. The 21000-16-10-15-057-03-02 probe's wide operating temperature range and robust coaxial cable construction make it suitable for the demanding thermal and mechanical environments found in mineral processing facilities.

Q1: Is the 21000-16-10-15-057-03-02 probe compatible with all 3500 Series I/O modules, and does it require a specific Proximitor driver? The 21000-16-10-15-057-03-02 is a system-matched probe designed for use with the Bently Nevada 3500 Series platform. It requires a compatible Proximitor driver — typically the 3300 XL 8mm Proximitor Sensor — to provide the -24 VDC excitation and perform the gap-to-voltage conversion. The conditioned output is then wired to the 3500/42M Proximitor I/O Module. Mixing probe and driver models from different Bently Nevada series (e.g., 7200 Series drivers with 3500 Series I/O) is not recommended without factory verification, as sensitivity and linear range specifications may differ. Our technical team can confirm compatibility for your specific rack configuration prior to shipment.

Q2: What installation and commissioning considerations apply when deploying this probe in a high-temperature turbine casing environment? The 21000-16-10-15-057-03-02 probe tip is rated for continuous operation up to 177°C, making it suitable for most steam turbine bearing housing applications. During installation, the probe must be set to the correct operating gap — typically 50 mil (1.27 mm) for standard 3500 Series configurations — using a calibrated gap-setting tool and a digital voltmeter to verify the output voltage corresponds to the nominal -10.0 VDC at the target gap. Cable routing should avoid proximity to high-voltage power cables to minimize electromagnetic interference. All connections should be verified against the 3500 Series installation manual before energizing the rack. Our team provides pre-shipment functional testing documentation for each unit to support site commissioning.

Q3: What warranty and long-term supply assurance does NANKMOS provide for the 21000-16-10-15-057-03-02? Every 21000-16-10-15-057-03-02 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Units are sourced from verified supply channels and undergo functional inspection prior to shipment. For long-term maintenance programs and multi-unit procurement, NANKMOS maintains inventory reserves to support scheduled outage requirements and emergency replacement needs. Lead times and bulk pricing are available upon request — contact our team at [email protected] or +86 18359268345 for a project-specific quotation.
