Bently Nevada 21000-16-10-15-102-03-02

Product Details

21000-16-10-15-102-03-02 Product Description

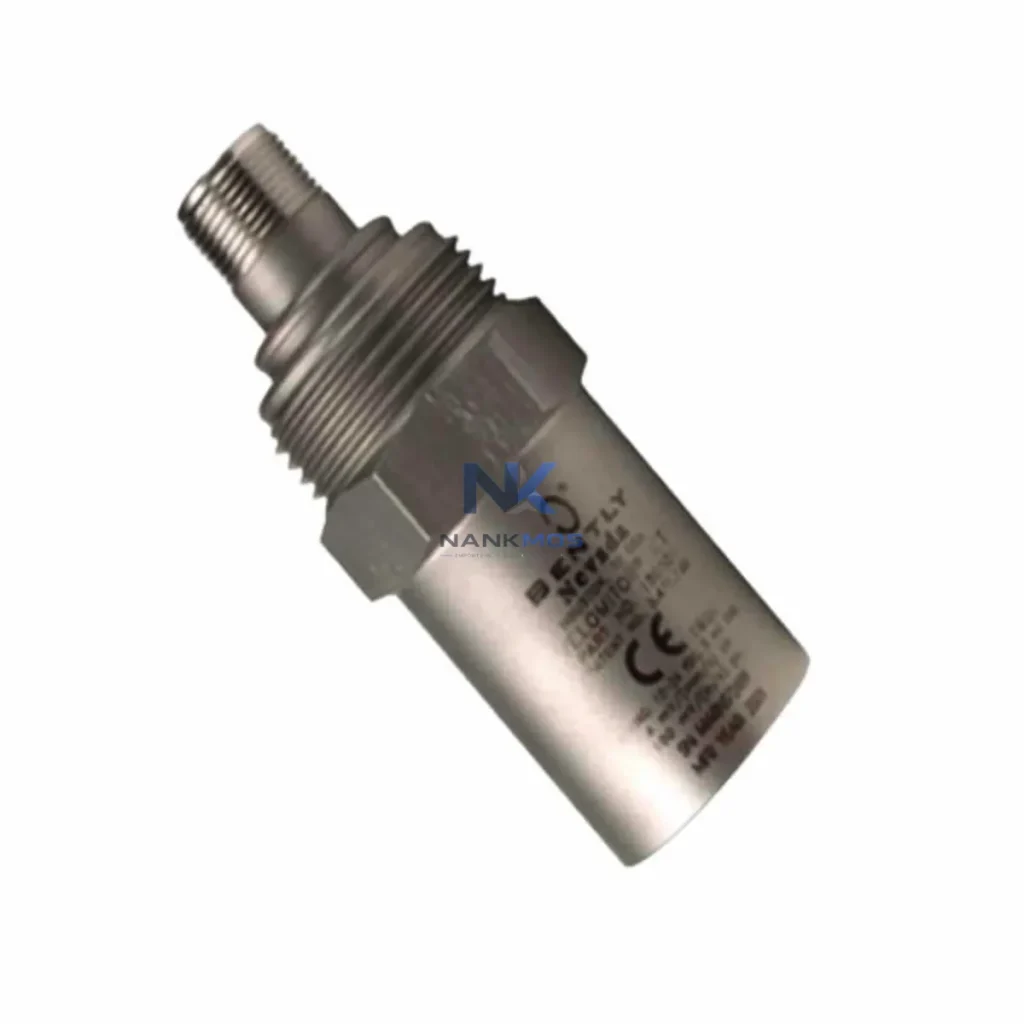

The Bently Nevada 21000-16-10-15-102-03-02 is a precision proximity probe housing assembly engineered for the Bently Nevada 21000 Series continuous vibration monitoring platform. Designed for deployment in high-demand industrial environments, this component forms a critical node in the plant-wide data chain — bridging rotating machinery signals with digital control and monitoring infrastructure. From raw vibration signal acquisition at the shaft surface to real-time data delivery at the SCADA or DCS level, the 21000-16-10-15-102-03-02 ensures signal integrity, network compatibility, and uninterrupted data flow across the entire smart factory architecture.

In a modern smart factory, the 21000-16-10-15-102-03-02 sits at the very front of the vibration data chain. The proximity probe detects shaft displacement and radial vibration at the machine level, converting physical motion into a continuous analog signal. This signal feeds directly into a Bently Nevada 3500/22M Transient Data Interface or a 3500/42M Proximitor I/O Module housed within the 3500 Series rack — the backbone of Bently Nevada's machinery protection architecture.

From the monitor rack, conditioned vibration data is transmitted over a plant-wide industrial Ethernet backbone. Facilities running Rockwell Automation ControlLogix PLCs or Siemens S7-400 controllers can receive this data via OPC-UA server integration, enabling the PLC to trigger protective shutdowns or load-shedding routines when vibration thresholds are exceeded. For plants using Emerson DeltaV DCS or Honeywell Experion PKS, the 21000 Series monitor rack communicates over Modbus TCP or PROFIBUS DP, feeding real-time vibration vectors directly into the distributed control layer.

At the network transport layer, managed industrial Ethernet switches — such as those from the Hirschmann MACH or Cisco IE 4000 series — provide the ring-topology redundancy and VLAN segmentation required for deterministic vibration data delivery. Latency-sensitive alarm signals are prioritized using QoS policies, ensuring that a high-vibration trip event reaches the SCADA server within milliseconds of detection.

The SCADA layer — typically GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation — receives the structured vibration dataset and renders it as real-time trend displays, orbit plots, and Bode diagrams. Operators at the HMI station, running a Siemens SIMATIC HMI TP1500 or equivalent panel, can monitor shaft centerline position, 1X/2X vibration amplitude, and phase angle without leaving the control room. When a bearing begins to degrade, the system generates a pre-configured alarm that is logged, time-stamped, and routed to the maintenance management system.

For remote diagnostics, the vibration data stream is forwarded to an edge gateway — such as a Moxa UC-8112 Industrial Computer or a Advantech WISE-5000 Series IoT Gateway — which aggregates multi-point vibration readings, applies local analytics, and pushes compressed data packets to a cloud-based asset performance management (APM) platform. This enables remote engineers to perform spectral analysis, detect early-stage imbalance or misalignment, and schedule predictive maintenance interventions without dispatching field personnel.

Power to the probe and signal conditioning circuitry is supplied by a dedicated 24 VDC industrial power supply — such as a Phoenix Contact QUINT series or a Bently Nevada-approved field power unit — ensuring clean, regulated voltage that eliminates noise artifacts in the proximity signal. The complete data chain — from probe tip to cloud dashboard — is designed for continuous, uninterrupted operation in environments with high EMI, temperature cycling, and mechanical vibration.

Protocol Fragmentation: Many legacy plants run a mix of 4–20 mA analog loops, Modbus RTU serial buses, and newer OPC-UA Ethernet segments. The 21000-16-10-15-102-03-02, when paired with a Bently Nevada System 1 software platform or a third-party protocol gateway, bridges these layers — converting raw proximity signals into structured digital data that any modern DCS or SCADA system can consume without custom engineering.

Data Silos and Asset Visibility: Vibration data trapped inside a standalone monitor rack cannot contribute to plant-wide OEE calculations or predictive maintenance workflows. By integrating the 21000 Series monitor output into the plant historian — such as OSIsoft PI System or Aspentech IP.21 — every vibration event becomes a searchable, time-series data point that maintenance planners, reliability engineers, and operations managers can query from any workstation.

Remote Monitoring Gaps: For unmanned compressor stations, offshore platforms, or remote pump skids, the inability to monitor vibration remotely creates significant risk. The 21000-16-10-15-102-03-02 supports deployment in these environments when connected to a cellular or satellite-enabled edge gateway, enabling 24/7 remote vibration surveillance with automated SMS or email alerts when alarm thresholds are breached.

System Scalability: As production lines expand, additional proximity probe channels can be added to the 3500 Series rack without disrupting existing monitor configurations. The modular architecture of the 21000 Series ensures that new measurement points — additional bearings, thrust positions, or case expansion sensors — can be integrated into the existing data network with minimal commissioning effort.

Q1: What communication protocols does the 21000-16-10-15-102-03-02 support for SCADA integration? The 21000-16-10-15-102-03-02 proximity probe housing outputs an analog signal that is processed by the Bently Nevada 3500 Series monitor rack. The rack supports Modbus RTU, Modbus TCP/IP, and OPC-UA communication to SCADA and DCS platforms. For PROFIBUS or PROFINET integration, a protocol gateway module is recommended. All configurations are validated during factory acceptance testing prior to shipment.

Q2: How is network stability and signal integrity maintained in high-EMI environments? The 21000 Series proximity probe system uses shielded coaxial extension cables and a dedicated Proximitor sensor to condition the eddy-current signal before it enters the digital network. The monitor rack's analog input stage provides galvanic isolation and common-mode noise rejection. At the network layer, managed industrial switches with storm control and RSTP ring redundancy ensure that vibration data packets are delivered without dropout even in electrically noisy plant environments.

Q3: Can the system support remote diagnostics and predictive maintenance workflows? Yes. When the 3500 Series rack is connected to a Bently Nevada System 1 software server or an OPC-UA-enabled edge gateway, vibration waveform data — including time-domain samples, spectral vectors, and alarm logs — can be accessed remotely via secure VPN or cloud APM platforms. This enables remote vibration analysts to perform bearing diagnostics, rotor dynamic assessments, and maintenance scheduling without on-site presence.

Q4: What warranty and pre-shipment testing does the 21000-16-10-15-102-03-02 carry? Every 21000-16-10-15-102-03-02 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failure. Prior to dispatch, each unit undergoes functional verification including gap voltage calibration, sensitivity check, and housing integrity inspection. In-stock units are available for same-week shipment, and expedited delivery options are available for urgent maintenance requirements.
