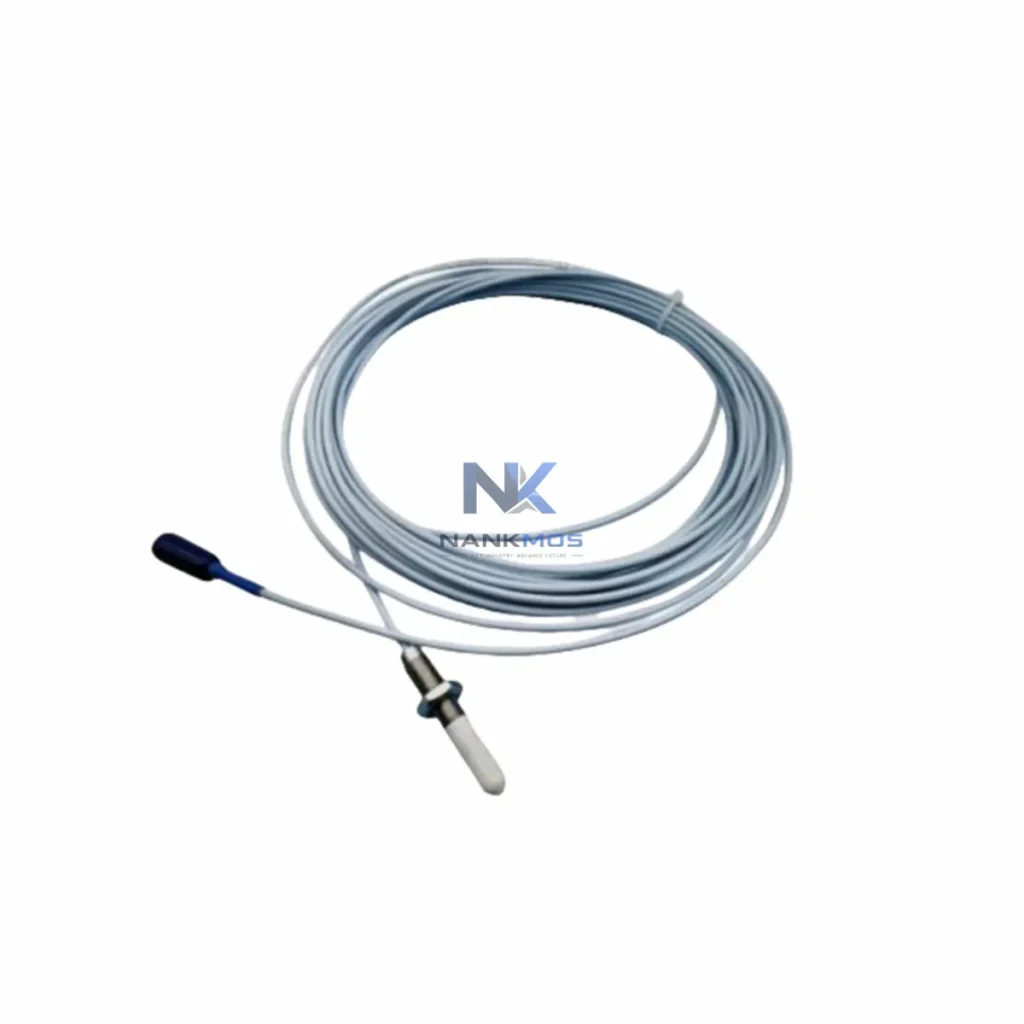

Bently Nevada 21000-34-05-15-056-04-02 Proximity Probe

Product Details

21000-34-05-15-056-04-02 Product Description

The Bently Nevada 21000-34-05-15-056-04-02 is a precision eddy-current proximity probe engineered for continuous, non-contact vibration and position measurement within the 21000 Series monitoring architecture. Designed to deliver stable, high-resolution signals across demanding industrial environments, this probe integrates seamlessly into multi-channel machinery protection systems where signal fidelity, architectural consistency, and long-term reliability are non-negotiable. Whether deployed in rotating machinery protection, shaft displacement monitoring, or critical process control loops, the 21000-34-05-15-056-04-02 provides the measurement foundation upon which safe, efficient plant operation depends.

Within a layered industrial control architecture, the proximity probe occupies the sensing layer — the origin point of every signal chain. Its output feeds directly into the 3500 Series or 3300 Series rack-mounted monitors, where signal conditioning, alarm management, and relay output logic are executed. The integrity of this signal path determines the accuracy of every downstream decision, from PLC-based interlock logic to DCS-integrated process control. The 21000-34-05-15-056-04-02 is calibrated and matched to work with the 21000 Series extension cables and proximitor sensors, ensuring system-level linearity and eliminating field calibration uncertainty.

The 21000-34-05-15-056-04-02 proximity probe is not a standalone component — it is the sensing foundation of a complete, integrated machinery protection and control architecture. In a typical deployment, the probe is paired with a 21000 Series proximitor/driver (such as the 21000-00-55-05-02) mounted in the field junction box, which conditions the raw eddy-current signal into a calibrated DC voltage output. This signal is then routed via matched 21000 Series extension cables to the 3500/40M Proximitor Monitor or 3500/42M Proximitor/Seismic Monitor housed in the 3500 Series rack.

The 3500 Series rack itself integrates a 3500/01 Rack Interface Module for system communication, a 3500/05 System Power Supply for redundant power delivery, and a 3500/20 Rack Configuration Module for centralized parameter management. Relay outputs from the monitor cards connect to the plant's Allen-Bradley ControlLogix or Siemens S7-400 PLC safety interlock system, enabling automated shutdown sequences when vibration thresholds are exceeded. For plants operating on a DCS backbone — such as a Honeywell Experion PKS or Emerson DeltaV — the 3500 rack communicates via Modbus TCP or OPC-UA gateway modules, delivering real-time vibration data to the process historian and operator workstation.

At the HMI layer, operators monitor shaft displacement trends and alarm states through System 1 Evolution condition monitoring software, which aggregates data from multiple 3500 racks across the plant. For facilities requiring portable verification, the ADRE 408 DSPi data acquisition system can be connected for high-speed waveform capture and orbit plot analysis during commissioning or troubleshooting. Power quality at the field junction box is maintained by a Phoenix Contact QUINT Power 24 VDC DIN-rail power supply, ensuring stable supply voltage to the proximitor driver under all load conditions. Together, these components form a coherent, validated measurement chain from the rotating shaft surface to the control room display — with the 21000-34-05-15-056-04-02 at its origin.

Power Generation & Turbomachinery: In gas turbine and steam turbine protection systems, the 21000-34-05-15-056-04-02 monitors radial shaft vibration and axial position on journal-bearing machines. Paired with the 3500/40M monitor and a redundant 3500/05 power supply, it provides the continuous measurement required by API 670 machinery protection standards. Any exceedance of alarm or danger setpoints triggers relay outputs to the turbine control system for automated load shedding or emergency shutdown.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressors in refinery service demand continuous shaft monitoring to prevent catastrophic bearing failure. The 21000-34-05-15-056-04-02 is installed at each bearing location, with signals routed to the 3500 rack and integrated into the plant's Safety Instrumented System (SIS) via hardwired relay contacts. This architecture satisfies IEC 61511 functional safety requirements for SIL-rated protection loops.

Water & Wastewater Treatment: Large vertical pump motors and blower trains in municipal water treatment facilities benefit from continuous vibration monitoring to extend bearing life and reduce unplanned downtime. The compact 8 mm probe format of the 21000-34-05-15-056-04-02 fits within the constrained bearing housing geometries common in vertical motor designs, while the robust cable construction withstands the humid, chemically aggressive environment.

Mining & Minerals Processing: Ball mills, SAG mills, and large conveyor drive motors in mining operations are subject to high vibration loads and abrasive environments. The 21000-34-05-15-056-04-02, with its stainless steel probe body and high-temperature rating, maintains measurement integrity in these demanding conditions, feeding data to the plant's condition monitoring system for predictive maintenance scheduling.

Marine & Offshore: Shipboard propulsion turbines and offshore platform gas compression trains require vibration monitoring systems certified for marine environments. The 21000 Series probe system meets the environmental and EMC requirements for marine classification society approval, making the 21000-34-05-15-056-04-02 suitable for integration into vessel machinery monitoring systems.

Q1: Is the 21000-34-05-15-056-04-02 directly compatible with the 3500 Series monitor rack without additional signal conditioning? No — the proximity probe requires a matched 21000 Series proximitor/driver (e.g., 21000-00-55-05-02) to condition the eddy-current signal into the calibrated DC voltage accepted by the 3500/40M or 3500/42M monitor card. The probe, extension cable, and proximitor must be ordered and calibrated as a matched set to ensure system-level linearity across the full measurement range. Substituting unmatched components will invalidate the system calibration and may trigger false alarms or missed detections.

Q2: Can this probe be integrated into a redundant monitoring architecture, and what are the installation requirements? Yes. For critical machinery requiring redundant protection, two 21000-34-05-15-056-04-02 probes are installed at 90° to each other at each bearing location (X-Y configuration per API 670). Each probe feeds an independent channel in the 3500 Series rack, with the rack configured for voted relay logic (e.g., 1-of-2 or 2-of-2 voting). The 3500/05 power supply module supports redundant power input, and the rack's communication module can be duplicated for redundant DCS/PLC connectivity. All wiring should follow the 3500 Series installation manual for shielding and grounding to minimize electrical noise on the signal cable.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for this part? NANKMOS provides a 12-Month Warranty on the 21000-34-05-15-056-04-02 covering manufacturing defects and functional performance under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output linearity and cable integrity before dispatch. Typical lead time from confirmed order to shipment is 3–7 business days for in-stock units, with expedited options available for urgent plant requirements. For volume orders or long-term supply agreements, contact [email protected] to discuss dedicated inventory allocation and scheduled delivery programs.
