Bently Nevada 21508-02-12-10-02 Proximity Probe

Product Details

21508-02-12-10-02 Product Description

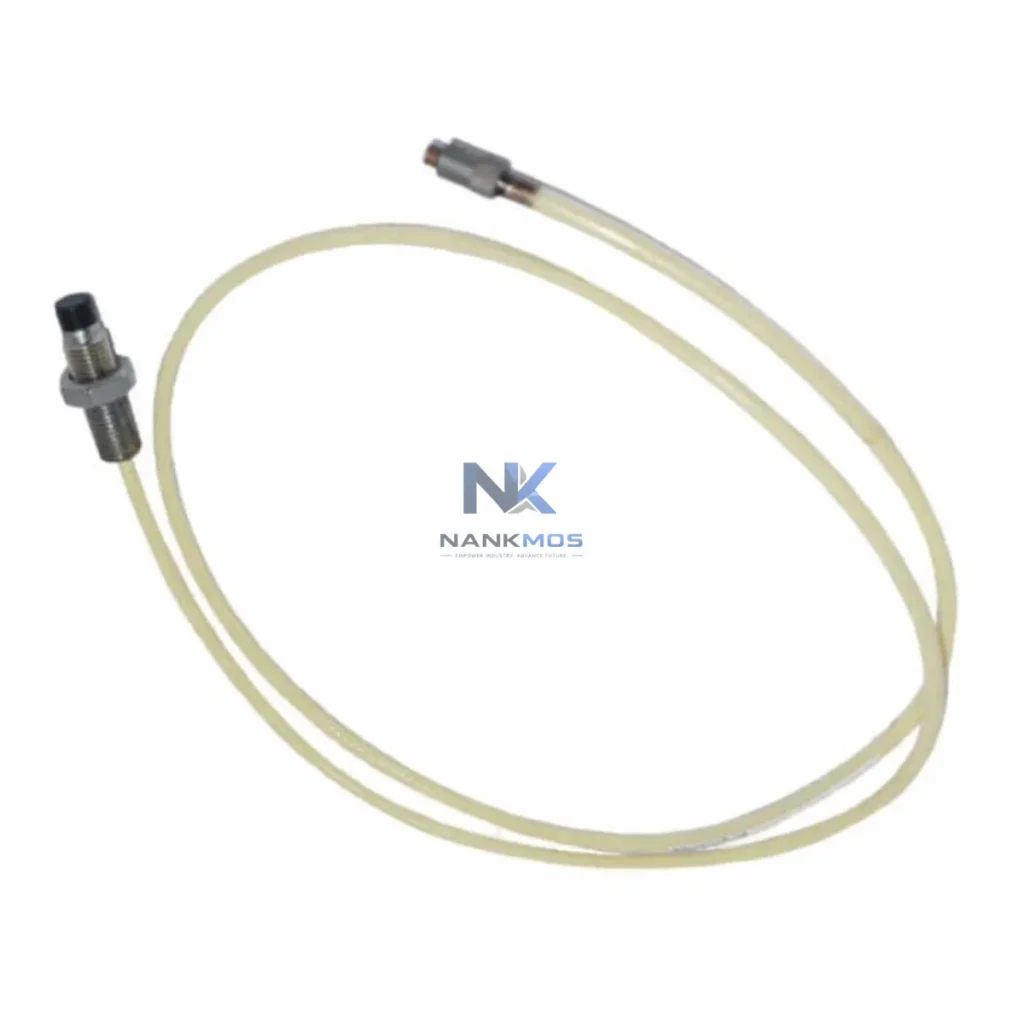

The Bently Nevada 21508-02-12-10-02 is a precision-engineered proximity probe designed for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring platform. As a core sensing element in rotating machinery surveillance, this probe delivers continuous, non-contact displacement and vibration measurements that feed directly into the 3500 rack-based monitoring architecture. Its system-matched design ensures electrical and mechanical compatibility with the 3500/42M Proximitor I/O Module, 3500/22M Transient Data Interface, and the broader 3500 Series backplane infrastructure, enabling engineers to deploy a fully coherent, high-integrity monitoring solution without signal conditioning compromises.

In modern industrial control architecture, the proximity probe is not a standalone sensor — it is the first node in a layered signal chain that spans from the machine shaft to the control room. The 21508-02-12-10-02 is engineered to operate within this chain with full awareness of the downstream processing environment. Its output signal is calibrated for direct compatibility with Bently Nevada Proximitor sensors, ensuring that the eddy-current gap voltage is accurately translated into displacement data at the 3500 rack level. This tight integration between the probe, the extension cable, the Proximitor, and the I/O module eliminates signal ambiguity and reduces commissioning time significantly on new installations or replacement deployments.

The 21508-02-12-10-02 proximity probe achieves its full operational value when deployed as part of a coherent Bently Nevada 3500 Series architecture. At the sensing layer, the probe pairs with the Bently Nevada 330130-080-00-00 Extension Cable to bridge the physical gap between the machine casing and the monitoring rack, maintaining signal integrity across the full cable run. The Proximitor sensor — typically the Bently Nevada 330180-91-00 — conditions the raw eddy-current signal into a calibrated voltage output that the rack can process without additional signal conditioning hardware.

At the I/O layer, the conditioned signal enters the Bently Nevada 3500/42M Proximitor I/O Module, which provides the channel-level processing, alarm setpoint management, and Keyphasor integration required for full vibration and position monitoring. The 3500/42M communicates over the 3500 rack backplane to the 3500/22M Transient Data Interface Module, which captures high-resolution waveform data for machinery diagnostics and startup/shutdown transient analysis. This transient data capability is critical for turbine and compressor applications where shaft dynamic behavior during speed changes must be recorded and analyzed.

System power integrity is maintained by the Bently Nevada 3500/05 Power Supply Module, which provides redundant DC power rails to all rack-mounted modules. In high-availability installations, a second 3500/05 module operates in hot-standby configuration, ensuring that a power supply fault does not interrupt machinery protection coverage. The rack's communication gateway — typically the Bently Nevada 3500/92 Communication Gateway Module — bridges the 3500 platform to plant-level DCS or SCADA systems via Modbus TCP, OPC-DA, or proprietary System 1 protocol, enabling the proximity probe's vibration data to be visible at the control room HMI level.

For plants operating integrated control and protection architectures, the 3500 rack data can be fed into a GE/Bently Nevada System 1 Evolution software platform, where proximity probe channels from multiple machines are aggregated, trended, and analyzed against baseline signatures. This integration supports predictive maintenance workflows, reducing unplanned downtime by identifying bearing wear, shaft misalignment, and rotor imbalance conditions before they escalate to trip events. The 21508-02-12-10-02 probe, as the primary sensing element, is therefore a foundational component in this multi-layer predictive architecture.

In installations requiring shaft absolute vibration measurement, the proximity probe channel is combined with a seismic velocity or accelerometer channel — such as those served by the Bently Nevada 3500/46M Seismic Monitor Module — to compute absolute shaft motion vectors. This vector combination is essential for large steam turbines and centrifugal compressors where both relative shaft displacement and absolute casing motion must be monitored simultaneously per API 670 machinery protection standards.

Power Generation — Steam & Gas Turbines: In combined-cycle and simple-cycle power plants, the 21508-02-12-10-02 is deployed on HP, IP, and LP turbine shaft journals to monitor radial vibration and shaft centerline position. The probe's compatibility with the 3500/42M module and Keyphasor-based phase reference enables full vector vibration analysis, supporting both continuous protection and periodic balancing campaigns. Plants operating GE Frame 7 or Siemens SGT series turbines benefit from the probe's robust high-temperature performance at the bearing pedestal.

Oil & Gas — Centrifugal Compressors: Offshore platforms and onshore gas processing facilities deploy the 21508-02-12-10-02 on centrifugal compressor trains where API 670 compliance is mandatory. The probe monitors shaft radial position and dynamic vibration at both drive-end and non-drive-end bearings, with alarm and trip setpoints managed at the 3500/42M module level. Integration with the 3500/92 gateway enables compressor vibration data to be visible on the plant DCS, supporting operator awareness and automated shutdown logic.

Petrochemical — Process Pumps & Fans: In ethylene crackers, refineries, and chemical processing plants, large process pumps and induced-draft fans require continuous shaft monitoring to prevent catastrophic bearing failures. The 21508-02-12-10-02 provides the non-contact sensing capability required for these applications, with the 3500 rack providing the alarm management and data historian integration needed for process safety management compliance.

Mining & Minerals Processing — Mill Drives: SAG mills, ball mills, and large conveyor drive motors in mining operations benefit from proximity probe-based shaft monitoring to detect bearing degradation and rotor eccentricity. The 21508-02-12-10-02's robust construction and wide operating temperature range make it suitable for the harsh environmental conditions typical of mineral processing facilities.

Marine & Shipboard Propulsion: Vessel propulsion systems and shipboard auxiliary machinery — including main engine crankshafts and turbocharger shafts — increasingly adopt Bently Nevada 3500 Series monitoring for classification society compliance. The 21508-02-12-10-02 supports these applications with its compact 8 mm probe format and compatibility with the 3500 rack's marine-certified configurations.

Q1: Is the 21508-02-12-10-02 directly compatible with the Bently Nevada 3500/42M Proximitor I/O Module without additional signal conditioning? Yes. The 21508-02-12-10-02 is designed as a system-matched component within the Bently Nevada 3500 architecture. When paired with the appropriate 330130 Series extension cable and a 330180 Proximitor sensor, the probe's output signal is fully compatible with the 3500/42M module's input specifications. No additional signal conditioning hardware is required. The complete probe-cable-Proximitor assembly delivers a calibrated -24 VDC gap voltage that the 3500/42M processes directly for vibration and position monitoring. This system-matched design is a key advantage of the 3500 platform and is the primary reason the 21508-02-12-10-02 is specified for new installations and direct replacements alike.

Q2: What is the recommended installation and commissioning procedure for the 21508-02-12-10-02 in a 3500 Series rack? Commissioning begins with mechanical installation of the probe in the bearing housing, setting the probe gap to the manufacturer-specified nominal gap (typically 1.0 mm for 8 mm probes, yielding approximately -10.4 VDC gap voltage). The extension cable is then routed to the Proximitor sensor, which is mounted in a junction box or directly on the machine skid. The Proximitor output is wired to the 3500/42M I/O module terminal block. After wiring, the 3500/42M channel is configured via the Rack Configuration Software (RCS) for the correct probe type, gap voltage, and alarm setpoints. A static gap voltage verification and dynamic signal check (using a shaft rotation or signal simulator) should be performed before the machine is returned to service. All steps should be documented in the plant's machinery protection commissioning record. Our pre-shipment functional verification ensures the probe arrives calibrated and ready for installation.

Q3: What warranty and long-term supply support is available for the 21508-02-12-10-02? All 21508-02-12-10-02 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing and gap voltage calibration verification before dispatch. For long-term supply continuity, NANKMOS maintains verified stock of the 21508-02-12-10-02 and compatible 3500 Series components — including extension cables, Proximitor sensors, and I/O modules — to support both planned maintenance programs and emergency replacement requirements. Customers operating large fleets of 3500-monitored machines are encouraged to discuss framework supply agreements to ensure priority access to critical spare components. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
