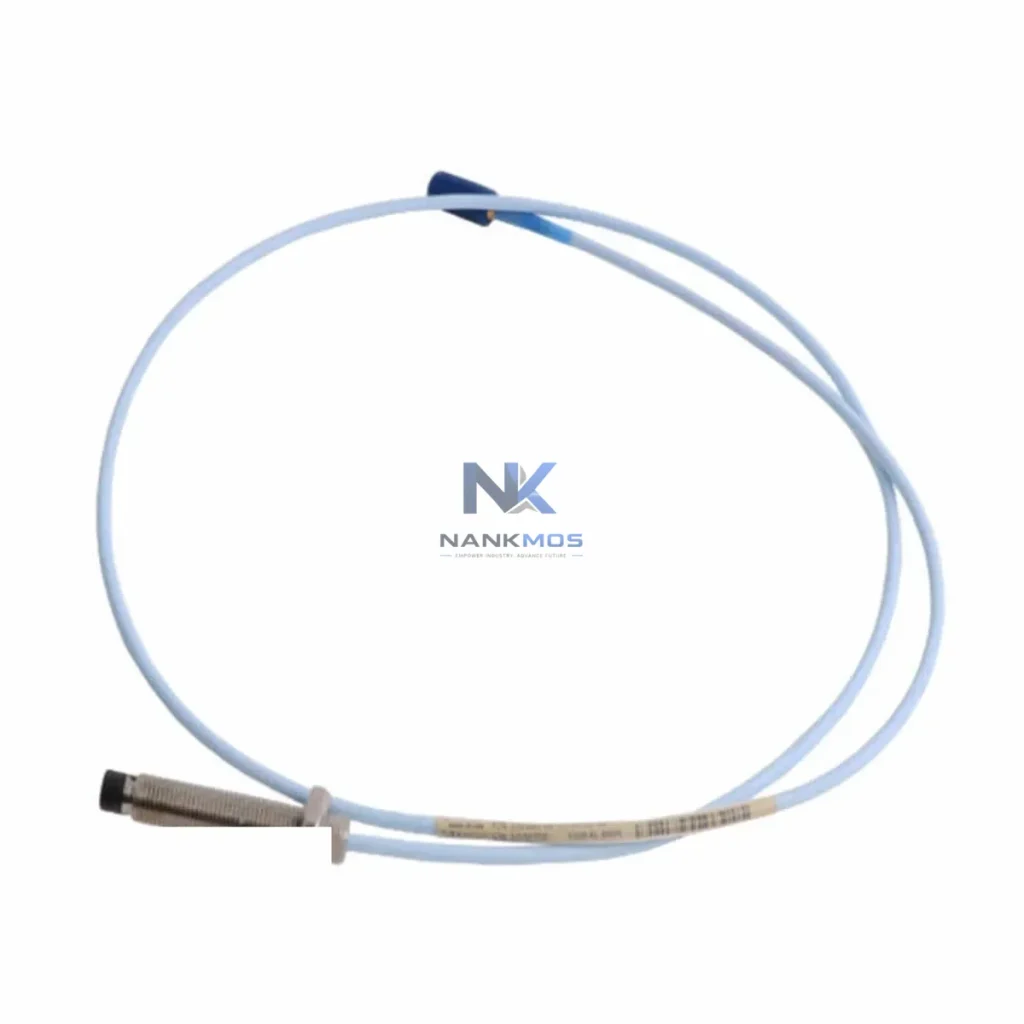

Bently Nevada 30190-035-00-00 Proximity Probe

Product Details

30190-035-00-00 Product Description

The Bently Nevada 30190-035-00-00 is a precision eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. Designed to deliver continuous, high-resolution shaft displacement and vibration measurements, this probe serves as a foundational sensing element across the control layer, enabling real-time diagnostics, predictive maintenance, and system-wide signal integrity in demanding industrial environments.

As a system-matched component, the 30190-035-00-00 is factory-calibrated to operate in conjunction with the 3500/42M Proximitor/Seismic Monitor, the 3500/22M Transient Data Interface, and the 3500/05 Power Supply module. Its integration into the 3500 rack architecture ensures that signal conditioning, buffered output, and OK status relay logic are fully coordinated across the monitoring platform — eliminating calibration drift, reducing commissioning time, and supporting long-term measurement consistency across rotating machinery assets.

The 30190-035-00-00 proximity probe is not a standalone sensor — it is a precision field element within a layered, rack-based machinery protection architecture. Its operational value is fully realized when deployed alongside complementary modules within the Bently Nevada 3500 platform and the broader plant automation hierarchy.

At the monitoring layer, the probe interfaces directly with the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which processes the raw eddy-current signal into calibrated displacement and velocity measurements. The 3500/42M provides OK relay output, alert/danger setpoint logic, and buffered outputs for DCS integration — ensuring that the probe's signal is immediately actionable within the plant control loop.

For transient capture and startup/shutdown analysis, the 3500/22M Transient Data Interface module records high-resolution waveform data during machine run-up and coast-down events. This capability is critical for turbine and compressor commissioning, where shaft dynamic behavior must be characterized before steady-state operation is established.

Power integrity across the 3500 rack is maintained by the 3500/05 Power Supply, which delivers regulated -24 VDC to all Proximitor drivers and monitor cards. Redundant power supply configurations using dual 3500/05 modules eliminate single-point power failure risk in critical machinery protection applications.

At the communication layer, the 3500 rack connects to plant DCS and SCADA systems via the 3500/92 Communication Gateway, supporting Modbus TCP, OPC-DA, and Ethernet/IP protocols. This enables the proximity probe's vibration and position data to be consumed by ABB System 800xA, Emerson DeltaV, Honeywell Experion, or Siemens PCS 7 platforms without signal conversion losses.

For complete shaft centerline and orbit analysis, the 30190-035-00-00 is typically deployed in X-Y probe pairs, with each probe connected to a dedicated channel on the 3500/42M. The resulting Bode, polar, and orbit plots are visualized through Bently Nevada System 1 condition monitoring software, which aggregates data from multiple 3500 racks across the plant into a unified asset health dashboard.

At the field wiring layer, the probe's integral cable terminates at a 3500-series junction box or field barrier assembly, where the extension cable connects to the Proximitor driver. Proper cable routing, grounding, and shielding at this layer are essential to maintaining the probe's signal-to-noise ratio in high-EMI environments such as motor control centers and variable frequency drive (VFD) cabinets.

For applications requiring intrinsic safety in Zone 0/1 hazardous areas, the 30190-035-00-00 is paired with Bently Nevada IS barriers or third-party Zener barriers, ensuring that the probe circuit remains within safe energy limits while preserving measurement accuracy. This configuration is standard in petrochemical, offshore, and LNG plant installations.

The 3500 platform's modular rack design — accommodating up to 16 monitor cards per chassis — allows the 30190-035-00-00 to scale from single-machine monitoring to plant-wide machinery protection networks covering dozens of critical rotating assets, all managed from a centralized System 1 server.

Oil & Gas / Petrochemical: The 30190-035-00-00 is a standard component in API 670-compliant machinery protection systems for centrifugal compressors, gas turbines, and steam turbines in refinery and LNG plant applications. Its ATEX/IECEx-rated configurations support deployment in classified hazardous areas, where continuous shaft monitoring is mandated by process safety management (PSM) regulations.

Power Generation: In combined-cycle and steam power plants, proximity probes monitor journal bearing clearance and shaft eccentricity on turbine-generator sets. The 30190-035-00-00's high-temperature cable rating supports installation in hot sections of the turbine pedestal, where ambient temperatures routinely exceed 100°C.

Pulp & Paper / Mining: Large induced draft fans, ball mills, and kiln drives in heavy industry rely on proximity probe arrays to detect shaft imbalance, misalignment, and bearing wear before catastrophic failure. The 30190-035-00-00's robust construction and wide measurement range make it suitable for the high-vibration, contaminated environments typical of these applications.

Marine & Offshore: Shipboard propulsion turbines, compressors, and auxiliary machinery on FPSO vessels and LNG carriers require continuous vibration monitoring under dynamic loading conditions. The 30190-035-00-00's compact form factor and armored cable construction are well-suited to the space-constrained, high-humidity environments of marine machinery spaces.

Water Treatment & Utilities: High-speed pump and blower applications in water treatment plants benefit from proximity probe monitoring to detect cavitation-induced vibration and bearing degradation. Integration with the 3500/92 gateway enables alarm data to be forwarded to SCADA systems for remote monitoring and predictive maintenance scheduling.

Q1: Is the 30190-035-00-00 directly compatible with all 3500 Series monitor cards, or does it require a specific Proximitor driver? The 30190-035-00-00 is designed for use with the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which includes an integrated Proximitor driver circuit. It is not compatible with 3300 Series or 7200 Series monitor cards without recalibration and driver substitution. For mixed-platform installations, verify the target monitor card's input impedance and supply voltage specifications against the probe's datasheet before deployment.

Q2: What extension cable length is supported, and how does cable length affect system calibration? The 30190-035-00-00 is calibrated as a probe-and-cable system. Standard system configurations support total cable lengths of 5 m, 9 m, and 15 m using Bently Nevada system-matched extension cables. Non-standard cable lengths alter the probe system's sensitivity and linear range, requiring field recalibration of the Proximitor driver. Always specify the required total cable length at the time of order to ensure factory-matched calibration.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed? Every 30190-035-00-00 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each probe undergoes electrical continuity verification, sensitivity calibration check, and OK status output confirmation using a calibrated Proximitor test fixture. Units that do not meet OEM specification tolerances are quarantined and not shipped. Warranty claims are processed through NANKMOS's technical support team at [email protected].
