31000-16-05-00-070-03-02 Product Description

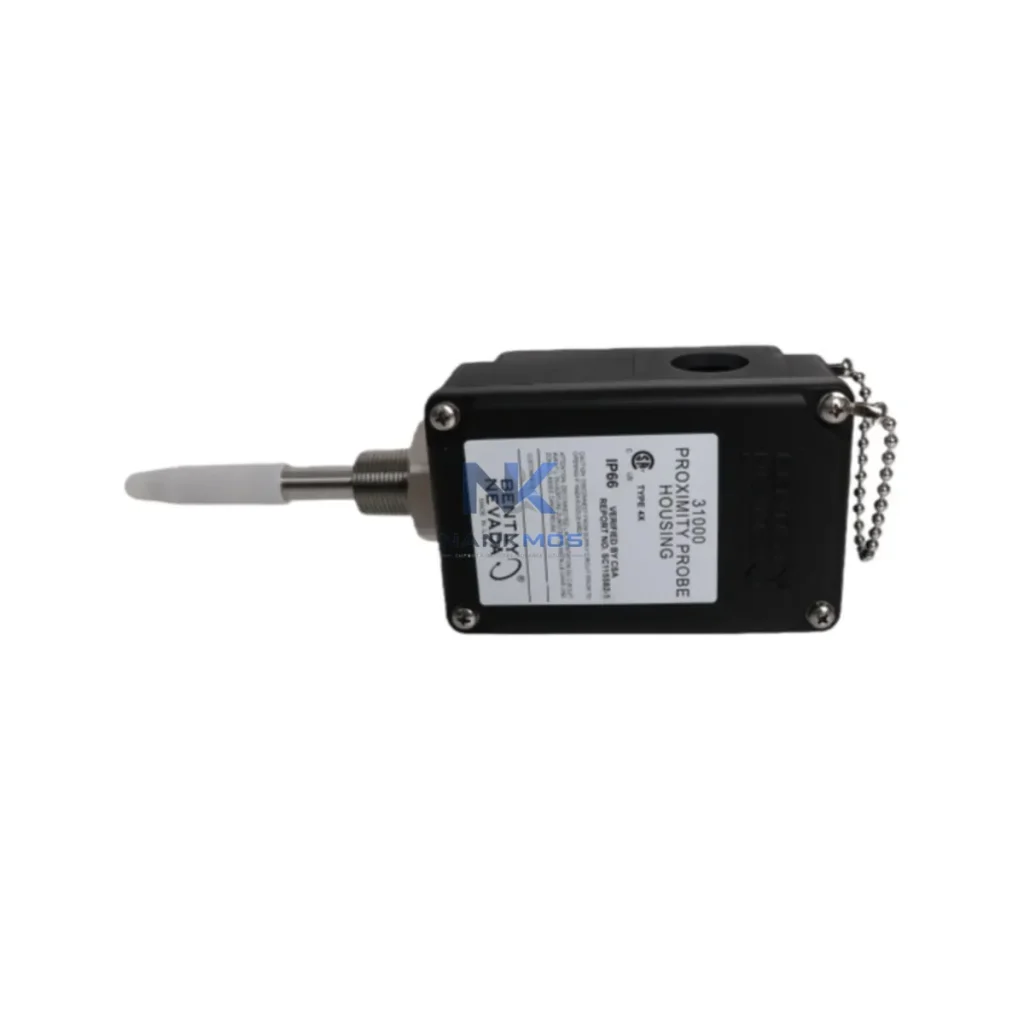

The Bently Nevada 31000-16-05-00-070-03-02 is a precision proximity probe engineered for seamless integration within the Bently Nevada 3300 Series vibration monitoring architecture. Designed to deliver continuous, high-fidelity shaft displacement and vibration data, this probe serves as a foundational sensing element across the full control hierarchy — from field-level signal acquisition through to supervisory control and condition monitoring platforms. Its role within a complete automation architecture extends far beyond simple measurement: it anchors the signal integrity of the entire machinery protection system, enabling coordinated response across protection, control, and diagnostic layers.

Within a fully integrated machinery protection and process control platform, the 31000-16-05-00-070-03-02 probe operates as the primary sensing node, feeding real-time displacement data into the Bently Nevada 3300/16 Dual Vibration Monitor, which processes raw eddy-current signals into calibrated vibration and position readings. The monitor communicates alert and danger thresholds to the 3300/20 Keyphasor Module, which synchronizes rotational reference signals across the monitoring rack, enabling phase-referenced vibration analysis critical for balancing and diagnostics.

At the I/O and communication layer, the system interfaces with the 3500/22M Transient Data Interface or the 3300/93 System Monitor to relay machinery health data upstream to DCS or SCADA platforms via Modbus RTU or 4–20 mA analog outputs. This ensures that the vibration data captured by the 31000-series probe is fully contextualized within the plant-wide control architecture, supporting both real-time protection and long-term trend analysis.

Power integrity for the monitoring rack is maintained through the Bently Nevada 3300/15 Power Supply, which provides regulated DC power to all monitor modules, ensuring that signal conditioning remains stable even under fluctuating plant power conditions. For redundant architectures, dual power supply configurations eliminate single points of failure at the power layer, directly protecting the reliability of the probe signal chain.

At the HMI and supervisory layer, vibration data from the 31000-series probe is visualized through System 1 Condition Monitoring Software, Bently Nevada's flagship asset performance management platform. System 1 aggregates multi-channel vibration, temperature, and process data, enabling engineers to correlate shaft displacement trends with process variables — a capability that transforms raw proximity probe data into actionable maintenance intelligence. Integration with GE Digital APM or third-party CMMS platforms further extends the diagnostic value of the probe's output across the enterprise maintenance workflow.

For installations requiring extended cable runs or signal isolation, the 3300/05 Extension Cable and compatible signal isolator modules maintain signal fidelity between the probe tip and the monitor input, preventing ground loop interference and ensuring measurement accuracy in electrically noisy industrial environments. The probe's eddy-current operating principle makes it inherently immune to contamination from oil, water, and process fluids — a critical advantage in turbomachinery and compressor applications where environmental conditions are severe.

The Bently Nevada 31000-16-05-00-070-03-02 is deployed across a broad spectrum of heavy industrial applications where continuous shaft monitoring is essential to operational safety and equipment longevity. In power generation, it monitors steam turbine shaft displacement to detect rotor imbalance, misalignment, and bearing wear before they escalate to forced outages. In oil and gas processing, it provides continuous protection for centrifugal compressors and gas turbines operating in hazardous area classifications, where unplanned shutdowns carry significant safety and financial consequences.

In petrochemical and refinery environments, the probe integrates with safety instrumented systems (SIS) to provide independent vibration trip signals that complement process safety logic. In water treatment and pumping stations, it monitors large vertical pump shafts for radial vibration, enabling predictive maintenance scheduling that reduces unplanned downtime. In mining and mineral processing, it protects large rotating equipment such as ball mills, crushers, and conveyor drives, where bearing failure can halt entire production lines.

For marine and offshore applications, the probe's wide operating temperature range and robust construction make it suitable for shipboard machinery monitoring, including main propulsion systems and auxiliary generators. In packaging and discrete manufacturing lines, it supports high-speed spindle monitoring, ensuring that precision machining centers maintain dimensional accuracy throughout extended production runs.

Q1: Is the 31000-16-05-00-070-03-02 compatible with both the 3300 and 3500 Series monitor racks? The 31000-series probes are natively designed for the Bently Nevada 3300 Series architecture. Compatibility with 3500 Series monitors depends on the specific monitor module and driver configuration. The 3500/42M Proximitor/Seismic Monitor supports a range of probe and driver combinations — confirm the driver part number and gap voltage range before cross-platform deployment to ensure signal calibration accuracy.

Q2: What installation and commissioning considerations apply to this probe in a redundant monitoring architecture? In redundant configurations, dual probes are typically installed at 90° offsets (X–Y orientation) to capture full radial vibration vectors. Each probe requires its own dedicated driver and monitor channel. Cable routing should maintain physical separation between redundant signal paths to prevent common-cause failure from mechanical damage. During commissioning, gap voltage should be set to the nominal -18 VDC using a calibrated gap-setting tool, with the shaft at rest and centered in the bearing clearance.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability? All units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance from the date of shipment. Each unit undergoes pre-shipment functional testing to verify output signal linearity, gap voltage response, and cable integrity. NANKMOS maintains dedicated inventory of Bently Nevada 3300-series components to support both immediate replacement requirements and long-term maintenance contracts, ensuring supply continuity for critical machinery protection systems throughout the equipment lifecycle.
