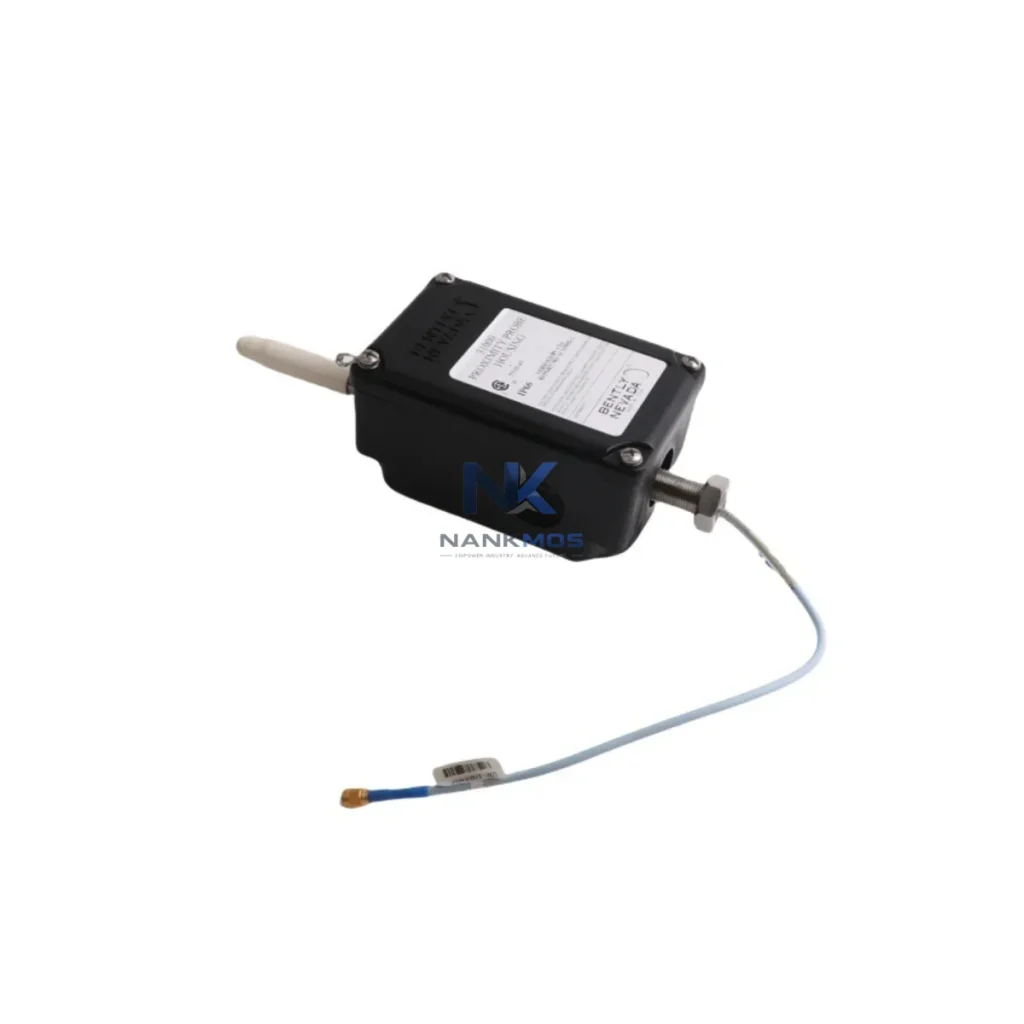

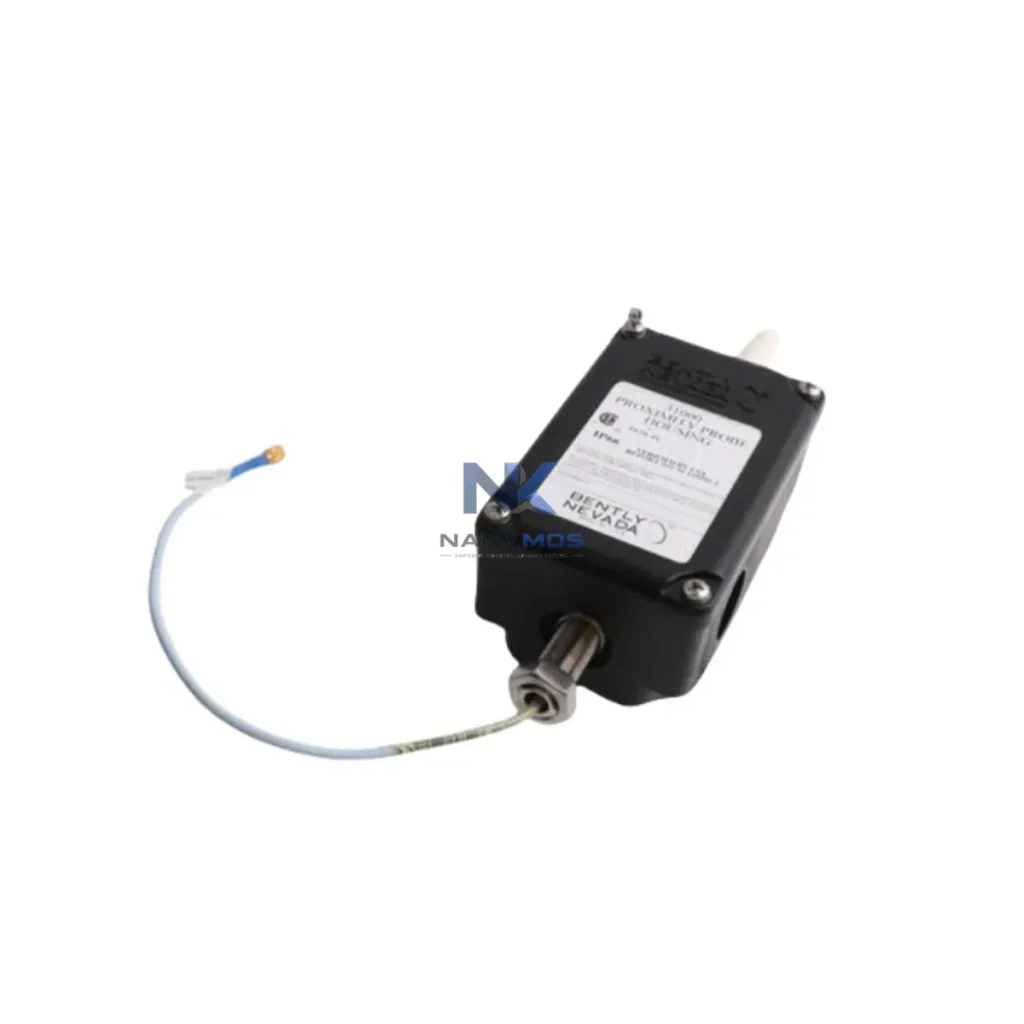

Bently Nevada 31000-28-05-15-030-02-02

Product Details

31000-28-05-15-030-02-02 Product Description

The Bently Nevada 31000-28-05-15-030-02-02 Proximity Probe Housing is not a standalone sensor — it is a precision front-end component engineered to operate within the full-stack Bently Nevada 3500 Machinery Protection System architecture. Understanding its role requires examining how it interacts with every layer of the control and monitoring hierarchy.

At the sensing layer, this proximity probe housing works in direct coordination with the Bently Nevada 3300 XL 8mm Proximity Transducer System, providing the physical mounting and signal path integrity that ensures accurate eddy-current gap measurement. The housing's stainless steel construction and IP67 sealing protect the probe tip from contamination in harsh rotating machinery environments — a critical requirement when monitoring turbine shafts, compressor rotors, and pump impellers in continuous-process industries.

The analog DC voltage signal generated by this probe assembly feeds directly into the Bently Nevada 3500/40M Proximitor I/O Module or the 3500/42M Proximitor Monitor, which digitizes and conditions the vibration and position data. These monitor modules reside within the 3500 Rack System — a modular backplane architecture that supports up to 16 I/O and monitor modules per chassis, enabling scalable deployment across large rotating machinery trains. The rack's internal communication bus ensures deterministic data transfer between the probe signal and the system's central processing resources.

At the control and processing layer, the conditioned vibration data is passed to the Bently Nevada 3500/01 Rack Interface Module (RIM), which manages communication between the 3500 rack and plant-level control systems via Modbus RTU, Modbus TCP/IP, or Profibus DP protocols. This contextual integration capability allows the 31000-28-05-15-030-02-02 probe signal to be consumed by a Rockwell Automation ControlLogix PLC, a Siemens S7-400 DCS, or a Honeywell Experion PKS distributed control system — making the probe housing a genuine contributor to plant-wide automation architecture rather than an isolated measurement device.

For redundancy-critical applications such as power generation turbines or offshore compressor trains, the 3500 system supports dual-probe configurations where two 31000-series probe assemblies monitor the same shaft journal from opposing positions. This redundant sensing arrangement, combined with the 3500/20 Power Supply Module (available in single or dual redundant configurations), ensures that no single-point failure in the sensing or power layer can cause a loss of machinery protection coverage. The power supply module's hot-swap capability further supports zero-downtime maintenance strategies.

At the HMI and visualization layer, vibration trend data from this probe assembly is displayed and archived through Bently Nevada System 1 Software — a condition monitoring and diagnostic platform that aggregates data from multiple 3500 racks, enabling fleet-wide machinery health dashboards, alarm management, and predictive maintenance workflows. Engineers can configure alert and danger setpoints for radial vibration, axial position, and differential expansion directly within System 1, with the probe's signal forming the primary input for all these parameters.

In terms of signal integrity and cable management, the 31000-28-05-15-030-02-02 assembly includes a factory-matched extension cable that maintains the calibrated sensitivity of the eddy-current system. Mismatched cable lengths or third-party extensions can introduce scale factor errors; using the OEM-specified housing and cable assembly eliminates this risk and preserves the ±1% accuracy specification across the full operating temperature range. The probe housing is also compatible with Bently Nevada 3300 RAM Proximitor Sensors for applications requiring remote-mount driver electronics.

For installations requiring signal isolation between the 3500 rack and a DCS analog input card, a Pepperl+Fuchs KFD2-VR4-Ex1.26 signal isolator or equivalent HART-compatible isolator can be inserted in the signal path without affecting probe calibration, provided the isolator's input impedance is matched to the Proximitor output specification. This approach is common in Zone 1 hazardous area installations where galvanic isolation is mandated by IEC 60079 or NEC Article 505.

All units supplied by NANKMOS undergo a pre-shipment functional test protocol that verifies probe gap sensitivity, output voltage linearity, and cable continuity before dispatch. Each 31000-28-05-15-030-02-02 assembly is covered by a 12-Month Warranty from the date of shipment, with technical support available for installation, commissioning, and system integration queries.

Power Generation & Turbomachinery: In gas turbine and steam turbine protection systems, the 31000-28-05-15-030-02-02 probe housing is mounted at the journal bearing positions to monitor radial shaft vibration and rotor eccentricity. The 3500 system's fast-response processing — with alarm response times under 20 ms — ensures that dangerous vibration events trigger automatic shutdown sequences before mechanical damage occurs. This application is standard in combined-cycle power plants, LNG compression trains, and industrial cogeneration facilities.

Petrochemical & Refinery Process Compressors: Centrifugal and reciprocating compressors in ethylene crackers, hydrogen reformers, and crude distillation units rely on continuous shaft monitoring to detect rotor instability, surge precursors, and bearing wear. The proximity probe housing's IP67 rating and high-temperature tolerance make it suitable for installation in compressor casings where ambient temperatures and hydrocarbon vapor exposure are significant engineering constraints.

Water & Wastewater Treatment: Large vertical turbine pumps and horizontal split-case pumps in municipal water infrastructure use proximity probes to monitor shaft runout and bearing condition. The 3500 system's Modbus TCP/IP integration allows pump vibration data to be incorporated into SCADA systems running on platforms such as Wonderware InTouch or GE iFIX, enabling centralized condition monitoring across geographically distributed pumping stations.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in copper, gold, and iron ore processing plants generate significant vibration loads. Proximity probe monitoring at the mill trunnion bearings provides early warning of liner wear, charge imbalance, and bearing failure — reducing unplanned downtime in operations where a single mill outage can cost hundreds of thousands of dollars per hour.

Marine & Offshore: Propulsion shaft monitoring on LNG carriers, FPSO vessels, and offshore drilling platforms requires vibration sensors that can withstand marine humidity, salt spray, and vessel motion. The 31000-28-05-15-030-02-02 housing's sealed construction and OEM-grade calibration make it a reliable choice for classification-society-approved machinery monitoring systems on vessels operating under DNV, Lloyd's Register, or ABS rules.

Q1: Is the 31000-28-05-15-030-02-02 directly compatible with the Bently Nevada 3500/42M monitor module, and does it require any additional signal conditioning? A: Yes. The 31000-28-05-15-030-02-02 Proximity Probe Housing Assembly is designed for direct integration with the 3500/42M Proximitor Monitor and other 3500-series monitor modules including the 3500/40M and 3500/44M. The assembly includes the factory-matched extension cable and Proximitor driver, so no additional external signal conditioning is required for standard installations. For hazardous area installations requiring galvanic isolation, a certified signal isolator should be added in accordance with the applicable area classification standard.

Q2: Can this probe housing be used in a redundant dual-probe configuration, and how does the 3500 rack handle voting logic between two probes on the same shaft journal? A: The 3500 system fully supports dual-probe redundant configurations on a single shaft journal. Two 31000-series probe assemblies are mounted 90° apart (X and Y planes) to provide full radial vibration vector measurement. The 3500/42M monitor module processes both signals independently and applies configurable voting logic — typically a 1-of-2 or 2-of-2 alarm strategy — to determine alert and danger outputs. This architecture eliminates single-point sensing failures and is standard practice in API 670-compliant machinery protection systems.

Q3: What does the 12-Month Warranty cover, and what is NANKMOS's process for inventory verification and pre-shipment testing of the 31000-28-05-15-030-02-02? A: The 12-Month Warranty covers manufacturing defects, calibration drift beyond OEM specification, and component failure under normal operating conditions from the date of shipment. NANKMOS maintains verified stock of the 31000-28-05-15-030-02-02 and subjects each unit to a pre-shipment test protocol that includes probe gap sensitivity verification, output voltage linearity check across the full gap range, extension cable continuity and insulation resistance test, and visual inspection of the housing, connector, and cable jacket. Units that do not meet OEM specification are quarantined and not dispatched. Technical support for installation, commissioning, and system integration is available throughout the warranty period.
