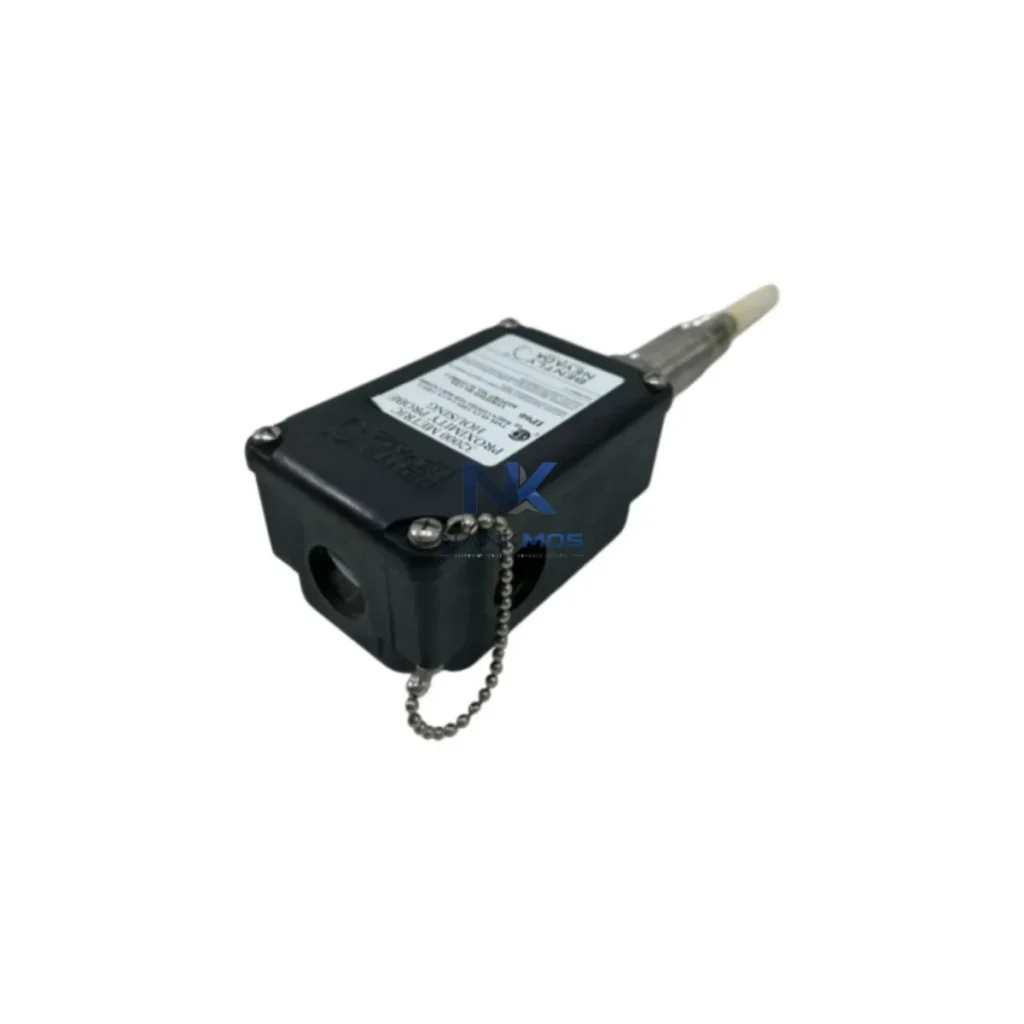

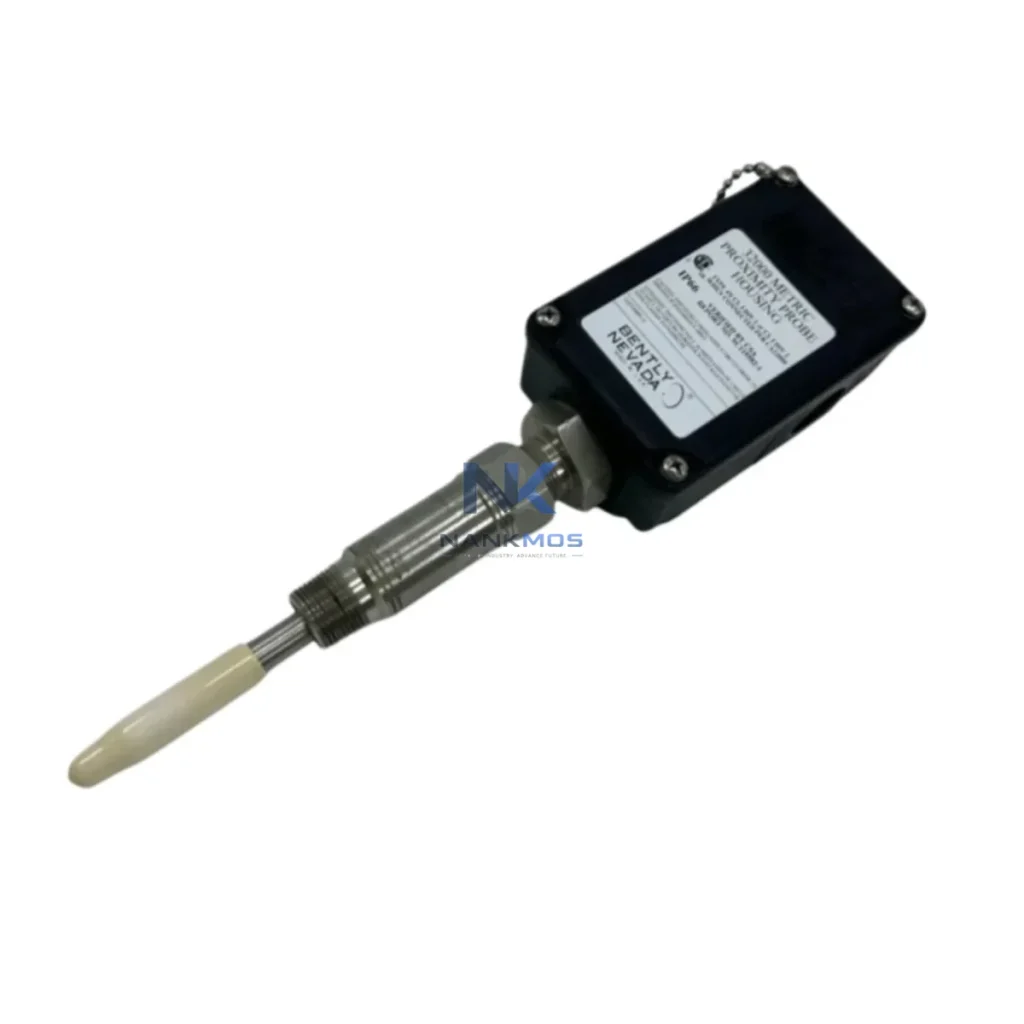

Bently Nevada 32000-28-10-00-075-02-02 Proximity Probe

Product Details

32000-28-10-00-075-02-02 Product Description

The Bently Nevada 32000-28-10-00-075-02-02 is an 8mm eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3300 XL vibration monitoring architecture. Designed to deliver continuous, high-fidelity radial and axial displacement measurements, this probe serves as a foundational sensing element across the full control hierarchy — from field-level signal acquisition through to the supervisory control and data acquisition (SCADA) layer. Its system-matched design ensures electrical compatibility, signal linearity, and long-term measurement stability without requiring additional calibration offsets or signal conditioning workarounds.

In modern industrial automation environments, no sensing component operates in isolation. The 32000-28-10-00-075-02-02 is conceived as part of a layered control architecture where the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer must function as a coherent, interdependent system. This probe anchors the field sensing layer, feeding real-time shaft displacement data upward through the signal chain to enable informed decisions at every level of the automation pyramid.

The 32000-28-10-00-075-02-02 proximity probe is designed to operate as part of a complete Bently Nevada 3300 XL monitoring system. At the monitor layer, the Bently Nevada 3300/16-24-01-00-00-00 16-channel monitor receives the analog voltage signal from this probe and converts it into actionable vibration data. The monitor communicates upstream via the Bently Nevada 3300/55 TDI (Transient Data Interface), enabling high-speed transient capture during machine startup and shutdown — critical for turbomachinery protection architectures.

Power integrity is maintained through the Bently Nevada 3300/20 Power Supply, which provides the regulated -24 VDC required by the eddy-current driver circuit. In redundant architectures, dual power supplies are deployed in parallel to eliminate single-point power failures. The Bently Nevada 3300/46 Keyphasor Module provides the once-per-revolution reference signal that synchronizes phase measurements across all radial and axial probes in the system, enabling accurate orbit plots and vector analysis at the HMI layer.

At the communication layer, the Bently Nevada 3500/92 Communication Gateway bridges the 3300 XL monitoring network to plant-level DCS and SCADA systems via Modbus TCP or OPC-DA protocols, ensuring that vibration data from the 32000-28-10-00-075-02-02 is available to operators at the control room HMI without latency. For facilities running GE Mark VIe or Emerson DeltaV distributed control systems, this gateway enables seamless contextual integration between the machinery protection layer and the process control layer.

Extension cable assemblies such as the Bently Nevada 330130-080-00-00 (8-meter extension) complete the probe-driver-monitor signal chain, maintaining the system-matched impedance and sensitivity calibration that the 3300 XL architecture requires. Substituting non-OEM extension cables introduces sensitivity errors that compromise alarm setpoint accuracy and can trigger spurious trips in protection-critical applications.

At the execution and protection layers, the 32000-28-10-00-075-02-02 feeds displacement data to the Bently Nevada 3300/25 Thrust Position Monitor and 3300/15 Differential Expansion Monitor in combined turbine protection panels, where radial vibration, axial position, and differential expansion are monitored simultaneously. This multi-parameter approach is standard in steam turbine, gas turbine, and large centrifugal compressor protection architectures across power generation, petrochemical, and LNG processing facilities.

Power Generation: In combined-cycle power plants, the 32000-28-10-00-075-02-02 is mounted on the journal bearings of gas turbines and steam turbines to provide continuous radial vibration monitoring. The probe's wide operating temperature range (-35°C to +121°C) accommodates the thermal gradients present in turbine bearing housings, while its IP67 rating protects against oil mist and condensation in enclosed bearing pedestals.

Petrochemical and Refining: In API 670-compliant machinery protection systems for centrifugal compressors, the 32000-28-10-00-075-02-02 is deployed in X-Y probe pairs at each bearing location. The system-matched sensitivity of 7.87 V/mm ensures that the 3300 XL monitor's alarm and danger setpoints are accurately calibrated without field sensitivity correction, reducing commissioning time and eliminating calibration-related trip events during startup.

Water and Wastewater Treatment: Large vertical pump motors and horizontal split-case pumps in municipal water treatment facilities use proximity probes to detect bearing wear and rotor imbalance before catastrophic failure. The 32000-28-10-00-075-02-02's robust construction and sealed connector system make it suitable for the humid, chemically aggressive environments common in water treatment infrastructure.

Mining and Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations generate high vibration amplitudes that demand robust, wide-range proximity sensing. The 32000-28-10-00-075-02-02's 2 mm linear range and high-sensitivity output provide the resolution needed to detect early-stage bearing defects in these high-load, continuous-duty applications.

Marine and Offshore: Shipboard propulsion turbines and offshore platform gas compression trains require vibration monitoring systems that meet DNV GL and ABS classification society requirements. The 32000-28-10-00-075-02-02, as part of a certified 3300 XL system, supports compliance with these standards while providing the signal stability needed in high-vibration marine environments.

Q1: Is the 32000-28-10-00-075-02-02 compatible with both the 3300 XL and the legacy 3300 series monitors? The 32000-28-10-00-075-02-02 is specifically calibrated for the 3300 XL monitor series. While the physical connector and signal type are similar to legacy 3300 probes, the system-matched sensitivity calibration is optimized for 3300 XL input circuitry. Using this probe with legacy 3300 monitors may introduce sensitivity offsets that affect alarm accuracy. For legacy system compatibility, consult the Bently Nevada system compatibility matrix or contact NANKMOS for application engineering support.

Q2: What extension cable and driver combination is required to maintain system-matched performance? The 32000-28-10-00-075-02-02 (0.5 m integral cable) must be paired with a system-matched extension cable and a 3300 XL series driver to maintain the factory-calibrated sensitivity of 7.87 V/mm. The total probe-plus-extension cable length must match the driver's calibrated cable length specification. Common system-matched combinations include the 330130-080-00-00 (8 m extension) with the 330180-X1-05 driver. Mismatched cable lengths alter the eddy-current circuit impedance and shift the sensitivity, invalidating alarm setpoints. NANKMOS supplies complete, pre-verified probe-cable-driver sets to eliminate field assembly errors.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability? All 32000-28-10-00-075-02-02 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, sensitivity out-of-specification conditions, and connector integrity failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including sensitivity verification, insulation resistance check, and connector pull-force testing before dispatch. NANKMOS maintains dedicated inventory of Bently Nevada 3300 XL series components to support both immediate replacement requirements and long-term maintenance contracts, with typical lead times of 3–7 business days for in-stock items. For critical spare parts programs, NANKMOS offers consignment stock arrangements and annual supply agreements to ensure uninterrupted availability for planned maintenance shutdowns.
