Bently Nevada 3300101-00-32-10-02-05 Proximity Probe

Product Details

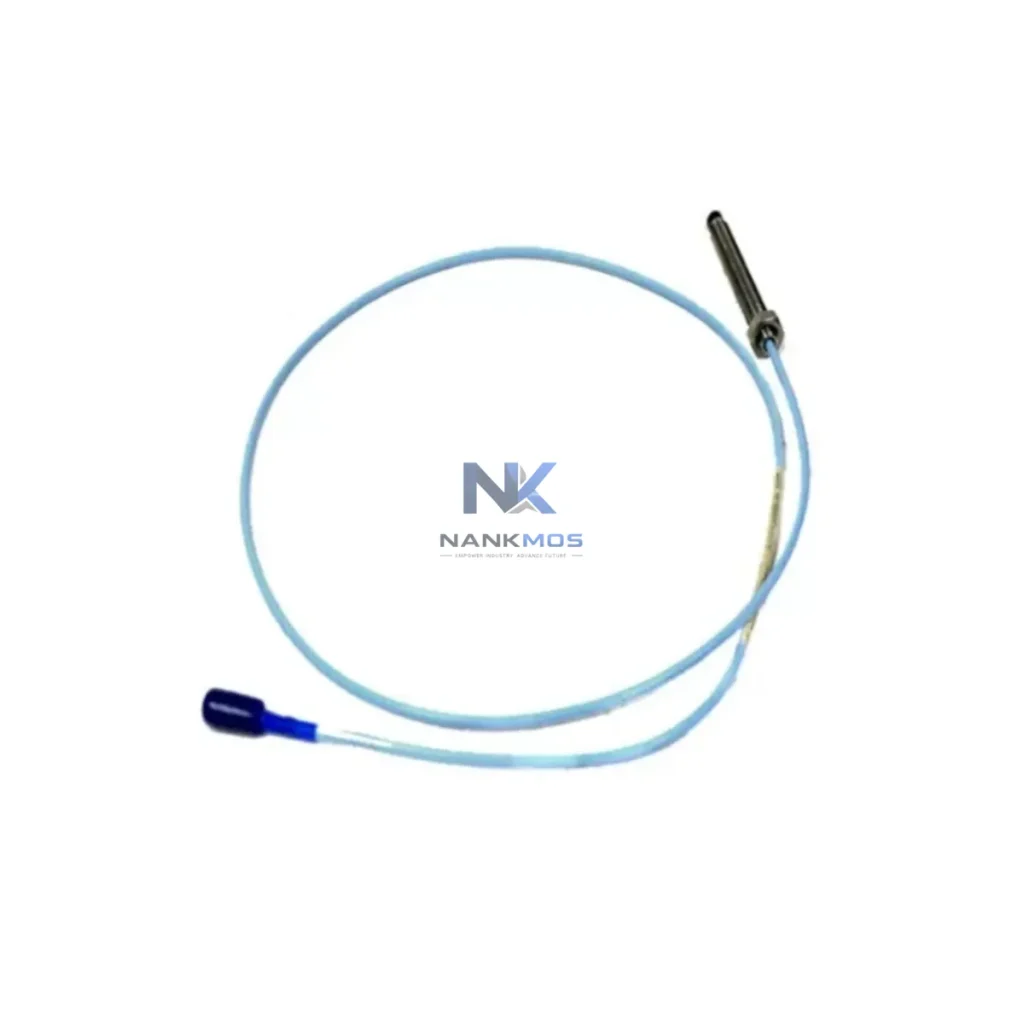

3300101-00-32-10-02-05 Product Description

The Bently Nevada 3300101-00-32-10-02-05 is an 8mm proximity probe engineered for the 3300 XL Series vibration monitoring platform — a cornerstone of predictive maintenance and real-time machine health data acquisition in modern smart factories. Designed to deliver continuous, high-fidelity displacement and vibration signals from rotating machinery, this probe integrates seamlessly into the industrial data chain that connects field-level sensors to PLC controllers, SCADA systems, HMI panels, and enterprise asset management platforms.

In a connected factory environment, the data journey begins at the machine shaft. The 3300101-00-32-10-02-05 proximity probe captures eddy-current displacement signals with sub-micron resolution, feeding raw vibration data into the Bently Nevada 3300 XL proximitor/seismic transducer module. From there, conditioned analog signals are routed to the System 1 condition monitoring software or directly to a DCS/PLC input card — enabling real-time vibration trending, alarm threshold management, and automated shutdown logic without manual intervention.

Within a typical smart factory data architecture, this probe operates alongside Bently Nevada 3300 XL extension cables, 3300 XL proximitor modules, and Bently Nevada 3500 Series rack-based monitoring systems. The analog output from the proximitor is compatible with standard 4–20 mA process loops and can be digitized via Modbus RTU or PROFIBUS DP gateways, making it straightforward to integrate vibration data into existing industrial Ethernet backbones running PROFINET or EtherNet/IP. Edge gateways — such as those from Moxa or HMS Anybus — can bridge the legacy analog signal into OPC-UA data streams, enabling direct ingestion by SCADA platforms like Wonderware, FactoryTalk, or Ignition SCADA.

For facilities running distributed control architectures, the vibration data collected by the 3300101-00-32-10-02-05 can be aggregated at a remote I/O node — for example, a Siemens ET 200SP or Rockwell POINT I/O module — before being transmitted over an industrial switch network to the central PLC or DCS. This topology supports multi-machine monitoring across large compressor trains, turbine halls, and pump stations without requiring dedicated cabling runs to each monitoring point. Industrial managed switches with PROFINET or EtherNet/IP support ensure deterministic data delivery and network redundancy for mission-critical vibration loops.

The probe's compatibility with the Bently Nevada System 1 software platform enables advanced data visualization, including orbit plots, trend charts, and waterfall spectra — all accessible from HMI touchscreens or remote engineering workstations. When integrated with a plant-wide SCADA system, alarm events triggered by the 3300101-00-32-10-02-05 can be automatically logged, escalated via email or SMS notification, and correlated with process variables such as flow rate, temperature, and pressure from other field instruments. This closed-loop feedback architecture is the foundation of condition-based maintenance (CBM) and Industry 4.0 asset transparency.

Remote diagnostics are fully supported through the System 1 platform's network-accessible interface. Maintenance engineers can review vibration waveforms, adjust alarm setpoints, and validate sensor health from any location on the plant network — or via secure VPN from off-site. This eliminates the need for physical inspection during routine checks and reduces unplanned downtime by enabling early fault detection in bearings, seals, and shaft alignment before catastrophic failure occurs.

Every 3300101-00-32-10-02-05 unit shipped by NANKMOS undergoes pre-shipment functional verification, including output voltage linearity checks and gap voltage calibration against the standard 3300 XL system range. Units are supplied with full documentation and are backed by a 12-month warranty covering manufacturing defects. In-stock inventory ensures fast global dispatch, with typical lead times of 3–7 business days for most destinations.

A complete smart factory data chain built around the 3300101-00-32-10-02-05 begins at the machine shaft and extends to the enterprise level. The proximity probe mounts at the bearing housing and feeds its eddy-current signal into a Bently Nevada 3300 XL proximitor module, which conditions the raw displacement signal into a calibrated voltage output. This signal is then wired to a Bently Nevada 3500/22M transient data interface or directly to an analog input card on a Siemens S7-400 or Allen-Bradley ControlLogix PLC.

At the network layer, a Moxa NPort serial device server or HMS Anybus Communicator gateway converts the Modbus RTU data stream from the monitoring rack into PROFINET or EtherNet/IP packets, enabling the vibration data to travel across the plant's industrial Ethernet backbone — typically managed by a Hirschmann or Cisco IE industrial switch with ring redundancy. Remote I/O nodes such as the Siemens ET 200SP or Phoenix Contact Axioline F distribute the data to multiple control zones without signal degradation.

At the supervisory layer, the Ignition SCADA platform or Wonderware System Platform ingests the vibration tags via OPC-UA, rendering real-time trend dashboards and alarm annunciation panels on Siemens TP1500 HMI or Rockwell PanelView Plus terminals. Maintenance teams access historical waveform data through the Bently Nevada System 1 software, enabling orbit analysis and bearing fault frequency identification. The entire data chain — from the 3300101-00-32-10-02-05 probe tip to the enterprise historian — operates with sub-second latency, supporting both real-time protection and long-term reliability analytics.

Many industrial facilities face persistent data gaps when integrating legacy vibration monitoring hardware into modern networked control architectures. The 3300101-00-32-10-02-05, when deployed within the Bently Nevada 3300 XL ecosystem, directly addresses several of these challenges.

Protocol fragmentation is resolved by pairing the 3300 XL proximitor output with a protocol gateway that bridges the analog or Modbus RTU signal into PROFINET, EtherNet/IP, or OPC-UA — eliminating the data silos that arise when vibration data remains isolated in a standalone monitoring rack disconnected from the plant DCS.

Data island elimination is achieved by routing vibration tags into the same SCADA historian that stores process variables, enabling cross-correlation between machine health and production KPIs. Alarm events from the proximity probe system can be linked to batch records, shift logs, and maintenance work orders in the plant's MES or ERP system.

Remote monitoring gaps are closed through the System 1 network interface and VPN-accessible SCADA dashboards, allowing off-site engineers to review vibration trends, acknowledge alarms, and adjust protection setpoints without traveling to the plant floor.

Production line transparency is enhanced by integrating vibration data with energy meters, flow transmitters, and temperature sensors on the same industrial Ethernet network, giving operations teams a unified view of machine health and process efficiency in a single HMI or SCADA screen.

System scalability is supported by the modular architecture of the 3300 XL platform, which allows additional proximity probe channels to be added to the monitoring rack as new machines are brought online — without redesigning the network topology or replacing existing infrastructure.

Q: What communication protocols does the 3300101-00-32-10-02-05 support for SCADA integration? A: The probe itself outputs an analog voltage signal via the 3300 XL proximitor. Protocol conversion to Modbus RTU, PROFIBUS DP, PROFINET, EtherNet/IP, or OPC-UA is achieved using a compatible protocol gateway or the Bently Nevada 3500 Series communication module, enabling direct integration with all major SCADA and DCS platforms.

Q: How is network stability ensured when transmitting vibration data over industrial Ethernet? A: Vibration data is transmitted over a managed industrial Ethernet network with ring redundancy (e.g., PROFINET MRP or EtherNet/IP DLR), ensuring sub-millisecond failover in the event of a cable fault. Industrial switches with QoS prioritization guarantee deterministic delivery of vibration alarm packets ahead of lower-priority traffic.

Q: Can the 3300101-00-32-10-02-05 support remote diagnostics and firmware updates? A: Remote diagnostics are fully supported through the Bently Nevada System 1 software platform, accessible via the plant network or secure VPN. Engineers can review waveform data, adjust alarm setpoints, and validate sensor calibration remotely. The proximitor module does not require firmware updates under normal operating conditions.

Q: What warranty and pre-shipment testing does NANKMOS provide for this unit? A: Every 3300101-00-32-10-02-05 unit is functionally tested prior to shipment, including output linearity verification and gap voltage calibration. All units are covered by a 12-month warranty against manufacturing defects. In-stock availability supports fast global dispatch with typical lead times of 3–7 business days.
