Bently Nevada 330101-00-15-10-01-00 Proximity Probes

Product Details

330101-00-15-10-01-00 Product Description

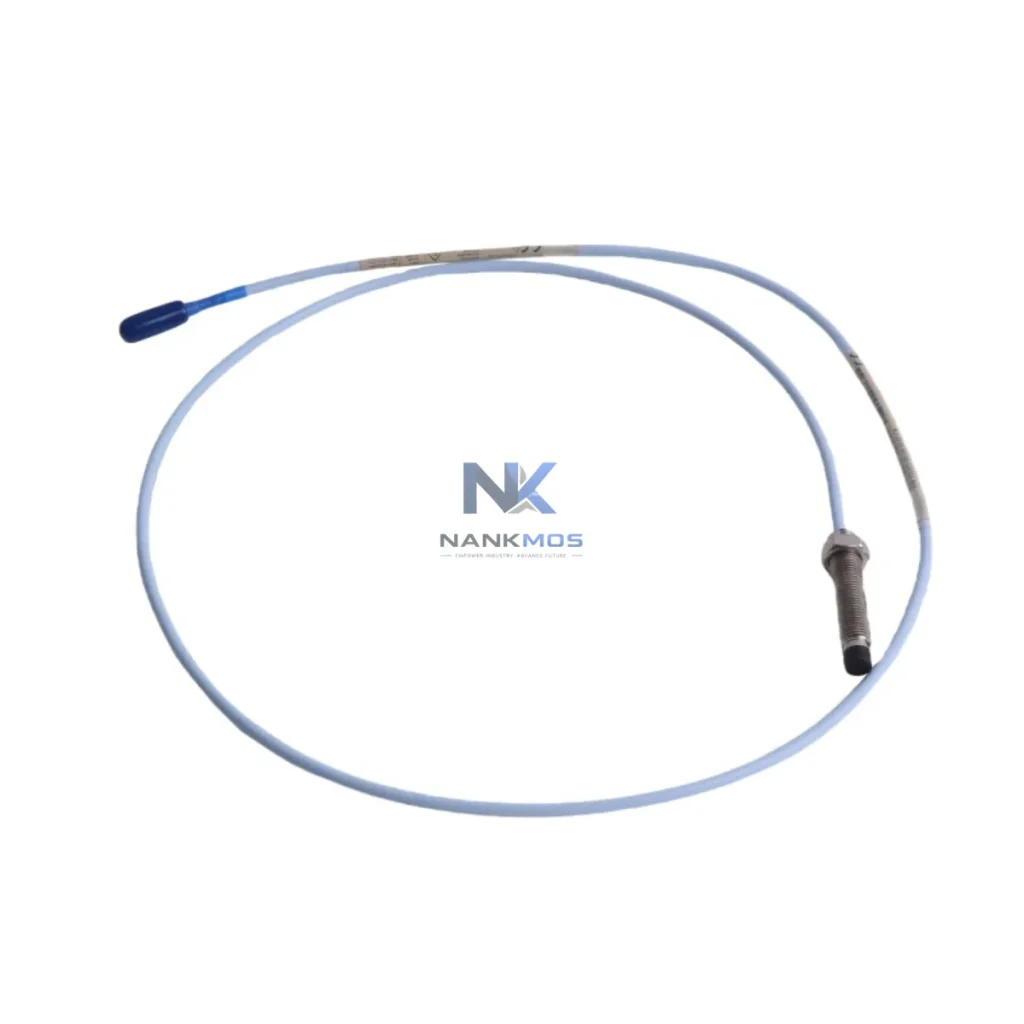

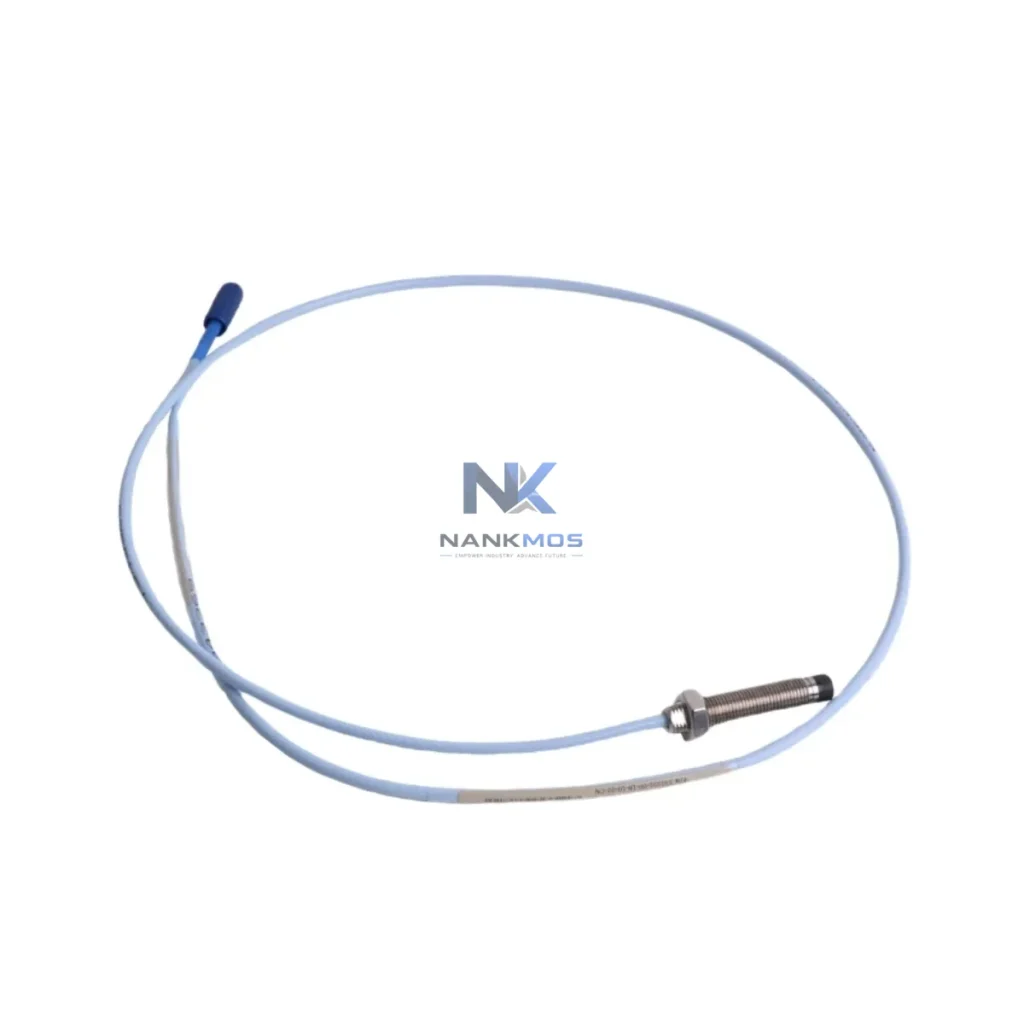

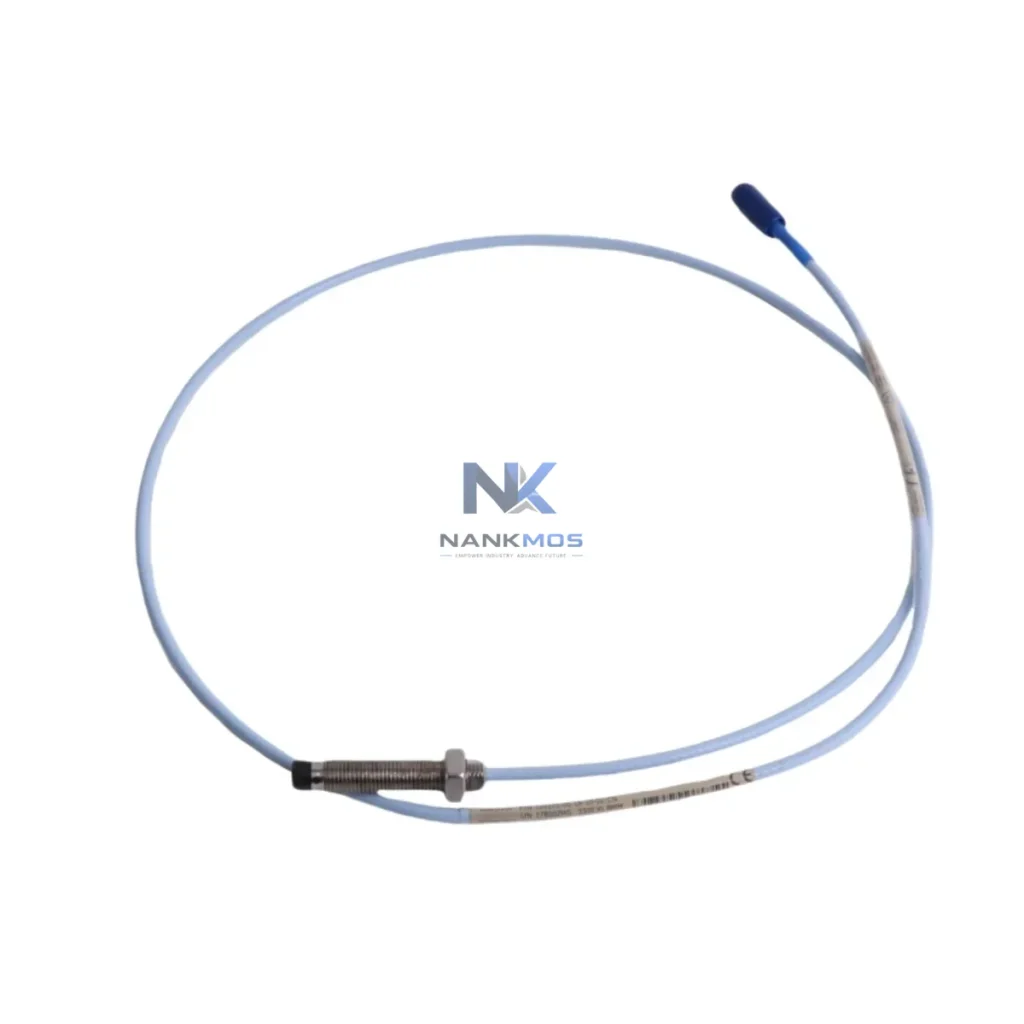

The Bently Nevada 330101-00-15-10-01-00 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 XL Series vibration monitoring and machinery protection architecture. With a 5-metre (15 ft) armored extension cable, a 10 mm probe tip diameter, and a standard 01-00 configuration suffix confirming its compatibility with the full 3300 XL signal chain, this probe delivers the radial shaft displacement and vibration data that modern rotating machinery protection systems demand. Backed by a 12-Month Warranty and designed for Contextual Integration across multi-layer control platforms, the 330101-00-15-10-01-00 is a cornerstone component for engineers specifying reliable, long-service-life monitoring solutions in critical industrial environments.

The 330101-00-15-10-01-00 proximity probe does not operate in isolation — it is the sensing front-end of a tightly coupled, multi-layer machinery protection and control architecture. Understanding its role within the broader platform is essential for engineers designing systems that must meet API 670 machinery protection standards and achieve long-term operational reliability.

At the signal acquisition layer, the 330101-00-15-10-01-00 probe pairs directly with the Bently Nevada 330130-080-00-00 Proximitor® Sensor (the signal conditioning driver), which converts the raw eddy-current impedance change into a calibrated DC voltage output. This probe-driver pair is the fundamental building block of the 3300 XL transducer system. The Proximitor is typically mounted in a junction box or on a DIN rail within the control cabinet, bridging the field-level probe and the rack-mounted monitor.

At the monitoring and protection layer, the conditioned signal feeds into the Bently Nevada 3500/42M Proximitor®/Seismic Monitor or the 3500/40M Proximitor® Monitor, both of which reside in the 3500 Series 19-inch rack. These monitors process radial vibration, axial position, and differential expansion data, generating relay trip outputs and 4–20 mA analog retransmission signals for integration with the plant DCS or safety instrumented system (SIS). The 3500/20 Rack Interface Module (RIM) provides the communication backbone within the rack, enabling Modbus RTU or Ethernet/IP data transfer to the supervisory control layer.

At the control and supervisory layer, the vibration and position data from the 3500 rack integrates with platforms such as the GE Speedtronic Mark VIe Turbine Control System or a Rockwell Automation ControlLogix L8x Series PLC via hardwired relay contacts or fieldbus communication. In combined-cycle power plants and large compressor trains, the 330101-00-15-10-01-00 probe data is one of several critical inputs — alongside thermocouple signals from Bently Nevada 330910 Velomitor® CT Sensors and process variables from Emerson Rosemount 3051 Pressure Transmitters — that the control system evaluates before issuing a turbine trip or load-shedding command.

At the power supply layer, the 3500 rack is powered by the Bently Nevada 3500/15 Power Supply Module, which provides redundant 24 VDC rails to all installed monitor cards. Redundant power supply configurations using dual 3500/15 modules ensure that a single power supply failure does not interrupt machinery protection coverage — a critical requirement in API 670-compliant installations.

At the communication and data layer, the 3500/92 Communication Gateway Module enables the 3500 rack to publish real-time vibration data over Modbus TCP/IP or OPC-DA/UA to plant historians such as the OSIsoft PI System, enabling condition-based maintenance workflows and long-term trend analysis. This data pathway transforms the 330101-00-15-10-01-00 from a simple displacement sensor into a node within a plant-wide predictive maintenance ecosystem.

At the HMI and visualization layer, operators monitor shaft vibration trends, orbit plots, and Bode diagrams through Bently Nevada System 1® Condition Monitoring Software, which aggregates data from multiple 3500 racks across the plant. The software's alarm management and event logging capabilities support both real-time protection and post-event forensic analysis.

This layered architecture — probe → Proximitor → monitor rack → control system → historian → HMI — demonstrates why specifying the correct probe model matters. The 330101-00-15-10-01-00's 10 mm tip diameter, 5 m cable length, and 01-00 configuration suffix are not arbitrary; they define the probe's linear range, sensitivity calibration, and mechanical fit within a pre-engineered system. Substituting an incompatible probe model risks miscalibration, reduced linear range, and false trip events that can cause unplanned shutdowns in critical rotating equipment.

Power Generation (Gas Turbines & Steam Turbines): In combined-cycle and simple-cycle power plants, the 330101-00-15-10-01-00 monitors radial shaft vibration on gas turbine compressor and turbine sections, as well as steam turbine HP/LP rotors. The probe's high-temperature tolerance (up to 177 °C at the probe body) makes it suitable for bearing housing installations adjacent to hot gas path components. Trip relay outputs from the 3500/42M monitor protect against bearing failures that could cause catastrophic rotor damage.

Oil & Gas (Centrifugal Compressors & Pumps): Offshore platforms and onshore gas processing facilities rely on the 3300 XL system to protect centrifugal compressors, booster pumps, and expanders. The 330101-00-15-10-01-00 is installed in X-Y probe pairs at each bearing journal, providing the orthogonal displacement data needed to generate shaft orbit plots and detect sub-synchronous instability, surge precursors, and rotor rub events.

Petrochemical & Refining: Fluid catalytic cracking (FCC) units, ethylene crackers, and large centrifugal pumps in refinery service operate continuously for multi-year run lengths. The 330101-00-15-10-01-00's armored cable construction and oil-mist resistance make it suitable for the harsh environments typical of refinery machinery trains, where probe replacement during operation is not possible.

Water & Wastewater Treatment: Large vertical turbine pumps and horizontal split-case pumps in municipal water treatment plants benefit from continuous vibration monitoring to detect impeller wear, cavitation, and bearing degradation before they cause service interruptions. The 3300 XL system's low-power, low-noise signal chain is well-suited to the electrically noisy environments of pump stations.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are high-value assets where unplanned downtime is extremely costly. The 330101-00-15-10-01-00 provides the shaft displacement data needed to detect mill shell misalignment, trunnion bearing wear, and drive train torsional events in real time.

Marine & Offshore: LNG carrier propulsion systems and offshore platform gas compression trains require vibration monitoring systems that meet DNV GL or ABS class requirements. The 3300 XL system, with the 330101-00-15-10-01-00 as its sensing element, is widely accepted by classification societies for machinery protection on critical rotating equipment.

Q1: Is the 330101-00-15-10-01-00 directly compatible with the Bently Nevada 3500 Series rack monitors, or does it require a specific Proximitor driver? A: The 330101-00-15-10-01-00 proximity probe requires a matched Proximitor® Sensor (such as the 330130-080-00-00 or equivalent 3300 XL driver) to condition the eddy-current signal before it enters the 3500 Series monitor. The probe itself does not connect directly to the 3500 rack input card. The complete transducer system — probe + extension cable + Proximitor — must be specified as a matched set to ensure the correct sensitivity (7.87 V/mm) and linear range are maintained. NANKMOS supplies matched probe-driver sets and can advise on system configuration for your specific rack and monitor card combination.

Q2: Can this probe be used in a redundant monitoring architecture, and what are the installation requirements? A: Yes. API 670-compliant installations typically use X-Y probe pairs (two probes per bearing journal, mounted 90° apart) to provide full shaft orbit data and redundant vibration measurement. The 330101-00-15-10-01-00 is designed for this configuration. Each probe in the pair connects to its own Proximitor and its own monitor channel within the 3500 rack, ensuring that a single probe or cable failure does not eliminate protection coverage. Installation requires precise probe gap setting (typically 1.0–1.5 mm from the shaft surface, within the linear range) and secure armored cable routing to prevent mechanical damage and electrical interference. NANKMOS provides installation guidance and gap-setting procedures with every shipment.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts supply for the 3300 XL system? A: NANKMOS's 12-Month Warranty covers manufacturing defects, calibration accuracy, and electrical performance of the 330101-00-15-10-01-00 under normal operating conditions. If a probe fails within the warranty period due to a verified manufacturing defect, NANKMOS will provide a replacement unit at no charge. For long-term supply continuity, NANKMOS maintains dedicated inventory of 3300 XL series components — including probes, extension cables, Proximitor sensors, and monitor cards — to support planned maintenance outages, emergency replacements, and multi-unit project builds. All units undergo pre-shipment functional testing and are shipped with test reports. Contact [email protected] or +86 18359268345 for availability, lead times, and volume pricing.
