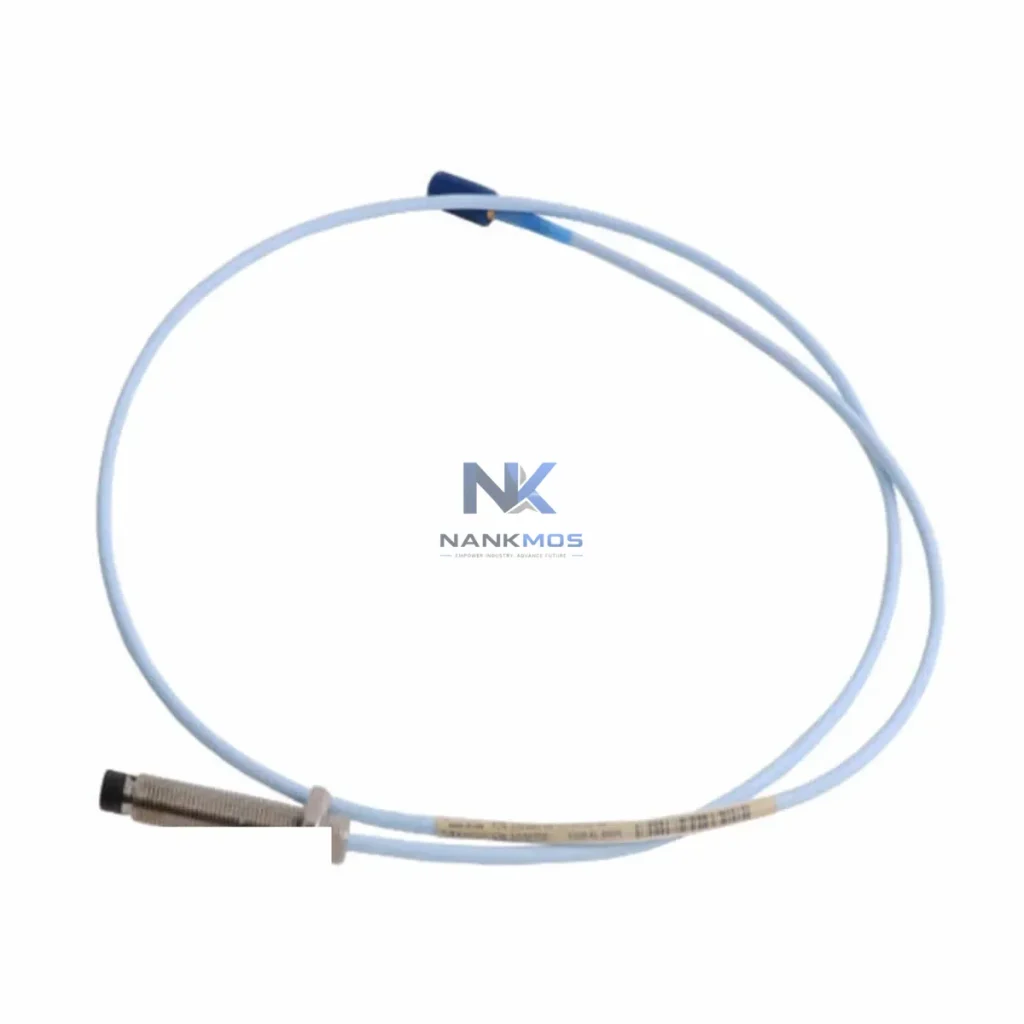

Bently Nevada 330101-00-17-10-02-CN Proximity Probe

Product Details

330101-00-17-10-02-CN Product Description

In modern smart factory environments, continuous and reliable machine health data is the backbone of predictive maintenance and operational transparency. The Bently Nevada 330101-00-17-10-02-CN is a high-precision proximity probe from the 3300 XL Series, engineered to deliver real-time vibration and position signals from rotating machinery directly into the plant's industrial data network. Its role extends far beyond simple signal detection — it serves as the critical first node in a connected factory data chain, feeding structured measurement data into control systems, SCADA platforms, and remote diagnostic tools with minimal latency and maximum signal integrity.

The 330101-00-17-10-02-CN operates as part of the Bently Nevada 3300 XL monitoring architecture, where it pairs with the 3300 XL proximitor/seismic transducer system to convert mechanical displacement into conditioned analog output. This output is then routed through field junction boxes and marshalling panels into the plant's DCS or PLC infrastructure — typically Rockwell Automation ControlLogix or Allen-Bradley PLCs — where it is processed, scaled, and forwarded upstream. In facilities running Emerson Ovation or Honeywell Experion PKS as the primary SCADA backbone, the 3300 XL signal chain integrates seamlessly via standard 4–20 mA or voltage output protocols, ensuring that vibration data from critical rotating assets such as compressors, turbines, and pumps is always visible at the operator HMI level.

The data flow begins at the machine surface, where the 330101-00-17-10-02-CN probe tip senses shaft displacement with micron-level resolution. The conditioned signal travels through the extension cable to the proximitor, then into the Bently Nevada 3500 Series rack-based monitoring system, which performs real-time alert and danger threshold evaluation. From the 3500 rack, digital outputs and Modbus RTU or Modbus TCP communication links carry structured alarm and measurement data to the plant's industrial Ethernet network. Edge gateways — such as the Moxa MGate MB3480 or similar Modbus-to-EtherNet/IP converters — bridge the field-level protocol to the upper network layer, enabling SCADA systems and historian databases like OSIsoft PI to archive every vibration trend for long-term analysis and remote diagnostics.

Within a connected factory architecture, the 330101-00-17-10-02-CN supports the full data lifecycle: from raw signal acquisition at the field device level, through protocol conversion at the gateway layer, to real-time visualization on operator HMI screens and remote monitoring dashboards. When integrated with Bently Nevada System 1 software, the probe's data stream enables automated alarm management, trend analysis, and predictive maintenance scheduling — all without manual intervention at the machine. This level of automation transparency is essential for facilities targeting zero unplanned downtime and full OEE (Overall Equipment Effectiveness) optimization.

For multi-asset plants managing dozens of rotating machines simultaneously, the 330101-00-17-10-02-CN can be deployed in parallel arrays, with each probe feeding into a shared 3500 rack channel. The rack's built-in communication modules — including the 3500/92 Communication Gateway — support direct integration with plant historians and DCS systems over OPC DA/UA, further reducing the engineering overhead of connecting field-level vibration data to enterprise-level analytics platforms. Paired with remote I/O modules such as the Bently Nevada 3500/20 Power Supply and 3500/15 Key Phasor Module, the complete monitoring node delivers synchronized speed, phase, and vibration data to the control room in real time.

All units of the 330101-00-17-10-02-CN supplied by NANKMOS are sourced from verified inventory, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty. Stock is maintained for immediate dispatch, supporting both planned maintenance schedules and emergency replacement scenarios. Each unit ships with full traceability documentation to support quality audits and asset management records.

The 330101-00-17-10-02-CN sits at the origin point of a multi-layer industrial data chain. At the field level, the probe detects shaft gap and vibration displacement, feeding the conditioned analog signal into the Bently Nevada 3500/40M Proximitor I/O Module housed in the 3500 monitoring rack. The rack's 3500/92 Communication Gateway then transmits structured measurement and alarm data over Modbus TCP to the plant's industrial Ethernet switch layer — typically managed switches such as the Hirschmann RS20 or Cisco IE-3000 series — ensuring deterministic, low-latency data delivery across the factory floor network.

From the Ethernet backbone, the vibration data stream reaches the plant's DCS or PLC controller — for example, a Rockwell Automation ControlLogix L85E or a Siemens S7-400H redundant controller — where it is processed alongside signals from other field instruments including pressure transmitters, flow meters, and temperature sensors. The integrated data set is then forwarded to the SCADA server, where Emerson Ovation or Wonderware System Platform aggregates real-time values, generates trend charts, and triggers alarm notifications when vibration thresholds are exceeded.

For remote diagnostic access, an edge gateway such as the Advantech ECU-1251 or Moxa UC-8112 collects the processed vibration data and publishes it to a cloud-based or on-premise IIoT platform, enabling maintenance engineers to monitor machine health from any location. The historian layer — typically OSIsoft PI or Aveva Historian — archives every data point for long-term trend analysis, root cause investigation, and regulatory compliance reporting. Variable frequency drives (VFDs) connected to the same rotating assets, such as the ABB ACS880 series, also contribute operational data to this shared network, allowing the SCADA system to correlate vibration anomalies with drive load and speed changes in real time.

HMI panels installed at machine-side operator stations — such as the Siemens SIMATIC TP1200 Comfort or Rockwell PanelView Plus 7 — display live vibration readings sourced directly from the 3300 XL monitoring chain, giving operators immediate visual feedback without requiring access to the central control room. This distributed visualization architecture, enabled by the 330101-00-17-10-02-CN's integration into the plant network, is a defining characteristic of Industry 4.0-ready automation sites.

Many industrial facilities face persistent challenges in achieving full data transparency across their rotating machinery assets. Protocol fragmentation is one of the most common barriers: legacy vibration monitoring systems may output only analog signals or proprietary serial data, making it difficult to integrate them with modern Ethernet-based SCADA and DCS platforms. The Bently Nevada 330101-00-17-10-02-CN, when deployed within the 3500 Series rack architecture, resolves this by providing a standardized Modbus TCP communication path that bridges the field-level measurement domain with the plant's digital network infrastructure.

Data silos — where vibration data remains isolated within the condition monitoring system and never reaches the SCADA historian or ERP layer — are eliminated through the 3500/92 gateway's OPC UA server capability, which exposes all monitored parameters as structured data objects accessible to any OPC-compliant client. This enables seamless integration with MES (Manufacturing Execution Systems) and EAM (Enterprise Asset Management) platforms, closing the loop between field-level machine health and enterprise-level maintenance planning.

Remote monitoring gaps, particularly in unmanned substations or offshore facilities, are addressed by pairing the 330101-00-17-10-02-CN monitoring chain with cellular or fiber-connected edge gateways that relay alarm states and trend data to remote operations centers. Alarm tracking is enhanced through the 3500 rack's configurable alert/danger setpoints, which generate time-stamped event records that can be exported to the plant historian for post-incident analysis. System expansion is straightforward: additional 330101-00-17-10-02-CN probes can be added to existing 3500 rack slots without architectural changes, supporting phased rollouts across large multi-machine installations.

Q1: What communication protocols does the Bently Nevada 330101-00-17-10-02-CN support for SCADA integration?The 330101-00-17-10-02-CN probe itself outputs a conditioned analog signal. When integrated with the Bently Nevada 3500 Series monitoring rack and the 3500/92 Communication Gateway, the system supports Modbus RTU, Modbus TCP, and OPC DA/UA communication, enabling direct integration with SCADA platforms including Emerson Ovation, Honeywell Experion PKS, and Rockwell FactoryTalk Historian.

Q2: How is network stability ensured in high-vibration industrial environments?The 3300 XL probe series is designed for continuous operation in harsh industrial environments, with robust coaxial connector interfaces and shielded extension cables that minimize electromagnetic interference. The 3500 rack's redundant power supply options and the use of managed industrial Ethernet switches with RSTP/ring topology further ensure network stability and fault tolerance across the monitoring chain.

Q3: Can the 330101-00-17-10-02-CN be integrated into an existing DCS without replacing the current monitoring rack?Yes. If an existing 3500 Series rack is already installed, the 330101-00-17-10-02-CN can be added to available rack channels with minimal configuration. The 3500/92 Communication Gateway supports simultaneous connections to multiple SCADA and DCS clients, allowing the new probe data to be incorporated into existing data flows without disrupting current monitoring operations.

Q4: What warranty and pre-shipment testing does NANKMOS provide for this unit?All 330101-00-17-10-02-CN units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm signal output integrity and connector condition. In-stock units are available for immediate dispatch, with full traceability documentation provided to support asset management and quality audit requirements.
