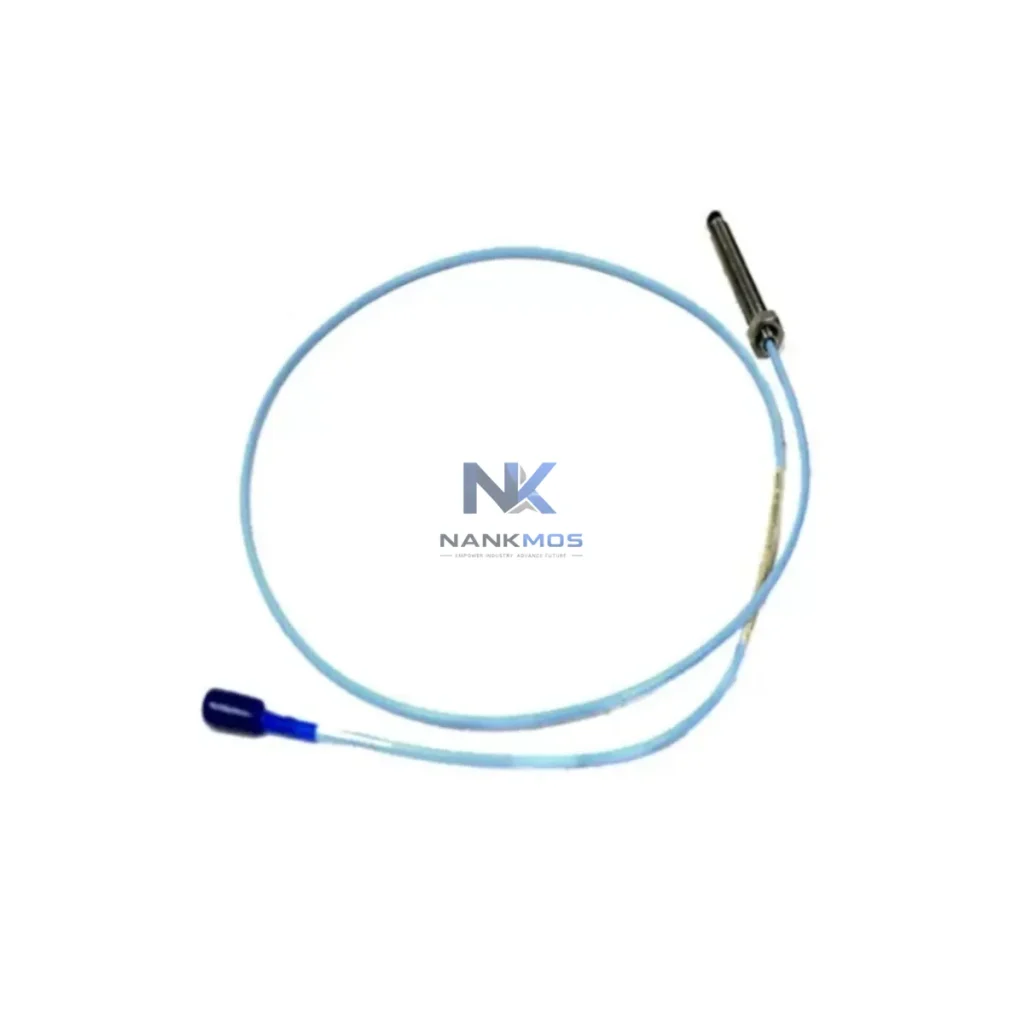

Bently Nevada 330101-00-32-10-02-05 Proximity Probe

Product Details

330101-00-32-10-02-05 Product Description

The Bently Nevada 330101-00-32-10-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL continuous vibration monitoring system. Designed for mission-critical rotating machinery — including turbines, compressors, pumps, and motors — this probe delivers real-time shaft displacement and vibration data across the full industrial data chain: from field-level signal acquisition through protocol conversion, network transmission, SCADA visualization, and remote diagnostics. In smart factory environments where unplanned downtime is unacceptable, the 330101-00-32-10-02-05 serves as the first link in a connected condition-monitoring architecture.

With a standard analog output compatible with 4–20mA and voltage-based signal chains, this probe integrates directly with Bently Nevada 3300 XL signal conditioners and proximitor modules, feeding structured vibration data into DCS platforms, PLC controllers, and SCADA systems. Its pre-shipment calibration and 12-month warranty make it a reliable choice for both OEM installations and MRO replacement programs across energy, petrochemical, and heavy manufacturing sectors.

In a fully connected smart factory, the 330101-00-32-10-02-05 proximity probe anchors the vibration monitoring node of the condition-based maintenance (CBM) architecture. The signal chain begins at the rotating shaft, where the probe's eddy-current tip detects micro-displacement in real time. This raw analog signal is routed to a Bently Nevada 3300 XL proximitor module — such as the 330180-51-05 or 330130-040-01-00 extension cable assembly — which conditions and amplifies the signal before forwarding it downstream.

From the proximitor, the conditioned signal enters the 3300 XL rack system, where it is digitized and structured for network transmission. In modern installations, a Bently Nevada 3500 series rack or a third-party edge gateway — for example, a Moxa MGate protocol converter or a Siemens SCALANCE industrial switch — bridges the field-level analog data to Ethernet-based plant networks running PROFINET or Modbus TCP. This protocol conversion step is critical for eliminating data silos between legacy vibration monitoring systems and modern IIoT-ready SCADA platforms.

Once on the plant network, vibration data from the 330101-00-32-10-02-05 is ingested by SCADA systems such as GE System 1 Evolution, Emerson AMS Suite, or OSIsoft PI Asset Framework. HMI panels — including Siemens SIMATIC TP700 or Rockwell PanelView Plus — display real-time shaft orbit plots, trend curves, and alarm states directly on the production floor. Simultaneously, the data is forwarded to historian servers and cloud-based analytics platforms for long-term trend analysis and predictive maintenance modeling.

For remote diagnostics, the vibration data stream is accessible via secure VPN tunnels or industrial cellular gateways, enabling maintenance engineers to monitor bearing health, rotor imbalance, and misalignment from off-site locations. Integration with PLC controllers — such as Siemens S7-1500 or Allen-Bradley ControlLogix — allows automated alarm responses: when vibration amplitude exceeds setpoints, the PLC can trigger variable frequency drives (VFDs) to reduce machine speed or initiate a controlled shutdown sequence, protecting both equipment and personnel.

Remote I/O modules and distributed control nodes further extend the data reach of the 330101-00-32-10-02-05 across multi-unit installations. In large compressor trains or turbine halls with dozens of measurement points, the probe works in concert with Bently Nevada 3500/42M position monitors and 3500/25 keyphasor modules to deliver a complete machine dynamics picture. This multi-channel, networked approach transforms isolated vibration readings into a plant-wide asset health dashboard — the foundation of Industry 4.0 predictive maintenance.

Industrial sites running legacy vibration monitoring systems frequently encounter four critical data challenges that the 330101-00-32-10-02-05, properly integrated, helps resolve:

Protocol Fragmentation: Older Bently Nevada installations often output proprietary analog signals that cannot be directly consumed by modern DCS or SCADA platforms. By pairing the 330101-00-32-10-02-05 with a compatible Bently Nevada 3500 series rack and a Modbus TCP or OPC-UA gateway, engineers can bridge the protocol gap without replacing the entire monitoring infrastructure — preserving capital investment while enabling digital connectivity.

Data Silos and Production Blind Spots: When vibration data remains trapped in standalone monitoring units, maintenance teams lose the ability to correlate machine health with process variables such as flow rate, temperature, and pressure. Integrating the 330101-00-32-10-02-05 output into a unified SCADA historian — alongside signals from pressure transmitters, thermocouple inputs, and flow meters — creates a single source of truth for asset performance, eliminating blind spots and enabling cross-parameter alarm logic.

Remote Monitoring Limitations: In unmanned substations, offshore platforms, or geographically distributed compressor stations, on-site vibration inspection is costly and infrequent. The 330101-00-32-10-02-05, connected through an industrial cellular gateway or fiber-optic network, enables continuous remote monitoring with configurable alarm thresholds. Maintenance teams receive push notifications when vibration levels trend toward danger zones — days or weeks before a failure event — enabling planned interventions rather than emergency repairs.

System Scalability: As production capacity expands, vibration monitoring systems must scale without architectural redesign. The 330101-00-32-10-02-05 is fully compatible with the modular 3300 XL and 3500 series rack expansion philosophy, allowing additional measurement channels to be added incrementally. Combined with network-layer scalability via managed industrial switches and VLAN segmentation, the monitoring architecture grows with the plant — from a single machine to an enterprise-wide condition monitoring network.

Q1: What communication protocols does the 330101-00-32-10-02-05 support for SCADA integration?The probe outputs a standard analog voltage signal processed by the Bently Nevada 3300 XL proximitor. Upstream integration with SCADA and DCS platforms is achieved via the 3300 XL or 3500 series rack, which supports Modbus RTU/TCP, OPC-UA, and direct System 1 software connectivity. For IIoT environments, edge gateways can further translate the signal to MQTT or REST API formats for cloud-based analytics platforms.

Q2: How does the 330101-00-32-10-02-05 perform in high-noise industrial network environments?The eddy-current sensing technology used in the 330101-00-32-10-02-05 is inherently immune to electromagnetic interference (EMI) from VFDs, high-voltage switchgear, and welding equipment — common noise sources in heavy industrial environments. The shielded coaxial cable design and differential signal conditioning in the 3300 XL proximitor further reject common-mode noise, ensuring stable, accurate vibration data even in electrically harsh plant environments.

Q3: Can the 330101-00-32-10-02-05 be used for remote diagnostics and predictive maintenance?Yes. When integrated with a Bently Nevada System 1 Evolution platform or a third-party condition monitoring software suite, the probe's continuous vibration data stream supports spectrum analysis, waveform trending, and machine learning-based anomaly detection. Remote access via secure industrial VPN or cellular gateway enables off-site engineers to perform full diagnostic reviews — including shaft orbit analysis and bearing defect frequency identification — without physical site visits.

Q4: What warranty and pre-shipment testing does the 330101-00-32-10-02-05 include?Every 330101-00-32-10-02-05 unit supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and performance deviations from Bently Nevada factory specifications. Prior to shipment, each probe undergoes functional verification including gap voltage calibration, sensitivity check (nominally –7.87 V/mm), and cable continuity testing. A test report is available upon request. In-stock units are available for same-week dispatch to support urgent MRO and shutdown maintenance requirements.
