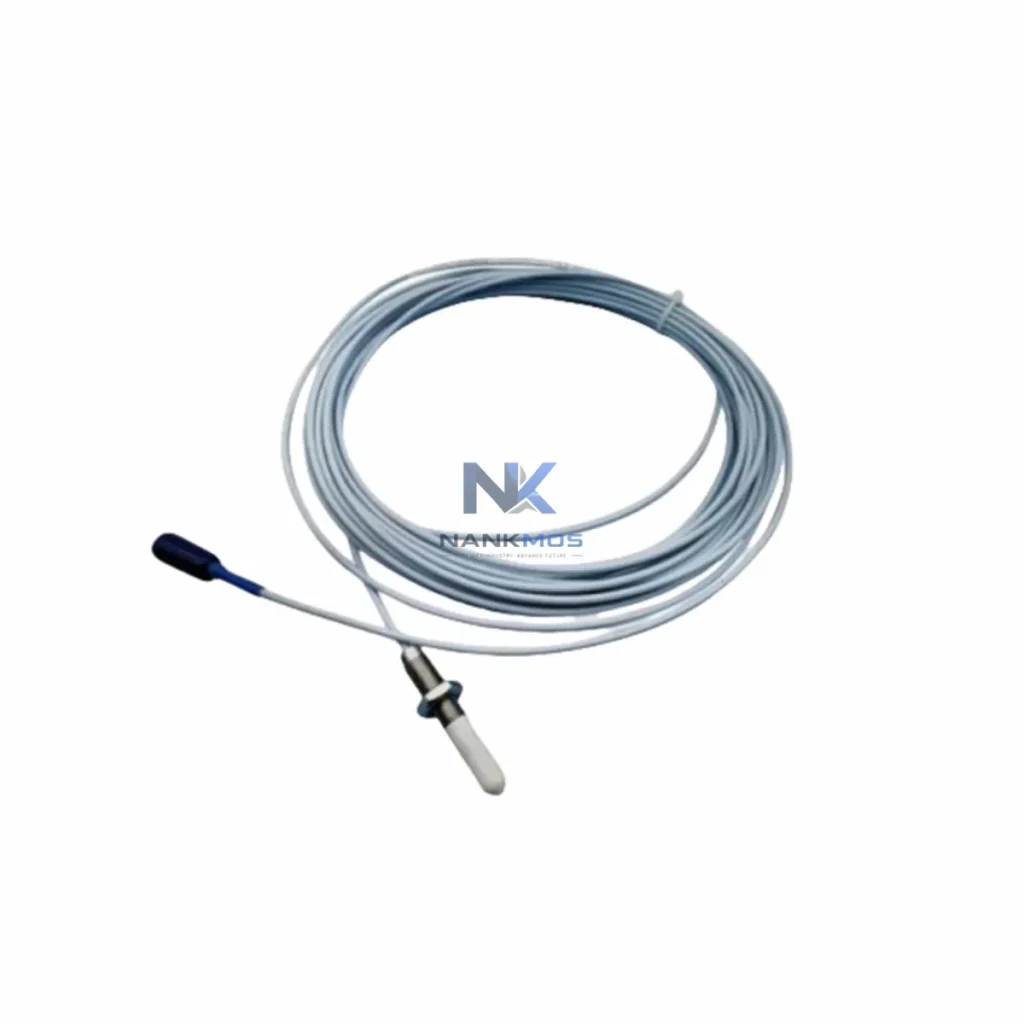

Bently Nevada 330101-00-53-10-02-05 Proximity Probe

Product Details

330101-00-53-10-02-05 Product Description

The Bently Nevada 330101-00-53-10-02-05 is an 8 mm eddy-current proximity probe engineered as a precision sensing node within the Bently Nevada 3300 XL Proximity Transducer System. Its role in a complete machinery protection and condition monitoring architecture extends well beyond a single measurement point — it is the front-end signal source that feeds vibration, position, and eccentricity data into a layered control and protection platform.

At the measurement layer, the 330101-00-53-10-02-05 probe pairs directly with the 330130 Series extension cable and the 330180 or 330185 Proximitor® sensor to form a calibrated, impedance-matched transducer chain. This three-component assembly ensures signal linearity across the full 0.25 mm – 2.54 mm gap range, eliminating the calibration drift that occurs when mixing unmatched probe-driver combinations. The Proximitor converts the probe's raw eddy-current impedance change into a clean –24 VDC analog output, which is then routed to the 3500/40M Proximitor® I/O Module housed in the 3500 Series Rack.

Within the 3500 rack architecture, the analog signal from the 330101 probe is processed by the 3500/22M Transient Data Interface for high-resolution waveform capture and by the 3500/42M Proximitor® Seismic Monitor for continuous RMS and peak-to-peak vibration alarming. The 3500/15 Power Supply Module provides regulated –24 VDC to the Proximitor network, while the 3500/05 System Rack backplane distributes power and communication across all I/O slots. This modular rack design allows engineers to expand channel count without rewiring the probe field — a critical advantage in large rotating machinery installations with dozens of measurement planes.

At the communication layer, the 3500 rack interfaces with plant-level DCS and SCADA systems via the 3500/92 Communication Gateway Module, which supports Modbus RTU, Modbus TCP/IP, and OPC-DA protocols. This gateway bridges the machinery protection layer to the process control layer — enabling the DeltaV™ DCS or a third-party PLC to receive real-time vibration vectors, gap DC values, and alarm states without requiring dedicated serial wiring from each Proximitor. The result is a unified data flow from the probe tip to the historian, supporting both real-time operator response and long-term trend analysis.

For installations requiring redundant protection, the 330101-00-53-10-02-05 can be deployed in dual-probe configurations on the same shaft measurement plane, with each probe connected to an independent Proximitor and separate 3500 rack channel. This architecture satisfies SIL 2 machinery protection requirements by eliminating single-point-of-failure risk at the sensing layer. The 3500/20 Rack Configuration Module manages voting logic between redundant channels, ensuring that a single probe failure triggers an alert rather than a spurious trip.

At the HMI and diagnostics layer, the System 1™ Evolution software platform aggregates probe gap DC trends, vibration spectra, and orbit plots from multiple 3500 racks across a facility. Engineers can perform remote gap verification, sensitivity checks, and cable continuity diagnostics without physical access to the machine — reducing planned maintenance windows and enabling condition-based maintenance scheduling. The TDIXconnX™ interface further extends diagnostic reach by capturing transient data during machine startups and coastdowns, where the 330101 probe's wide linear range and fast response time are most critical.

The 330101-00-53-10-02-05 proximity probe is deployed across a broad spectrum of rotating machinery and process-critical applications where shaft vibration, radial position, and axial thrust monitoring are mandatory for safe and efficient operation.

In power generation, the probe monitors journal bearing vibration and shaft eccentricity on steam turbines, gas turbines, and hydro generators. Utilities operating combined-cycle plants rely on the 3300 XL transducer system to meet API 670 machinery protection standards, with the 330101 probe providing the primary radial vibration signal on both drive-end and non-drive-end bearing planes. The probe's –40 °C to +177 °C operating range accommodates the thermal gradients present in turbine bearing housings without signal drift.

In petrochemical and refinery applications, the 330101-00-53-10-02-05 is installed on centrifugal compressors, boiler feed pumps, and reactor agitators where continuous shaft monitoring is required under API 670 and IEC 61511 functional safety frameworks. The probe's IP67 rating and ATEX-compatible configuration options make it suitable for Zone 1 and Zone 2 hazardous area installations, where hydrocarbon vapors demand intrinsically safe or explosion-proof transducer assemblies.

In steel and metals processing, the probe monitors rolling mill drive shafts, continuous caster pinch rolls, and large induction motor rotors. The eddy-current sensing principle is immune to oil mist, coolant spray, and metallic debris — common environmental challenges in mill environments that defeat optical and capacitive sensing technologies. The probe's steel/iron target calibration is directly applicable to the carbon steel shafts used throughout metals processing equipment.

In water and wastewater treatment, the 330101 probe is used on large vertical turbine pumps and centrifugal blowers where bearing condition monitoring extends equipment life and prevents unplanned outages at critical pumping stations. The probe's long-term stability and low maintenance requirements align with the extended service intervals typical of municipal infrastructure assets.

In marine and offshore applications, the probe monitors propulsion shaft vibration and auxiliary machinery on LNG carriers, FPSOs, and offshore platforms. The combination of IP67 sealing, wide temperature range, and compatibility with the 3500 rack's marine-certified configurations makes the 330101 transducer system a standard specification for classification society-approved machinery monitoring systems.

Q1: Is the 330101-00-53-10-02-05 directly compatible with the 3500 Series rack without additional signal conditioning? Yes — when paired with the system-matched 330130 extension cable and 330180 or 330185 Proximitor® sensor, the 330101-00-53-10-02-05 probe delivers a calibrated analog output that connects directly to the 3500/40M or 3500/42M I/O module without additional signal conditioning. The three-component transducer chain is factory-calibrated as a matched set, ensuring the 7.87 V/mm sensitivity specification is maintained across the full linear range. Mixing probe and Proximitor models from different series or manufacturers will invalidate the calibration and may trigger false alarms or missed trips.

Q2: Can this probe be used in a redundant dual-probe architecture for SIL 2 machinery protection? Yes — the 330101-00-53-10-02-05 supports dual-probe redundant configurations on the same measurement plane. Each probe is connected to an independent Proximitor and a separate 3500 rack channel. The 3500/20 Rack Configuration Module manages 1oo2 or 2oo2 voting logic between the redundant channels, ensuring that a single probe failure generates an alert without causing a spurious machine trip. This architecture is compliant with API 670 fourth edition requirements for critical machinery protection and supports SIL 2 functional safety assessments under IEC 61511.

Q3: What is the warranty coverage and lead time for the 330101-00-53-10-02-05, and is long-term inventory availability assured? All 330101-00-53-10-02-05 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and performance deviations from the published specification. Each unit undergoes pre-shipment functional testing including gap sensitivity verification, cable continuity check, and output linearity confirmation before dispatch. NANKMOS maintains dedicated stock of the 330101 series and its system-matched components — including 330130 extension cables and 330180 Proximitors — to support both immediate replacement requirements and planned maintenance programs. Global shipping is available with standard lead times of 3–7 business days for in-stock units.
