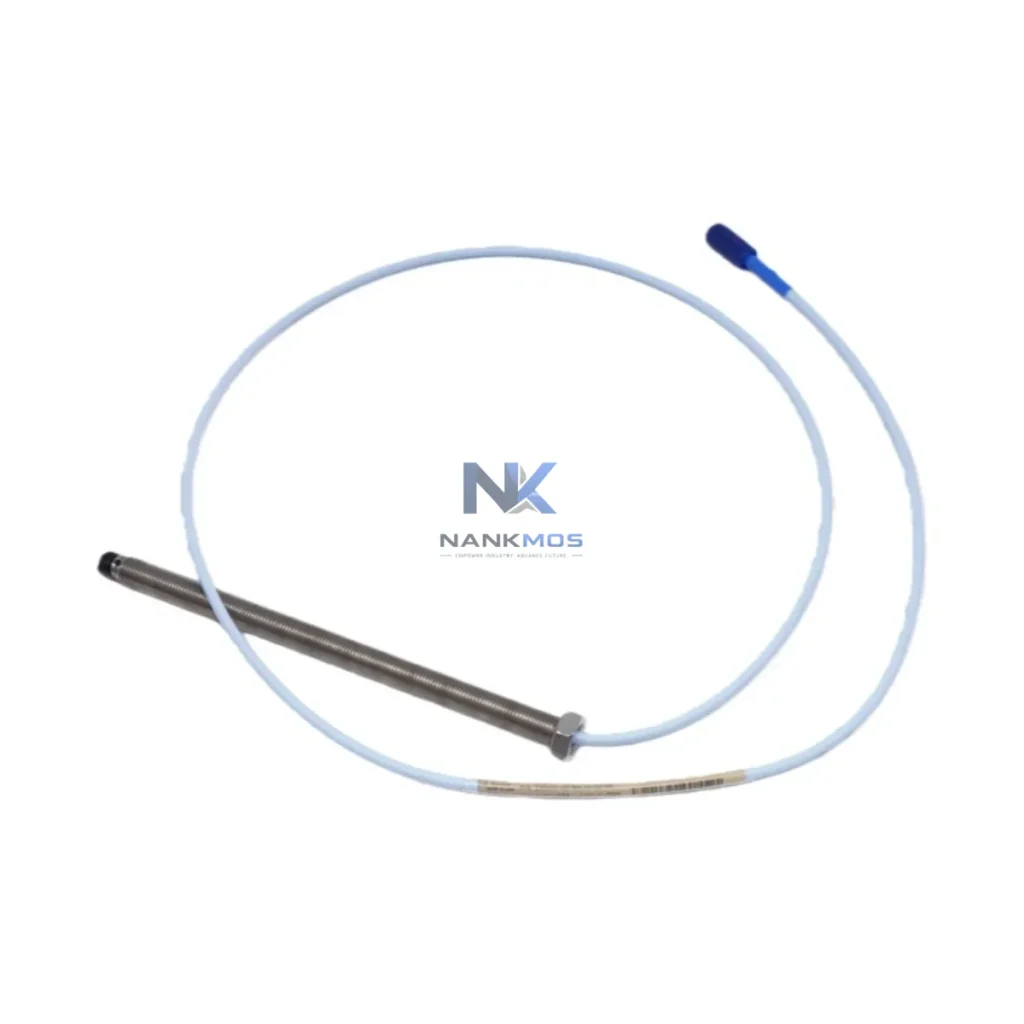

Bently Nevada 330101-00-60-10-01-00 Proximity Probe

Product Details

330101-00-60-10-01-00 Product Description

The Bently Nevada 330101-00-60-10-01-00 is a high-precision eddy-current proximity probe engineered for the 3300 XL Machinery Protection System. Designed to deliver continuous, real-time shaft displacement and vibration data across the full industrial data chain — from rotating machinery to PLC controllers, SCADA platforms, and enterprise-level condition monitoring systems — this probe is a foundational component in any smart factory machine protection architecture.

In modern industrial environments, the integrity of the data link between field-level sensors and upper-level control systems is critical. The 330101-00-60-10-01-00 proximity probe operates as the first node in this chain, converting mechanical shaft movement into precise analog signals that feed directly into the Bently Nevada 3300 XL monitor modules. These signals are then processed, conditioned, and transmitted upstream through the plant's communication backbone — enabling real-time vibration monitoring, alarm management, and remote diagnostics without interrupting production.

The 330101-00-60-10-01-00 proximity probe sits at the edge of the smart factory data flow, capturing high-frequency shaft displacement signals from rotating equipment such as compressors, turbines, pumps, and motors. These raw analog signals travel through matched extension cables — typically the Bently Nevada 330130 series extension cables — to the proximitor/driver unit, such as the Bently Nevada 3300 XL 8mm Proximitor Sensor, which conditions and converts the signal into a standardized voltage output.

From the proximitor, the conditioned signal enters the Bently Nevada 3300/16-23-01-00 monitor module housed within the 3300 XL rack system. The monitor processes vibration amplitude, phase, and position data in real time, applying configurable alarm thresholds for alert and danger levels. When alarm conditions are detected, the system triggers relay outputs that can interface directly with Siemens S7-300/400 PLCs or Allen-Bradley ControlLogix controllers via hardwired I/O or digital communication modules.

For plants running distributed control architectures, the 3300 XL monitor's communication outputs — including 4–20 mA analog retransmission, Modbus RTU/TCP, and Profibus DP — allow seamless integration with Emerson DeltaV DCS, Honeywell Experion PKS, or ABB System 800xA platforms. This enables vibration data to be visualized alongside process variables such as temperature, pressure, and flow on unified SCADA/HMI dashboards — providing operators with a complete picture of machine health and process performance from a single interface.

At the network layer, industrial Ethernet switches — such as those from the Hirschmann MACH series or Moxa EDS series — provide the backbone for transmitting condition monitoring data from the control room to remote engineering workstations and cloud-based predictive maintenance platforms. Edge gateways, including devices compatible with OPC-UA and MQTT protocols, further extend the data reach to enterprise asset management systems, enabling predictive maintenance algorithms to analyze vibration trends, detect early-stage bearing wear, and schedule maintenance before unplanned shutdowns occur.

In multi-machine protection scenarios, the 330101-00-60-10-01-00 probe is typically deployed alongside Bently Nevada 3300/55 thrust position monitors and 3300/46M speed monitors, forming a comprehensive protection layer that covers radial vibration, axial thrust, and rotational speed — all feeding into the same 3300 XL rack and communicating upstream through a unified data path to the plant's SCADA system.

One of the most persistent challenges in industrial automation is the fragmentation of machine health data — where vibration sensors, temperature transmitters, and process instruments each operate in isolation, creating data silos that prevent a unified view of equipment condition. The Bently Nevada 330101-00-60-10-01-00 proximity probe, integrated within the 3300 XL system architecture, directly addresses this challenge by providing a standardized, protocol-compatible signal path from the machine to the control room.

Protocol Unification: By leveraging the 3300 XL monitor's Modbus and Profibus output capabilities, vibration data from the 330101-00-60-10-01-00 probe can be mapped directly into the plant's existing PLC or DCS tag database — eliminating the need for proprietary data converters and ensuring that vibration parameters appear alongside process data in the same SCADA historian.

Remote Monitoring and Diagnostics: With SCADA integration in place, maintenance engineers can monitor shaft vibration trends, review alarm histories, and perform remote diagnostics from any networked workstation — reducing the need for on-site inspections and enabling faster response to developing faults. This is particularly valuable in hazardous or hard-to-access plant areas where physical inspection carries safety risks.

Production Line Transparency: Real-time vibration data from the 330101-00-60-10-01-00 probe, displayed on HMI screens and SCADA dashboards, gives production managers immediate visibility into machine health status — supporting informed decisions on load management, maintenance scheduling, and production continuity.

Alarm Tracking and System Expansion: The 3300 XL system's configurable alarm architecture allows plants to define multi-level alert and danger thresholds for each monitored machine. As production capacity grows, additional 330101-00-60-10-01-00 probes and monitor modules can be added to the existing rack infrastructure, scaling the protection system without requiring changes to the upstream SCADA or DCS configuration.

Every 330101-00-60-10-01-00 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify signal output accuracy and connector integrity. All units are backed by a 12-month warranty and are available for fast global shipping from verified inventory.

Q1: Is the Bently Nevada 330101-00-60-10-01-00 compatible with Modbus and Profibus SCADA systems?A: The 330101-00-60-10-01-00 proximity probe outputs a standard analog signal to the Bently Nevada 3300 XL monitor module. The monitor itself supports Modbus RTU/TCP and Profibus DP communication outputs, enabling direct integration with SCADA, DCS, and HMI platforms that use these protocols. No additional protocol converter is required for most standard industrial automation architectures.

Q2: What extension cable and proximitor are required for the 330101-00-60-10-01-00 probe?A: This probe is designed for use with matched Bently Nevada 330130 series extension cables and the 3300 XL 8mm Proximitor Sensor. The complete measurement chain — probe, extension cable, and proximitor — must be calibrated as a matched set to ensure accurate gap voltage and sensitivity specifications. NANKMOS can advise on compatible components based on your installation requirements.

Q3: How does the 3300 XL system handle network stability and data transmission reliability?A: The Bently Nevada 3300 XL architecture is designed for continuous, uninterrupted operation in industrial environments. Monitor modules provide hardware relay outputs for alarm and danger conditions, ensuring that machine protection functions remain active even in the event of communication network interruptions. Digital communication outputs (Modbus, Profibus) are supplementary to the primary hardwired protection logic, maintaining system reliability regardless of network status.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 330101-00-60-10-01-00?A: All Bently Nevada 330101-00-60-10-01-00 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm signal output performance and mechanical integrity. In-stock units are available for immediate dispatch with fast global shipping to support urgent maintenance and replacement requirements.
