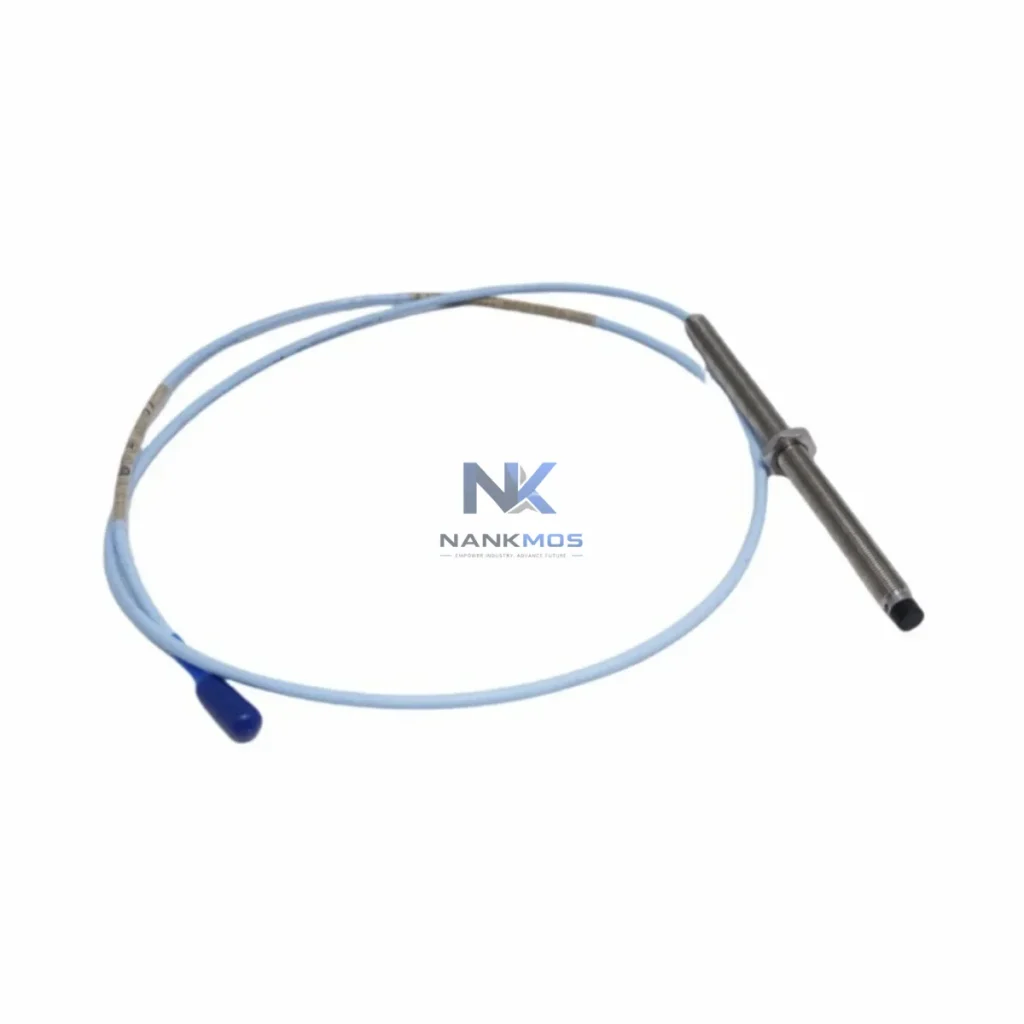

Bently Nevada 330101-00-77-15-02-05 Proximity Transducer

Product Details

330101-00-77-15-02-05 Product Description

The Bently Nevada 330101-00-77-15-02-05 is an 8mm proximity transducer engineered for the 3300 XL Series vibration monitoring platform, delivering precision shaft displacement and vibration data across the full industrial data chain — from field-level signal acquisition through protocol conversion, network transmission, real-time SCADA visualization, and remote diagnostics. In smart factory environments where continuous machine health monitoring is non-negotiable, this transducer serves as the critical sensing node that feeds live data into plant-wide automation architectures.

Designed for rotating machinery protection in turbines, compressors, pumps, and motors, the 330101-00-77-15-02-05 integrates seamlessly with the Bently Nevada 3300 XL proximitor/seismic monitor system. Its analog output is conditioned and transmitted through the 3300 XL monitor rack, where it connects upstream to communication gateways supporting Modbus RTU, Modbus TCP/IP, and OPC-UA protocols — enabling direct data exchange with DCS platforms, SCADA systems, and edge computing nodes without signal degradation or latency bottlenecks.

In a typical smart factory deployment, the 330101-00-77-15-02-05 proximity transducer is mounted at the bearing housing of a critical rotating asset. The eddy-current sensing tip continuously measures shaft gap voltage, which is routed through a matched Bently Nevada 330130-045-00-00 extension cable to the 3300 XL proximitor. The proximitor conditions the raw signal and feeds it into the Bently Nevada 3300/16 monitor rack, where vibration amplitude, phase, and DC gap values are digitized and made available on the rack's communication backplane.

From the monitor rack, a Bently Nevada 3500/92 communication gateway or a third-party Modbus-to-OPC-UA protocol converter bridges the vibration data onto the plant Ethernet network. This allows the 330101-00-77-15-02-05's live measurements to be consumed by Wonderware System Platform, OSIsoft PI, or Ignition SCADA — enabling real-time trending, alarm management, and historical data archiving at the supervisory level. Simultaneously, the data stream can be tapped by an edge gateway such as a Moxa MGate MB3480 or Advantech ADAM-6717 for local pre-processing, anomaly detection, and forwarding to cloud-based condition monitoring platforms.

For plants running mixed automation architectures, a PROFIBUS DP or PROFINET adapter module can be inserted between the 3300 XL rack and the plant's Siemens S7-400 or Allen-Bradley ControlLogix PLC, allowing the vibration data to participate in PLC-level interlock logic — for example, triggering an automatic shutdown sequence when vibration exceeds the danger setpoint. HMI panels such as Siemens TP1500 or Rockwell PanelView Plus 7 can display real-time shaft orbit plots and alarm banners sourced directly from the 330101-00-77-15-02-05 measurement chain, giving operators immediate visual feedback on machine health without leaving the control room.

Remote I/O modules and industrial switches — including managed Ethernet switches with PROFINET ring redundancy — ensure that the vibration data path remains available even during partial network failures, supporting the high-availability requirements of continuous-process industries such as oil and gas, petrochemical, and power generation.

Many industrial sites still operate with legacy vibration monitoring systems that produce isolated, siloed data — analog panel meters with no network connectivity, proprietary protocols that cannot communicate with modern SCADA platforms, and manual data collection rounds that introduce latency and human error. The Bently Nevada 330101-00-77-15-02-05, when integrated with the 3300 XL system and a suitable communication gateway, directly addresses these data gaps.

Protocol fragmentation is resolved by deploying a Modbus TCP/IP or OPC-UA gateway at the monitor rack level, translating the proprietary 3300 XL data into open, standards-based formats that any modern DCS or SCADA can consume. Data islands are eliminated by connecting the vibration monitoring network to the plant's existing industrial Ethernet backbone, making machine health data visible alongside process variables, energy consumption metrics, and production KPIs in a unified dashboard.

Remote monitoring challenges — particularly relevant for unmanned substations, offshore platforms, and remote compressor stations — are addressed through the OPC-UA server capability of compatible gateways, which supports encrypted, authenticated data access over WAN connections. Alarm tracking is enhanced by configuring alert thresholds directly in the SCADA historian, so that any exceedance of the 330101-00-77-15-02-05's vibration setpoints triggers an immediate notification to maintenance teams via email, SMS, or mobile HMI app. Production line transparency is achieved through data visualization dashboards that display real-time shaft orbit, trend plots, and waterfall spectra — enabling predictive maintenance decisions based on actual machine condition rather than fixed time intervals. System expansion is straightforward: additional 3300 XL monitor cards and proximity transducers can be added to the existing rack and communication infrastructure without redesigning the network architecture.

Q1: Does the Bently Nevada 330101-00-77-15-02-05 support direct Modbus or OPC-UA communication?The 330101-00-77-15-02-05 is a passive sensing transducer; it does not itself implement a communication protocol. Network connectivity is provided by the 3300 XL monitor rack and an associated communication gateway (such as the Bently Nevada 3500/92 or a third-party Modbus/OPC-UA converter), which expose the transducer's measurements as addressable data points on the plant network. This architecture ensures zero communication latency at the sensor level and full protocol flexibility at the network level.

Q2: Is the 330101-00-77-15-02-05 compatible with PROFIBUS DP or PROFINET control systems?Yes, through a protocol conversion module. The 3300 XL monitor rack outputs data via its backplane communication interface, which can be bridged to PROFIBUS DP or PROFINET using a compatible gateway module. This allows the proximity transducer's vibration and position data to be integrated directly into Siemens TIA Portal projects or other PROFINET-based automation platforms without additional signal conditioning hardware.

Q3: How is network stability ensured for continuous vibration monitoring?The 3300 XL system is designed for 24/7 continuous operation with hardware redundancy options at the monitor rack level. When deployed on a managed industrial Ethernet network with ring redundancy (e.g., PROFINET MRP or Ethernet/IP DLR), the communication path between the 330101-00-77-15-02-05 measurement chain and the SCADA system remains available even if a single network segment fails. All units supplied by NANKMOS are tested for communication integrity before shipment.

Q4: What does the 12-month warranty cover, and how is remote diagnostics support provided?The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. NANKMOS provides pre-shipment functional testing for all 330101-00-77-15-02-05 units, with test records available on request. Remote diagnostics support is available via email and phone; for sites with OPC-UA or Modbus TCP/IP connectivity, our technical team can assist with remote configuration review and alarm threshold optimization without requiring an on-site visit.
