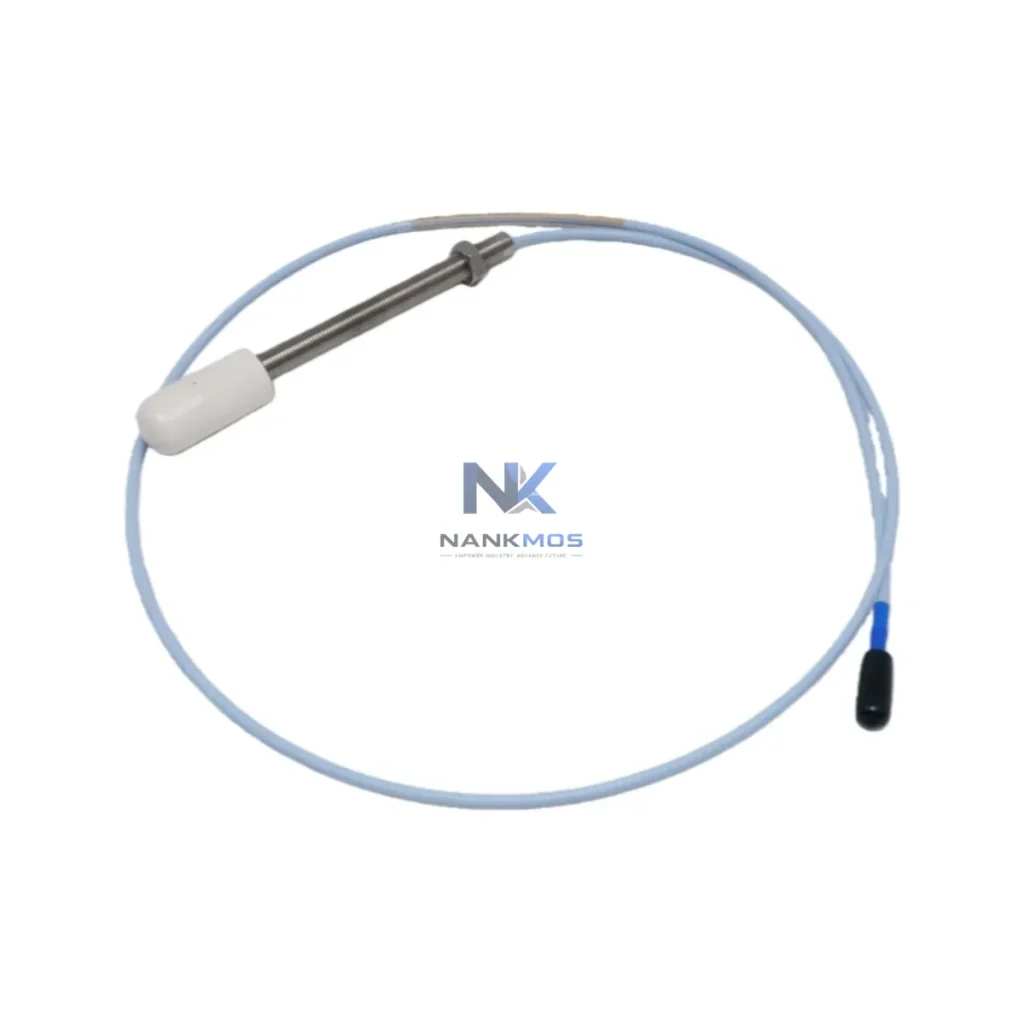

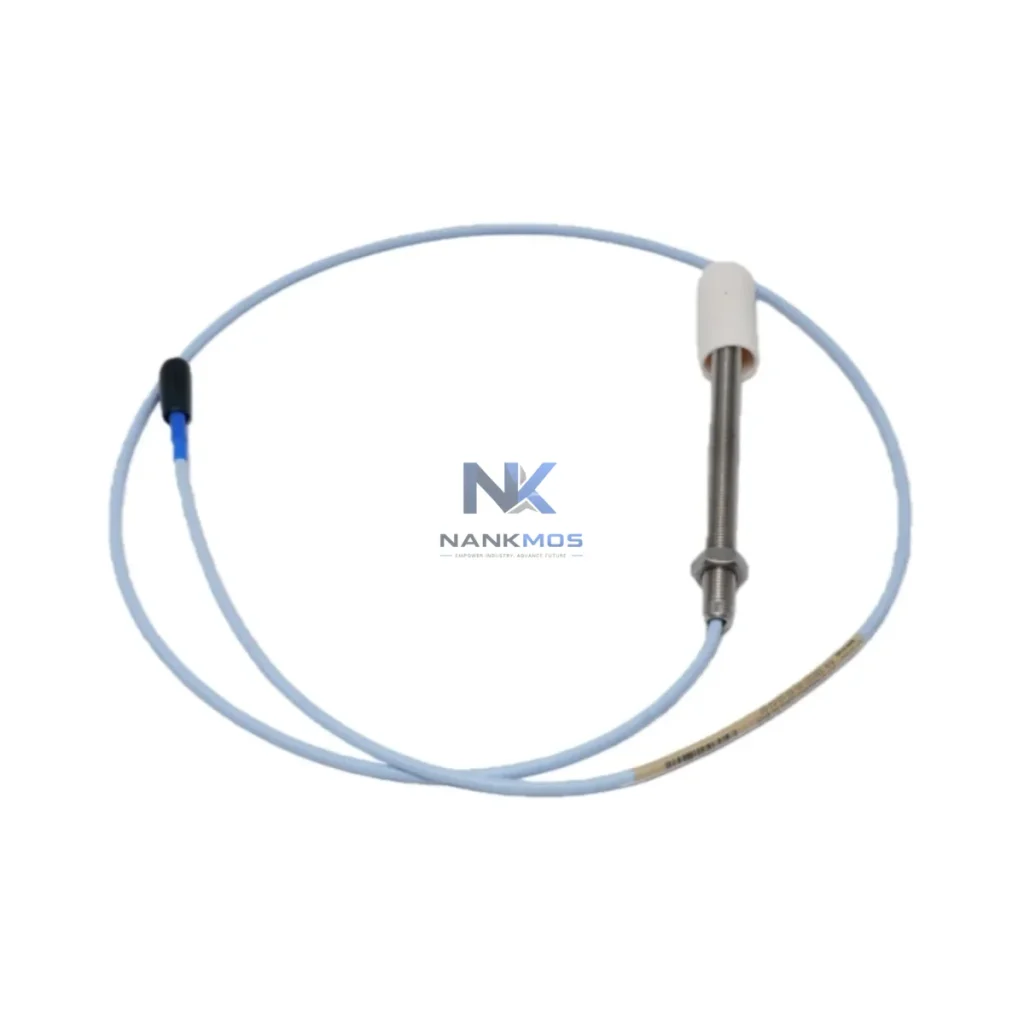

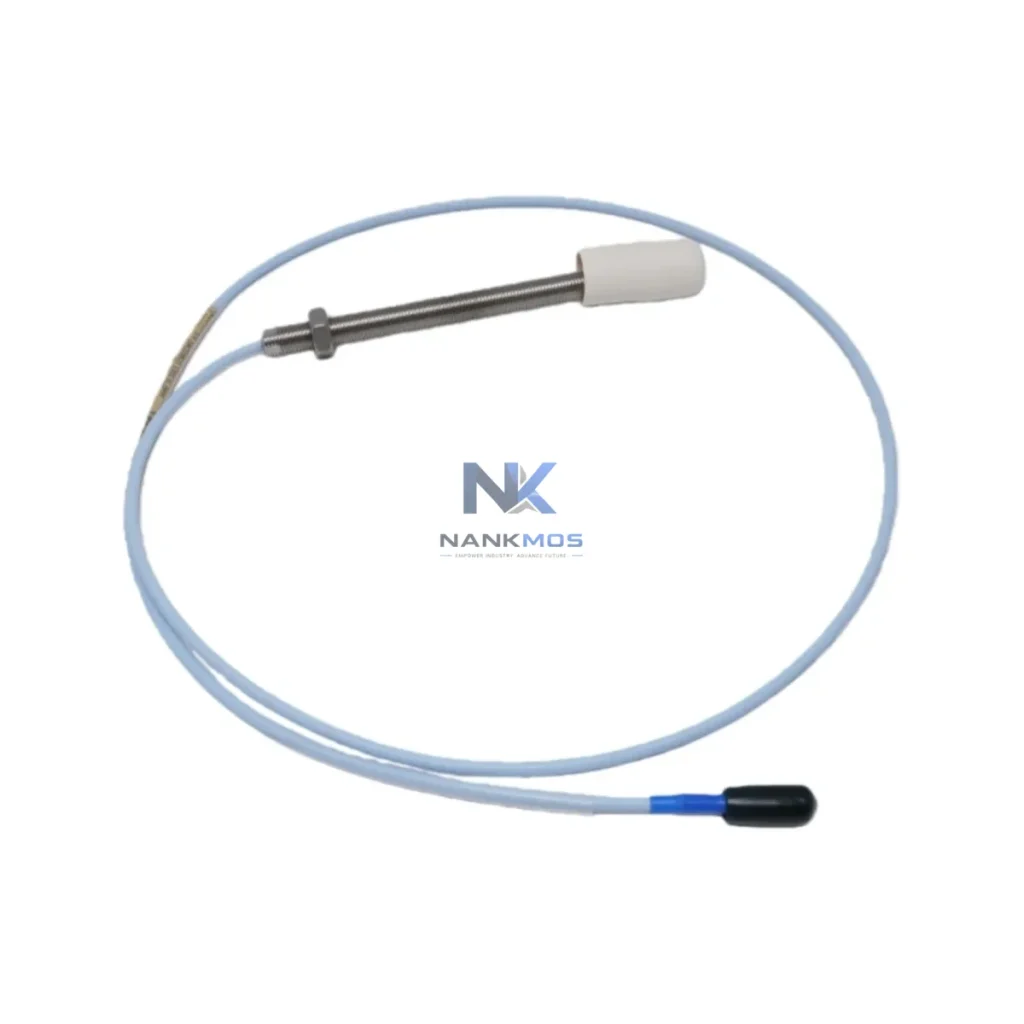

Bently Nevada 330101-00-84-20-02-CN Proximity Probe

Product Details

330101-00-84-20-02-CN Product Description

The Bently Nevada 330101-00-84-20-02-CN is a precision eddy-current proximity probe engineered as a core sensing element within the Bently Nevada 3300 XL vibration monitoring architecture. Designed for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion on rotating machinery, this probe integrates seamlessly into multi-channel monitoring systems deployed across power generation, petrochemical, oil and gas, marine propulsion, and heavy industrial process environments. Its role extends well beyond a single measurement point — it functions as the foundational signal source that feeds critical data upward through every layer of the control and protection architecture.

In a fully realized automation and machinery protection platform, the 330101-00-84-20-02-CN operates in close coordination with the Bently Nevada 3300 XL proximitor/seismic transducer (such as the 330180 series), which conditions the raw eddy-current signal into a calibrated DC voltage output suitable for downstream processing. This conditioned signal is then routed to the 3500 Series Machinery Protection System rack — a modular, backplane-based monitoring platform that accepts inputs from multiple probe channels simultaneously. Within the 3500 rack, dedicated I/O modules such as the 3500/40M Proximitor/Seismic Monitor Card interpret the probe signal, apply alarm setpoints, and communicate machine health status to the plant DCS or safety instrumented system via standard protocols including Modbus RTU, Modbus TCP/IP, and 4–20 mA analog outputs.

System consistency is a primary engineering objective when deploying the 330101-00-84-20-02-CN. The probe's 8 mm tip diameter and 84-inch (2134 mm) armored cable length are factory-matched to the 330180 proximitor, ensuring the gap voltage versus distance characteristic remains within the certified linear range of 0 to 2.54 mm (0 to 100 mils). Deviating from matched probe-cable-proximitor sets introduces calibration error that propagates through every downstream alarm and trip decision. For this reason, system architects specify the complete Bently Nevada 3300 XL probe system — probe, extension cable (such as the 330130 series), and proximitor — as a matched assembly, not as interchangeable individual components.

At the communication layer, the 3500 rack's communication gateway module (3500/92 or 3500/93) bridges the machinery protection system to the plant historian, condition monitoring software (System 1 Evolution), and the distributed control system. This integration enables contextual correlation between vibration trends captured by the 330101-00-84-20-02-CN and process variables such as bearing temperature (monitored via 3300 XL temperature inputs), lube oil pressure, and load — a capability that defines true Contextual Integration in modern predictive maintenance architectures. Operators gain a unified view of machine health rather than isolated vibration numbers, enabling earlier detection of developing faults such as rotor imbalance, misalignment, oil whirl, and rub.

Power supply integrity is equally critical to probe system performance. The 3500 rack's power supply modules (3500/15 or 3500/15E) provide regulated, isolated DC power to each monitor card and, through the proximitor, to the probe itself. Redundant power supply configurations are supported within the 3500 rack architecture, ensuring that a single power supply failure does not interrupt vibration monitoring on critical machinery trains. This redundancy design aligns with API 670 requirements for machinery protection systems on critical rotating equipment.

For HMI and operator interface, the System 1 Evolution software platform aggregates real-time data from all 3500 rack channels — including those fed by the 330101-00-84-20-02-CN — and presents trend plots, orbit displays, Bode plots, and alarm logs in a unified engineering workstation environment. This HMI layer enables maintenance engineers to perform detailed diagnostic analysis, compare current vibration signatures against historical baselines, and generate condition reports without requiring physical access to the machinery or the monitoring rack.

Installation and commissioning of the 330101-00-84-20-02-CN follows Bently Nevada's documented gap-setting procedure: the probe is threaded into a machined bracket or proximity probe holder, advanced to the target shaft surface, and adjusted to achieve the recommended gap voltage of approximately -10.0 VDC (corresponding to a physical gap of 1.27 mm / 50 mils) as measured at the proximitor output. This gap voltage is verified using a calibrated digital voltmeter before the system is placed in service. Proper gap setting is essential for maximizing the linear measurement range and ensuring that alarm and trip setpoints are applied against an accurate baseline.

Long-term maintenance efficiency is supported by the modular architecture of the 3300 XL and 3500 systems. Individual probe assemblies can be replaced without disturbing adjacent channels or requiring rack reconfiguration. Spare probe assemblies should be stored in matched sets — probe, extension cable, and proximitor — to ensure immediate availability during planned outages or unplanned failures. NANKMOS maintains inventory of the 330101-00-84-20-02-CN and associated 3300 XL system components, enabling rapid dispatch to minimize machinery downtime.

Every 330101-00-84-20-02-CN supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional verification to confirm cable continuity, tip condition, and connector integrity. This quality assurance process ensures that the probe arrives ready for immediate installation and gap-setting, reducing commissioning time on site.

The 330101-00-84-20-02-CN achieves its full diagnostic value only when deployed as part of a coherent, multi-layer automation platform. A representative architecture for a critical rotating machinery train — such as a centrifugal compressor or steam turbine — would include the following integrated components:

This layered architecture ensures that the vibration signal captured by the 330101-00-84-20-02-CN flows reliably from the machine shaft surface through signal conditioning, rack-level processing, network communication, and operator visualization — with redundancy and diagnostic capability at each layer.

Power Generation: Steam turbines and gas turbines in power plants require continuous shaft vibration monitoring to detect rotor imbalance, bearing wear, and blade rub. The 330101-00-84-20-02-CN, integrated into a 3500 Series rack, provides the real-time radial vibration data that feeds both the machinery protection system and the plant DCS, enabling operators to trend vibration levels across load cycles and plan maintenance during scheduled outages rather than responding to unplanned failures.

Petrochemical & Oil and Gas: Centrifugal compressors, pumps, and expanders in refinery and upstream processing facilities operate continuously under API 670 machinery protection requirements. The 3300 XL probe system — anchored by the 330101-00-84-20-02-CN — provides the certified measurement accuracy and system integration required for compliance with these standards, including relay-based emergency shutdown on danger-level vibration.

Water Treatment & Utilities: Large pumping stations and blower installations benefit from continuous vibration monitoring to extend bearing life and reduce unplanned downtime. The modular 3500 rack architecture allows monitoring to be scaled from a single machine to an entire pump gallery, with all channels reporting to a central System 1 Evolution workstation.

Marine Propulsion & Offshore: Ship propulsion systems and offshore platform rotating equipment operate in harsh environments where probe cable armoring and wide operating temperature range — both characteristics of the 330101-00-84-20-02-CN — are essential for reliable long-term operation without frequent maintenance intervention.

Mining & Metallurgy: Ball mills, crushers, and large fan drives in mining and metals processing represent high-value assets where vibration-induced failures carry significant production and safety consequences. Proximity probe monitoring integrated with the plant SCADA system enables condition-based maintenance scheduling, reducing both maintenance cost and unplanned downtime.

Q1: Can the 330101-00-84-20-02-CN be used with a non-Bently Nevada monitor or third-party proximitor? The 330101-00-84-20-02-CN is calibrated and certified as part of the Bently Nevada 3300 XL matched probe system, which includes the 330180 series proximitor and 330130 series extension cable. Using the probe with a non-Bently Nevada proximitor or monitor will void the system calibration certification and may produce inaccurate gap voltage readings, leading to incorrect alarm and trip setpoints. For API 670-compliant installations, the complete matched assembly must be used. NANKMOS can supply the full matched set — probe, extension cable, and proximitor — to ensure certified system accuracy.

Q2: What is the recommended maintenance interval for the 330101-00-84-20-02-CN, and how does the 3500 rack support long-term diagnostic efficiency? Bently Nevada recommends verifying probe gap voltage and cable continuity during each planned machinery outage, typically annually or at major overhaul intervals. The 3500 rack's built-in channel OK monitoring continuously checks for open-circuit or short-circuit probe faults between outages, alerting operators to probe or cable degradation before it results in a loss of monitoring. System 1 Evolution software maintains a historical trend database that allows maintenance engineers to compare current probe output characteristics against commissioning baselines, identifying gradual drift that may indicate probe tip wear or cable damage. NANKMOS maintains stock of the 330101-00-84-20-02-CN to support rapid replacement during outages, and all supplied units carry a 12-Month Warranty.

Q3: How does Contextual Integration with the plant DCS improve the value of vibration data from the 330101-00-84-20-02-CN? In isolation, a vibration amplitude reading from a proximity probe provides limited diagnostic information. Contextual Integration — connecting the 3500 rack's vibration data to the plant DCS via the 3500/92 communication gateway — enables correlation of vibration trends with process variables such as machine load, bearing temperature, lube oil pressure, and process flow rate. This multi-variable context allows engineers to distinguish between vibration changes caused by process load variations (normal) and those caused by developing mechanical faults (abnormal), dramatically reducing false alarms and improving the accuracy of predictive maintenance decisions. System 1 Evolution provides the software platform for this contextual analysis, aggregating data from the 330101-00-84-20-02-CN and all other monitoring channels into a unified diagnostic environment.
