Bently Nevada 330101-23-39-10-12-05 Proximity Probe

Product Details

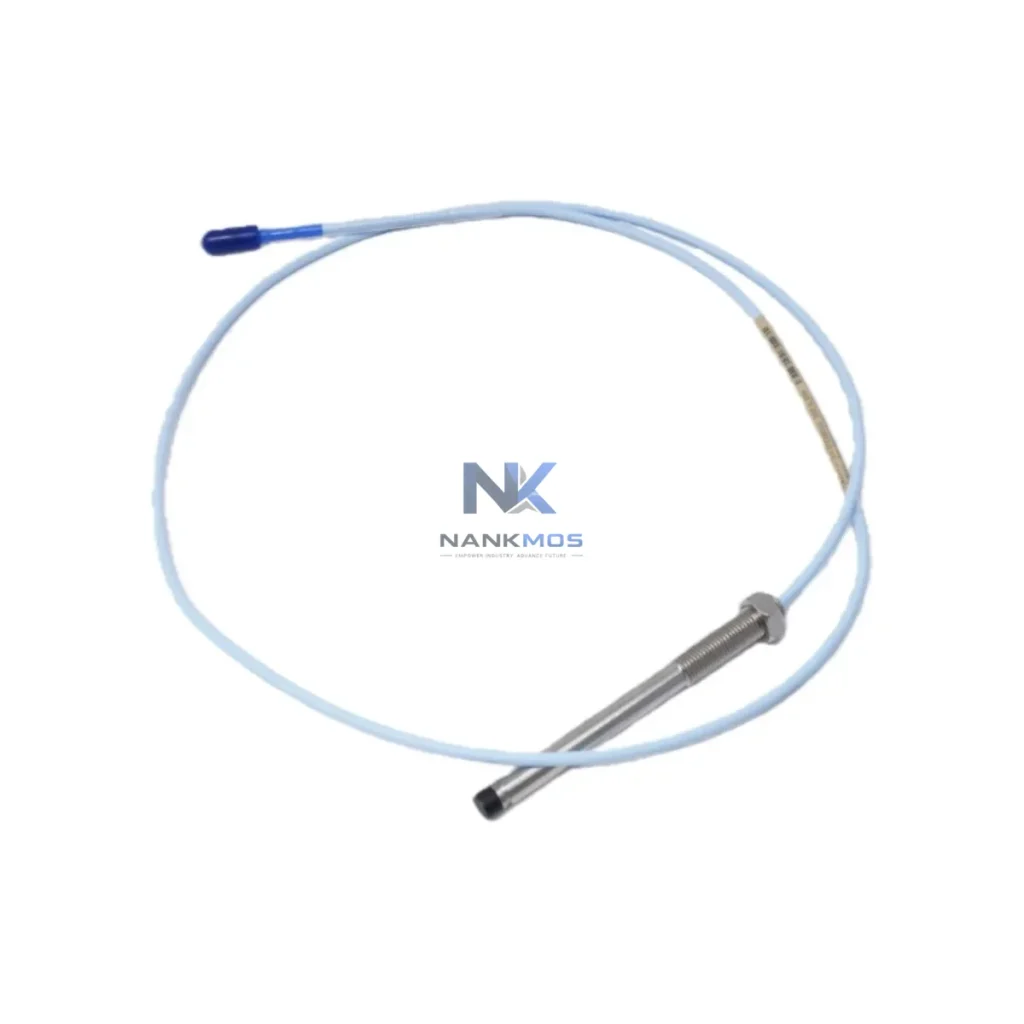

330101-23-39-10-12-05 Product Description

The Bently Nevada 330101-23-39-10-12-05 is a high-precision eddy-current proximity probe from the industry-renowned 3300 XL Series, engineered to deliver continuous, real-time shaft vibration and displacement data across the most demanding industrial environments. As a cornerstone of rotating machinery protection and predictive maintenance strategies, this probe integrates seamlessly into modern smart factory data architectures — bridging the gap between physical machine behavior and digital monitoring platforms. NANKMOS supplies this unit with full 12-month warranty coverage, pre-shipment functional testing, and guaranteed in-stock availability for rapid deployment.

In today's connected industrial landscape, the value of a proximity probe extends far beyond simple vibration detection. The 330101-23-39-10-12-05 is designed to operate as an active node within a layered industrial data chain — feeding real-time analog signals into Bently Nevada 3500 Series rack-mounted monitoring systems, which then convert and transmit structured data upstream to SCADA platforms such as GE System 1, OSIsoft PI, or Wonderware InTouch. This end-to-end signal path — from probe tip to control room dashboard — is what defines its role in smart automation.

The 330101-23-39-10-12-05 proximity probe operates at the very first layer of the industrial data chain — the physical sensing layer. Mounted radially or axially against a rotating shaft, it generates a continuous analog voltage signal proportional to the gap distance between probe tip and target surface. This raw signal travels through a matched Bently Nevada 330130-045-00-00 extension cable to a dedicated 3300 XL driver module, where it is conditioned and converted into a standardized output suitable for rack-level processing.

Within the Bently Nevada 3500 Series monitoring rack, the conditioned signal is received by a 3500/42M Proximitor I/O module, which performs real-time vibration analysis — calculating peak-to-peak displacement, gap voltage, and alarm thresholds. The 3500 rack communicates upstream via Modbus TCP or OPC-UA protocol through its 3500/92 Communication Gateway module, enabling direct integration with plant-level DCS systems such as Emerson DeltaV or Honeywell Experion PKS. This protocol bridge is critical: it transforms proprietary machine health data into a universally readable format that SCADA and historian platforms can consume.

At the SCADA layer, platforms like GE System 1 Evolution or OSIsoft PI Asset Framework aggregate vibration data from multiple 3500 racks across the plant floor. Operators viewing Wonderware InTouch or FactoryTalk View HMI screens receive live trending charts, alarm banners, and historical waveform data — all originating from the 330101-23-39-10-12-05 probe's analog output. When vibration amplitude crosses a pre-configured danger threshold, the 3500 rack triggers a relay output to the machine's safety PLC — such as a Rockwell Automation ControlLogix L8x or Siemens S7-400H — initiating an automated shutdown sequence without human intervention.

For facilities deploying edge computing architectures, the vibration data stream can be routed through an industrial edge gateway — such as a Moxa MGate or Advantech ADAM-3600 — enabling local pre-processing, anomaly detection, and compressed data forwarding to cloud-based asset management platforms. This edge-to-cloud pathway supports remote diagnostics, allowing maintenance engineers to review machine health trends, acknowledge alarms, and adjust monitoring parameters from any location with network access. The 330101-23-39-10-12-05 thus becomes not just a sensor, but a live data source feeding the entire predictive maintenance ecosystem.

Many industrial facilities face a common challenge: critical rotating machinery generates valuable mechanical data, but that data never reaches the control room in a usable form. Protocol fragmentation, aging signal wiring, and isolated monitoring systems create data silos that prevent plant-wide visibility. The Bently Nevada 330101-23-39-10-12-05, when deployed within a properly configured 3300 XL / 3500 Series architecture, directly addresses these gaps.

Protocol unification is achieved through the 3500/92 Communication Gateway, which translates the probe's analog signal chain into Modbus TCP and OPC-UA — protocols natively supported by virtually every modern SCADA, DCS, and MES platform. This eliminates the need for custom middleware or proprietary data converters, reducing integration complexity and long-term maintenance overhead.

Remote monitoring becomes fully operational once the 3500 rack is connected to the plant Ethernet backbone. Maintenance teams can access live vibration spectra, gap voltage trends, and alarm histories through System 1 Evolution's web-based dashboard — without being physically present at the machine. Alarm notifications can be routed via email, SMS, or SCADA pop-up to designated personnel, ensuring rapid response to developing faults.

Production line transparency is enhanced by integrating vibration data with MES platforms, allowing production managers to correlate machine health events with output quality metrics and downtime records. When a bearing defect frequency appears in the vibration spectrum, the system can automatically generate a work order in the CMMS — closing the loop between condition monitoring and maintenance execution. The 330101-23-39-10-12-05 is the sensing foundation that makes this level of operational intelligence possible.

Q1: What communication protocols does the Bently Nevada 330101-23-39-10-12-05 support for SCADA integration?The probe itself outputs an analog signal, which is processed by the 3300 XL driver and fed into the Bently Nevada 3500 Series rack. The 3500/92 Communication Gateway module then exposes the data via Modbus TCP and OPC-UA, enabling direct integration with GE System 1, OSIsoft PI, Wonderware InTouch, Emerson DeltaV, and other SCADA/DCS platforms. No additional protocol converters are required for standard Ethernet-based plant networks.

Q2: How does NANKMOS ensure the 330101-23-39-10-12-05 is functional before shipment?Every unit supplied by NANKMOS undergoes pre-shipment functional testing to verify probe sensitivity, output linearity, and connector integrity. Units are shipped with a 12-month warranty covering manufacturing defects and performance deviations. Detailed test records are available upon request for quality-critical applications.

Q3: Can this probe be used in a redundant or high-availability monitoring architecture?Yes. The 3300 XL Series is fully compatible with redundant 3500 rack configurations, where dual probes monitor the same shaft position and the rack automatically switches to the backup channel in the event of a primary probe failure. This architecture is commonly deployed in turbines, compressors, and pumps where unplanned downtime carries significant operational cost.

Q4: What is the typical network latency for alarm transmission from the probe to the SCADA system?Within a properly configured 3500 rack and Ethernet SCADA network, alarm state changes are transmitted in under 100 milliseconds from threshold crossing to SCADA alarm activation. This near-real-time response ensures that automated safety actions — such as PLC-triggered machine trips — occur within the protective time window defined by API 670 machinery protection standards.
