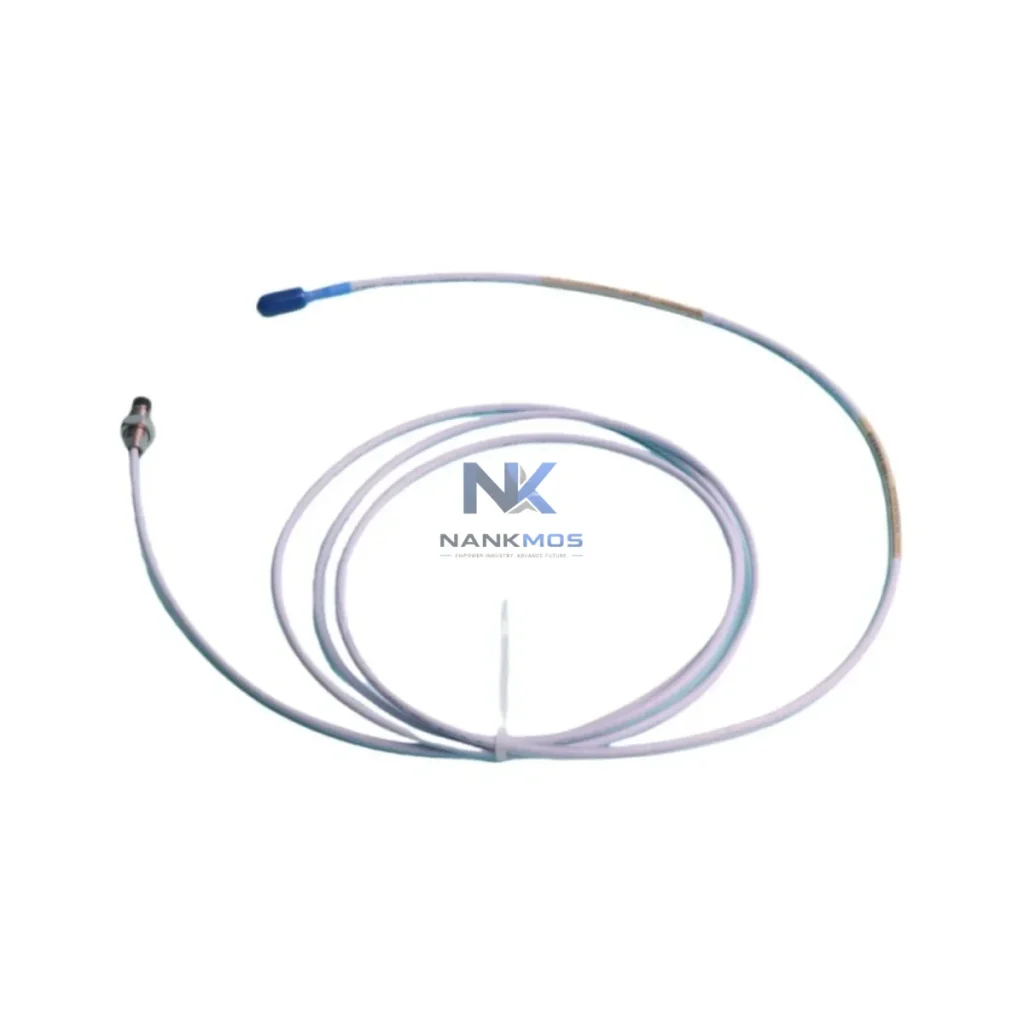

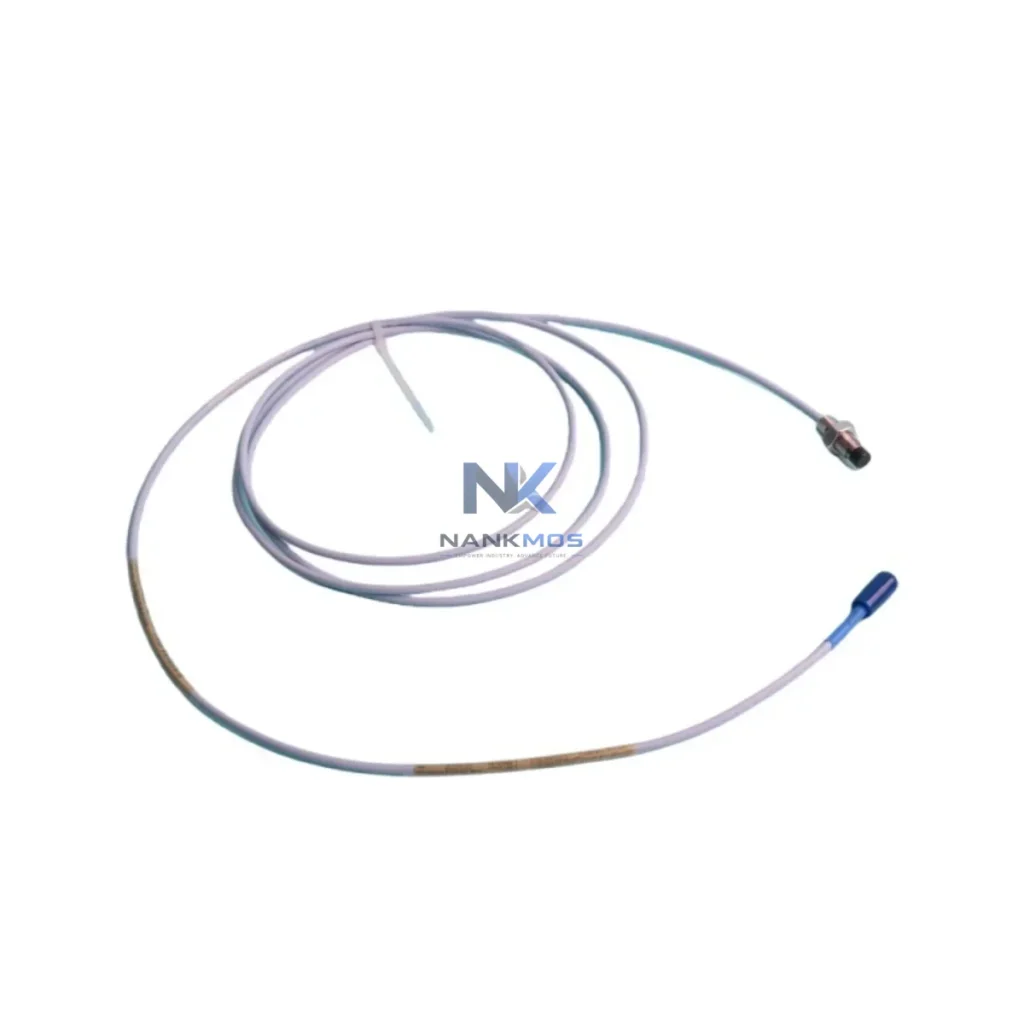

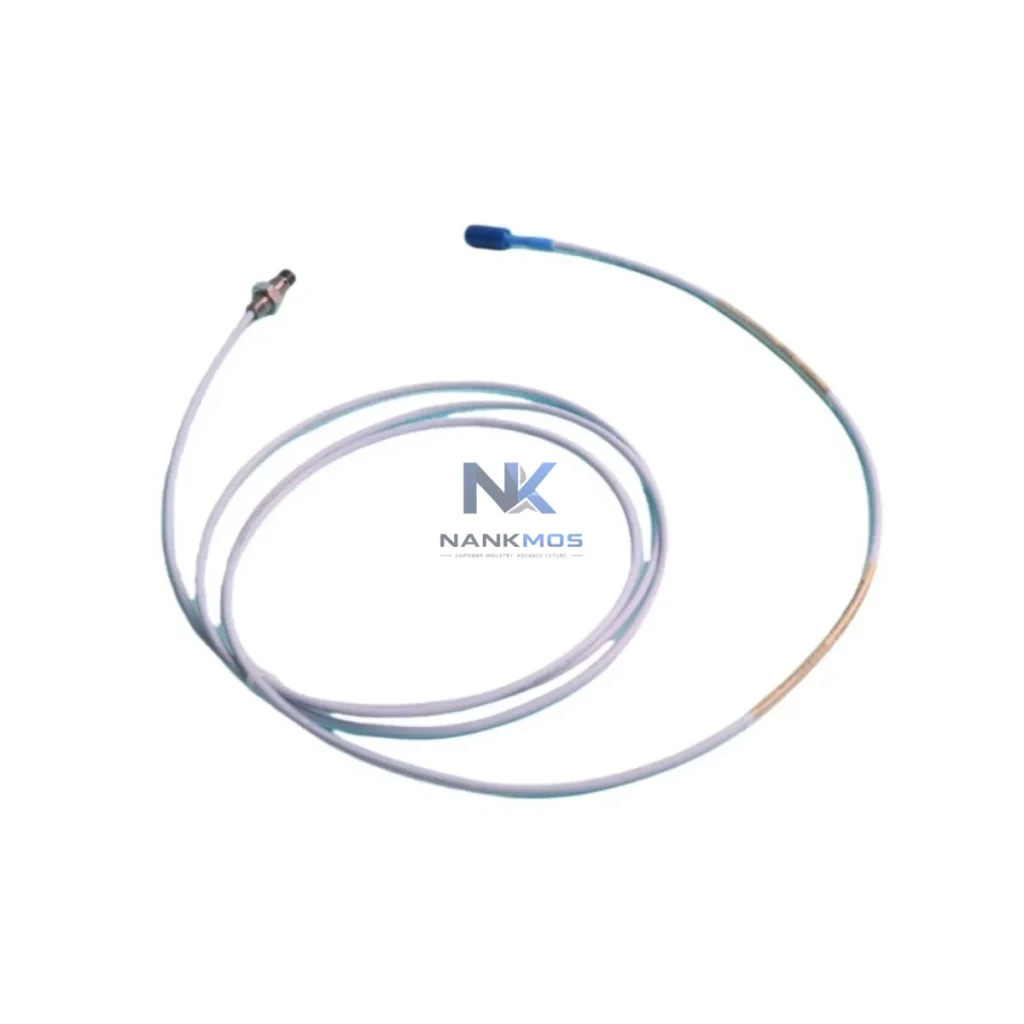

Bently Nevada 330101-43-63-90-02-00 Proximity Probe

Product Details

330101-43-63-90-02-00 Product Description

The Bently Nevada 330101-43-63-90-02-00 is an 8mm eddy-current proximity probe engineered for the Bently Nevada 3300 XL Series continuous vibration monitoring system. Designed for high-demand industrial environments, this proximity probe delivers real-time shaft displacement and vibration data that enables plant engineers to make energy-informed decisions — reducing unnecessary load cycles, preventing thermal runaway, and extending the operational lifespan of rotating machinery. In modern smart production lines where energy efficiency is a measurable KPI, the 330101-43-63-90-02-00 serves as a critical front-end sensing element that feeds actionable data into the broader energy management ecosystem.

By continuously monitoring radial shaft vibration and axial position on turbines, compressors, pumps, and motors, this probe allows control systems to detect imbalance, misalignment, and bearing wear at the earliest stage — long before these conditions escalate into energy-wasting fault states or unplanned downtime. When integrated with the Bently Nevada 3300 XL proximitor/seismic transducer module, the probe outputs a clean, calibrated signal that feeds directly into the plant's condition monitoring infrastructure, enabling predictive maintenance strategies that dramatically reduce mean time between failures (MTBF) and associated energy penalties.

The 330101-43-63-90-02-00 proximity probe does not operate in isolation — its true energy-control value is realized when it functions as part of a tightly integrated automation architecture. In a typical smart production line, the probe's vibration signal is conditioned by the Bently Nevada 3300 XL Proximitor/Seismic Transducer, which converts the raw eddy-current output into a standardized voltage signal readable by upstream systems. This signal is then routed to a Bently Nevada 3500/42M Proximitor I/O Module within the 3500 Series rack, where it is processed alongside data from other machine protection channels.

At the control layer, the conditioned vibration data integrates with Siemens S7-1500 PLCs or equivalent industrial controllers via PROFIBUS or PROFINET communication modules, enabling the PLC to execute load-shedding logic when abnormal vibration thresholds are detected. This prevents motors from operating under fault conditions that consume 15–30% more energy than normal. Simultaneously, the data feeds into ABB ACS880 variable frequency drives (VFDs) that regulate motor speed in response to real-time machine health — a strategy that eliminates unnecessary full-speed operation and reduces energy consumption during partial-load production cycles.

For comprehensive energy visibility, the probe's output is correlated with readings from Schneider Electric PowerLogic PM8000 power monitoring modules, which track active power, reactive power, and harmonic distortion at the machine level. When vibration anomalies coincide with power quality degradation, the system flags the event for immediate review, preventing cascading energy losses across the production line. Rockwell Automation 1756 ControlLogix I/O modules handle the discrete and analog signal routing between the monitoring rack and the plant's distributed control system (DCS), ensuring zero data latency in critical protection scenarios.

At the human-machine interface level, operators interact with vibration trend data through Siemens SIMATIC HMI TP1500 panels or equivalent touchscreen terminals, where energy consumption overlays and vibration waterfall charts are displayed side by side. This dual-view approach empowers shift engineers to correlate mechanical degradation with energy cost in real time. The entire data stream is aggregated by OSIsoft PI System (SCADA/historian) or equivalent platforms, where long-term vibration trends are analyzed to build predictive maintenance schedules that minimize planned downtime energy penalties.

Temperature sensors such as the Bently Nevada 330910 temperature monitor complement the proximity probe by providing thermal context — when bearing temperatures rise in tandem with vibration amplitude, the combined signal confirms an imminent failure event, allowing the control system to gracefully reduce load before a forced shutdown occurs. This coordinated response between vibration sensing, thermal monitoring, and drive control is the foundation of a truly power-aware automation strategy.

In high-throughput manufacturing and process industries, unplanned equipment failures are among the most significant sources of energy waste. When a rotating machine fails unexpectedly, the restart sequence — including thermal cycling of motors, re-pressurization of fluid systems, and re-synchronization of production line timing — can consume two to five times the energy of normal steady-state operation. The Bently Nevada 330101-43-63-90-02-00 proximity probe directly addresses this problem by enabling continuous, real-time condition monitoring that transforms reactive maintenance into a proactive, energy-optimized discipline.

By detecting shaft vibration anomalies at amplitudes as low as fractions of a mil, the probe provides early warning of imbalance, misalignment, oil whirl, and bearing defects — all of which, if left unaddressed, cause machines to draw progressively more current as mechanical efficiency degrades. A motor operating with a worn bearing may consume 8–12% more energy than a healthy unit running the same load. Multiplied across dozens of machines on a production line, this hidden energy penalty represents a substantial and entirely avoidable operating cost.

The probe also plays a key role in production line takt time optimization. When machine health data is fed into the plant's manufacturing execution system (MES) or SCADA platform, production schedulers can align planned maintenance windows with natural production valleys — minimizing the energy cost of startup and shutdown cycles. Rather than running machines at full speed continuously and accepting the associated wear and energy burden, operators can implement speed-optimized production profiles that match actual demand while keeping vibration levels within the low-energy, low-wear operating band.

Thermal load reduction is another measurable benefit. Machines operating with elevated vibration generate excess heat through friction and mechanical inefficiency. This heat must be removed by HVAC and cooling systems, adding an indirect energy burden to the facility. By keeping vibration within specification through early detection and corrective action, the 330101-43-63-90-02-00 indirectly reduces the cooling load on the plant, contributing to facility-wide energy savings that extend well beyond the machine itself.

Equipment utilization rates also improve significantly when proximity probe data is used to guide maintenance decisions. Instead of performing time-based maintenance that may be premature (wasting parts and labor) or overdue (risking failure), maintenance teams can use condition-based triggers derived from vibration trend data to service equipment at the optimal point in its degradation curve. This maximizes the productive uptime of each asset, reduces spare parts consumption, and ensures that energy invested in production is converted to output rather than lost to inefficiency or recovery from failure.

All units of the Bently Nevada 330101-43-63-90-02-00 supplied by NANKMOS are sourced from verified inventory channels, subjected to pre-shipment functional testing, and covered by a 12-month warranty — ensuring that your energy optimization investment is protected from day one of installation.

Q1: How does the 330101-43-63-90-02-00 contribute to measurable energy savings on a production line? By providing continuous, high-resolution shaft vibration data, this proximity probe enables early detection of mechanical faults that cause motors and rotating equipment to draw excess current. Integrating its output with VFDs, PLCs, and power monitoring modules allows the control system to reduce machine speed or trigger maintenance before energy-wasting fault conditions develop. Plants using condition-based monitoring typically report 10–20% reductions in maintenance-related energy losses.

Q2: Is the 330101-43-63-90-02-00 compatible with third-party DCS and SCADA systems beyond the Bently Nevada 3500 rack? Yes. When paired with the appropriate Bently Nevada 3300 XL Proximitor, the probe outputs a standard analog voltage signal (-18 VDC nominal) that is compatible with virtually any DCS, PLC, or SCADA system capable of reading analog inputs. It has been successfully integrated with Siemens, Rockwell, Honeywell, and ABB control platforms. Confirm your I/O module's input range before installation.

Q3: Can this probe replace an existing 330101 series unit without recalibration? The 330101-43-63-90-02-00 is a direct form-fit-function replacement for other 330101 series probes with matching cable length and connector configuration. When replacing a like-for-like unit in an existing 3300 XL system, recalibration of the proximitor is generally not required, provided the gap voltage is verified and set to the system's nominal operating point (typically -10 VDC) after installation. Always consult the Bently Nevada installation manual for your specific rack configuration.

Q4: What is the pre-shipment testing process and warranty coverage for units supplied by NANKMOS? Every 330101-43-63-90-02-00 unit shipped by NANKMOS undergoes functional verification testing prior to dispatch, including continuity checks, sensitivity verification, and connector integrity inspection. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for same-week dispatch. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
