330102-00-08-50-02-CN Product Description

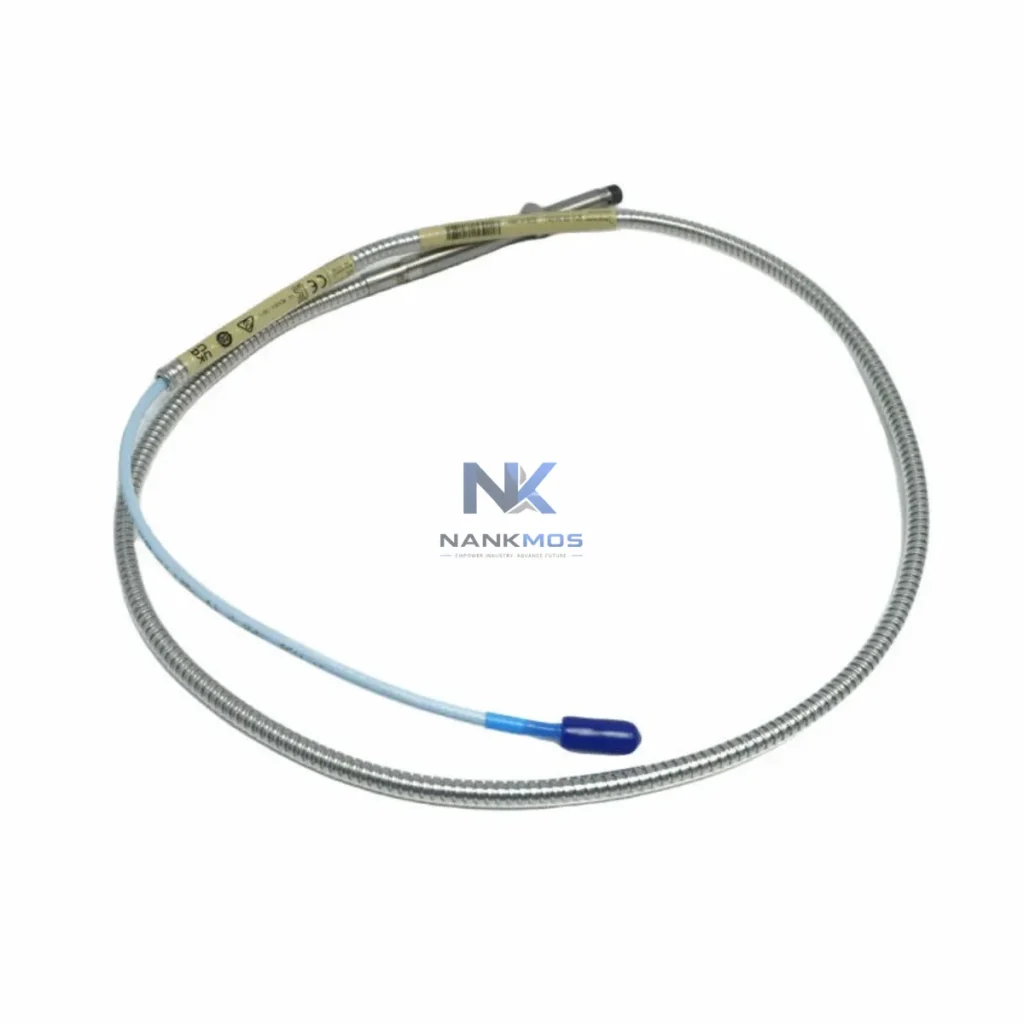

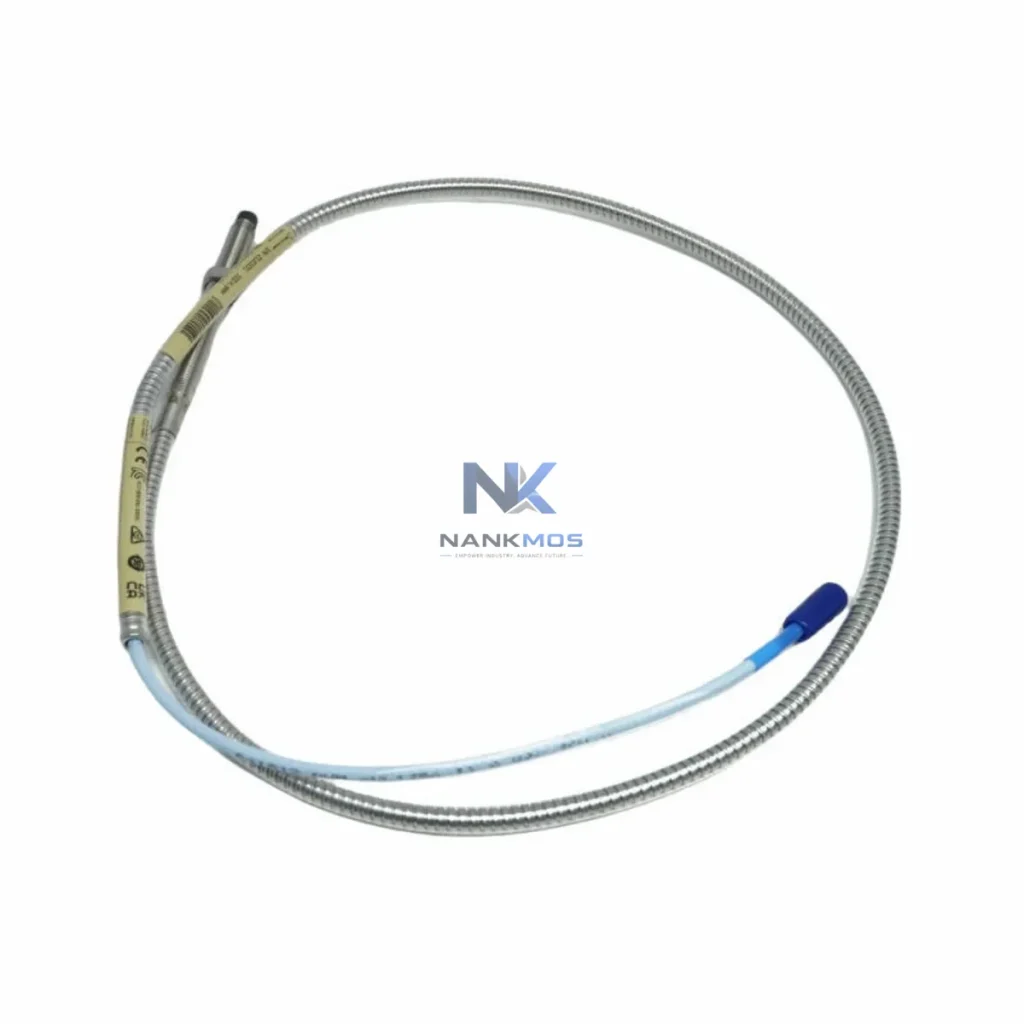

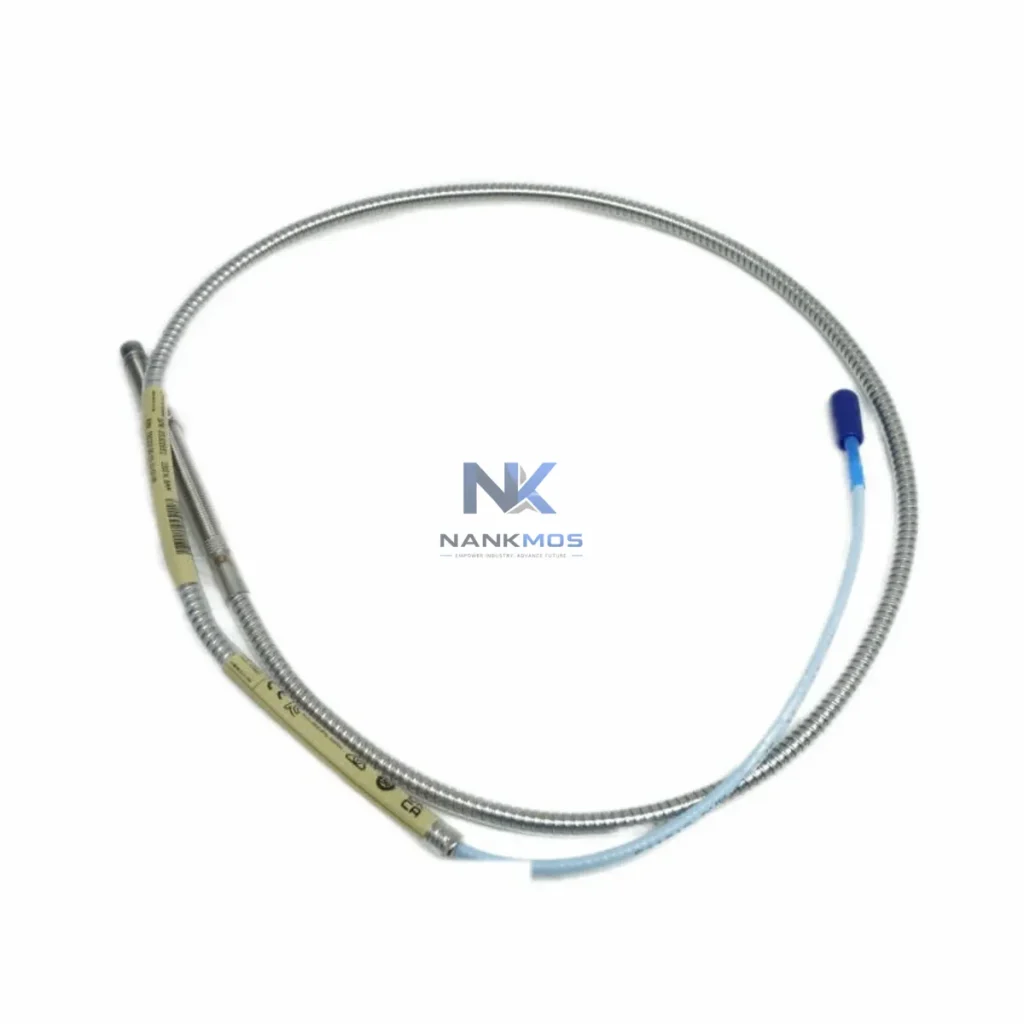

The Bently Nevada 330102-00-08-50-02-CN is an 8mm eddy-current proximity probe engineered for the Bently Nevada 3300 XL Series condition monitoring platform. Designed to operate within high-demand industrial environments, this proximity probe serves as a critical front-end sensing node in the smart factory data chain — converting mechanical shaft displacement and vibration into precise analog signals that feed directly into plant-wide monitoring, control, and diagnostic networks.

In modern automated facilities, reliable vibration data is the foundation of predictive maintenance and operational transparency. The 330102-00-08-50-02-CN integrates seamlessly with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180 series) to deliver conditioned -24 VDC output signals compatible with DCS, PLC, and SCADA input modules. This signal chain enables real-time shaft orbit analysis, gap voltage trending, and alarm threshold management across rotating machinery including turbines, compressors, pumps, and motors.

The 330102-00-08-50-02-CN sits at the very beginning of the industrial data chain. Mounted at the bearing housing of a rotating machine, the probe detects shaft position changes with micron-level resolution. The conditioned signal travels through the coaxial extension cable to the Bently Nevada 330180 Proximitor Sensor, which converts the raw eddy-current response into a calibrated DC voltage output. This voltage is then wired into the Bently Nevada 3300/16 Dual Voting Logic Monitor or equivalent rack-mounted monitor card, where alarm and danger setpoints are configured.

From the monitor rack, the vibration data is transmitted via hardwired analog outputs or digital communication buses to the plant's DCS (Distributed Control System) — for example, a Honeywell Experion PKS or Emerson DeltaV controller — where it is integrated into the process control loop. Simultaneously, the data is routed to a SCADA platform such as GE iFIX or Wonderware InTouch for real-time visualization on operator HMI screens. Trend data, alarm events, and historical waveforms are archived in the Bently Nevada System 1 Condition Monitoring Software, enabling engineers to perform spectrum analysis, orbit plots, and Bode diagrams remotely.

For facilities adopting IIoT architectures, an industrial edge gateway — such as a Moxa MGate or Advantech ADAM-6000 series data acquisition module — can be deployed to convert the analog vibration signal into Modbus TCP or OPC-UA packets, pushing data upstream to cloud-based analytics platforms or MES systems. This enables cross-plant benchmarking, AI-driven anomaly detection, and remote diagnostics without requiring engineers to be physically present on the plant floor.

In multi-machine monitoring scenarios, the 330102-00-08-50-02-CN probes are deployed in arrays across multiple bearing positions, with each probe feeding its own channel in the Bently Nevada 3500 Series Machinery Protection System. The 3500 rack communicates via Modbus RTU or PROFIBUS DP to the plant PLC — such as a Siemens S7-400 or Allen-Bradley ControlLogix — enabling automated shutdown logic when vibration thresholds are exceeded. This closed-loop protection architecture is the backbone of smart factory machinery safety.

Power for the monitoring system is supplied through dedicated industrial DIN-rail power supplies (24 VDC regulated), ensuring stable, noise-free excitation voltage for the Proximitor sensors. Network switches — such as Hirschmann MICE series industrial Ethernet switches — provide the backbone connectivity between monitor racks, edge gateways, and the plant control room, maintaining deterministic data delivery even in electrically noisy environments.

Protocol Fragmentation: Many legacy plants run a mix of 4–20mA analog loops, Modbus RTU serial buses, and newer Ethernet-based protocols. The 330102-00-08-50-02-CN, paired with a protocol gateway, bridges this gap — allowing vibration data from older Bently Nevada monitor racks to be published as OPC-UA nodes readable by modern SCADA and MES platforms without replacing existing infrastructure.

Data Silos: Vibration data trapped in standalone condition monitoring systems cannot contribute to plant-wide optimization. By integrating the 3300 XL proximity probe output into the plant DCS and SCADA network, maintenance and operations teams share a unified data view — eliminating the information gap between condition monitoring specialists and process control engineers.

Remote Monitoring Challenges: For unmanned or remote facilities, real-time vibration alarming via SCADA and edge gateway connectivity means that abnormal shaft behavior triggers immediate notifications to mobile devices or control room dashboards — reducing response time and preventing catastrophic failures.

Production Line Transparency: With vibration trend data continuously logged in System 1 or a historian database, plant managers gain full visibility into machine health KPIs, enabling data-driven maintenance scheduling and reducing unplanned downtime.

System Scalability: The modular design of the 3300 XL platform means additional 330102-00-08-50-02-CN probes can be added to expand monitoring coverage across new machines or bearing positions without redesigning the existing network architecture.

Q1: What communication protocols are supported when integrating the 330102-00-08-50-02-CN into a SCADA system? The probe itself outputs an analog voltage signal. When connected through a Bently Nevada 3500 or 3300 monitor rack, the system supports Modbus RTU, Modbus TCP, PROFIBUS DP, and OPC-UA (via System 1 or third-party gateways), making it compatible with virtually all major SCADA and DCS platforms used in industrial automation.

Q2: How is network stability ensured in high-vibration or electrically noisy plant environments? The 330102-00-08-50-02-CN uses a shielded coaxial cable assembly that rejects electromagnetic interference. Upstream, industrial-grade Ethernet switches with EMI-hardened enclosures maintain deterministic network communication between monitor racks and control systems, ensuring data integrity even in harsh plant conditions.

Q3: Can this proximity probe support remote diagnostics and predictive maintenance workflows? Yes. When integrated with Bently Nevada System 1 software or an OPC-UA-enabled edge gateway, vibration waveform data, gap voltage trends, and alarm histories can be accessed remotely by maintenance engineers. This supports predictive maintenance strategies including spectrum analysis, orbit monitoring, and early fault detection without on-site visits.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? Every 330102-00-08-50-02-CN unit supplied by NANKMOS undergoes pre-shipment functional testing to verify probe sensitivity, cable continuity, and connector integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Our team provides full technical support for installation, commissioning, and system integration queries throughout the warranty period.
