Bently Nevada 330104-12-20-05-02-00

Product Details

330104-12-20-05-02-00 Product Description

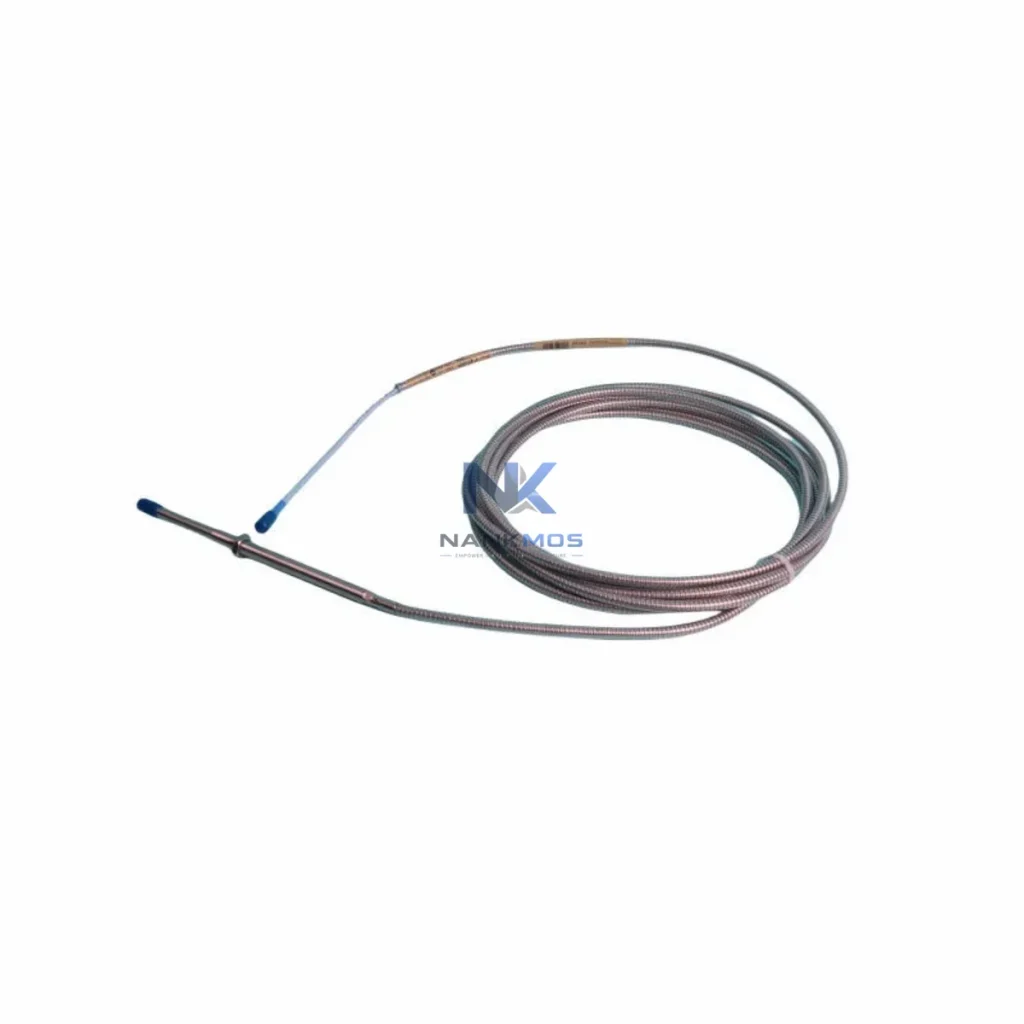

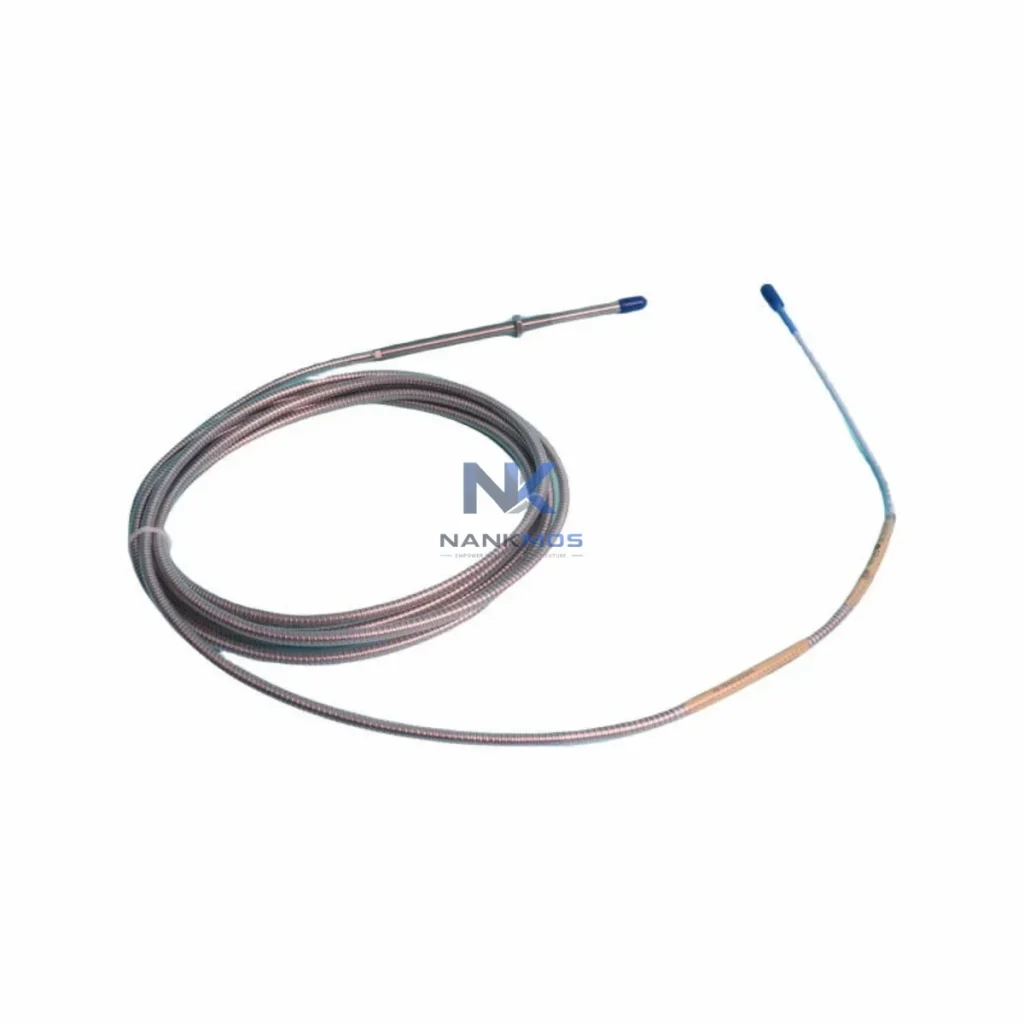

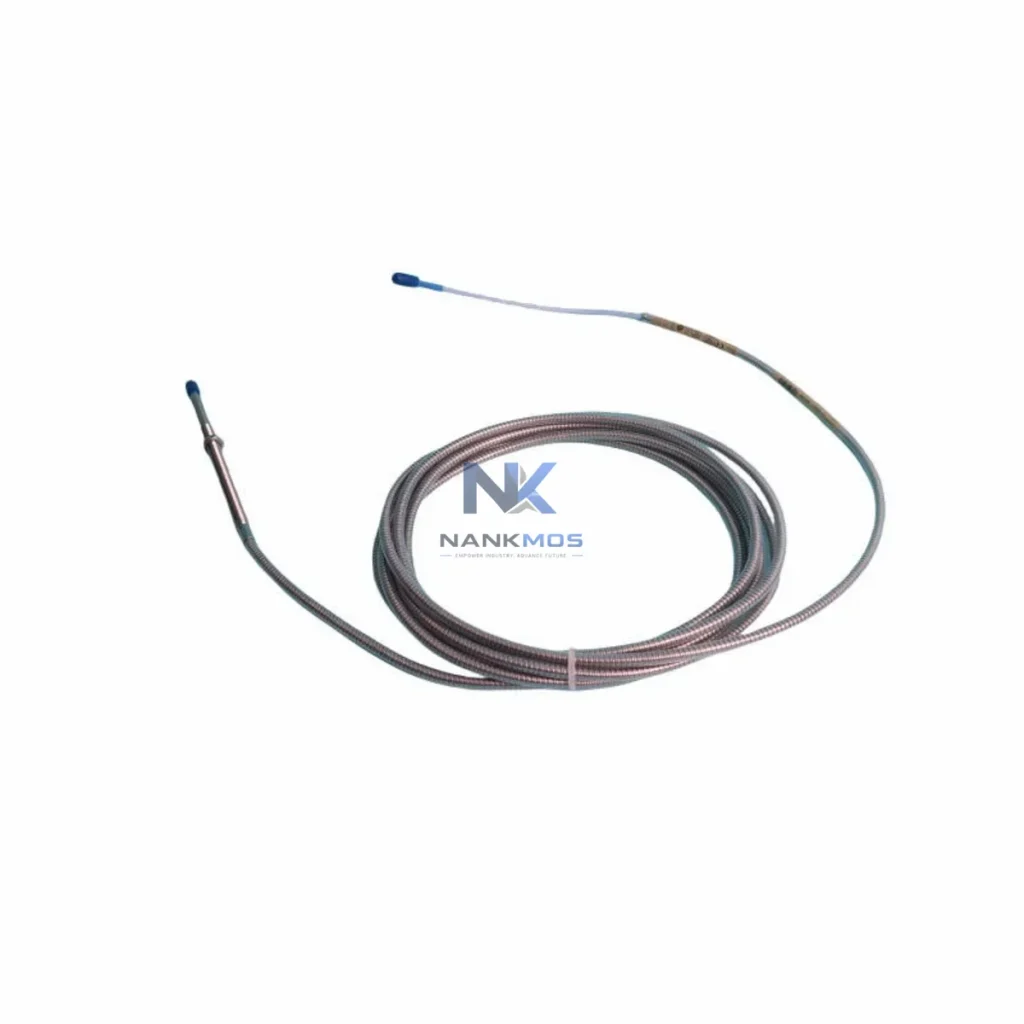

The Bently Nevada 330104-12-20-05-02-00 is a high-precision proximity transducer system engineered for the 3300 Series vibration monitoring platform. Designed for continuous operation in demanding industrial environments, this transducer serves as a critical data acquisition node within smart factory architectures — bridging the gap between rotating machinery, field-level signal conditioning, and upper-layer control and monitoring systems.

In modern industrial facilities, real-time machinery health data must flow seamlessly from field sensors through protocol gateways, industrial networks, and into SCADA and HMI platforms. The 330104-12-20-05-02-00 is purpose-built to anchor this data chain, delivering reliable eddy-current proximity measurements that feed directly into the Bently Nevada 3300 XL 8mm Proximity System and associated signal conditioning modules. Its output integrates naturally with the Bently Nevada 3500 Series Machinery Protection System, enabling plant-wide vibration monitoring with millisecond-level response to abnormal shaft displacement events.

Within a connected factory data architecture, the 330104-12-20-05-02-00 operates as the sensing front-end. Raw proximity signals are conditioned and digitized by the Bently Nevada 3300 RAM Proximitor Sensor, then transmitted via hardwired or network-linked I/O to a Rockwell Automation ControlLogix PLC or Siemens S7-300 controller for real-time process logic. From the PLC layer, data is forwarded through an industrial Ethernet switch — such as those in the Hirschmann MICE or Phoenix Contact FL SWITCH series — to the plant SCADA backbone, where operators monitor shaft position, gap voltage, and vibration amplitude trends on GE iFIX or Wonderware InTouch HMI dashboards.

Protocol translation between legacy 4–20 mA analog outputs and modern Modbus TCP, PROFIBUS DP, or EtherNet/IP networks is handled by dedicated communication gateways such as the Moxa MGate MB3480 or ProSoft Technology MVI56E-MNET, ensuring that the 330104-12-20-05-02-00's measurement data is accessible across heterogeneous control platforms without signal loss or latency penalties. This multi-protocol compatibility is essential in brownfield plant upgrades where legacy Bently Nevada systems must coexist with newer DCS or edge computing infrastructure.

Remote diagnostics capabilities are further enhanced when the transducer's data stream is routed through an edge gateway — such as the Advantech WISE-5000 or Moxa UC-8112 — enabling cloud-based condition monitoring, predictive maintenance analytics, and alarm notification without requiring on-site personnel. Alarm thresholds configured in the 3500 Series rack can trigger automated responses in the SCADA layer, dispatch maintenance work orders, and log timestamped event records for root-cause analysis and regulatory compliance reporting.

For facilities implementing IIoT-ready smart factory strategies, the 330104-12-20-05-02-00 supports full data lifecycle management: from signal acquisition at the machine shaft, through protocol-standardized network transmission, to visualization on operator workstations and historian databases such as OSIsoft PI System. This end-to-end data visibility eliminates information silos, accelerates fault detection, and supports continuous improvement programs across rotating equipment fleets including compressors, turbines, pumps, and motors.

Every unit shipped from NANKMOS undergoes pre-shipment functional verification, including gap voltage output testing, cable continuity checks, and connector integrity inspection, ensuring that the 330104-12-20-05-02-00 arrives ready for immediate installation and commissioning. Backed by a 12-month warranty, this transducer system is available from verified inventory with short lead times to support both planned maintenance schedules and emergency replacement requirements.

The 330104-12-20-05-02-00 sits at the foundation of a layered industrial data architecture. At the field level, the proximity transducer continuously measures shaft radial position and gap voltage on rotating equipment. These analog signals are conditioned by the Bently Nevada 3300 RAM Proximitor Sensor and fed into the Bently Nevada 3500/42M Proximitor/Seismic Monitor module housed in the 3500 Series protection rack.

The 3500 rack communicates alarm and trip status to a Siemens S7-400 PLC via hardwired relay outputs or, in networked installations, through a Bently Nevada 3500/92 Communication Gateway using Modbus TCP over industrial Ethernet. The PLC aggregates machinery protection data alongside process variables from Endress+Hauser Promag flow transmitters and Rosemount 3051 pressure transmitters, forwarding the unified dataset through a managed Cisco IE-3300 industrial Ethernet switch to the plant DCS or SCADA server.

At the supervisory layer, operators interact with real-time shaft displacement trends, vibration spectra, and alarm histories on Emerson Ovation DCS or Honeywell Experion PKS workstations. Historical data is archived in OSIsoft PI Historian for long-term trend analysis, regulatory reporting, and predictive maintenance model training. Remote engineering teams access live machine data through secure VPN tunnels terminating at Moxa EDR-810 industrial security routers, enabling off-site diagnostics without interrupting production.

Industrial sites operating legacy Bently Nevada 3300 Series systems frequently encounter data integration challenges as they modernize toward IIoT and smart factory architectures. The 330104-12-20-05-02-00 addresses several of the most common pain points:

Protocol Fragmentation: Many plants run mixed environments where Bently Nevada analog outputs must coexist with PROFIBUS DP PLCs, Modbus TCP SCADA servers, and EtherNet/IP I/O networks. Protocol gateways such as the Moxa MGate series bridge these domains, ensuring that proximity measurement data reaches every system layer without manual data re-entry or signal degradation.

Data Silos and Production Transparency: Without network-integrated vibration monitoring, machinery health data remains isolated in standalone protection racks, invisible to production management systems. Connecting the 330104-12-20-05-02-00 output through the 3500/92 gateway and into the plant historian eliminates this silo, giving maintenance planners, process engineers, and plant managers unified visibility into equipment condition alongside production KPIs.

Remote Monitoring Limitations: In geographically distributed facilities or unmanned substations, on-site inspection of vibration trends is impractical. Edge gateway integration enables continuous remote monitoring, automated alarm escalation via SMS or email, and remote parameter adjustment — reducing travel costs and enabling faster response to developing faults.

Alarm Tracking and Root-Cause Analysis: Timestamped alarm logs from the 3500 Series rack, synchronized with process historian data, allow engineers to correlate vibration events with upstream process disturbances, load changes, or maintenance activities — accelerating root-cause identification and reducing repeat failures.

System Scalability: As plant expansion adds new rotating equipment, the 330104-12-20-05-02-00 and its associated 3300 Series infrastructure scale incrementally. Additional transducer channels integrate into existing 3500 racks or new rack segments without requiring changes to the SCADA or historian configuration, protecting the existing automation investment.

Q1: Does the 330104-12-20-05-02-00 support direct Modbus TCP or EtherNet/IP communication?The 330104-12-20-05-02-00 is an analog proximity transducer; it does not natively output digital network protocols. Network integration is achieved through the Bently Nevada 3500/92 Communication Gateway or third-party protocol converters such as the Moxa MGate MB3480, which translate the conditioned analog or relay signals into Modbus TCP, PROFIBUS DP, or EtherNet/IP for SCADA and PLC consumption.

Q2: What is the typical communication latency when integrating with a SCADA system?When routed through the 3500/92 gateway over a dedicated industrial Ethernet network, Modbus TCP polling cycles of 100–500 ms are typical, providing near-real-time machinery health data to SCADA and historian systems. Latency is primarily determined by network topology, polling frequency configuration, and SCADA server scan rates rather than the transducer itself.

Q3: Is the 330104-12-20-05-02-00 compatible with third-party PLC and DCS platforms?Yes. Via appropriate signal conditioning and protocol gateway hardware, the 330104-12-20-05-02-00 integrates with Siemens S7, Rockwell ControlLogix, ABB System 800xA, Emerson DeltaV, Honeywell Experion, and other major control platforms. The 4–20 mA analog output is universally compatible with standard analog input modules across all major PLC and DCS families.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed?Every 330104-12-20-05-02-00 unit shipped by NANKMOS undergoes pre-shipment verification including gap voltage output measurement, cable and connector integrity testing, and visual inspection per Bently Nevada specifications. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by NANKMOS technical staff with direct replacement from verified inventory stock.
