Bently Nevada 330400-01-00 Proximity Transducer

Product Details

330400-01-00 Product Description

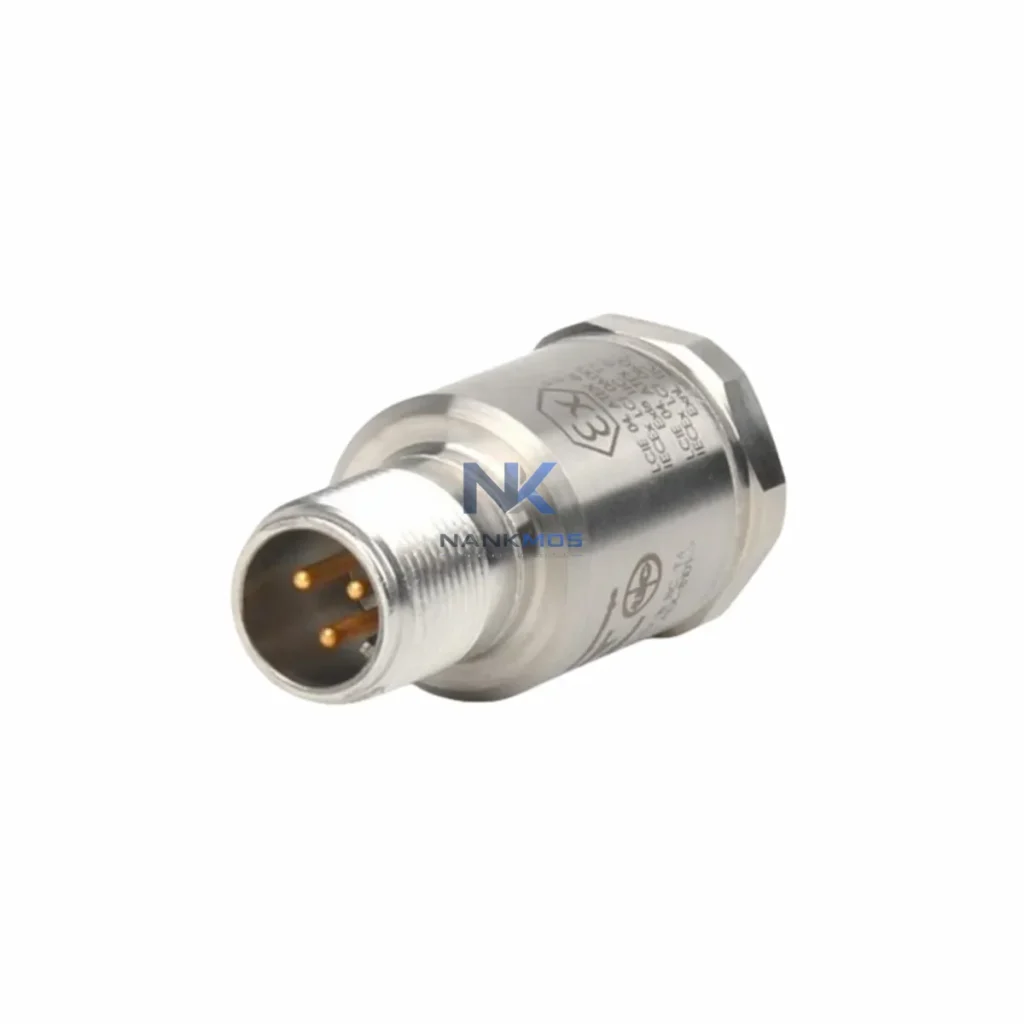

The Bently Nevada 330400-01-00 is a precision eddy-current proximity transducer engineered as a core sensing element within the 3300 XL Machinery Protection System architecture. Designed for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion, this transducer delivers the signal fidelity and mechanical reliability demanded by rotating machinery protection systems in critical industrial environments. Its role extends beyond simple sensing — it functions as the primary data acquisition node in a layered control and protection hierarchy, feeding calibrated analog signals to monitor modules, safety logic solvers, and plant-wide condition monitoring platforms.

In a complete 3300 XL system deployment, the 330400-01-00 operates in close coordination with the 3300 XL monitor rack, the 3500/42M Proximitor I/O Module, and the 3500/22M Transient Data Interface. Signal conditioning is handled upstream by the 330180-91-05 Proximitor Sensor, which converts the raw eddy-current gap signal into a calibrated voltage output compatible with the 3300 XL monitor's input range. This architecture ensures that every vibration event — from minor imbalance to catastrophic bearing failure — is captured with the resolution and latency required for real-time protection logic.

The 330400-01-00 is not a standalone sensor — it is a precision instrument that derives its full value from contextual integration within the Bently Nevada 3300 XL and 3500 Series ecosystem. In a typical turbomachinery protection architecture, the transducer is paired with the 330180-91-05 Proximitor Sensor to form a complete eddy-current measurement chain. The conditioned signal is then routed to a 3500/42M Proximitor I/O Module housed within the 3500 Series rack, where it is digitized, compared against alarm setpoints, and transmitted to the plant DCS or safety instrumented system via the 3500/92 Communication Gateway Module.

For plants running GE's System 1 Condition Monitoring and Diagnostics Software, the 330400-01-00 feeds continuous waveform data into the historian, enabling spectrum analysis, orbit plots, and trend-based predictive maintenance. In redundant protection architectures, dual-transducer configurations are supported, with each channel independently monitored by separate 3500/40M Proximitor Monitor cards to eliminate single-point failure risk at the sensing layer.

Power distribution to the monitor rack is managed by the 3500/15 Power Supply Module, which provides regulated DC power to all I/O and communication modules. For installations requiring fieldbus integration, the 3500/92 Modbus TCP Gateway bridges the 3500 rack to plant-level SCADA systems, enabling alarm annunciation and data logging without additional signal converters. In high-vibration or high-temperature environments, the transducer cable is protected using Bently Nevada-approved armored extension cables, maintaining signal integrity across long cable runs to the monitor rack.

Where HMI visibility is required at the machine skid level, the 330400-01-00 signal chain integrates with panel-mounted displays or connects to GE Proficy HMI/SCADA via OPC-DA or OPC-UA data bridges, providing operators with real-time shaft position and vibration amplitude readouts. This multi-layer integration — from the transducer tip to the control room display — defines the contextual integration value of the 330400-01-00 in a modern industrial automation architecture.

Power Generation: In gas turbine and steam turbine protection systems, the 330400-01-00 monitors rotor radial vibration and axial thrust position continuously. Any exceedance of alarm or danger setpoints triggers automatic shutdown sequences via the turbine control system, preventing catastrophic bearing or seal failures. The transducer's wide operating temperature range makes it suitable for hot-section installations near bearing pedestals.

Oil & Gas and Petrochemical: Centrifugal compressors and high-speed pumps in refinery and LNG plant applications rely on the 330400-01-00 for API 670-compliant machinery protection. The transducer's non-contact measurement principle eliminates wear and ensures continuous availability in processes where unplanned shutdowns carry significant safety and financial consequences.

Mining and Metallurgy: Large induced draft fans, ball mills, and conveyor drive motors in mining operations benefit from the 330400-01-00's robust construction and resistance to contamination. Integrated with the 3500 Series monitor rack, it provides early warning of imbalance, misalignment, and bearing degradation, supporting condition-based maintenance programs that reduce unplanned downtime.

Marine and Offshore: Shipboard propulsion turbines and auxiliary machinery systems require vibration monitoring solutions that meet DNV, ABS, or Lloyd's Register classification requirements. The 330400-01-00, as part of a certified 3300 XL or 3500 Series system, satisfies these requirements while providing the signal stability needed in high-vibration marine environments.

Water and Wastewater: High-capacity pump stations and blower systems in municipal water treatment facilities use proximity transducers to monitor shaft condition and detect early-stage bearing failures. The 330400-01-00's compatibility with System 1 software enables remote diagnostics and trend analysis, reducing the need for on-site inspection in unmanned pump stations.

Q1: Is the 330400-01-00 compatible with both the 3300 XL and 3500 Series monitor racks? Yes. The 330400-01-00 is designed for use within the Bently Nevada 3300 XL Machinery Protection System and is also compatible with 3500 Series monitor modules, including the 3500/40M and 3500/42M Proximitor Monitor cards. When paired with the appropriate Proximitor Sensor (such as the 330180-91-05), the complete measurement chain meets the input specifications of both monitor platforms. Always verify the extension cable length and connector type match the target monitor module's input requirements before installation.

Q2: What are the key considerations for installing the 330400-01-00 in a redundant protection architecture? In redundant configurations, two 330400-01-00 transducers are typically installed at 90° to each other (X-Y orientation) on the same bearing journal, each connected to an independent monitor channel. This eliminates single-point failure at the sensing layer and enables orbit plot generation for advanced diagnostics. Cable routing should ensure physical separation between redundant channels to prevent common-cause failures. The 3500/40M monitor supports dual-channel inputs with independent alarm logic, making it the recommended pairing for redundant proximity transducer installations.

Q3: What warranty and supply chain support is available for the 330400-01-00? All 330400-01-00 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing to verify sensitivity, linearity, and output signal integrity before dispatch. Stock is maintained for rapid fulfillment to minimize machinery downtime. For long-term maintenance planning, NANKMOS can advise on recommended spare quantities based on fleet size and criticality classification, and can source complementary components including Proximitor Sensors, extension cables, and monitor modules from the same 3300 XL and 3500 Series platforms.
