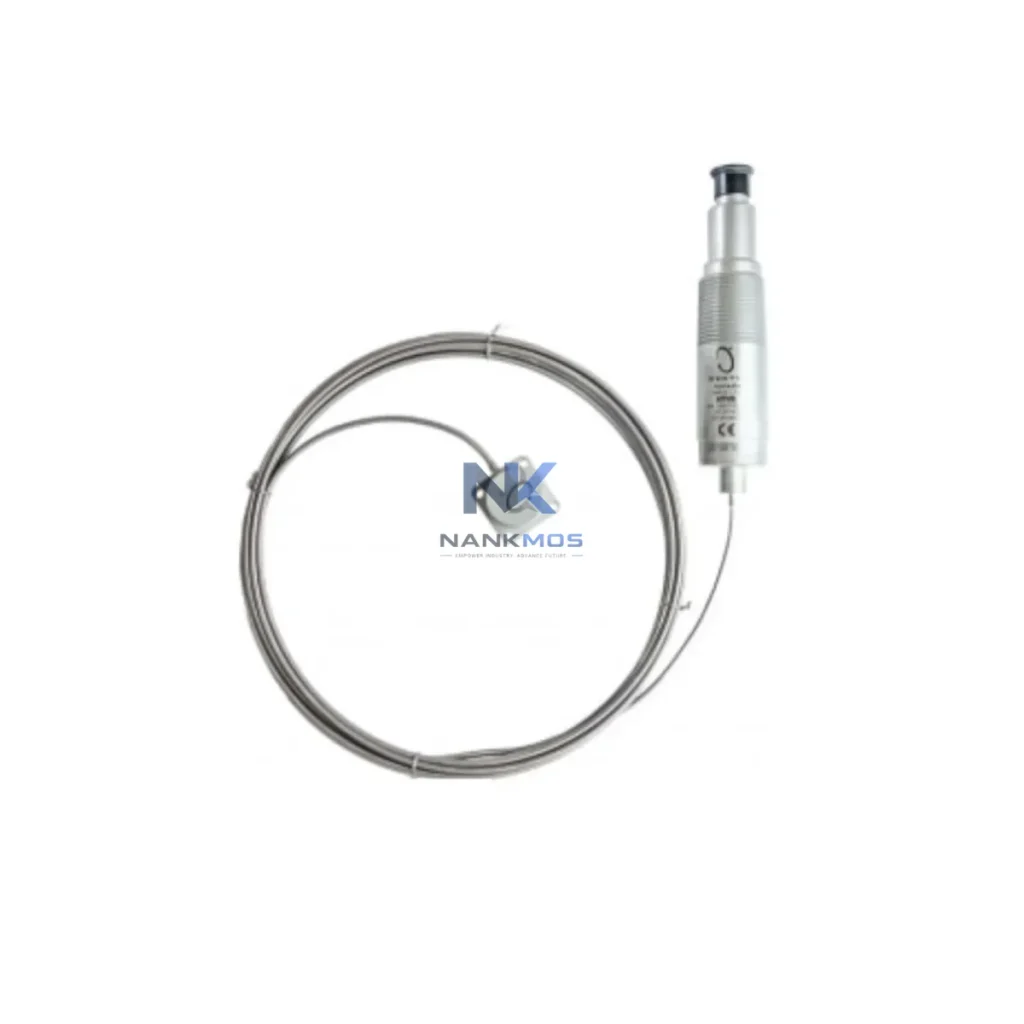

Bently Nevada 330425-01-05 Accelerometer Transducer

Product Details

330425-01-05 Product Description

The Bently Nevada 330425-01-05 is a high-performance accelerometer transducer engineered for seamless integration within the Bently Nevada 3500 Series machinery protection architecture. Designed to deliver precise vibration measurement across rotating and reciprocating machinery, this transducer serves as a critical sensing node within a layered industrial control system — bridging the physical process layer with the monitoring, protection, and diagnostic layers of a complete automation platform. Its system-matched design ensures signal integrity, architectural consistency, and long-term operational reliability across demanding industrial environments including power generation, oil and gas, petrochemical processing, and heavy manufacturing.

Unlike generic vibration sensors, the 330425-01-05 is purpose-built for contextual integration within the 3500 rack-based monitoring system. It delivers conditioned acceleration signals compatible with the 3500/42M Proximitor/Seismic Monitor module, enabling direct plug-and-play deployment without signal conditioning adapters or custom wiring modifications. This reduces commissioning time, eliminates signal chain ambiguity, and ensures that the monitoring system operates within its validated calibration envelope from day one.

The 330425-01-05 accelerometer does not operate in isolation — it functions as a precision input node within a multi-layer automation and protection architecture. In a fully integrated 3500 Series deployment, this transducer feeds vibration data into the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which processes the signal and triggers protection logic within the rack. The rack itself is managed through the 3500/20 Rack Interface Module (RIM), which handles communication between the monitoring rack and the plant DCS or SCADA layer via Modbus TCP or OPC-DA/UA protocols.

At the control layer, the 3500 system integrates with platforms such as the GE Mark VIe turbine control system or third-party DCS platforms, where vibration alarm and trip signals are mapped to control logic for automated shutdown sequences. The 3500/15 Power Supply Module provides stable, redundant DC power to the rack, ensuring that transducer excitation and signal conditioning remain uninterrupted during grid disturbances or switchover events.

For proximity-based displacement monitoring on the same shaft, the 330425-01-05 is commonly deployed alongside Bently Nevada 330180-X1-05 proximity probes and their associated 3300 XL 8mm Proximitor sensors, creating a complementary measurement architecture that captures both absolute vibration (via accelerometer) and relative shaft displacement (via eddy-current proximity). This dual-measurement approach is standard in API 670-compliant machinery protection systems for steam turbines, gas compressors, and large centrifugal pumps.

At the field wiring layer, Bently Nevada 3500/92 TMR Communications Gateway modules enable triple modular redundancy (TMR) architectures, where three independent signal paths are voted to eliminate single-point failures. The 330425-01-05 is compatible with TMR wiring configurations, supporting 2oo3 voting logic for critical protection applications. Junction boxes with Bently Nevada I/O modules and shielded instrumentation cable (typically Belden 83503 or equivalent) complete the field wiring layer, maintaining signal integrity over long cable runs in electrically noisy environments.

For HMI and operator visibility, vibration trend data from the 330425-01-05 is surfaced through System 1 Evolution (GE Vernova / Bently Nevada's condition monitoring software), where engineers configure alarm setpoints, trend plots, and predictive maintenance workflows. Integration with OSIsoft PI or Aspentech Mtell platforms extends the diagnostic value of the accelerometer data into enterprise-level asset performance management systems.

Power Generation: In gas turbine and steam turbine protection systems, the 330425-01-05 monitors casing vibration at bearing housings, providing the seismic channel required by API 670 for overspeed and high-vibration trip logic. It is deployed alongside proximity probes on the same shaft to provide a complete vibration picture for operators and protection engineers.

Oil, Gas & Petrochemical: On centrifugal compressors and process pumps in upstream and downstream facilities, this accelerometer provides continuous vibration monitoring at critical bearing locations. Its rugged industrial housing withstands the high-temperature, high-humidity, and chemically aggressive environments typical of refinery and LNG processing installations.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water infrastructure benefit from continuous seismic monitoring. The 330425-01-05 enables early detection of bearing wear, imbalance, and misalignment — reducing unplanned downtime in facilities where redundancy is limited and maintenance windows are narrow.

Mining & Metallurgy: Ball mills, SAG mills, and large conveyor drive systems in mining operations generate complex vibration signatures. The 330425-01-05, integrated into a 3500 Series rack, provides the high-frequency acceleration data needed to distinguish structural resonance from bearing defect frequencies — enabling condition-based maintenance scheduling rather than time-based replacement.

Marine & Offshore: On offshore platforms and LNG carriers, machinery protection systems must meet classification society requirements (DNV, ABS, Lloyd's Register). The 330425-01-05 supports these deployments with its robust construction and compatibility with the 3500 Series' certified protection architecture.

Q1: Is the 330425-01-05 directly compatible with the Bently Nevada 3500/42M monitor module without additional signal conditioning? Yes. The 330425-01-05 is system-matched to the 3500/42M Proximitor/Seismic Monitor and connects directly via standard Bently Nevada field wiring conventions. No external signal conditioners or impedance-matching devices are required. Verify the channel configuration in the 3500 Rack Configuration Software (RCS) to ensure the input type is set to "Seismic/Accelerometer" and the sensitivity value matches the transducer's calibrated output (mV/g) before commissioning.

Q2: Can this accelerometer be used in a TMR (Triple Modular Redundancy) protection architecture? Yes. The 330425-01-05 supports TMR wiring configurations when used with the Bently Nevada 3500/92 TMR Communications Gateway and appropriately configured I/O modules. In a TMR deployment, three independent accelerometer channels are wired to three separate monitor modules, and the 3500 system applies 2oo3 voting logic to determine alarm and trip states. This eliminates single-point failures in the sensing layer and is standard practice for critical rotating machinery in power generation and petrochemical applications.

Q3: What warranty and supply assurance does NANKMOS provide for the 330425-01-05? NANKMOS provides a 12-Month Warranty on all verified stock of the Bently Nevada 330425-01-05. Each unit undergoes pre-shipment functional verification before dispatch. Global shipping is supported with lead times confirmed at order placement. For critical spares programs or multi-unit procurement, contact NANKMOS directly at [email protected] or +86 18359268345 to discuss inventory reservation, expedited shipping, and long-term supply agreements.
