Bently Nevada 330500-05-02 Velocity Sensor

Product Details

330500-05-02 Product Description

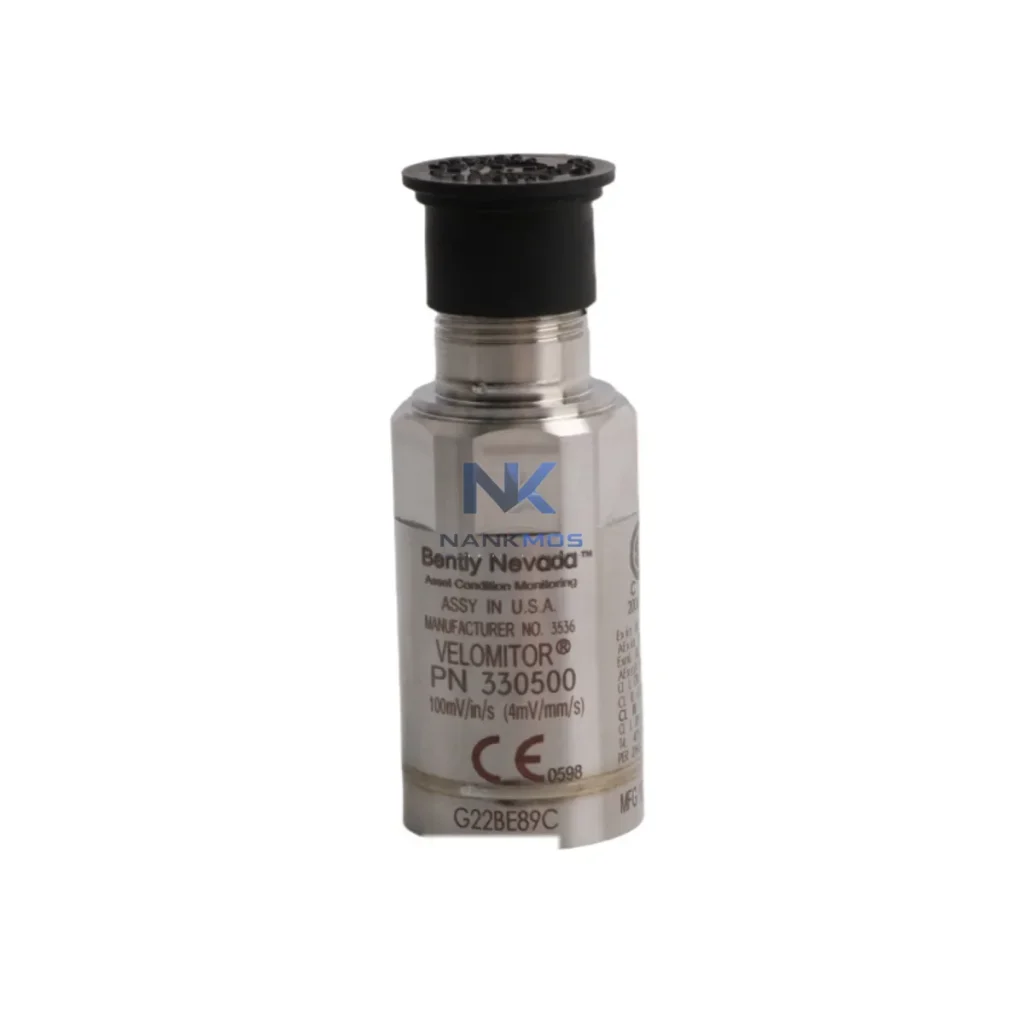

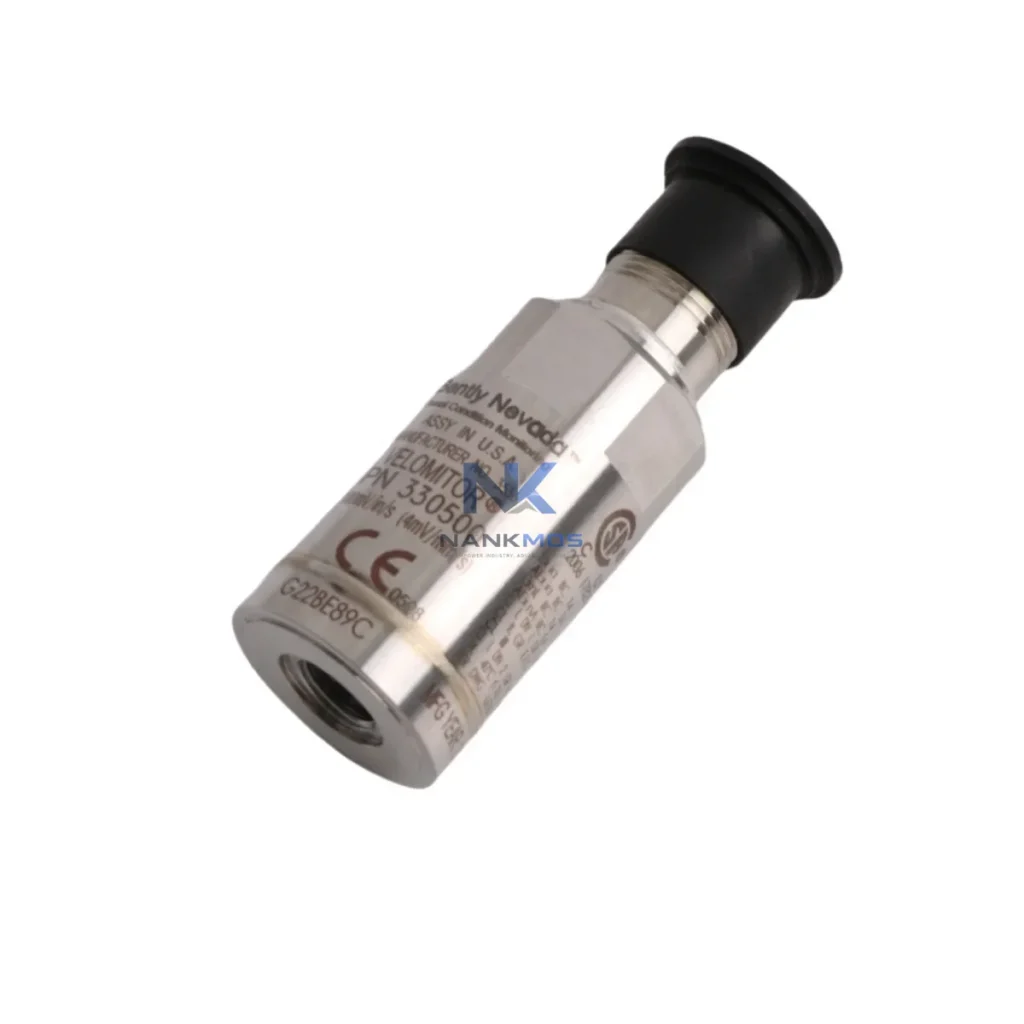

The Bently Nevada 330500-05-02 Velomitor Piezo Velocity Sensor is a precision vibration measurement device engineered for continuous, real-time machinery health monitoring in demanding industrial environments. Designed to integrate seamlessly into the Bently Nevada 3500 Series Machinery Protection System rack, this sensor delivers reliable 4-20mA analog output signals that serve as the foundational data source for smart factory automation chains — from field-level signal acquisition through protocol conversion, network transmission, SCADA visualization, and remote diagnostics.

In modern industrial facilities — including power generation plants, petrochemical refineries, oil and gas compressor stations, water treatment infrastructure, and marine propulsion systems — the 330500-05-02 functions as a critical front-end node in the plant-wide data architecture. Its piezoelectric sensing element captures broadband velocity signals across rotating equipment such as turbines, pumps, compressors, fans, and motors, converting mechanical vibration into a stable analog current loop that feeds directly into the 3500 rack's I/O modules.

The 330500-05-02 Velomitor sensor anchors the signal acquisition layer of a connected factory data flow. Once installed on a rotating machine bearing housing, it transmits a continuous 4-20mA velocity signal into the Bently Nevada 3500/20 Rack Interface Module, which aggregates multi-channel vibration data across the 3500 rack chassis. The rack's internal processing compares live readings against pre-configured alarm setpoints — alert, danger, and trip thresholds — and triggers relay outputs or digital status flags accordingly.

From the 3500 rack, data is forwarded via the Bently Nevada 3500/92 Communication Gateway Module, which supports Modbus RTU and Modbus TCP/IP protocols. This enables direct integration with Siemens S7-300/S7-400 PLCs or Allen-Bradley ControlLogix controllers over an industrial Ethernet backbone. Plant engineers can configure the PLC to poll vibration data at defined intervals, feeding it into the broader automation logic for condition-based maintenance triggers or process interlocks.

For facilities running distributed control systems, the 3500 rack gateway output connects to DCS I/O cards via hardwired 4-20mA loops or through Modbus TCP over managed industrial Ethernet switches — such as those in the Hirschmann MICE or Phoenix Contact FL SWITCH series — ensuring deterministic, low-latency data delivery across the plant network. Remote I/O modules, such as Beckhoff EtherCAT terminals or Wago 750 Series fieldbus couplers, can also aggregate the analog signal for integration into edge computing nodes.

At the SCADA and HMI layer, Bently Nevada System 1 software provides OPC-UA server functionality, allowing real-time vibration trend data from the 330500-05-02 to be consumed by Wonderware InTouch, Ignition SCADA, or Siemens WinCC HMI platforms. Operators gain live dashboards displaying velocity amplitude, trend history, alarm states, and machine health indices — all sourced from the Velomitor sensor's continuous output. Edge gateways such as the Moxa MGate MB3000 series can further bridge legacy Modbus RTU devices to modern OPC-UA or MQTT-based IIoT platforms, extending the 330500-05-02's data reach to cloud analytics or MES systems without replacing existing infrastructure.

Variable frequency drives (VFDs) controlling the monitored rotating equipment can also be networked alongside the 3500 rack system. By correlating VFD speed reference signals with Velomitor vibration amplitude data, maintenance teams can identify resonance conditions, bearing defects, or imbalance faults at specific operating speeds — enabling predictive maintenance workflows that reduce unplanned downtime and extend equipment service life.

Many industrial sites operate with fragmented instrumentation architectures — legacy analog sensors feeding standalone protection panels, disconnected from plant-wide SCADA or historian systems. The Bently Nevada 330500-05-02, when deployed within the 3500 rack ecosystem, directly addresses these data gaps by providing a structured, protocol-ready signal path from the machine to the control room and beyond.

Protocol Fragmentation: Sites running mixed Modbus RTU, Profibus DP, and Ethernet/IP environments can unify vibration data through the 3500/92 Communication Gateway, which translates the sensor's analog output into a standardized digital protocol consumable by any modern PLC or DCS without custom signal conditioning hardware.

Data Silos: Isolated protection systems that only trigger alarms without logging trend data are replaced by a fully networked 3500 rack configuration that streams continuous vibration history to System 1 or third-party historians (OSIsoft PI, Aspentech IP.21), enabling long-term trend analysis and failure mode correlation.

Remote Monitoring Gaps: For unmanned substations, offshore platforms, or remote pump stations, the 330500-05-02 integrated with a 3500 rack and Moxa cellular gateway enables remote vibration monitoring over 4G/LTE or satellite links, delivering alarm notifications and trend data to central maintenance teams without on-site personnel.

Production Line Transparency: By feeding Velomitor data into MES or ERP systems via OPC-UA, plant managers gain real-time visibility into equipment health KPIs alongside production throughput metrics — enabling data-driven decisions on maintenance scheduling, spare parts procurement, and production planning.

Alarm Tracking and Audit: The 3500 rack's event log, accessible via System 1, records all alarm activations, setpoint changes, and communication faults with timestamps — providing a complete audit trail for regulatory compliance, insurance documentation, and root cause analysis after machinery incidents.

Q1: What communication protocols does the Bently Nevada 330500-05-02 support for SCADA integration?The 330500-05-02 outputs a standard 4-20mA analog signal. When installed in a Bently Nevada 3500 rack with the 3500/92 Communication Gateway Module, the system supports Modbus RTU, Modbus TCP/IP, and OPC-UA (via System 1 software), enabling direct integration with all major SCADA, DCS, and HMI platforms including Ignition, Wonderware, and Siemens WinCC.

Q2: How is network stability ensured when transmitting vibration data over industrial Ethernet?The 3500 rack architecture uses deterministic Modbus TCP polling with configurable scan rates, ensuring consistent data delivery even on congested plant networks. Managed industrial switches with QoS prioritization and redundant ring topologies (e.g., RSTP/MRP) further protect data integrity. The 330500-05-02's 4-20mA output is inherently noise-immune over long cable runs, minimizing signal degradation before digitization at the rack.

Q3: Can the system be expanded to monitor additional machines without replacing existing infrastructure?Yes. The 3500 rack is modular — additional I/O modules (e.g., 3500/40M, 3500/42M) can be added to the same chassis to accommodate more Velomitor sensors or other transducer types (proximity probes, accelerometers). The Communication Gateway scales accordingly, and System 1 software supports multi-rack configurations across a single plant network, making the 330500-05-02 a future-proof investment for expanding condition monitoring programs.

Q4: What pre-shipment testing and warranty coverage is provided?Every Bently Nevada 330500-05-02 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify output signal accuracy, frequency response, and connector integrity before dispatch. All units are covered by a 12-month warranty against manufacturing defects. In-stock units are available for immediate shipment, with documentation packages available upon request for quality assurance and maintenance records.
