Bently Nevada 330500-08-01 Piezo-velocity Vibration Sensor

Product Details

330500-08-01 Product Description

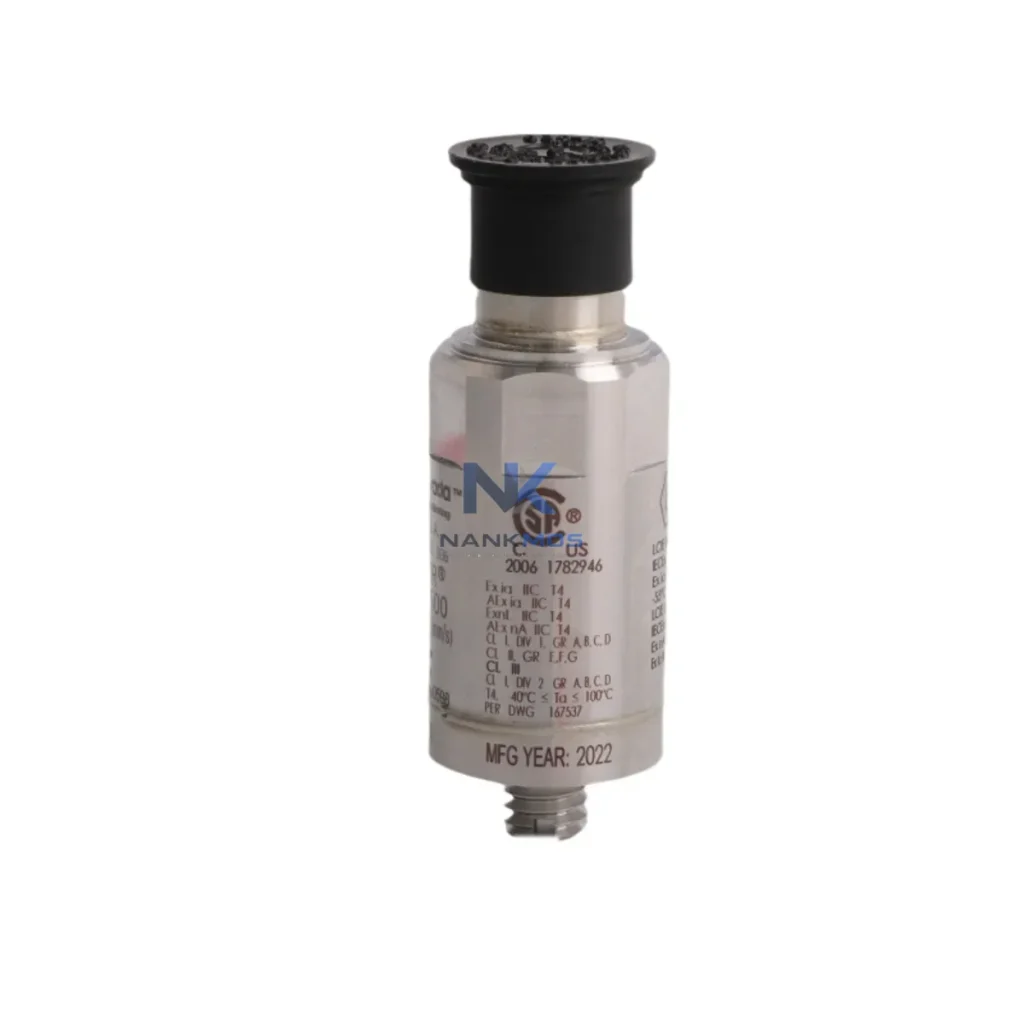

The Bently Nevada 330500-08-01 is a Velomitor piezo-velocity vibration sensor engineered for direct integration into the Bently Nevada 3500 Series Machinery Protection System. Designed to deliver high-fidelity velocity signal output across a broad frequency range, this sensor serves as a critical node in the vibration monitoring layer of rotating equipment protection architectures. Its robust construction and calibrated output make it a preferred choice for engineers specifying continuous online monitoring solutions in power generation, petrochemical processing, oil and gas compression, water treatment, and heavy industrial environments.

Unlike conventional accelerometers that require signal conditioning for velocity output, the 330500-08-01 delivers a direct velocity signal in inches per second (IPS) or millimeters per second (mm/s), eliminating the need for additional integration hardware in most 3500 rack configurations. This simplifies wiring, reduces panel footprint, and improves signal integrity across long cable runs — a key advantage in large-scale plant installations where cable distances between machinery and the control room can exceed 300 meters.

Within a complete automation architecture, the 330500-08-01 operates at the field sensing layer, feeding real-time vibration data upward through the I/O layer into the 3500 monitoring rack. The rack's modular design — accommodating cards such as the 3500/42M Proximitor/Seismic Monitor Module and the 3500/40M Proximitor/Seismic Monitor — processes the velocity signal and compares it against user-configured alert and danger setpoints. When thresholds are exceeded, the system triggers relay outputs connected to the protection layer, initiating controlled shutdowns or alarm annunciation through the plant DCS or SCADA platform.

System engineers integrating the 330500-08-01 into a 3500 rack architecture benefit from its compatibility with the 3500/20 Rack Interface Module, which provides the communication backbone between the monitoring rack and host systems via Modbus RTU, Modbus TCP/IP, or OPC-DA/UA protocols. This enables seamless data flow to historian platforms, condition monitoring software such as System 1 Evolution, and plant-level SCADA systems — supporting predictive maintenance strategies and reducing unplanned downtime.

The sensor's piezo-velocity technology provides a flat frequency response across the 10 Hz to 1,000 Hz range, making it suitable for monitoring both low-speed and high-speed rotating machinery including steam turbines, gas compressors, centrifugal pumps, fans, and gearboxes. Its integrated signal conditioning circuit eliminates the need for external charge amplifiers, and its 4-20 mA or voltage output options allow direct connection to 3500 series I/O modules without additional signal converters.

From an installation and commissioning perspective, the 330500-08-01 is designed for straightforward field deployment. Its standard mounting thread and compact body allow installation in tight machinery housings, and its IP67-rated enclosure ensures reliable operation in environments with high humidity, washdown exposure, or airborne particulates. Pre-shipment testing is conducted on every unit prior to dispatch, verifying output linearity, frequency response, and connector integrity — ensuring that field commissioning proceeds without signal anomalies or calibration deviations.

Long-term maintenance efficiency is a core design consideration. The sensor's solid-state piezo-velocity element has no moving parts, minimizing wear and extending service intervals. When paired with the 3500 rack's built-in self-test and diagnostic capabilities — accessible via the 3500/22M Transient Data Interface or the rack's front-panel display — maintenance teams can verify sensor health, cable continuity, and signal quality without removing the sensor from service. This supports condition-based maintenance programs and reduces the labor cost of scheduled inspections.

For redundant architecture deployments, the 330500-08-01 can be installed alongside proximity transducer systems — such as the 3300 XL 8mm Proximity Transducer System or the 330180 Series Proximity Transducer — to provide complementary vibration measurement modalities. Velocity sensors capture absolute vibration (casing motion), while proximity probes measure relative shaft displacement, together providing a complete picture of rotor and structural dynamics. This dual-sensor approach is standard practice in API 670-compliant machinery protection systems for critical rotating equipment.

All units are supplied with a 12-Month Warranty covering manufacturing defects, output calibration, and connector integrity. Stock is maintained for immediate dispatch, supporting both planned procurement cycles and emergency replacement requirements. Each unit is individually tested and documented prior to shipment.

The 330500-08-01 Velomitor sensor is most effective when deployed as part of a fully integrated Bently Nevada 3500 Series architecture. A typical system configuration includes the 3500/20 Rack Interface Module as the communication gateway, providing Modbus TCP/IP and OPC-UA connectivity to plant DCS and SCADA platforms. The 3500/42M Proximitor/Seismic Monitor Module processes the velocity signal from the 330500-08-01 alongside proximity probe inputs, enabling simultaneous absolute and relative vibration monitoring on the same rack slot.

Power distribution within the rack is managed by the 3500/15 Power Supply Module, which provides redundant 24 VDC rails to all installed monitor cards, ensuring continuous operation during single power supply failures. For shaft displacement monitoring on the same machine train, the 330180-91-05 Proximity Transducer and 3300 XL 8mm Proximitor Driver are commonly installed in adjacent rack slots, sharing the same rack backplane and communication infrastructure.

At the HMI and data management layer, System 1 Evolution condition monitoring software aggregates velocity, displacement, and process data from the 3500 rack, providing trend analysis, alarm management, and predictive maintenance dashboards. For installations requiring transient data capture during machine startup and shutdown, the 3500/22M Transient Data Interface records high-resolution waveform data, enabling detailed rotor dynamic analysis by rotating equipment engineers.

In control cabinet configurations, the 330500-08-01 signal cables are typically terminated at 3500 Series I/O Terminal Blocks, which provide screw-terminal or spring-clamp connections for field wiring. Signal isolation between the sensor circuit and the rack input is maintained through the monitor module's built-in isolation barrier, eliminating ground loop interference in multi-machine installations. For plants integrating the 3500 rack into a broader Emerson DeltaV or Honeywell Experion DCS environment, the 3500/20 Rack Interface Module's OPC-UA server capability enables direct tag subscription without additional protocol converters.

Redundant architecture designs for critical machinery — such as main steam turbines or gas compression trains — typically pair the 330500-08-01 with a second velocity sensor on the opposite bearing housing, with both inputs processed by separate monitor modules within the same rack. This dual-channel redundancy ensures that a single sensor failure does not result in loss of machinery protection coverage, maintaining API 670 compliance throughout the equipment lifecycle.

Power Generation: In steam turbine and gas turbine installations, the 330500-08-01 monitors casing vibration at bearing housings, providing early warning of rotor imbalance, misalignment, and bearing degradation. Integrated with the 3500 rack and plant DCS, velocity data is used to trigger controlled load reduction or emergency shutdown before machinery damage occurs.

Petrochemical and Oil & Gas: Centrifugal compressors and high-speed pumps in refinery and upstream processing environments operate under variable load conditions that generate complex vibration signatures. The 330500-08-01's broad frequency response captures both fundamental and harmonic vibration components, supporting condition-based maintenance programs that reduce unplanned shutdowns and extend equipment overhaul intervals.

Water Treatment and Municipal Utilities: Large centrifugal pumps and blower units in water treatment facilities benefit from continuous vibration monitoring to detect cavitation, impeller wear, and bearing failure. The sensor's IP67 rating ensures reliable operation in high-humidity pump rooms and outdoor installations.

Mining and Minerals Processing: Conveyor drives, ball mill pinion bearings, and crusher main shafts generate high-amplitude, low-frequency vibration that the 330500-08-01 captures accurately within its 10–1,000 Hz operating range. Integration with the 3500 rack enables centralized monitoring of multiple machine trains from a single control room workstation.

Marine Propulsion and Offshore: Shipboard propulsion systems and offshore platform compressors require vibration monitoring solutions that meet marine classification society requirements. The 330500-08-01's robust construction and IP67 enclosure support installation in engine rooms and machinery spaces subject to saltwater exposure and mechanical shock.

Packaging and Process Lines: High-speed rotary equipment in food, beverage, and pharmaceutical packaging lines requires vibration monitoring to maintain product quality and prevent unplanned line stoppages. The sensor's compact form factor allows installation in space-constrained machinery housings without modification to existing equipment structures.

Q1: Is the 330500-08-01 directly compatible with all 3500 Series monitor modules, or are specific module types required?The 330500-08-01 Velomitor sensor is compatible with 3500 Series seismic monitor modules, specifically the 3500/42M and 3500/40M Proximitor/Seismic Monitor Modules, which are designed to accept velocity sensor inputs. It is not intended for use with proximity monitor modules (such as the 3500/25) that are configured exclusively for eddy-current proximity probe inputs. When specifying a 3500 rack configuration, confirm that the installed monitor module type matches the sensor output type to ensure correct signal processing and setpoint configuration.

Q2: Can the 330500-08-01 be used in a redundant monitoring architecture, and what are the wiring requirements?Yes. Redundant velocity monitoring configurations are supported by installing two 330500-08-01 sensors at the same measurement point (or at opposing bearing housings) and connecting each to a separate monitor module channel within the 3500 rack. Each sensor requires its own shielded, twisted-pair cable run to the rack I/O terminal block, with shield grounded at the rack end only to prevent ground loops. Redundant power supply modules (3500/15) should be installed to maintain rack operation during single power supply failures, ensuring continuous protection coverage in accordance with API 670 requirements.

Q3: What is the warranty coverage and availability lead time for the 330500-08-01?All 330500-08-01 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects, output calibration drift, and connector integrity failures. Units are maintained in stock and undergo pre-shipment functional testing — including output linearity verification, frequency response check, and connector inspection — prior to dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments. For urgent replacement requirements, expedited dispatch is available; contact [email protected] or +86 18359268345 to confirm current stock status and shipping options.
