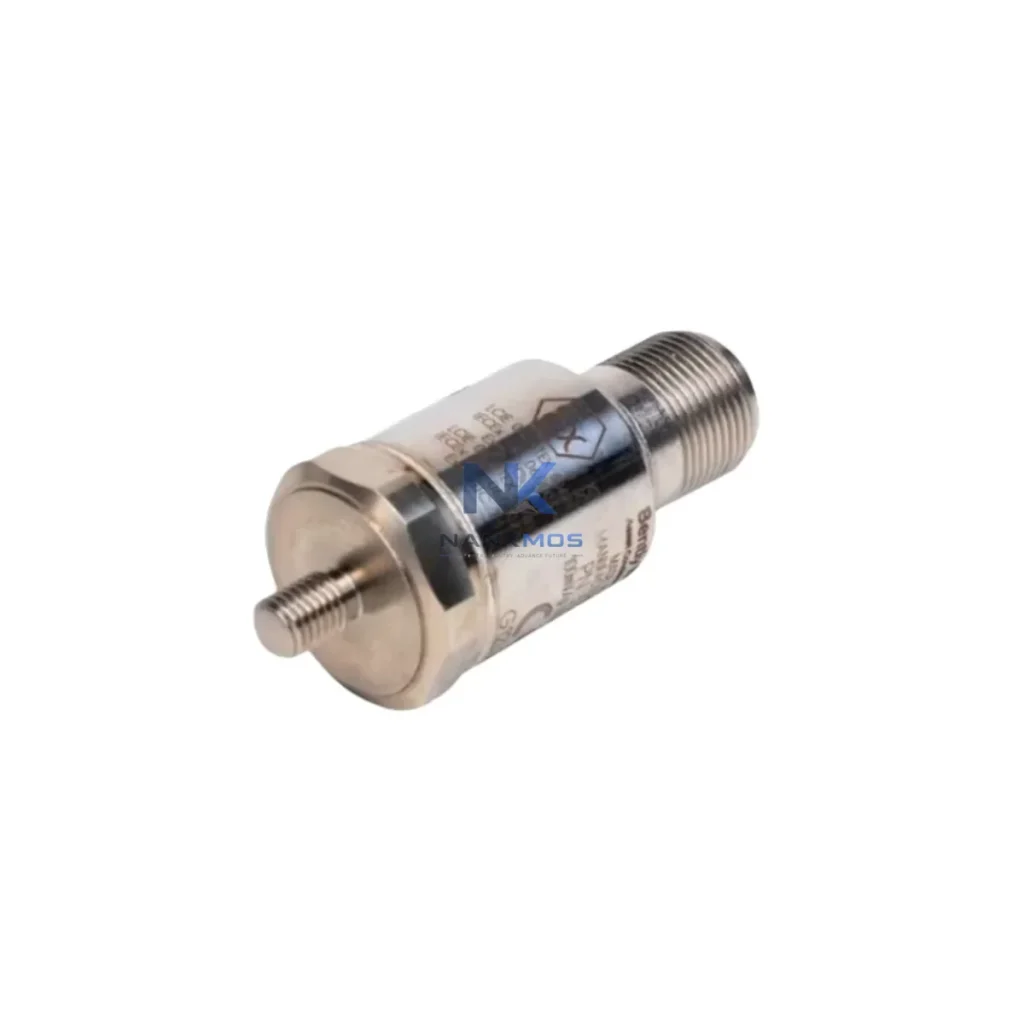

Bently Nevada 330525-02 Vibration Monitoring Sensor

Product Details

330525-02 Product Description

The Bently Nevada 330525-02 Velomitor XA is a high-performance piezoelectric velocity transducer engineered for continuous vibration monitoring in demanding industrial environments. Delivering a calibrated analog output signal — typically 100 mV/in/s — this sensor forms a critical node in the plant-wide data acquisition chain, bridging rotating machinery health directly into SCADA, DCS, and PLC control architectures. Whether deployed on turbines, compressors, pumps, or motors, the 330525-02 provides the real-time signal fidelity that modern smart factory data pipelines depend on.

In a fully connected smart factory, the Bently Nevada 330525-02 sits at the signal acquisition layer — the first point of truth in the industrial data chain. Mounted on a motor or compressor bearing housing, it captures velocity vibration signals and feeds them into a Bently Nevada 3500/42M Proximitor/Seismic Monitor, which conditions and digitizes the analog output for transmission to the plant control network.

From the monitor rack, conditioned data travels via hardwired I/O or fieldbus to a Bently Nevada System 1 machinery protection and condition monitoring platform, where vibration trends, alarm thresholds, and trip setpoints are configured. The System 1 platform communicates upstream to a Rockwell Automation ControlLogix PLC or Siemens S7-400 controller via OPC-UA or Modbus TCP, enabling the control layer to respond to vibration exceedances with automated shutdown or load-shedding sequences.

For facilities running distributed control, the analog signal chain from the 330525-02 can be routed through a Phoenix Contact FL IL 24 BK-PAC remote I/O coupler or a Moxa NE-4110A serial-to-Ethernet device server, converting legacy analog signals into Ethernet-ready data packets for transmission across the plant PROFINET or EtherNet/IP backbone. An industrial managed Ethernet switch — such as the Hirschmann MACH 100 series — provides the Layer 2 switching fabric that ensures deterministic, low-latency delivery of vibration data to the SCADA historian.

At the SCADA layer, platforms such as GE iFIX or Wonderware InTouch receive the vibration data stream and render real-time trend displays, alarm dashboards, and historical plots for operations and maintenance teams. Edge computing nodes — for example, a Siemens SIMATIC IPC427E industrial PC — can run local analytics, applying FFT spectrum analysis to the 330525-02 signal to detect bearing defect frequencies, imbalance, or misalignment before faults escalate to unplanned downtime.

For remote sites or multi-plant deployments, a Moxa EDR-810 industrial secure router or Ewon Flexy 205 industrial IoT gateway tunnels vibration data securely over VPN to the enterprise historian or cloud-based condition monitoring platform, enabling remote diagnostics and predictive maintenance scheduling without requiring on-site personnel. This end-to-end architecture — from the 330525-02 sensor through monitor, PLC, switch, SCADA, and edge gateway — exemplifies the connected factory data flow that reduces unplanned outages and extends asset life.

Many industrial facilities face persistent data gaps: vibration sensors that output analog signals cannot be directly read by modern Ethernet-based SCADA or MES systems without signal conditioning and protocol conversion. The Bently Nevada 330525-02 addresses this by delivering a clean, calibrated analog velocity signal that is universally compatible with standard I/O modules, signal conditioners, and analog input cards across all major PLC and DCS platforms.

Where protocol fragmentation creates data silos — for example, when legacy Modbus RTU devices coexist with newer PROFINET or EtherNet/IP networks — the 330525-02's analog output serves as a protocol-agnostic signal source. Any gateway or I/O module capable of reading a voltage or current signal can ingest the vibration data and re-publish it in the target protocol, eliminating the need for proprietary sensor interfaces.

Remote monitoring challenges are similarly resolved: by routing the 330525-02 signal through an edge gateway with cellular or fiber uplink, maintenance engineers can access real-time vibration trends and alarm histories from any location, enabling condition-based maintenance decisions without travel. Alarm tracking is tightened by configuring the Bently Nevada 3500 monitor to generate discrete relay outputs on alarm or danger thresholds, which are wired directly to PLC digital inputs for automated response and event logging in the SCADA historian.

For production line transparency, the 330525-02 data stream can be integrated into OEE (Overall Equipment Effectiveness) dashboards, correlating vibration health with production throughput and quality metrics. System expansion is straightforward: additional Velomitor XA sensors can be added to the 3500 monitor rack without changes to the upstream network architecture, supporting phased rollout across multiple asset classes.

Q1: What communication protocols does the Bently Nevada 330525-02 support, and how does it integrate with SCADA systems?The 330525-02 outputs a standard analog velocity signal (mV/in/s) that is compatible with any analog input module across Modbus, PROFIBUS, PROFINET, EtherNet/IP, and OPC-UA architectures. Integration with SCADA is achieved via the Bently Nevada 3500 monitor rack, which provides analog and relay outputs readable by any standard PLC or DCS I/O card, and optionally via OPC-UA server for direct SCADA historian connectivity.

Q2: How is network stability and data continuity ensured in high-vibration or electrically noisy environments?The 330525-02 uses a shielded coaxial cable connection and is designed for operation in high-EMI industrial environments. Signal integrity is maintained through proper cable routing, grounding, and the use of signal conditioners or isolation amplifiers where required. The Bently Nevada 3500 monitor provides continuous self-diagnostics and will generate a system alarm if sensor signal loss or out-of-range conditions are detected, ensuring data continuity and early fault notification.

Q3: Can the 330525-02 support remote diagnostics and predictive maintenance workflows?Yes. When integrated with the Bently Nevada System 1 platform or a compatible edge gateway, the 330525-02 signal can be analyzed remotely for vibration trend deviations, spectrum anomalies, and alarm threshold breaches. Remote diagnostic access is enabled via VPN-secured industrial routers, allowing maintenance engineers to review vibration data, adjust alarm setpoints, and schedule maintenance interventions without on-site presence.

Q4: What is the warranty coverage, and how is pre-shipment testing conducted?Every Bently Nevada 330525-02 unit supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and performance deviations. Prior to shipment, each unit undergoes functional output verification and sensitivity calibration checks to confirm compliance with Bently Nevada factory specifications. Detailed test records are available upon request to support incoming inspection and quality assurance processes.
