Bently Nevada 330703-00-050-10-02-00 Proximity Probe

Product Details

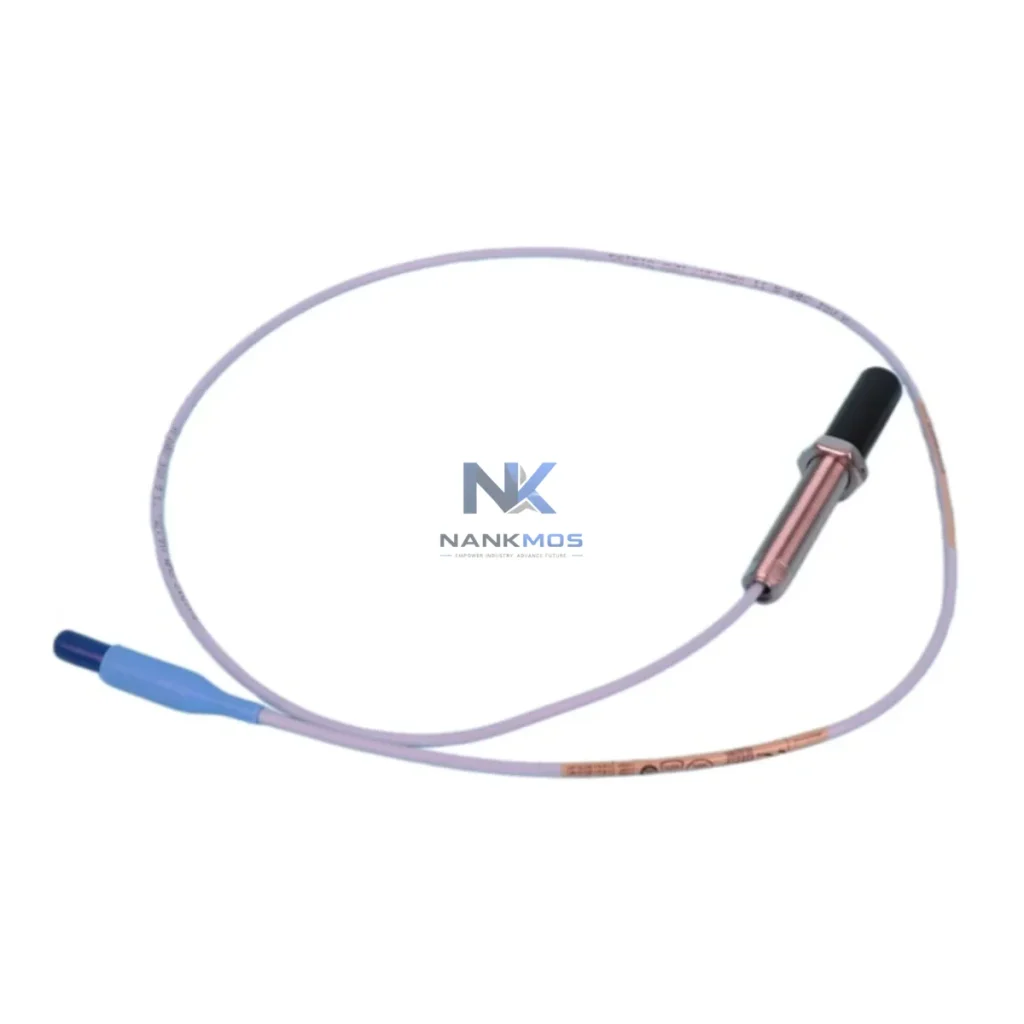

330703-00-050-10-02-00 Product Description

In modern smart manufacturing environments, real-time machine health data is the backbone of predictive maintenance and operational continuity. The Bently Nevada 330703-00-050-10-02-00 is a high-precision eddy current proximity probe from the renowned 3300 XL Series, engineered to deliver continuous, high-fidelity vibration and shaft displacement signals directly into your plant's industrial data network. Whether integrated into a DCS, SCADA platform, or edge computing gateway, this probe forms a critical node in the connected factory data chain — from raw signal acquisition at the machine shaft to real-time visualization on the control room HMI.

Designed for rotating machinery protection in turbines, compressors, pumps, and motors, the 330703-00-050-10-02-00 operates within the Bently Nevada 3300 XL ecosystem, where it pairs seamlessly with 3300 XL Proximitor® sensors and 3500 Series Machinery Protection System rack modules to convert mechanical displacement into conditioned analog signals. These signals are then routed through 4–20 mA or voltage output interfaces into plant-level communication infrastructure — including Modbus RTU/TCP, PROFIBUS DP, FOUNDATION Fieldbus, and OPC-UA-compatible gateways — enabling full protocol interoperability across heterogeneous automation networks.

The 330703-00-050-10-02-00 proximity probe is the first link in a multi-layer industrial data chain. Installed at the machine bearing housing, it continuously measures radial shaft displacement and transmits a conditioned analog signal to the paired Bently Nevada 3300 XL Proximitor® Sensor (e.g., 330180-X1-05), which provides the required –24 VDC excitation and signal conditioning. The Proximitor output is then wired into a Bently Nevada 3500/40M Proximitor® I/O Module housed within the 3500 Series rack — a modular machinery protection platform that supports up to 16 measurement channels per rack and communicates upstream via Modbus TCP or OPC-UA to plant SCADA systems.

At the network layer, the 3500 rack's communication module connects to an industrial managed Ethernet switch — such as those from the Hirschmann MACH or Phoenix Contact FL SWITCH series — which aggregates data from multiple protection racks, Allen-Bradley ControlLogix PLCs, and Siemens S7-300/400 controllers across the plant floor. This aggregated data stream flows into an edge computing gateway (e.g., Moxa MGate or Advantech ADAM-3600) that performs protocol translation between legacy serial Modbus RTU devices and modern Ethernet-based SCADA infrastructure.

On the SCADA and HMI layer, vibration trend data from the 330703-00-050-10-02-00 is visualized in real time on platforms such as GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation, where operators can monitor shaft orbit plots, trend gap voltage, and configure alarm setpoints for high-vibration trips. Integration with OSIsoft PI Historian or similar time-series databases enables long-term data archiving for reliability analysis and predictive maintenance modeling.

For remote diagnostic scenarios — particularly in unmanned substations or offshore platforms — the data path extends through industrial 4G/LTE routers or fiber optic ring networks to centralized condition monitoring centers, where engineers can remotely access live vibration spectra, review alarm histories, and adjust protection setpoints without on-site intervention. This end-to-end connectivity — from the probe tip at the machine shaft to the cloud-based analytics dashboard — defines the value of the 330703-00-050-10-02-00 in a fully networked smart factory architecture.

Protocol Fragmentation: Many industrial sites operate a mix of legacy serial protocols (Modbus RTU, PROFIBUS DP) alongside modern Ethernet-based systems (Modbus TCP, EtherNet/IP, OPC-UA). The 330703-00-050-10-02-00, when integrated with the Bently Nevada 3500 communication module and a compatible protocol gateway, bridges this gap — ensuring vibration data reaches both legacy DCS controllers and modern cloud-connected SCADA platforms without data loss or latency spikes.

Data Silos and Machine Transparency: Rotating machinery health data is often siloed within standalone protection systems, invisible to plant-wide MES or ERP platforms. By routing 3300 XL probe data through OPC-UA servers into enterprise integration middleware, maintenance teams gain full production-line transparency — correlating vibration anomalies with process variables such as flow rate, temperature, and load from Yokogawa CENTUM VP or Emerson DeltaV DCS systems.

Remote Monitoring and Alarm Traceability: Without a connected data path, alarm events from proximity probes are often missed or poorly documented. The 330703-00-050-10-02-00 integrated into the 3500 rack provides timestamped alarm records — high-vibration, high-gap, and danger trips — that are automatically logged to SCADA historians and can trigger automated work orders in CMMS platforms, closing the loop between machine event and maintenance response.

System Scalability: As plant capacity expands, additional 330703-series probes can be added to existing 3500 rack slots without rewiring the communication backbone. The modular architecture of the 3300 XL / 3500 ecosystem supports incremental channel expansion, making it a future-proof investment for greenfield and brownfield smart factory projects alike.

Q1: What communication protocols does the Bently Nevada 330703-00-050-10-02-00 support for SCADA integration? The probe itself outputs an analog voltage signal, which is processed by the 3300 XL Proximitor® sensor and fed into the Bently Nevada 3500 Series rack. The 3500 rack's communication module supports Modbus TCP, Modbus RTU, and OPC-UA (depending on the installed communication card), enabling direct integration with SCADA platforms such as Ignition, Wonderware, and GE iFIX. For PROFIBUS DP or FOUNDATION Fieldbus environments, a compatible protocol gateway is required.

Q2: How does the 330703-00-050-10-02-00 ensure network stability and data integrity in high-noise industrial environments? The 3300 XL proximity probe system uses shielded coaxial cable assemblies and differential signal conditioning within the Proximitor® sensor to reject electromagnetic interference common in motor drive and switchgear environments. The 3500 rack's Ethernet communication module supports redundant network topologies (ring, star) via managed industrial switches, ensuring continuous data transmission even during single-link failures.

Q3: Can the 330703-00-050-10-02-00 be used for remote diagnostics and predictive maintenance? Yes. When integrated into a connected 3500 rack with OPC-UA or Modbus TCP communication, vibration trend data from the 330703-00-050-10-02-00 can be streamed to remote condition monitoring platforms via industrial routers or fiber networks. Engineers can remotely access shaft orbit data, gap voltage trends, and alarm histories — enabling predictive maintenance decisions without requiring on-site access to the machinery protection panel.

Q4: What is the warranty coverage and pre-shipment testing process for the 330703-00-050-10-02-00? All Bently Nevada 330703-00-050-10-02-00 units supplied by NANKMOS are covered by a 12-month warranty against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional verification — including gap voltage output check, cable continuity test, and connector integrity inspection — to ensure it meets Bently Nevada OEM specifications before dispatch. Expedited shipping and in-stock availability are supported for urgent maintenance and shutdown requirements.
