Bently Nevada 330703-000-026-50-02-CN

Product Details

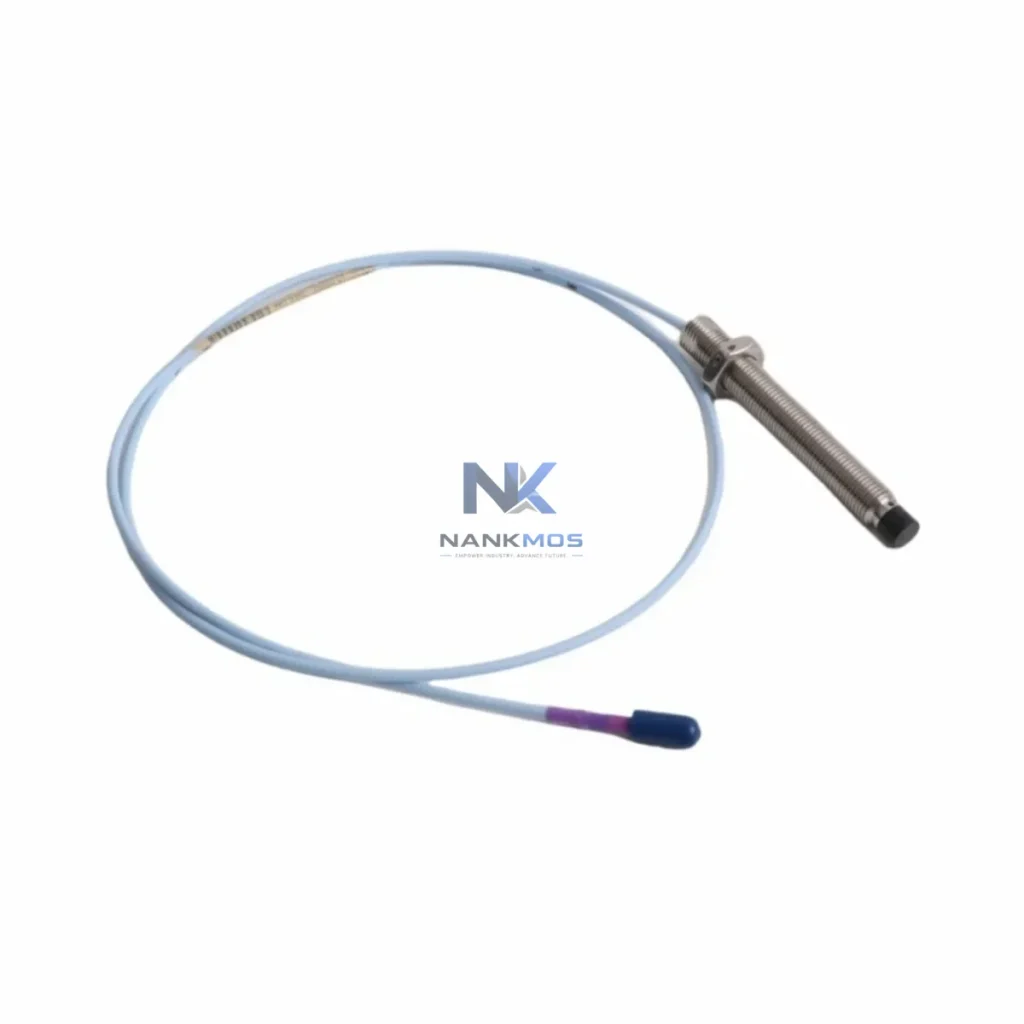

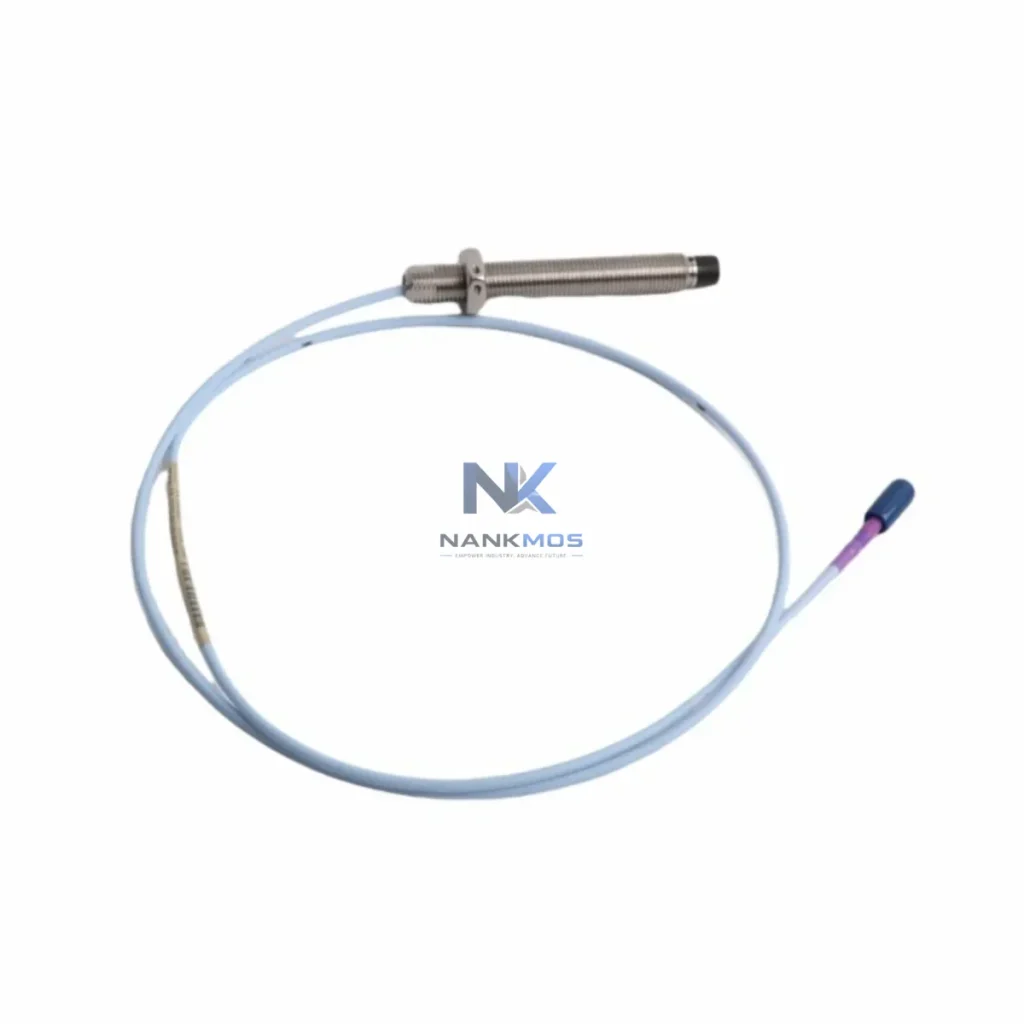

330703-000-026-50-02-CN Product Description

The Bently Nevada 330703-000-026-50-02-CN is an 11mm eddy-current proximity transducer from the renowned 3300 XL Series, engineered to deliver continuous, high-resolution vibration and position data from rotating machinery directly into the smart factory data chain. Designed for critical asset protection in turbines, compressors, pumps, motors, and gearboxes, this transducer forms the foundational sensing node in a fully connected industrial monitoring architecture — bridging raw mechanical signal acquisition with real-time SCADA visualization, remote diagnostics, and predictive maintenance workflows.

In modern smart manufacturing environments, the integrity of the data link between field-level sensors and upper-level control systems determines the reliability of every downstream decision. The 330703-000-026-50-02-CN is built to anchor that link with precision, stability, and protocol-ready output that integrates seamlessly into Bently Nevada's System 1 condition monitoring platform and third-party SCADA/HMI environments alike.

The 330703-000-026-50-02-CN operates as the primary signal acquisition node in a layered industrial data architecture. At the field level, the transducer's eddy-current tip detects shaft radial vibration and axial displacement with sub-micron sensitivity, converting mechanical motion into a continuous analog voltage signal. This signal is routed via matched coaxial cable to a Bently Nevada 3300 XL Proximitor/Seismic Monitor — the companion driver module that conditions, scales, and transmits the measurement to the monitoring rack.

Within the Bently Nevada 3300 XL Monitor Rack, dedicated I/O modules process multiple transducer channels simultaneously, applying alarm thresholds, danger setpoints, and relay outputs. The rack's analog outputs (4–20 mA or 0–10 VDC) feed directly into Siemens S7-300/400 PLCs or Allen-Bradley ControlLogix controllers, where vibration data is merged with process variables from temperature transmitters, flow sensors, and pressure transducers on the same control network.

For facilities running Emerson DeltaV DCS or Honeywell Experion PKS, the 3300 XL monitor's relay and analog outputs integrate natively via hardwired I/O or through a Moxa NPort 5150 serial-to-Ethernet gateway, enabling Modbus TCP tunneling of vibration data to the plant historian and SCADA layer. At the SCADA level, platforms such as Wonderware InTouch or GE iFIX receive real-time vibration trend data, rendering dynamic dashboards that display shaft orbit plots, time-waveform analysis, and alarm event logs accessible to both control room operators and remote maintenance engineers.

Edge intelligence is added through Bently Nevada System 1 Software, which aggregates data from multiple 3300 XL racks across the plant, performs automated spectrum analysis, and generates predictive maintenance alerts before machinery reaches critical vibration thresholds. System 1 communicates upstream via OPC-DA/UA to enterprise asset management platforms, closing the loop between field sensor data and maintenance scheduling systems.

For remote site deployments — offshore platforms, pipeline compressor stations, or unmanned substations — the data chain extends further through Advantech WISE-4000 series wireless I/O modules or Pepperl+Fuchs WirelessHART adapters, transmitting vibration data over secure industrial wireless networks to centralized monitoring centers. This architecture ensures that the 330703-000-026-50-02-CN's measurements are never isolated: every vibration event is captured, contextualized, and delivered to the right decision-maker in real time, regardless of physical distance.

Power for the transducer system is supplied through the 3300 XL monitor rack's internal –24 VDC regulated supply, while auxiliary field junction boxes and Phoenix Contact QUINT industrial power supplies ensure stable, noise-free power delivery across the cable run — critical for maintaining signal integrity in electrically noisy plant environments with variable-frequency drives and high-current motor starters nearby.

Protocol Fragmentation: Many industrial sites operate a mix of legacy 4–20 mA instrumentation alongside modern Profibus, Modbus, and OPC-UA networks. The 330703-000-026-50-02-CN's analog output is universally compatible, and when paired with a protocol gateway, its data can be published to any supervisory network without replacing existing infrastructure — eliminating the protocol mismatch that creates vibration data blind spots in mixed-generation plants.

Data Silos and Asset Visibility: Rotating machinery vibration data is frequently trapped in standalone condition monitoring systems disconnected from the plant DCS or ERP. By routing 3300 XL monitor outputs through Modbus TCP gateways into the main SCADA historian, maintenance teams gain unified asset visibility — correlating vibration trends with process load, temperature, and throughput data to identify root causes faster and reduce unplanned downtime.

Remote Monitoring and Diagnostics: For assets in hazardous or physically inaccessible locations, the 330703-000-026-50-02-CN's continuous analog output enables 24/7 remote vibration monitoring without manual rounds. Alarm relay outputs from the 3300 XL monitor can trigger automated SMS/email notifications through SCADA alarm management systems, ensuring that bearing wear, rotor imbalance, or misalignment events are flagged immediately — even outside staffed hours.

Production Line Transparency and Alarm Traceability: Integrating vibration data into the plant MES or SCADA historian creates a complete audit trail of machinery health events correlated with production batches. This traceability supports root-cause analysis after quality deviations, regulatory compliance reporting, and continuous improvement programs targeting OEE (Overall Equipment Effectiveness).

System Scalability: The 3300 XL platform's modular rack architecture allows additional transducer channels — including velocity seismic sensors, temperature monitors, and speed/phase reference probes — to be added without replacing the existing monitoring infrastructure. The 330703-000-026-50-02-CN is fully compatible with this expansion path, protecting the initial instrumentation investment as monitoring requirements grow.

Q1: What communication protocols does the 330703-000-026-50-02-CN support for SCADA integration? The transducer itself outputs an analog voltage signal processed by the Bently Nevada 3300 XL Proximitor and monitor module. The monitor provides 4–20 mA analog outputs and relay contacts that connect directly to PLC/DCS I/O cards. For digital protocol integration (Modbus RTU/TCP, OPC-DA/UA, Profibus), a serial or Ethernet gateway is used between the 3300 XL monitor and the SCADA network — enabling full integration with any modern supervisory platform without signal loss or latency issues.

Q2: How is network stability and signal integrity maintained over long cable runs? The 3300 XL system uses matched coaxial cable assemblies with specified impedance and capacitance characteristics to maintain signal integrity from transducer to proximitor. Cable lengths are engineered within Bently Nevada's validated range for the 330703 series. For installations in high-EMI environments (near VFDs or large motors), shielded cable routing and proper grounding practices per Bently Nevada installation guidelines ensure stable, noise-free vibration data transmission.

Q3: Can this transducer be used for remote diagnostics and predictive maintenance? Yes. When integrated with Bently Nevada System 1 software or a third-party condition monitoring platform via OPC-UA, the 330703-000-026-50-02-CN enables continuous remote vibration trending, spectrum analysis, and automated alarm generation. Remote maintenance engineers can access real-time and historical vibration data from any networked workstation, enabling predictive maintenance decisions without physical site visits — reducing both maintenance costs and unplanned downtime risk.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed? Every 330703-000-026-50-02-CN unit supplied by NANKMOS undergoes functional verification testing prior to shipment, confirming output linearity, sensitivity, and electrical integrity against Bently Nevada factory specifications. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Replacement or repair is provided at no charge within the warranty period. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
