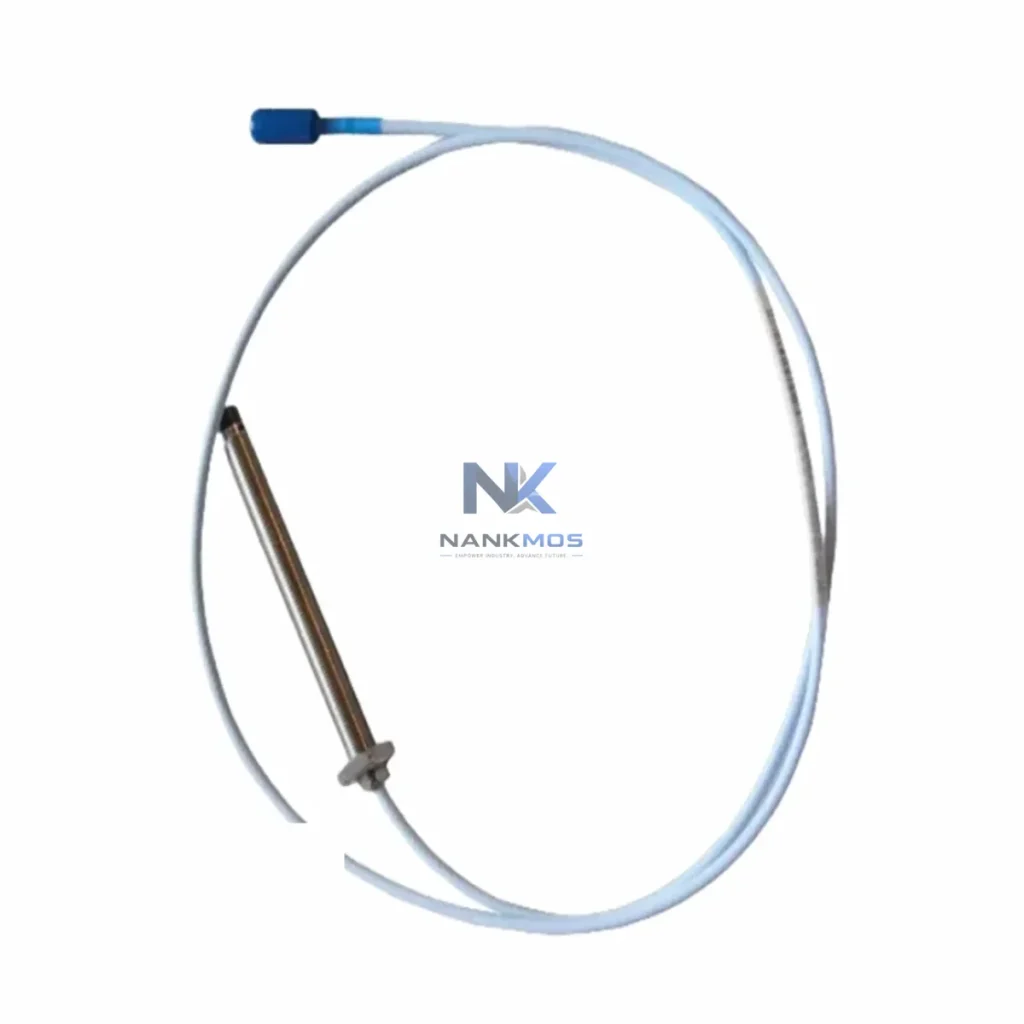

Bently Nevada 330703-000-100-10-02-00 Proximity Probe

Product Details

330703-000-100-10-02-00 Product Description

The Bently Nevada 330703-000-100-10-02-00 is a high-precision proximity probe engineered for the 3300 XL Series continuous machinery protection system. Designed to deliver real-time shaft displacement and vibration data across industrial network architectures, this probe serves as a critical signal-acquisition node in smart factory environments where uninterrupted data flow between field devices, control systems, and supervisory platforms is non-negotiable. From rotating machinery on the plant floor to centralized SCADA dashboards in the control room, the 330703-000-100-10-02-00 anchors the data chain that drives predictive maintenance, remote diagnostics, and operational transparency.

In a fully connected smart factory, the 330703-000-100-10-02-00 proximity probe operates as the first link in a multi-layer data chain. Mounted at the bearing housing of a high-speed turbine or compressor, the probe continuously measures shaft gap and radial vibration, feeding raw analog signals to the paired Bently Nevada 3300 XL Proximitor® Sensor — the signal conditioning module that converts eddy-current displacement into a calibrated DC voltage output. This conditioned signal is then routed to the Bently Nevada 3500 Series Machinery Protection System rack, where dedicated I/O modules process vibration amplitude, phase, and position data in real time.

From the 3500 rack, digitized process values are transmitted over industrial Ethernet or serial fieldbus to a Bently Nevada System 1® Evolution condition monitoring server, which aggregates machinery health data across multiple asset trains. Simultaneously, a Moxa NPort 5600 Series Serial Device Server or equivalent industrial gateway bridges legacy serial outputs to modern TCP/IP networks, enabling integration with plant-wide SCADA platforms such as GE iFIX, Wonderware AVEVA, or Ignition by Inductive Automation. HMI panels — including Siemens SIMATIC TP1200 Comfort or Rockwell Automation PanelView Plus 7 — display live vibration trends, alarm states, and trip thresholds directly on the production floor.

For distributed control, a Rockwell Automation ControlLogix L8x PLC or ABB AC500 Series controller receives structured data packets from the protection system via EtherNet/IP or Modbus TCP, enabling automated shutdown sequences when vibration exceeds programmed trip levels. Remote I/O nodes — such as the Phoenix Contact Axioline F Series — extend the monitoring network to auxiliary equipment without additional cabling infrastructure. Edge computing gateways, including the Advantech ECU-1251 Industrial IoT Gateway, perform local data preprocessing and push compressed telemetry to cloud-based analytics platforms, closing the loop between field-level signal acquisition and enterprise-level asset management dashboards.

Variable frequency drives (VFDs) monitoring motor load and speed — such as the ABB ACS880 Series — also feed process data into the same network backbone, allowing cross-correlation between electrical load signatures and mechanical vibration patterns. This multi-source data convergence enables predictive maintenance algorithms to detect early-stage bearing wear, rotor imbalance, and misalignment weeks before a failure event, dramatically reducing unplanned downtime and maintenance costs across the smart factory.

Protocol Fragmentation: Many legacy machinery protection systems output analog or proprietary serial signals that cannot be directly consumed by modern DCS or SCADA platforms. The 330703-000-100-10-02-00, when paired with the 3300 XL Proximitor® and an appropriate protocol gateway, bridges this gap — converting raw displacement signals into Modbus RTU, PROFIBUS DP, or OPC-UA data streams that any modern control system can ingest without custom engineering.

Data Silos and Production Transparency: Isolated vibration monitoring systems that do not share data with the plant historian or MES create blind spots in production transparency. Integrating the 330703-000-100-10-02-00 into a unified data architecture — via System 1® or a third-party SCADA — ensures that machinery health KPIs appear alongside production throughput, energy consumption, and quality metrics on a single operational dashboard.

Remote Monitoring and Alarm Tracking: In unmanned or remotely operated facilities, real-time alarm propagation is critical. The 330703-000-100-10-02-00 data chain supports configurable alarm thresholds at the 3500 rack level, with alarm events forwarded via OPC-UA or MQTT to remote NOC (Network Operations Center) platforms. Maintenance engineers receive push notifications on mobile devices, enabling rapid remote diagnosis before dispatching field technicians.

System Scalability: As production lines expand, additional proximity probe channels can be added to existing 3500 rack slots without redesigning the network architecture. The modular design of the 3300 XL system ensures that new 330703-series probes integrate seamlessly into the existing data backbone, supporting phased smart factory rollouts without capital-intensive infrastructure upgrades.

Q1: What communication protocols does the 330703-000-100-10-02-00 support for SCADA integration? The probe itself outputs an analog DC signal, which is conditioned by the 3300 XL Proximitor® Sensor. When connected to a Bently Nevada 3500 rack with a communication gateway module, the system supports Modbus RTU, Modbus TCP, PROFIBUS DP, and OPC-UA — enabling direct integration with all major SCADA, DCS, and historian platforms. Pre-shipment communication testing is included with every unit shipped from NANKMOS.

Q2: How is network stability ensured in high-vibration industrial environments? The 330703-000-100-10-02-00 uses a shielded coaxial cable assembly rated for industrial EMI environments. The eddy-current sensing principle is inherently immune to electrical noise, ensuring stable signal transmission even in proximity to high-power VFDs, motor starters, and switching power supplies. Network-level redundancy can be implemented at the 3500 rack communication layer using dual-port Ethernet modules.

Q3: Can this probe be integrated into an existing Modbus or EtherNet/IP network without replacing the entire protection system? Yes. If an existing 3500 Series rack is already installed, the 330703-000-100-10-02-00 can be added as an additional channel using available rack slots. For legacy 3300 XL installations without network connectivity, a standalone Modbus RTU-to-TCP converter or OPC-UA gateway can be inserted between the Proximitor® output and the plant network, enabling protocol-transparent data access without system replacement.

Q4: What does the 12-Month Warranty cover, and what is the lead time for in-stock units? All Bently Nevada 330703-000-100-10-02-00 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance under specified operating conditions. In-stock units are pre-shipment tested for signal output accuracy and cable integrity before dispatch. Standard lead time for stocked units is 3–7 business days internationally. For urgent requirements, expedited shipping options are available — contact [email protected] or call +86 18359268345 for availability confirmation.
